UCHIDA ST-31 Bedienungsanleitung
Operation Manual
Large-Capacity Stacker ST-31
Read this “Operation Manual” carefully before use.
Keep it at a specific place for handy reference.
27.03.2002
Safety Instructions
Definition of Symbols and Notes
In this manual following names and signs stand for possible dangers.
Danger
This Symbol stands for immediate danger threatening the life and health of persons.
Disregarding these instructions may cause severe damage to health and even serious
injuries.
Caution
This symbol stands for an endangering situation that may occur. Disregarding these
instructions may lead to slight injuries or damage to property.
Note
This symbol stands for notes, operational hints and other useful information. They are
convenient for exploiting the machine’s functional abilities.
Danger
Do not damage, destroy or process the power plug and cord. Placing heavy things on the cord,
pulling it, or bending it forcibly may damage the plug and cord and cause fire or an electrical shock.
Do not plug or unplug the power cord from an outlet with a wet hand; it can result in an electrical
shock.
Operate the collator with the indicated current and voltage only. Use an exclusive outlet, as
overloading may cause fire.
Do not repair, dismantle, or remodel the machine by yourself. It may cause fire or an electrical
shock.
Do not put your hand inside the machine. It may make your hand caught in it and cause an injury.
Caution
Never unplug the power cord from the outlet by gripping the cord itself. Doing so may damage the
cord, causing fire or injury.
Do not put your fingers or articles in any revolving part of the machine during operation. It may
cause an injury.
Do not install the machine in a humid or dusty place; excessive humidity and dust can cause fire.
Do not use the outlet if the plug is not fixed but loose. It may cause fire or an electrical shock.
Do not use inflammable liquid such as gasoline, benzine, thinner, etc. It may cause an explosion or
fire.
Do not place the machine near flammable materials. It may cause fire.
When inserting the power plug in the outlet, insert it fully into the outlet. Otherwise, it may cause
fire.
When the machine body becomes hot after being used for a long time, turn off the switch and restart
it after temporary pause. Otherwise it may cause fire.
In case of irregularities, such as overheating, smoking and unusual odor, turn off the power switch
and remove the plug from the outlet. It may cause fire or an electrical shock.
When the machine will not be used for a long time, or in case of power failure, be sure to turn off the
power switch and remove the plug from the outlet. Otherwise, it may cause fire.
- 2 -
INTRODUCTION
Read this “Operation Manual” carefully before use.
Keep it at a specific place for handy reference.
Since the specifications of this machine are subject to change, be sure not to mistake this manual for one of
a different mode, descriptions of may differ.
CONTENTS
1. PRECAUTIONS BEFORE INSTALLATION AND USE .................................................4
1.1 PLACE FOR INSTALLATION..................................................................................................4
1.2 INSTALLATION....................................................................................................................4
1.3 CONFIRMATION OF CONTENTS AND ATTACHMENTS.............................................................4
2. COMPONENT NAME..........................................................................................................5
2.1 OVERVIEW .........................................................................................................................5
3. MATTERS FOR SPECIAL NOTE......................................................................................6
3.1 WHEN NOT IN USE..............................................................................................................6
4. PREPARATIONS BEFORE USE........................................................................................6
4.1 ASSEMBLYAND INSTALLATION OF STACKER.......................................................................6
4.2 INSTALLATION AND DISMANTLING OF FORCEFUL EJECTOR .................................................7
5. OPERATION .........................................................................................................................8
5.1 WHEN THE DIVISION OPTION IS SET TO ON..........................................................................8
5.2 WHEN THE DIVISION OPSION IS SET TO OFF.......................................................................10
6. MAINTENANCE, INSPECTION, EXPENDABLES ......................................................12
6.1 IMPORTANT FOR MAINTENANCE AND INSPECTION ............................................................12
6.2 DAILY MAINTENANCE ......................................................................................................12
7. RELOCATION OR DISPOSAL ........................................................................................13
7.1 RELOCATION....................................................................................................................13
7.2 DISPOSAL.........................................................................................................................13
8. PRODUCT SPECIFICATIONS.........................................................................................13
8.1 SPECIFICATIONS ...............................................................................................................13
- 3 -
1. Precautions before installation and use
1.1 Place for installation
Avoid installing the machine in the following places for the sake of safety and to prevent mechanical
problems.
[Precautions for installation]
・Locations with extremely high or low temperatures. Room temperature should be between 5 and 35
degrees centigrade.
・Locations with the potential for producing electrical leaks, for example, owing to splashing water.
・Near hear sources
・Places exposed to wind
・Narrow spots with poor ventilation, or dark places
1.2 Installation
Caution
Install the machine on a stable and level place. Otherwise, it may cause mechanical troubles.
Avoid installing the machine in humid and/or dusty places. It may cause fire oran electrical shock.
Set the collator on the collator table at a position about 55 mm from
its left edge (as viewed from the operator’s side).
Caution!
・The position of the collator’s rubber legs will be deviated from
the round slot forsetting the rubber legs on the machine table.
・In case two connected collators are used, place UC-1100L(Left
tower) in the position shown on the drawing on the right and
place UC-1100 (Right tower) in the normal position (round
dent on the cover panel of the collator table).
1.3 Confirmation of contents and attachments
After unpacking the collator, check the attachments. Should any part be missing, contact your dealer
immediately.
(1) Machine body (2) Paper butt unit (3) Dolly (4) Forceful ejector (5) Right guide for straight stacking
- 4 -

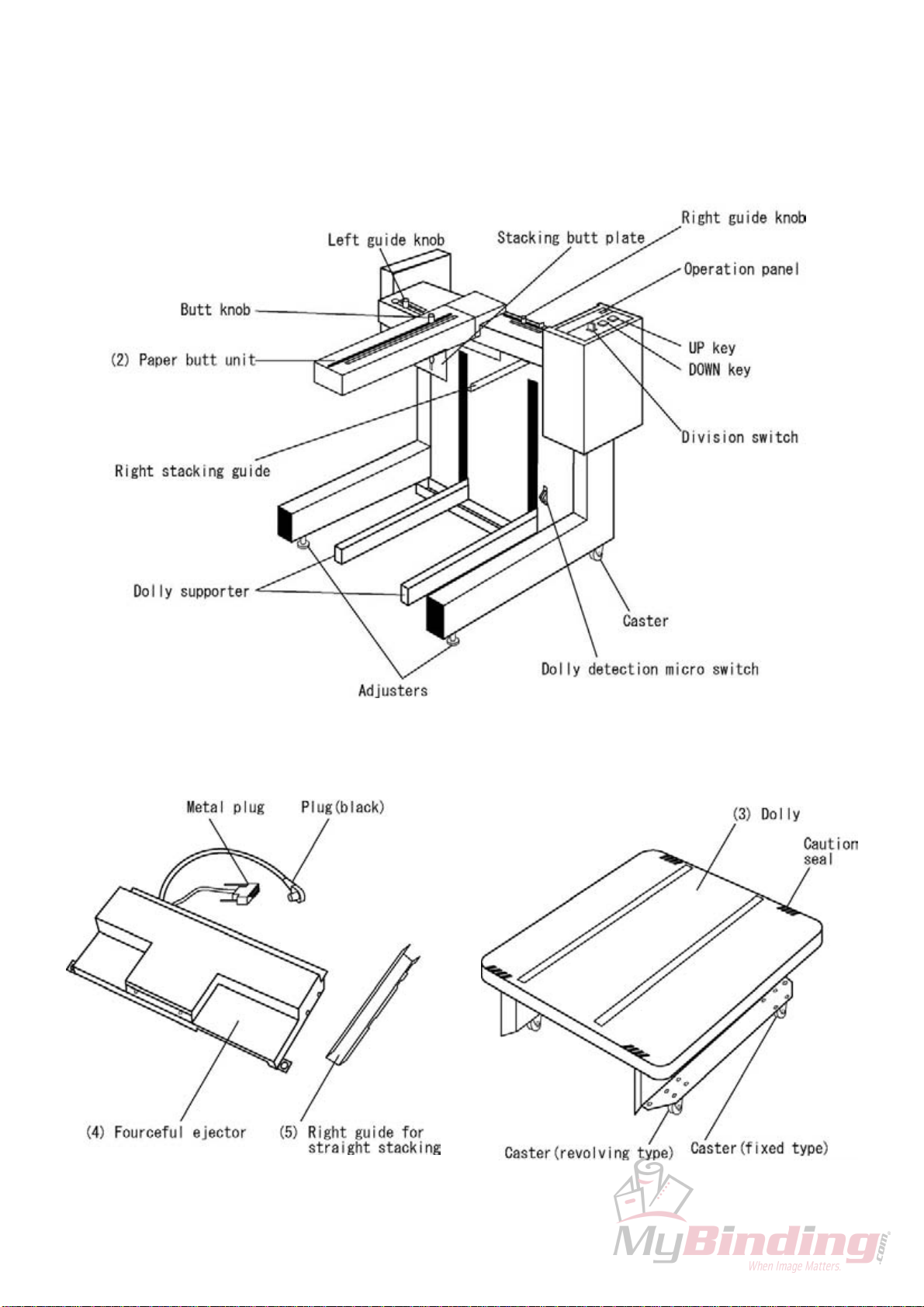

2. Component Name
2.1 Overview
- 5 -
3. Matters for special note
3.1 When not in use
・Be sure to remove the power plug from the outlet.
4. Preparations before use

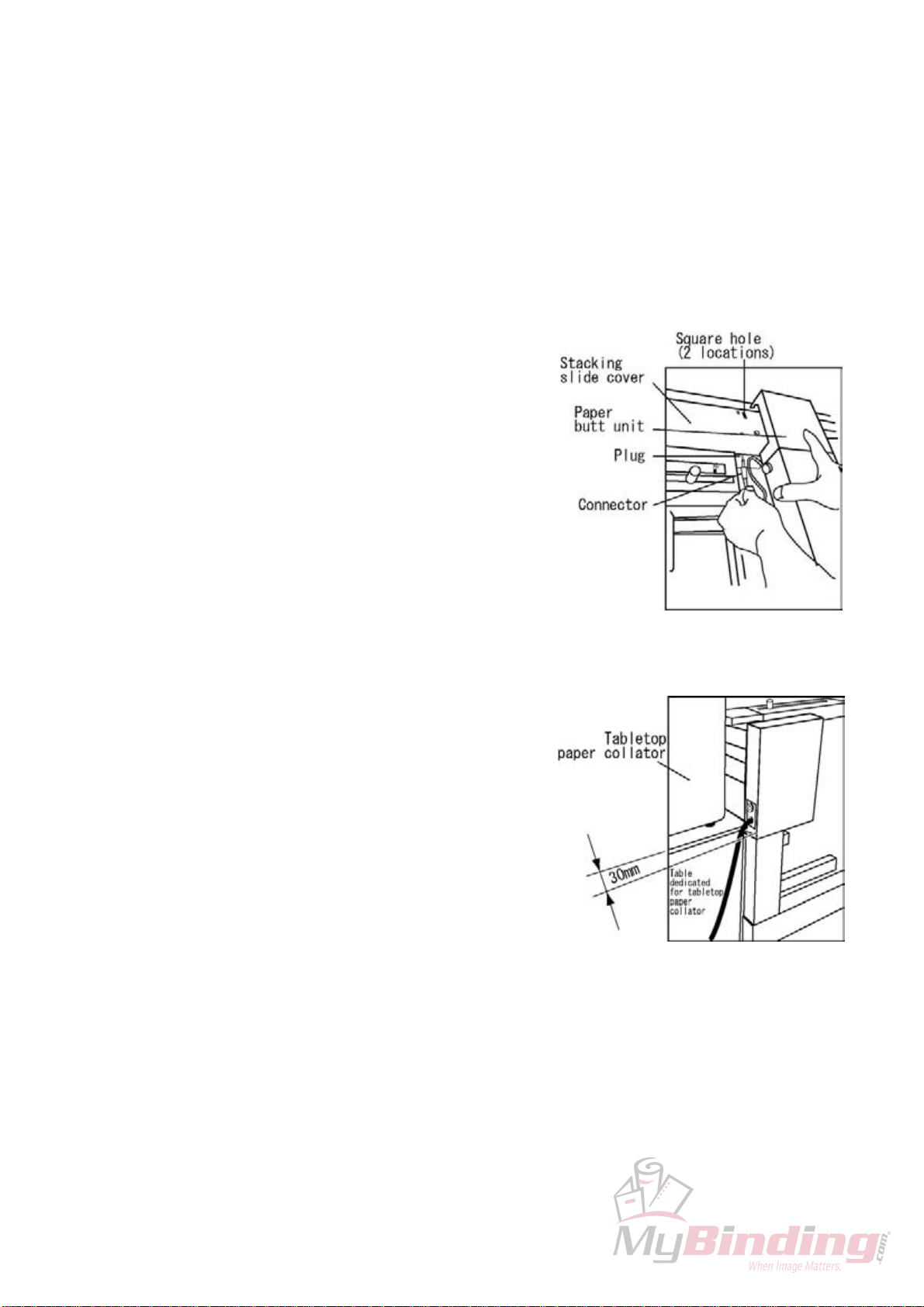

4.1 Assembly and installation of stacker
(1) Assembly
Insert the paper butt unit in the square hole on the stacking
slide cover, and insert the gray connector into the plug of
the stacking slide cover.
(2)Installation
Set the stacker on the collator table at a position about 55
mm from its left edge.
(As for the exact position, fine adjustment should be made
when the forceful ejector is installed.)
- 6 -

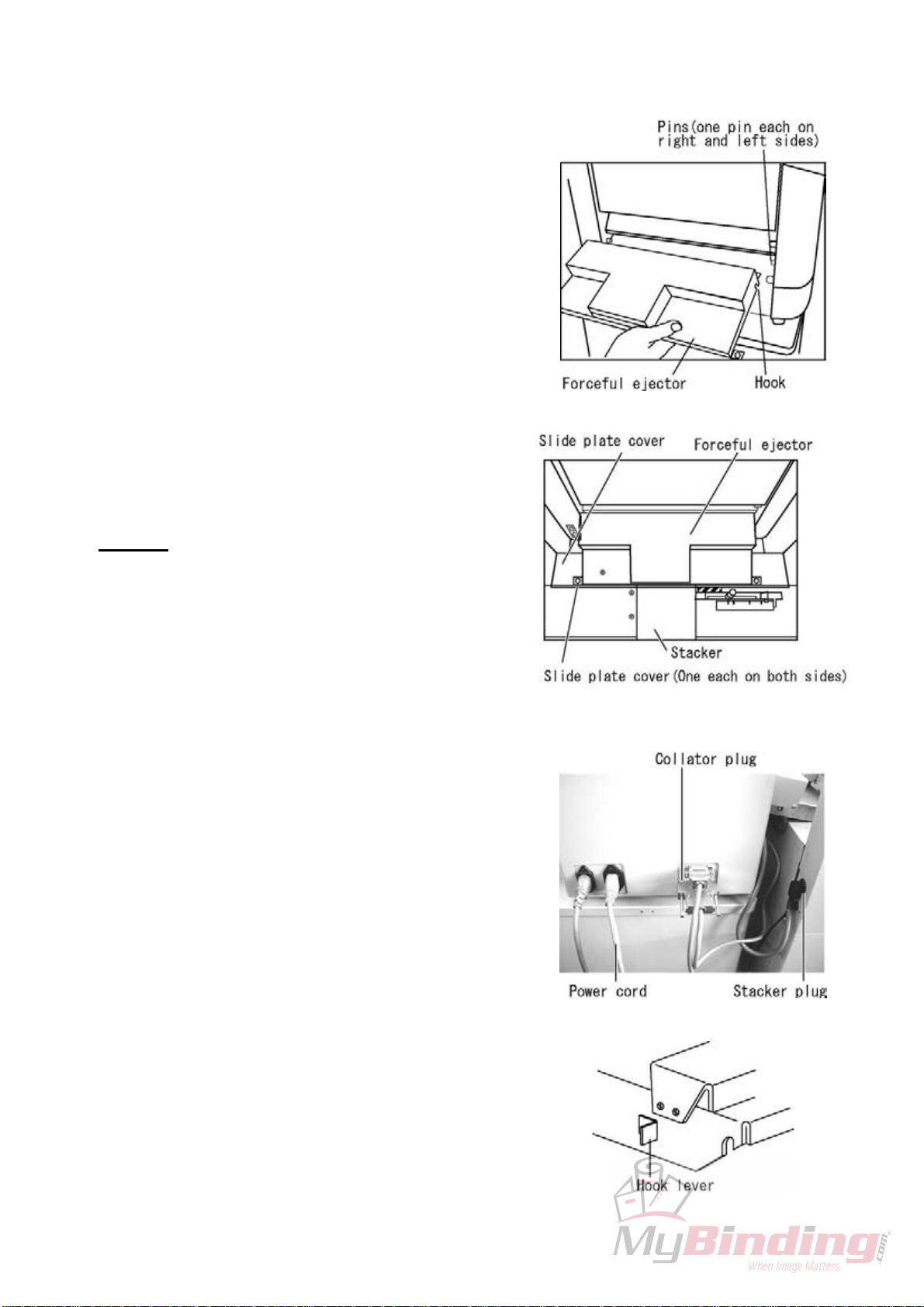

4.2 Installation and dismantling of forceful ejector
(1)Switch the stacking switch lever to the connection side.
(2) Firmly hook the pins (one black pin each on right and
left sides) set at the lower part of the collator on the hook
on the forceful ejector (on the stacker side).
(3) Put the round holes (12mm in diameter on both sides) of
the forceful ejector over the pins (two plated) on the
slide plate cover.
Caution!
Fit the holes into the pins while moving the stacker
from side to side.
(4) Of two connectors of the forceful ejector, insert the
black one in the black plug on the stacker, and the other
metal one in the metal plug on the collator (on its back
side), and insert the power cord into the plug of collator.
(5)In case it is removed, raise the forceful ejector while
pulling the hook levers on both sides toward you.
- 7 -
5. Operation

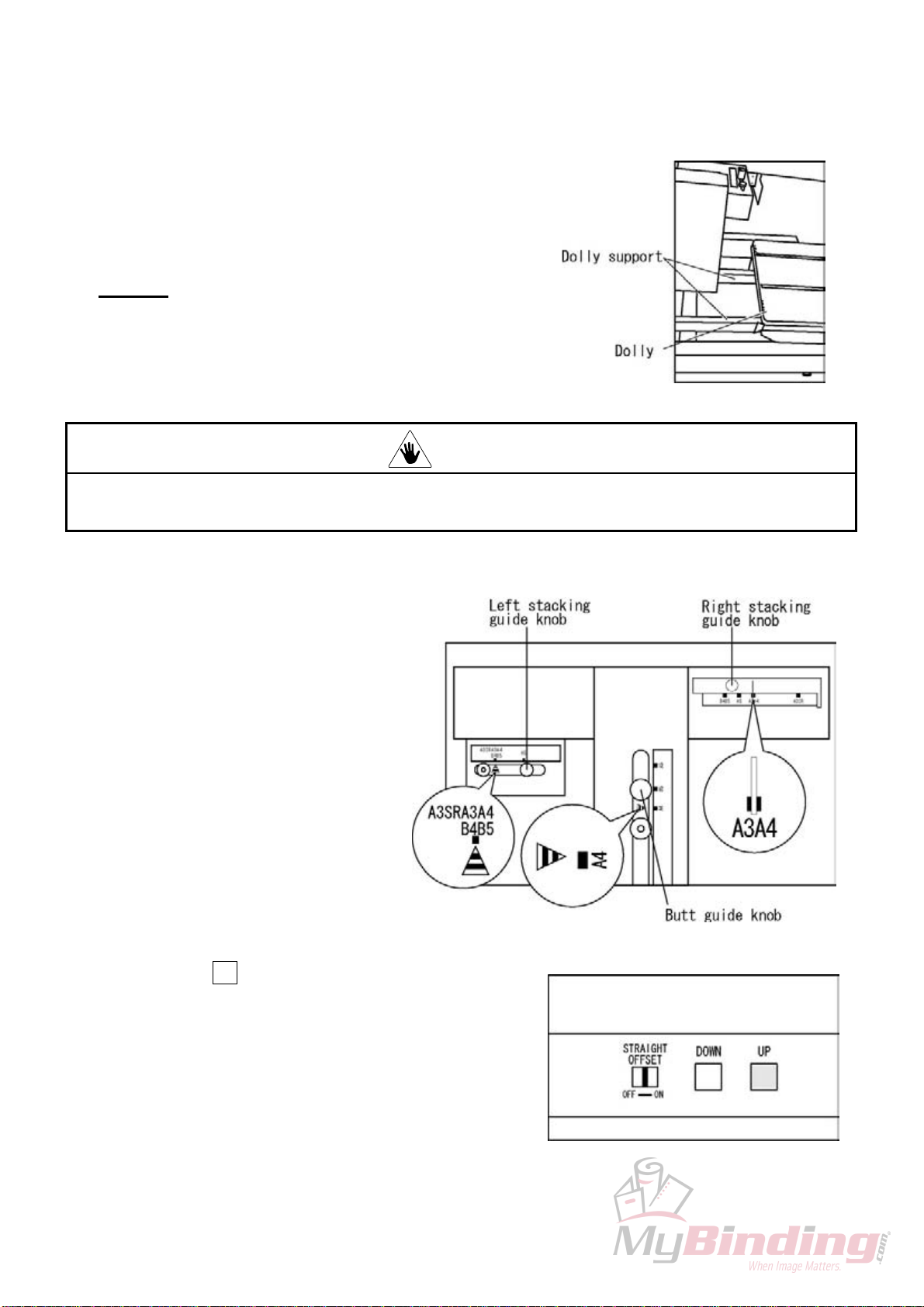

5.1 When the division option is set to ON
(1) Set the dolly on the dolly support.
The “UP” lamp lights.
Caution!
Push the dolly deep into the end and set it in the
correct position. The lamp will not light unless it is
properly set.
Danger
Do not your hand in the long hole of the slide plate and the machine while the dolly is moving up or
down. There is a danger that your hand may be caught in it.
(2) Loosen the adjusting knobs on the
right and left guides, and the butt
guide, and set them at appropriate
positions.
The drawing on the right shows the
case in which A4 size paper is used.
(3) Press the UP key and the dolly will automatically
move up to the prescribed position.
- 8 -
