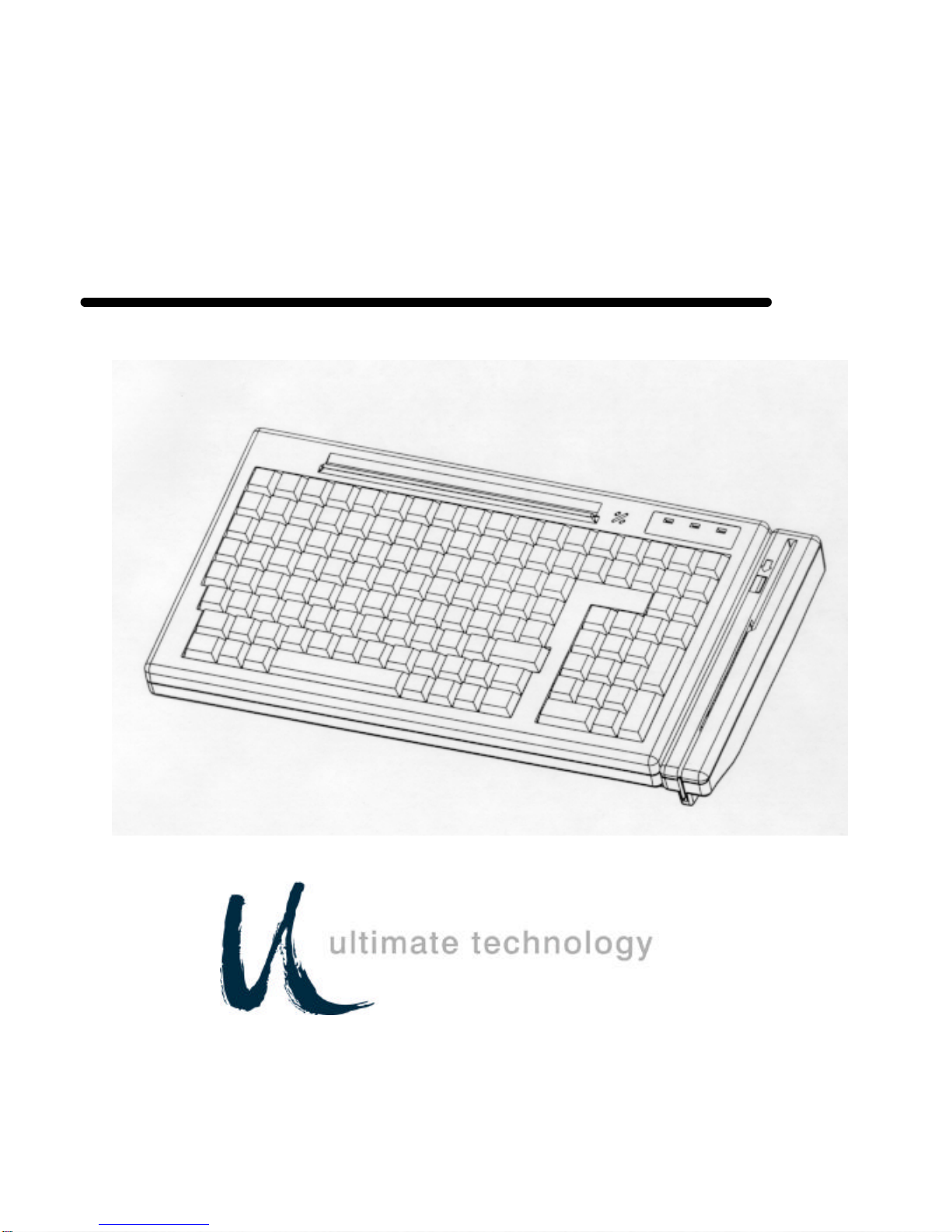

SERIES 600 POS KEYBOARD

PROGRAMMING & USER’S GUIDE

Series 600 POS Keyboard ii

TABLE OF CONTENTS

SCOPE ............................................................................................................1

SPECIAL NOTE..............................................................................................1

PRODUCT INFORMATION...........................................................................3

MODEL DESCRIPTION .................................................................................................3

FEATURES.......................................................................................................................3

SPECIFICATIONS...........................................................................................................5

SERVICE AND WARRANTY..........................................................................5

INSTALLATION..............................................................................................6

UNPACKING AND INSPECTION.................................................................................6

EXTERNAL CONNECTIONS........................................................................................7

DRAWER JUMPER CONNECTIONS (PRINTER FIRED).......................................7

OPERATION.................................................................................................11

CONTROLS AND INDICATORS................................................................................11

PROGRAMMING ..........................................................................................13

PROGRAMMING KEYBOARD OPERATING PARAMETERS..............................13

LOCAL MODE PROGRAMMING -FUNCTION CODES AND SETTINGS.........13

LOCAL MODE PROGRAMMING INSTRUCTIONS................................................11

LOCAL MODE PROGRAMMING................................................................................30

KEY MAKE/BREAK CODES AND EXTENDED FUNCTIONS.............................30

PROGRAMMING IN REMOTE MODE.......................................................................39

REMOTE MODE PROGRAMMING MACROS AND COMMAND SUMMARY....39

101/102-KEY KEYBOARD -KEY CODE IDENTIFICATION .................................53

PROGRAMMING KEY MAKE/BREAK CODES.......................................................50

EXAMPLES OF REMOTE PROGRAMMING FOR KEY MAKE/BREAK CODE55

COPYING KEYBOARD SETUP DATA (CLONING)................................................61

OPERATOR'S AND PROGRAMMER'S MAGNETIC CARDS..............................62

SYSTEM LOG.................................................................................................................62

Series 600 POS Keyboard iii

MAINTENANCE............................................................................................63

PRECAUTIONS.............................................................................................................63

CLEANING......................................................................................................................63

KEY LEGEND CHANGE..............................................................................................64

3/4 AND 5/8-INCH FULL TRAVEL KEYBOARDS..................................................64

BATTERY REPLACEMENT........................................................................................60

Series 600 POS Keyboard iv

APPENDIX

APPENDIX A

SERIES 600 POS STANDARD KEYBOARD LAYOUTS A1

APPENDIX B

KEYBOARD CABLE/CONNECTOR DATAB1

APPENDIX C

ASC11 CHARACTER SET C1

APPENDIX D

101/102-KEY KEYBOARD KEY NUMBER TO SCAN CODE CROSS

REFERENCE D1

LIST OF TABLES

TABLE 1. SERIES 600 POS KEYBOARD-TYPICAL CONTROLS AND

INDICATORS 8

TABLE 2. LOCAL MODE PROGRAMMING INSTRUCTIONS 10

TABLE 3. LOCAL MODE PROGRAMMING FUNCTION CODES AND

DEFAULT SETTINGS 25

TABLE 4. LOCAL PROGRAMMING COMMANDS FOR KEY MAKE/BREAK

AND EXTENDED FUNCTIONS 31

TABLE 5. REMOTE PROGRAMMING MODE COMMANDS 36

TABLE 6. REMOTE PROGRAMMING COMMANDS FOR KEY

MAKE/BREAK CODE 49

TABLE 7. OPOS KEY DEFINITIONS 53

TABLE 8. MSR PROGRAMMING FOR UTC OPOS DRIVERS 54

LIST OF FIGURES

1. TYPICAL POS STATION WITH STANDARD S600 KEYBOARD v

2. TYPICAL KEYBOARD EXTERNAL CONNECTIONS 5

3. KEYBOARD EXTERNAL CONNECTORS–REAR VIEW 6

4. S600 POS KEYBOARD–TYPICAL CONTROLS & INDICATORS 7

5. KEYBOARD DOWNLOADING CONNECTION DIAGRAM 56

Series 600 POS Keyboard v

FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE

STATEMENT

• Reorient the radio or television receiving antenna

• Relocate the keyboard with respect to the receiver

• Move the keyboard away from the receiver

If necessary the user should consult the dealer or an experienced radio/television

technician for additional suggestions. The user may find the following booklet

prepared by the Federal Communications Commission helpful: "How to Identify and

Resolve Radio/TV Interference Problems". This booklet is available from the U.S.

Government Printing Office Washington, DC 20402. Order stock number 004-000-

00345-4.

NOTICE

This equipment complies with the limits for a Class A computing

device in accordance with the specifications in Part 15 of FCC rules

which are designed to minimize radio frequency interference in the

installation; however, there is no guarantee that radio or television

interference will not occur in any particular installation. If this

equipment does cause interference to radio or television reception,

which can be determined by turning the equipment off and on while

the radio or television is on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Series 600 POS Keyboard 1

SCOPE

This user's guide provides the information and procedures needed to install,

operate and program your Series 600 POS Keyboard. Differences in models and

optional features are described in this manual, where applicable. It is suggested

that the entire manual be read before attempting installation or programming. If

assistance is needed that is beyond the coverage provided in this guide, please

contact Customer Service:

Ultimate Technology Corporation

100 Rawson Road

Victor New York, 14564

Phone: (800) 349-0546

Fax: (585) 924-1434

E-mail: [email protected]

SPECIAL NOTE

When this publication was written, every effort was made to ensure that information in this

document was complete, accurate, and up to date. Ultimate Technology Corporation assumes no

responsibility for errors beyond its control. Ultimate Technology Corporation also cannot

guarantee that changes in software and equipment made by other manufacturers, and referenced

in this guide, do not effect the applicability of the information in this manual. If assistance is

needed, please contact Customer Service at the address or phone number given above.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE KEYBOARD

TO RAIN OR MOISTURE.

Contents of this publication may be changed without notice and shall not be regarded as a warranty.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT OPEN KEYBOARD ENCLOSURE WHEN

KEYBOARD IS CONNECTED TO SYSTEM.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Series 600 POS Keyboard 2

Figure 1. Typical Point-of-Sale Station with Standard QWERTY Series 600 keyboard

Series 600 POS Keyboard 3

PRODUCT INFORMATION

MODEL DESCRIPTION

Series 600 POS Keyboards are point-of-sale (POS) keyboards designed for use with a PC or

ASCII terminal or network computer. These keyboards provide total flexibility in keyboard layout

as well as extensive programming capability. The Series 600 Keyboard contains two bi-

directional serial ports, two status cash drawer ports, main and auxiliary keyboard ports, and a

detachable MSR (optional). The Series 600 is a fully compatible OPOS keyboard with OPOS

device drivers available. The Series 600 POS Keyboard provides both the hardware and

firmware interfaces necessary to fully integrate a modular “open system” POS workstation when

attached to a PC, terminal, or network computer, and connected with a printer, cash drawer and

display of the users choice.

FEATURES

CHOICE OF SERIES 600 KEYBOARD TYPES

•Full travel, standard ¾” key QWERTY layout –110

keys

•Full travel, standard ¾” key matrix –up to 144

keys

All key locations are available

permanently printed or re-legendable. Full travel

keycaps have removable plastic covers for re-

legending.

Standard keyboard configurations

including QWERTY and typical POS layouts are

available. Custom configurations of any number of

keys are also available.

FULLY USER PROGRAMMABLE

•Local (PC Keyboard)

•Remote (from Host)

•OPOS compatible

•Download (Cloning)

All keys can be reprogrammed to output

any code. Single wide and double wide keys can

be placed anywhere on the keyboard. “Dummys”

or Spacers are available for unused key locations.

Custom bezel configurations are available.

OPTIONAL MAGNETIC STRIPE READER

•Detachable

•2 track, 3 format

•Programmable for prefix, suffix, separators and

audible annunciation

•OPOS driver available

•Magnetic stripe card controlled security

•Keyswitch optional

TWO CASH DRAWER PORTS

•Status monitoring

Automatic (Unsolicited)

Polling (Solicited)

•Optional cash drawer firing

AUX PC KEYBOARD PORT

•For data entry when full alphanumeric capability is

needed

•For programming key codes (local method)

•For keyboard port compatible peripherals (bi-

directional)

TWO RS232 PORTS

•Serial peripherals

•Main communications port when used as a

terminal

•Hardware and software handshaking

•Selectable baud rates (300 bps -57.6 Kbps)

•OPOS scanner driver available

32K NVRAM BUILT-IN

•2048 16 character memory locations

•Control totals

•Other purposes

THREE LED INDICATORS

•User programmable

•PC Controlled (SECURE, NUM lock and CAPS

lock)

Series 600 POS Keyboard 4

BUILT-IN ANNUNCIATOR

•Programmable

•Selectable tone and duration

BUILT-IN DIAGNOSTICS

•Self test

Series 600 POS Keyboard 5

SPECIFICATIONS

DIMENSIONS (d x w x h)

•Series 600 only –7.85” x 14.7” x 2.97”

•Series 600 w/MSR –7.85” x 16.2” x 2.97”

WEIGHT

•Series 600 w/MSR -3.95 pounds

ELECTRICAL

•135 -185mA at 5VDC (supplied from host)

•3-volt lithium battery (battery backup for memory

data retention when host source voltage removed)

ENVIRONMENT

•Storage temperature: -40° to 60°C

•Operating temperature: 0° to 50°C

APPROVALS

•FCC Class A

•UL recognized

•UL recognized (Canada)

SERVICE AND WARRANTY

Series 600 POS Keyboards come with a one-year parts and labor warranty. Assistance and

customer service is always available from Ultimate Technology Corporation's Customer Service

department. If the dealer or your service provider cannot answer your question or provide

satisfactory service, please call our sales and technical support department. When calling for

assistance or service information, please have available the model number, part number and

serial number of the keyboard. This information is found on a decal located on the bottom of the

keyboard.

If the keyboard needs to be returned to a repair facility, please use the original packing material

and shipping carton. It is recommended that one set of packing material be retained for this

purpose.

The address and telephone numbers to be used for assistance, service, and warranty information

is:

Ultimate Technology Corporation

100 Rawson Road

Victor, New York 14564

Phone: (800) 349-0546

Fax: (585) 924-1434
