UMD DL-3CA0M16-AR Bedienungsanleitung

- 2 -

Content

1. Installation.............................................................................................................................- 6 -

1.1. Minimum System Requirements ...............................................................................- 6 -

1.2. Preparation ................................................................................................................- 7 -

1.2.1. Product introduction......................................................................................- 7 -

1.2.1.1. Brief Specification Introduction........................................................- 7 -

1.2.1.2. Product Functions Introduction.........................................................- 7 -

1.2.2. Network Preparation .....................................................................................- 9 -

1.3. Configuring the IP Device.......................................................................................- 14 -

1.3.1. Real-time.....................................................................................................- 16 -

1.3.1.1. Video Control..................................................................................- 16 -

1.3.1.2. Pan/Tilt Operation...........................................................................- 17 -

1.3.1.3. Size of Preview Image ....................................................................- 17 -

1.3.1.4. Real-time Video Function ...............................................................- 19 -

1.3.2. Replay.........................................................................................................- 21 -

1.3.2.1. Query Type......................................................................................- 22 -

1.3.2.2. File List...........................................................................................- 22 -

1.3.2.3. Play Toolbar....................................................................................- 23 -

1.3.3. Settings........................................................................................................- 24 -

1.3.3.1. Basic Parameters.............................................................................- 24 -

1.3.3.1.1. Device Name ......................................................................- 24 -

1.3.3.1.2. Time Setting........................................................................- 24 -

1.3.3.1.3 Video loop-back output........................................................- 26 -

1.3.3.1.4. User Management...............................................................- 26 -

1.3.3.1.5. Time to Reboot ...................................................................- 27 -

1.3.3.1.6. Restore to Leave Factory Default Parameters.....................- 27 -

1.3.3.1.7. System Update....................................................................- 28 -

1.3.3.2. Network parameters........................................................................- 28 -

1.3.3.2.1. IPAddress & Port ...............................................................- 29 -

1.3.3.2.2. WIFI Parameters.................................................................- 31 -

1.3.3.2.3. DDNS .................................................................................- 33 -

- 3 -

1.3.3.2.4. FTP Parameters...................................................................- 34 -

1.3.3.2.5. UPNP..................................................................................- 36 -

1.3.3.2.6. Streaming Protocol .............................................................- 37 -

1.3.3.3 3G ....................................................................................................- 38 -

1.3.3.3.1. Dial up setting.....................................................................- 38 -

1.3.3.3.2. 3G online mode...................................................................- 39 -

1.3.3.3.3. 3G network .........................................................................- 40 -

1.3.3.3.4. Dial log...............................................................................- 41 -

1.3.3.3.5. 3G Status.............................................................................- 41 -

1.3.3.3.6. PIN Code ............................................................................- 42 -

1.3.3.3.7. SMS Settings ......................................................................- 42 -

1.3.3.4. Channels Parameters.......................................................................- 43 -

1.3.3.4.1. Character Superposition......................................................- 43 -

1.3.3.4.2. Video Coding......................................................................- 44 -

1.3.3.4.3. PTZ Protocol.......................................................................- 45 -

1.3.3.4.4. Adjust Color........................................................................- 46 -

1.3.3.4.5. Area Shield .........................................................................- 47 -

1.3.3.4.6. Region of Interest ...............................................................- 48 -

1.3.3.4.7. Sensor .................................................................................- 49 -

1.3.3.4.8 .Day/Night Switch ...............................................................- 50 -

1.3.3.4.9. Audio Parameters................................................................- 50 -

1.3.3.5. Alarm Parameters............................................................................- 51 -

1.3.3.5.1. Sensor Detection Schedule Settings....................................- 51 -

1.3.3.5.2. Motion Detection Area Settings..........................................- 52 -

1.3.3.5.3. Motion Detection Schedule Settings...................................- 53 -

1.3.3.5.4.NetworkAbnormalDetection................................................- 54 -

1.3.3.5.5. Camera Been Shaded Alarm Trigger Schedule Settings .....- 54 -

1.3.3.5.6. Email Alarm Settings..........................................................- 55 -

1.3.3.6. Server Storage.................................................................................- 57 -

1.3.3.6.1. Server-end Timing to Record..............................................- 58 -

1.3.3.6.2 FTP Scheduled record..........................................................- 58 -

1.3.3.6.3. Server-end Timing to Snapshot...........................................- 59 -

- 4 -

1.3.3.6.4. Server-end Snapshot Parameters.........................................- 59 -

1.3.3.6.5. Server-end Storage Device..................................................- 60 -

2. Frequent Asked Questions...................................................................................................- 61 -

2.1. Fail to Access the IP Camera through the Browser .................................................- 61 -

2.2. Can Not Play Video after Program Updating ..........................................................- 62 -

2.3. Fail to Browse Images Normally in Windows98.....................................................- 62 -

2.4. Can Not Get Data Passed Through Switch..............................................................- 62 -

2.5. Errors Occur After Updating ...................................................................................- 63 -

3. Appendix .............................................................................................................................- 64 -

3.1. Hardware Reset .......................................................................................................- 64 -

3.2. Mapping & Access IP Device via WAN..................................................................- 66 -

3.2.1. UPNP Mapping...........................................................................................- 68 -

3.2.2. Manual Mapping.........................................................................................- 69 -

3.3. Wireless Settings.....................................................................................................- 72 -

3.3.1. Set Wireless Router.....................................................................................- 72 -

3.3.2. Set the IP Device.........................................................................................- 74 -

3.3.3. Check the Wireless Settings........................................................................- 76 -

3.4. How to Use the Streaming Protocol ........................................................................- 78 -

3.5. 3G User Guide.........................................................................................................- 83 -

3.5.1. Set the 3G parameters .................................................................................- 83 -

3.5.1.1. Dial up setting.................................................................................- 84 -

3.5.1.2. 3G online mode...............................................................................- 85 -

3.5.1.3. 3G network .....................................................................................- 86 -

3.5.1.4. Dial log ...........................................................................................- 86 -

3.5.1.5. 3G Status.........................................................................................- 87 -

3.5.1.6. SMS Settings...................................................................................- 87 -

3.5.2. Set Forwarding server to view 3G IP device...............................................- 90 -

3.5.2.1. Configure Forwarding Server .........................................................- 90 -

3.5.2.1.1. Set ―RVS Service Port‖ and ―Transmit Port‖......................- 90 -

3.5.2.1.2. Mapping the forwarding server—RVS service port............- 91 -

3.5.2.1.3. Check the forwarding server WAN IP address....................- 92 -

3.5.2.1.4. Make sure the port mapping is successful...........................- 92 -

- 5 -

3.5.2.1.5. Connect the 3G IP device and forwarding server................- 93 -

3.5.2.1.6. Set forwarding username and password..............................- 94 -

3.5.2.2. Visit the 3G IP device via the forwarding Server............................- 96 -

3.5.2.2.1. Configure the CMS.............................................................- 96 -

3.5.2.2.2. Visit via web browser of IP device......................................- 97 -

- 6 -

1. Installation

1.1. Minimum System Requirements

The IP device provides access through an embedded web server. To access the

device, your PC needs to meet minimum requirements to perform satisfactorily.

CPU

Pentinum 4 2.4GHz and above

Memory

128 MB or above

Operating System

Windows XP with SP2 or above.

Windows Vista / Windows 2003 / Win7

Internet Explorer 6.0 and above.

- 7 -

1.2. Preparation

1.2.1. Product introduction

1.2.1.1. Brief Specification Introduction

H.264/MJPEG/MPEG4 video compression

Resolution:2592*1920 ，2048*1536 ，1920*1080, 1280*720, 704*576,

704*480, 704*288, 704*240, 640*480, 352*288, 352*240, 320*240

Alarm I/O support motion detection, date, time, event trigger

Two-way audio, broadcast system

RTSP, VLC(PS/TS) stream media protocol

Multi-level user accessing with password protection

Mobile surveillance

3G/WiFi (WEP/WPA/WPA2 encryption ) optional

TF card Supported. NAS server storage

1.2.1.2. Product Functions Introduction

The following tables show the features of some products.

Products update quickly, please refer to the products you buy to confirm the

functions. Our company reserves the right to update the user manual content

without prior specification statement.

- 8 -

1/3 "3.1 megapixel progressive scan CMOS

2048(H)×1536(V)

Color 0.6 lux@ F1.6

B/W 0.08 lux @ F1.6(0 lux @ IR ON)

1/30 sec to 1/4000 sec

Up to 100dB

Auto / Shutdown

Support

50DB

Auto

Manual zoom, f: 2.8-12mm

H.264 / MJPEG

Main 2048*1536@20fps; 1920*1080@30fps; 1280*720@30 fps

Secondary 704*576@ 25fps , 352*288@25fps

1M ~ 12Mbps, CBR / VBR adjustable

Can be set to display video channel name, time, date

You can set the display position

4 areas

Supports mirroring and flipping

AEC, AWB, AGC

Color saturation, brightness, contrast, sharpness

Digital image stabilization, anti-flickering image, motion

detection, video shelter

Voice: G.711; Talkback: G.722

Support

Can be set to automatic recording and manual recording

(motion alarm recording, sensor alarm recording, timer

recording)

Email, Ftp Upload

TCP/IP、HTTP、DHCP、DNS、DDNS、FTP、NTP、

PPPOE、RTSP、UDP、UPNP、SMTP、RTP

Support

Support large platform access

Computer Internet Explorer (6.0+), Chrome, Firefox

User Account 5

DC12V / 2A

1VP-p Composite Output (75 Ω / BNC)

Hardware reset button

Oneway, 3.5mm AV audio interface

1 channel speaker output, 3.5mm AV audio interface

RJ45 10M/100M

1 RS485

Aluminum alloy, suitable for indoor and outdoor

Wall mounted

Without

-10 °C ~ 60 °C / 0% -85% RH

DC12V / 2A

ICR IR-CRT Less than 12W

Infrared light

The third generation of dot-matrix infrared

light source 2

207(L)*120(W)*98(H)

distance 50m 1.1Kg

Size:

Features:

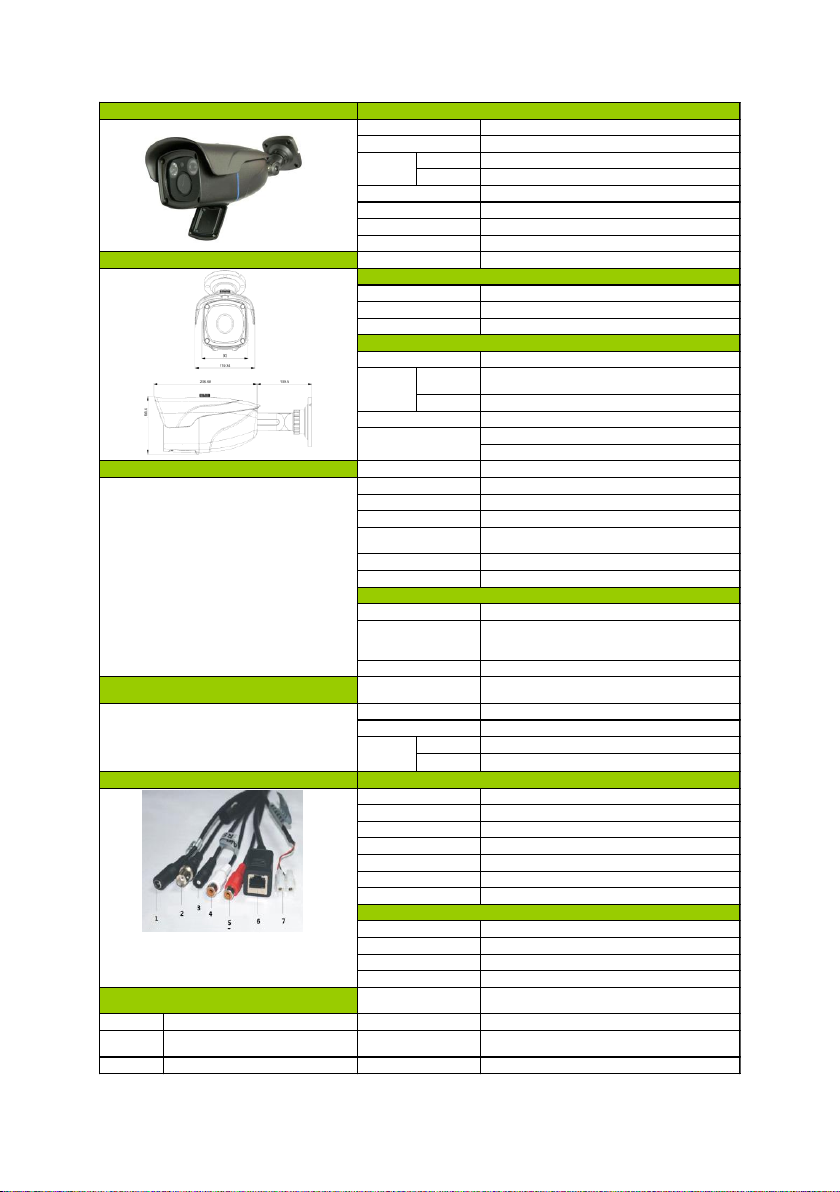

Interface Pictures

Scenario:

This product is widely used in roads, parking lots,

supermarkets, bars, pipes, parks and other low light or no

light environments, wide dynamic environment is

particularly suitable for backlighting.

◎1/3 "progressive scan CMOS

◎maximum resolution up to 3.1M, 2048 * 1536 @ 20 fps,

dual-stream

◎support wide dynamic function, up to 100dB

◎IR distance up to 50 meters, the third generation of dot-

matrix using infrared, low power consumption, long life

◎support image A.FLK, heart protection

◎Support local video loop out, easy installation;

◎Support ONVIF network video interconnection standard

protocols, perfectly compatible with a variety of platforms;

Ultra HD IP AIO Camera ( DL-3CA0M16-AR )

Sensor Type

Maximum Image Size

Shutter Speed

WDR

Product Image:

Sensor

White Balance

HSBLC

SNR

Lens

Lens Interface Type

Aperture

Lens Type

Audio and video

Video Compression

Video bit rate

Resolution

Privacy Mask

Interface

Image Settings

Automatic image

adjustment function

Image adjustment

Other

Audio Compression

Two-way Audio

Power

Network

DDNS

Video settings

Alarm Output

General specifications

Housing for the

environment

Network protocol

Remote upgrade

Large Platform

Audio Output

Reset button

RS485 interface

Work environment

Network Interface

Installation

Degree of protection

Day and Night Mode

1, Power Interface 2, video loop out

3, reset button 4, audio input(white)

5, audio output(red) 6, network port

7, RS485 slot

Size

Weight

Minimum

Illumination

Remote

View

OSD

Video loop out

Power Interface

Audio Input

- 9 -

1.2.2. Network Preparation

IP device accesses through Internet Explorer browser. Please set up the correct

IP address firstly.

1. Setup your PC network

The IP address of your PC must be in the same subnet with the IP device. You

need to match the TCP/IP settings with PC before you can access it via IE.

2. Setup IP device’s IP address

The default IP address of IP device is 192.168.1.19. Default Subnet Mask is

255.255.255.0

To access the IP device, the IP address of the PC should match the address

below.

IPAddress: 192.168.1.xxx

Subnet Mask: 255.255.255.0

NOTE: xxx should be a number from 1 to 254 except 19, which is used by the IP

device. Please make sure that two equipments cannot share the same IP address in

the same network. For example, you can set up your PC IP address:

192.168.1.200.

Below is an example to explain the setting procedures on Windows 7. If your

computer operation system is Win 7, please refer to OS user-manuals for proper

setting up.

STEP1

Start up your computer.

- 10 -

STEP2

Click the [Start] and select the ―Control Panel‖

STEP3

Select the ―Network and Internet connections‖.

Andere Handbücher für DL-3CA0M16-AR

Inhaltsverzeichnis

Andere UMD IP-Kamera Handbücher

UMD

UMD DL-3CA0M16-AR Bedienungsanleitung

Beliebte IP-Kamera Handbücher anderer Marken

FLIR

FLIR Exx series Bedienungsanleitung

Avigilon

Avigilon H4A-BO1-IR Bedienungsanleitung

Digital Watchdog

Digital Watchdog DWCA-C128-64 Bedienungsanleitung

ShareTech

ShareTech AV1 Bedienungsanleitung

Ezviz

Ezviz C6C Bedienungsanleitung

Melchioni

Melchioni UCAM 2015 Bedienungsanleitung

Geutebruck

Geutebruck G-Cam/ESD-4630 Bedienungsanleitung

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Bedienungsanleitung

Mitel

Mitel 6800i Series Service-Handbuch

Vitek

Vitek VTC-IR403-212NP Bedienungsanleitung

THOMSON

THOMSON DSC - 323W Bedienungsanleitung

AVer

AVer FB2027 Bedienungsanleitung

ENFORCER

ENFORCER EV-T5105-N2SQ Bedienungsanleitung

Wansview

Wansview NC543 Bedienungsanleitung

Eneo

Eneo MCB-64A0003M0A Bedienungsanleitung

deView electronics

deView electronics CBDNI36F Bedienungsanleitung

Swann

Swann SwannEye Bedienungsanleitung

LevelOne

LevelOne IP CamSecure Bedienungsanleitung
