Uniden FP101 Bedienungsanleitung

FP101

with Pre-Programmed 5+15 Memory

Operating Guide

Feature•Phone Series

FP101-OM.qxd 7/12/98 09:11 Page 1

INTRODUCTION

Congratulations on the purchase of your Uniden FP101 Telephone.

The FP101 has been designed and engineered to exacting standards for

reliability, long life and outstanding performance.

To obtain the full benefit from your new telephone, please read this Operating

Guide thoroughly. For your future reference, please fill in the panel below and

attach your Purchase Receipt/Sales docket.

Serial No. Date of purchase

(found on the bottom of the unit)

Name and address of dealer

FP101-OM.qxd 7/12/98 09:11 Page 2

CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Important Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Caring for your Telephone . . . . . . . . . . . . . . . . . . . . . . . . . .6

Parts Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Parts Checklist (For New Zealand Model) . . . . . . . . . . . . . .7

Parts Checklist (For Australian Model) . . . . . . . . . . . . . . . . .8

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Handset Cord Connection . . . . . . . . . . . . . . . . . . . . . . . . .13

Telephone Line Cord Connection . . . . . . . . . . . . . . . . . . . .13

Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Using your FP101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Memory Dial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Storing One-Touch Memories . . . . . . . . . . . . . . . . . . . . . .15

Memory Storage Card . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Dialing Stored Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Chain Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Adjusting the Ringer Volume Control . . . . . . . . . . . . . . . . .17

Adjusting the Ringer Tone Control . . . . . . . . . . . . . . . . . . .17

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Placing a Telephone Call . . . . . . . . . . . . . . . . . . . . . . . . . .18

Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Receiving a Telephone Call . . . . . . . . . . . . . . . . . . . . . . . .18

FP101-OM.qxd 7/12/98 09:11 Page 3

Accessing Call Waiting (New Zealand Model only) . . . . . . .18

Accessing Call Waiting (Australian Model only) . . . . . . . . . .18

Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Placing a Call on Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Music on Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Using the Pre-Programmed Feature Buttons

(New Zealand Model only) . . . . . . . . . . . . . . . . . . . . . . . .19

Using the Pre-Programmed Feature Buttons

(Australian Model only) . . . . . . . . . . . . . . . . . . . . . . . . . .22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

New Zealand Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Australian Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

CONTENTS

FP101-OM.qxd 7/12/98 09:11 Page 4

IMPORTANT INFORMATION

When using your telephone equipment, basic safety precautions should always be

followed to reduce the risk of fire, electrical shock, and injury to persons,

including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use

liquid cleaners or aerosol cleaners. Use a soft damp cloth for cleaning.

4. Do not use this product near water; for example, near a bath tub,

wash bowl, kitchen sink or laundry tub, in a wet basement, or near a

swimming pool.

5. Do not place this product on an unstable cart, stand, or table.

The telephone may fall, causing serious damage to the unit.

6. Slots and openings in the cabinet and the back or bottom are provided

for ventilation. To protect the product from overheating, these openings

should never be blocked or covered. This product should never be

placed near or over a radiator or heat register. This product should

not be placed in a built-in installation unless proper ventilation is provided.

7. Never push objects of any kind into this product through cabinet slots,

as they may touch dangerous voltage points or short out parts that

could result in a risk of fire or electrical shock. Never spill liquid of any

kind on the product.

8. Do not disassemble this product. Take it to qualified service personnel

when service or repair work is required. Opening or removing covers may

expose you to dangerous voltages or other risks. Incorrect re-assembly can

cause electrical shock when the appliance is subsequently used.

IMPORTANT INFORMATION

FP101-OM.qxd 7/12/98 09:11 Page 5

9. Unplug this product and refer servicing to qualified service personnel

under the following conditions:

A. If liquid has been spilled into the product.

B. If the product has been exposed to rain or water.

C. If the product does not operate normally when following the

operating instructions. Adjust only those controls that are

covered by the operating instructions. Improper adjustment of

other controls may result in damage, and will often require

extensive work by a qualified technician to restore to normal operation.

D. If the product has been dropped, or the cabinet has been damaged.

E. If the product exhibits a distinct change in performance.

CARING FOR YOUR TELEPHONE

Clean your telephone using a soft damp cloth.

Do Not Use solvents, detergents, sprays, abrasive pads,

scouring powder or other products that may damage

your telephone.

Do Not place the telephone in direct sunlight.

Do Not Use in extreme humidity.

CAUTION

NOTE: You must not connect your phone to any of the following:

• Coin operated systems

• Party-line systems

• Most electronic key phone systems

IMPORTANT NOTES

We have designed your telephone to conform to local regulations, and you can

connect it to most telephone lines. However, each device that you connect draws

power from the phone line. We refer to the power drawn as the device’s Ringer

Equivalence Number (REN or RN). This number is shown on the bottom of your

telephone. If you are using more than one phone or other device on the line,

add up all the REN’s. If the total is more than three, your phones may not ring.

PLEASE READ BEFORE USE AND

SAVE THESE INSTRUCTIONS

IMPORTANT INFORMATION

FP101-OM.qxd 7/12/98 09:11 Page 6

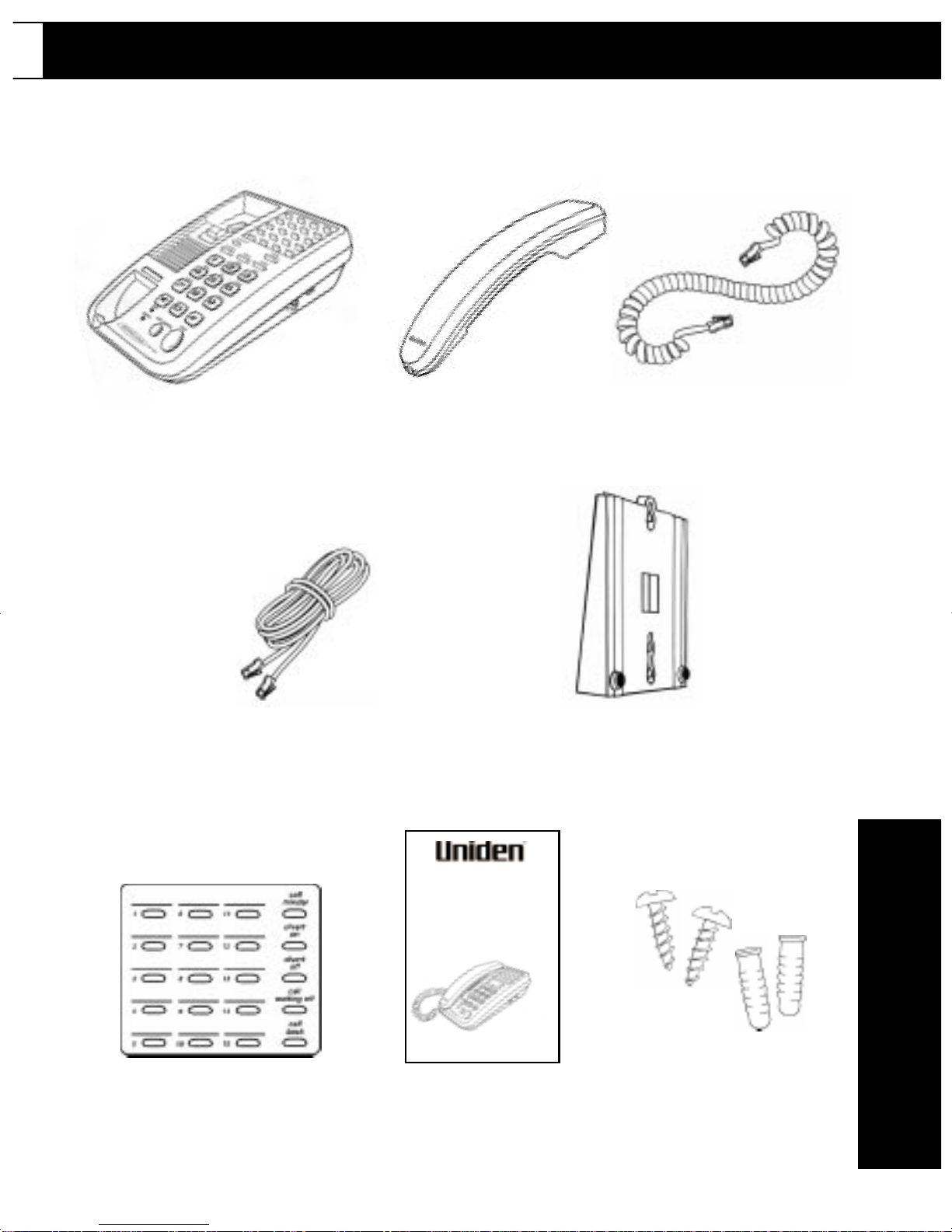

PARTS CHECKLIST (For New Zealand Model)

PARTS CHECKLIST

2 x Wall Mounting

Screws and Wall Plugs

Operating GuideMemory Storage Card

Telephone Line Cord Wall Mounting Bracket

FP101

with Pre-Programmed 5+15 Memory

Operating Guide

Feature•Phone Series

Base Unit Handset Curly Cord

FP101-OM.qxd 7/12/98 09:11 Page 7

PARTS CHECKLIST

PARTS CHECKLIST (For Australian Model)

Telephone Line Cord

and Plug

Operating Guide

Wall Mounting Bracket

Base Unit Handset Curly Cord

2 x Wall Mounting

Screws and Wall Plugs

FP101

with Pre-Programmed 5+15 Memory

Operating Guide

Feature•Phone Series

Memory Storage Card

FP101-OM.qxd 7/12/98 09:11 Page 8

FEATURES

•Pre-Programmed Feature Buttons

Instant access to some of Telecom’s / Telstra’s most popular network service

features* have been factory programmed into this telephone for your

convenience.

* Some of these services will require subscription.

•15 One Touch Speed Dial Buttons

Your most important numbers can be programmed into the memory, for one

touch speed dialing.

•Adjustable Ringer Volume and Tone Controls

The ringing volume and tone can be adjusted to suit different home or

office situations.

•Music on Hold

When you place a call on hold, the telephone will play a popular melody to

reassure your caller that the call has not been disconnected.

• Wall Mountable

This telephone can be simply wall mounted, using the enclosed wall mounting

bracket and screws.

• Mute

Press and hold this button to turn off the handset microphone, allowing

private and confidential conversations with others in the same room.

•Last Number Redial

If the number you are dialing is engaged, simply end the call. Then pickup

the handset and press the redial button. The telephone will automatically

redial the last number called.

FP101-OM.qxd 7/12/98 09:11 Page 9

•Hearing Aid Compatible

Inductive transducer coil handsets provide hearing aid compatibility.

•Status LED

Bright red LED provides visual indication and differentiation for calls

'In Use' or 'On Hold'.

•Call LED

Bright red LED provides visual indication of an incoming call.

•Pause Button

Allows you to store a timed pause in the memory dialing sequence for

PABX and Banking Services.

•Advanced Build Quality

This telephone has been assembled using the latest state of the art Surface

Mount Device (SMD) technology for your additional assurance of quality

that goes the distance.

•Call Waiting Button

Allows you to access Call Waiting services.

(In New Zealand, Call Waiting is a subscription service)

FEATURES

FP101-OM.qxd 7/12/98 09:11 Page 10
