MSO/UPO3000E Series Oscilloscope

Quick Start Guide MSO/UPO3000E Series Oscilloscope

Instruments.uni-trend.com 2/ 17

Trademark Information

UNI-T is the registered trademark of Uni-Trend Technology (China) Co., Ltd.

Document Version

MSO/UPO300020221130-V1.00

Statement

UNI-T products are protected by patent rights in China and foreign countries, including issued and

pending patents.

UNI-T reserves the rights to any product specification and pricing changes.

UNI-T reserves all rights. Licensed software products are properties of Uni-Trend and its subsidiaries

or suppliers, which are protected by national copyright laws and international treaty provisions.

Information in this manual supersedes all previously published versions.

Quick Start Guide MSO/UPO3000E Series Oscilloscope

Instruments.uni-trend.com 3/ 17

1. Safety Requirements

This section contains information and warnings that must be followed to keep the instrument operating

under safety conditions. In addition, user should also follow the common safety procedures.

Safety Precautions

Warning

Please follow the following guidelines to avoid possible electric shock and risk

to personal safety.

Users must follow the following conventional safety precautions in operation,

service and maintenance of this device. UNI-T will not be liable for any

personal safety and property loss caused by the user’s failure to follow the

following safety precautions. This device is designed for professional users

and responsible organizations for measurement purposes.

Do not use this device in any way not specified by the manufacturer. This

device is only for indoor use unless otherwise specified in the product manual.

Safety Statement

Warning

“Warning” indicates the presence of a hazard. It reminds users to pay attention

to a certain operation process, operation method or similar. Personal injury or

death may occur if the rules in the “Warning” statement are not properly

executed or observed. Do not proceed to the next step until you fully understand

and meet the conditions stated in the “Warning” statement.

Caution

“Caution” indicates the presence of a hazard. It reminds users to pay attention

to a certain operation process, operation method or similar. Product damage or

loss of important data may occur if the rules in the “Caution” statement are not

properly executed or observed. Do not proceed to the next step until you fully

understand and meet the conditions stated in the “Caution” statement.

Note

“Note” indicates important information. It reminds users to pay attention to

procedures, methods and conditions, etc. The contents of the “Note” should be

highlighted if necessary.

Safety Sign

Danger

It indicates possible danger of electric shock, which may cause

personal injury or death.

Warning

It indicates that you should be careful to avoid personal injury or

product damage.

Caution

It indicates possible danger, which may cause damage to this

device or other equipment if you fail to follow a certain procedure

or condition. If the “Caution” sign is present, all conditions must be

met before you proceed to operation.

Note

It indicates potential problems, which may cause failure of this

device if you fail to follow a certain procedure or condition. If the

Quick Start Guide MSO/UPO3000E Series Oscilloscope

Instruments.uni-trend.com 4/ 17

“Note” sign is present, all conditions must be met before this

device will function properly.

Alternating current of device. Please check the region’s voltage

range.

Direct current device. Please check the region’s voltage range.

Groundin

Frame and chassis grounding terminal.

Groundin

Protective grounding terminal.

Groundin

Measure grounding terminal.

OFF

Main power off.

Main power on.

Power

Supply

Standby power supply: when the power switch is turned off, this

device is not completely disconnected from the AC power supply.

CAT I

Secondary electrical circuit connected to wall sockets through transformers

or similar equipment, such as electronic instruments and electronic

equipment; electronic equipment with protective measures, and any high-

voltage and low-voltage circuits, such as the copier in the office

CAT II

CATII: Primary electrical circuit of the electrical equipment connected to the

indoor socket via the power cord, such as mobile tools, home appliances, etc.

Household appliances, portable tools (e.g. electric drill), household sockets,

sockets more than 10 meters away from CAT III circuit or sockets more than

20 meters away from CAT IV circuit

CAT III

Primary circuit of largeequipment directly connectedto the distribution board

and circuit between the distribution board and the socket (three-phase

distributor circuit includes a single commercial lighting circuit). Fixed

equipment, such as multi-phase motor and multi-phase fuse box; lighting

equipment and lines inside large buildings; machine tools and power

distribution boards at industrial sites (workshops)

CAT IV

Three-phase public power unit and outdoor power supply line equipment.

Equipment designed to “initial connection”, such as power distribution system

of power station, power instrument, front-end overload protection, and any

outdoor transmission line

Certification

CE indicates a registered trademark of EU.

Certification

UKCA indicates a registered trademark of UK.

Certification

Conforms to UL STD 61010-1, 61010-2-030, Certified to CSA STD C22.2 No.

61010-1, 61010-2-030.

Waste

Do not place equipment and its accessories in the trash. Items must be

properly disposed of in accordance with local regulations.

Quick Start Guide MSO/UPO3000E Series Oscilloscope

Instruments.uni-trend.com 5/ 17

EFUP

This environment-friendly use period (EFUP) mark indicates that dangerous or

toxic substances will not leak or cause damage within this indicated time

period. The environment-friendly use period of this product is 40 years, during

which it can be used safely. Upon expiration of this period, it should enter the

recycling system.

Safety Requirements

Warning

Preparation before use

Please connect this device to AC power supply with the power cable provided;

The AC input voltage of the line reaches the rated value of this device. See the

product manual for specific rated value.

The line voltage switch of this device matches the line voltage;

The line voltage of the line fuse of this device is correct;

It not used for measuring the main circuit.

Check all terminal rated

values

Please check all rated values and marking instructions on the product to avoid

fire and impact of excessive current. Please consult the product manual for

detailed rated values before connection.

Use the power cord

properly

You can only use the special power cord for the instrument approved by the

local and state standards. Please check whether the insulation layer of the

cord is damaged or the cord is exposed, and test whether the cord is

conductive. If the cord is damaged, please replace it before using the

instrument.

Instrument Grounding

To avoid electric shock, the grounding conductor must be connected to the

ground. This product is grounded through the grounding conductor of the

power supply. Please be sure to ground this product before it is powered on.

AC power supply

Please use the AC power supply specified for this device. Please use the

power cord approved by your country and confirm that the insulation layer is

not damaged.

Electrostatic prevention

This device may be damaged by static electricity, so it should be tested in the

anti-static area if possible. Before the power cable is connected to this

device, the internal and external conductors should be grounded briefly to

release static electricity. The protection grade of this device is 4 kV for

contact discharge and 8 kV for air discharge.

Measurement

accessories

Measurement accessories are of lower class, which are definitely not

applicable to main power supply measurement, CAT II, CAT III or CAT IV circuit

measurement.Probe subassemblies and accessories within the range of IEC

61010-031 and current sensor within the range of IEC 61010-2-032 can meet

its requirements.

Use the input / output

port of this device

properly

Please use the input / output ports provided by this device in a properly

manner. Do not load any input signal at the output port of this device. Do not

load any signal that does not reach the rated value at the input port of this

device. The probe or other connection accessories should be effectively

grounded to avoid product damage or abnormal function. Please refer to the

product manual for the rated value of the input / output port of this device.

Quick Start Guide MSO/UPO3000E Series Oscilloscope

Instruments.uni-trend.com 6/ 17

Power fuse

Please use power fuse of specified specification. If the fuse needs to be

replaced, it must be replaced by maintenance personnel authorized by UNI-T

to replace the fuse that meets the specified specifications.

Disassembly and

cleaning

There are no components available to operators inside. Do not remove the

protective cover.

Maintenance must be carried out by qualified personnel.

Service environment

This device should be used indoors in a clean and dry environment with

ambient temperature from 0 ℃to 40 ℃.

Do not use this device in explosive, dusty or humid air.

Do not operate in humid

environment

Do not use this device in a humid environment to avoid the risk of internal

short circuit or electric shock.

Do not operate in

flammable and explosive

environment

Do not use this device in a flammable and explosive environment to avoid

product damage or personal injury.

Caution

Abnormality

If this device may be faulty, please contact the authorized maintenance

personnel of UNI-T for testing. Any maintenance, adjustment or parts

replacement must be done by the relevant personnel of UNI-T.

Cooling

Do not block the ventilation holes at the side and back of this device;

Do not allow any external objects to enter this device via ventilation holes;

Please ensure adequate ventilation, and leave a gap of at least 15 cm on both

sides, front and back of this device.

Safe transportation

Please transport this device safely to prevent it from sliding, which may

damage the buttons, knobs or interfaces on the instrument panel.

Proper ventilation

Poor ventilation will cause the device temperature to rise, thus causing

damage to this device. Please keep proper ventilation during use, and

regularly check the vents and fans.

Keep clean and dry

Please take actions to avoid dust or moisture in the air affecting the

performance of this device. Please keep the product surface clean and dry.

Note

Calibration

The recommended calibration period is one year. Calibration should only be

carried out by qualified personnel.

Quick Start Guide MSO/UPO3000E Series Oscilloscope

Instruments.uni-trend.com 7/ 17

2. Introduction of MSO/UPO3000E Series

MSO/UPO3000E series digital phosphor oscilloscope includes ten models

Model

Analog Channel

Analog bandwidth

AWG

UPO3354E

350MHz

○

UPO3352E

350MHz

○

UPO3504E

500MHz

○

UPO3502E

500MHz

○

MSO3354E

350MHz

●

MSO3352E

350MHz

●

MSO3504E

500MHz

●

MSO3502E

500MHz

●

MSO3354E-S

350MHz

●

MSO3504E-S

500MHz

●

●：Standard ○： Optional ×：Not support

3. Getting Started Guide

This chapter introduces on using the oscilloscope for the first time, the front and rear panels, the user

interface, as well as the built-in help system.

3.1 General Inspection

It is recommended to inspect the instrument follow the steps below before using the MSO/UPO3000E series

for the first time.

(1) Check for Damages caused by Transport

If the packaging carton or the foam plastic cushions are severely damaged, please contact the UNI-T

distributor of this product immediately.

(2) Check Attachment

Please check appendix for the list of accessories. If any of the accessories are missing or damaged, please

Quick Start Guide MSO/UPO3000E Series Oscilloscope

Instruments.uni-trend.com 8/ 17

contact UNI-T or local distributors of this product.

(3) Machine Inspection

If the instrument appears to be damaged, not working properly, or has failed the functionality test, please

contact UNI-T or local distributors of this product.

If the equipment is damaged due to shipping, please keep the packaging and notify both the transportation

department and UNI-T distributors, UNI-T will arrange maintenance or replacement.

3.2 Before Use

To perform a quick verification of the instrument's normal operations, please follow the steps below:

(1) Connect to the Power Supply

The power supply voltage range is from 100 VAC to 240 VAC, the frequency range is 50 Hz to 60 Hz. Connect

the oscilloscope to the power supply line that came with the oscilloscope or any power supply line that meets

the local country standards. If the power switch on the rear panel is not turned on, the indicator of power soft

button on the left corner on the front panel will be extinguished and no function. If the power switch

on the rear panel is turned on, the indicator of power soft button on the left corner on the front panel

will be on red, press this button to boot-up the instrument.

(2) Boot-up Check

Press the soft power button and the light should change to green. The oscilloscope will show a boot

animation, and then enter the normal interface.

(3) Connect Probe

Use probe’s BNC port connect to the channel 1 BNC port of the oscilloscope. Connect the probe to the

“Compensating signal port” and the ground clip is connected to the “Ground terminal” below the

compensating signal port as shown in Figure 1. The output of the compensating signal should be amplitude

3 Vpp, default frequency is 1 kHz

Figure 1 Compensating signal and Ground terminal

(4) Function Check

Press the AUTO key, a 3 Vpp 1 kHz square wave should appear. Repeat step 3 to check all channels.

(5) Probe Compensation

When the probe is connected to any input channel for the first time, this step might be adjusted in order to

Compensating signal terminal

Ground terminal

Quick Start Guide MSO/UPO3000E Series Oscilloscope

Instruments.uni-trend.com 9/ 17

match the probe and the input channel. Probes that are not compensated may lead to measurement errors

or mistake. If need to adjust the probe compensation, please follow the following steps:

Set the attenuation coefficient in the probe menu and the switch on the probe 10x, and connect the

probe to CH1. Make sure the probe’s connector is properly connected with the oscilloscope. Connect the

probe’s main clip and ground clip to the oscilloscope’s compensating signal and ground terminal

respectively. Open CH1 and press the AUTO button.

View the displayed waveform, as shown in Figure 2.

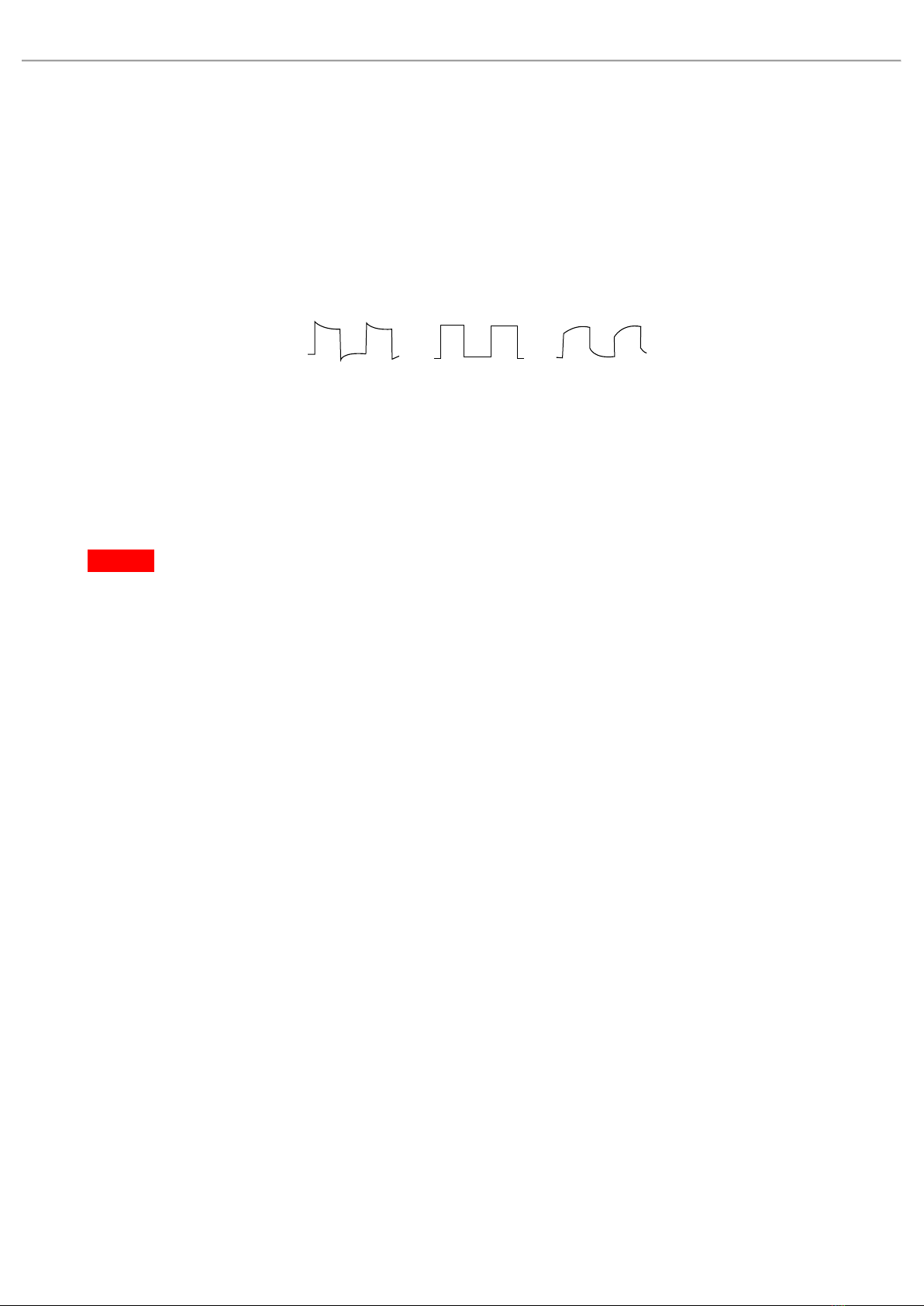

Excessive Compensation Correct Compensation Insufficient Compensation

Figure 2 Compensating Calibration of Probe

If the displayed waveform is look like the above “Insufficient Compensation” or “Excessive

Compensation”, use a non-metallic screwdriver to adjust the probe’s variable capacitance until the

display matches the "Correct compensation" waveform.

Warning: To avoid electric shock when using the probe to measure high voltage, please ensure that the probe

insulation is in good condition and avoid physical contact with any metallic part of the probe.

Quick Start Guide MSO/UPO3000E Series Oscilloscope

Instruments.uni-trend.com 10 / 17

4. Front Panel

Figure 3 Front Panel

Table 1 Front Panel

No.

Description

No.

Description

Screen display area

Factory setting, LA, AWG,

protocol decoding

Multipurpose knob

Trigger control (TRIGGER)

Recording waveform

Horizontal control (HORIZONTAL)

Jog dial knob

Analog channel input port

Function menu

Vertical control (VERTICAL)

Numeric keypad

Menu control soft key

Automatic control key

USB HOST interface

Run/Stop control key

Power supply soft key

Single trigger control key

Digital channel input port

Clear all control key

HOME menu

Compensating signal connector

and ground terminal

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Unit Prüfgeräte Handbücher

Unit

Unit MSO2000 Series Bedienungsanleitung

Unit

Unit UT361 Bedienungsanleitung

Unit

Unit UTG1000X Series Betriebsanleitung

Unit

Unit UT521 Bedienungsanleitung

Unit

Unit utd2000 Bedienungsanleitung

Unit

Unit UT512D Bedienungsanleitung

Unit

Unit UT3200+ Series Bedienungsanleitung

Unit

Unit UT-513A Bedienungsanleitung

Unit

Unit UT 4000 Series Bedienungsanleitung

Unit

Unit UT677A Bedienungsanleitung

Unit

Unit UT522 Bedienungsanleitung

Unit

Unit UT-P35 Bedienungsanleitung

Unit

Unit UPO2000CS Series Bedienungsanleitung

Unit

Unit UT521 Bedienungsanleitung

Unit

Unit UTD2000CEX+ Series Bedienungsanleitung

Unit

Unit UTD2052CL+ Bedienungsanleitung

Unit

Unit UT502A Bedienungsanleitung

Unit

Unit UPO1000CS Series Bedienungsanleitung

Unit

Unit UTD1000L Series Bedienungsanleitung

Unit

Unit UPO1000 Series Bedienungsanleitung

Unit

Unit UPO1000CS Series Bedienungsanleitung

Unit

Unit UT712 Bedienungsanleitung

Unit

Unit UT5583 Bedienungsanleitung

Unit

Unit UT15A Bedienungsanleitung

Beliebte Prüfgeräte Handbücher anderer Marken

SMART

SMART KANAAD SBT XTREME 3G Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies BERT Serial Bedienungsanleitung

Agilent Technologies

Agilent Technologies N3280A Bedienungsanleitung

Vernier

Vernier Go Direct Voltage Bedienungsanleitung

Lifeloc

Lifeloc R.A.D.A.R. Bedienungsanleitung

Fluke

Fluke T5-600 Bedienungs- und Montageanleitung

Mercury

Mercury TSL01 Bedienungsanleitung

MAHA

MAHA MBT Series Bedienungsanleitung

Fuji Electric

Fuji Electric P-61 Bedienungsanleitung

ETC

ETC SealerAtor Bedienungsanleitung

Skyfine

Skyfine ETHYWAY V2 Bedienungsanleitung

Appion

Appion G5 Twin Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 8159-0112A Bedienungsanleitung

BW Technologies

BW Technologies MicroDock II Bedienungsanleitung

Sun Nuclear

Sun Nuclear 1027 Bedienungsanleitung

Biomark

Biomark HPR LITE READER Bedienungsanleitung

Hioki

Hioki 3169-20 Bedienungsanleitung

Ashcroft

Ashcroft ATE-100 Bedienungsanleitung
