UNITED UHC-893 Bedienungsanleitung

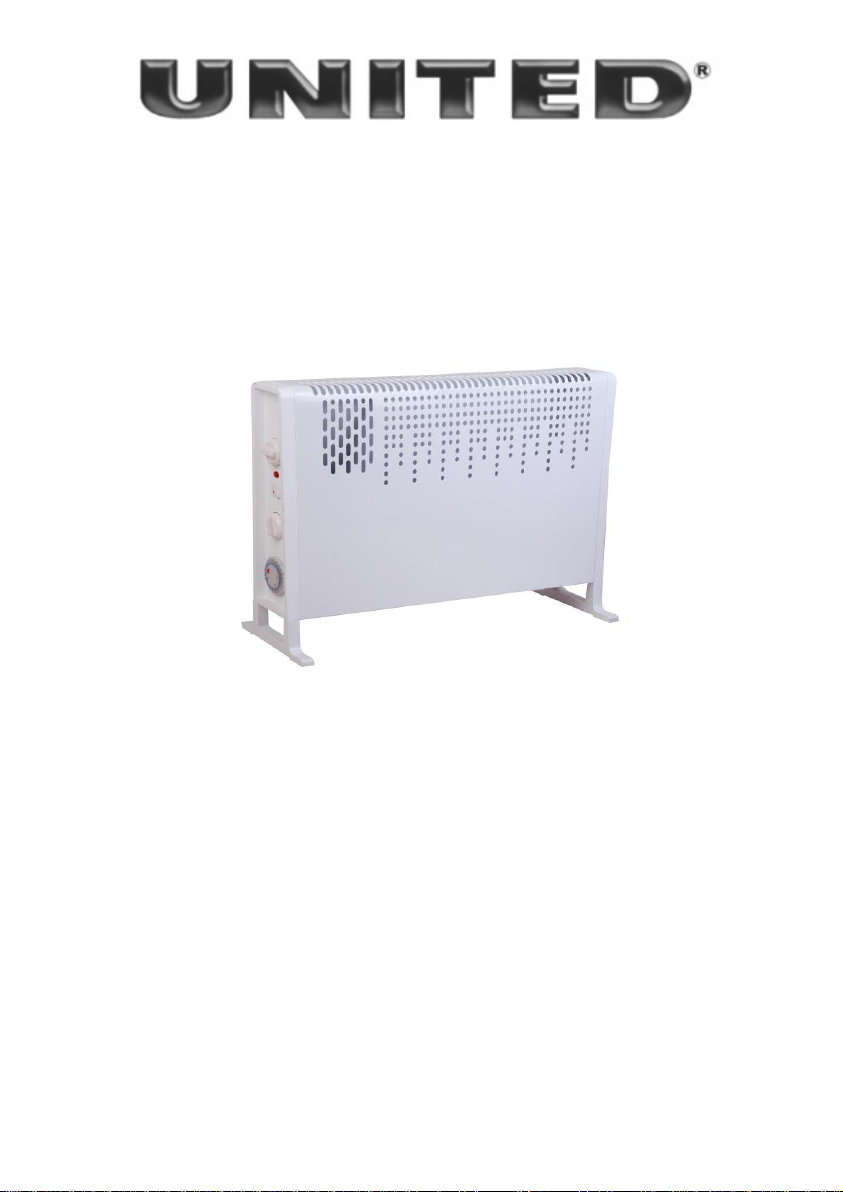

CONVECTOR HEATER

USER INSTRUCTIONS

Model: UHC-893

This product is only suitable for well insulated spaces

or occasional use.

IMPORTANT Read these instructions

fully before using the heater. Retain

these instructions for future reference.

ASSEMBLY OF THE HEATER

Before using the heater, the feet (supplied

separately in the carton), must be fitted to

the unit. These are to be attached to the

base of the heater using the 4 screws

provided, taking care to ensure that they

are located correctly in the bottom ends of

the heater side moldings

SAFETY INSTRUCTIONS (to be read before

operating the heater)

-Do not use the heater unless the feet are correctly

attached.

-Ensure the power supply to the socket, into which the

heater is plugged, is in accordance with the rating label

placed on the heater and that the socket is earthed.

-Keep the mains lead away from the hot body of the

heater.

-Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

-Never place the heater where it may fall into a bathtub or

other water container.

-Do not use outdoors.

-Do not cover or obstruct any of the heat outlet grilles or

the air intake openings of the heater.

-Do not place the heater on carpets having a very deep

pile.

-Always ensure that the heater is placed on a firm

level surface.

-Ensure that the heater is not positioned close to

curtains or furniture as this could create a fire hazard.

-Do not position the heater in front of, or immediately

below, a wall socket.

- WARNING: In order to avoid overheating, do not cover

the heater.

-CAUTION: In order to avoid a hazard due to

inadvertent resetting of the thermal cutout, this

appliance must not be supplied through an external

switching device, such as a timer, or connected to a

circuit that is regularly switched on and off by the utility.

-Children of less than 3 years should be kept away

unless continuously supervised.

-Children aged from 3 years and less than 8 years shall

only switch on/off the appliance provided that it has been

placed or installed in its intended normal operating

position and they have been given supervision or

instruction concerning use of the appliance in a safe way

-Do not insert any object through the heat outlet or air

intake grilles of the heater.

-Do not use the heater in areas where flammable liquids

are stored or where flammable fumes may be present.

-The appliance is not intended for use by young children

or infirm persons without supervision.

-Young children should be supervised to ensure that they

do not play with the appliance.

-Always unplug the heater when moving it from one

location to another.

-Do not use the heater if the power cord is damaged. If

the power cord is damaged it must be replaced by a

recognized service agent or other qualified person.

-This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way

and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance

shall not be made by children without supervision.

and understand the hazards involved. Children aged from

3 years and less than 8 years shall not plug in, regulate

and clean the appliance or perform user maintenance.

CAUTION

- Some parts of this product can become very hot

and cause burns. Particular attention has to be given

where children and vulnerable people are present.

- The heater must not be located immediately below

a socket outlet.

- Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

WARNING:

-Do not use this heater in small rooms when they

are occupied by persons not capable of leaving the

room on their own, unless constant supervision is

provided.

WARNING:

-To reduce the risk of fire, keep textiles, curtains, or

any other flammable material a minimum distance of 1 m

from the air outlet.

–do not use this heater in the immediate surroundings of a

bath, a shower or a swimming pool;

–do not use this heater if it has been dropped;

–do not use if there are visible signs of damage to the

heater;

–use this heater on a horizontal and stable surface.

OPERATION OF THE HEATER

NOTE: It is normal when the heaters are turned on for the

first time or when they are turned on after having not been

used for a long period of time the heaters may emit some

smell and fumes. This will disappear when the heater has

been on a short while.

Choose a suitable location for the heater, taking into

account the safety instructions above.

Insert the plug of the heater into a suitable socket.

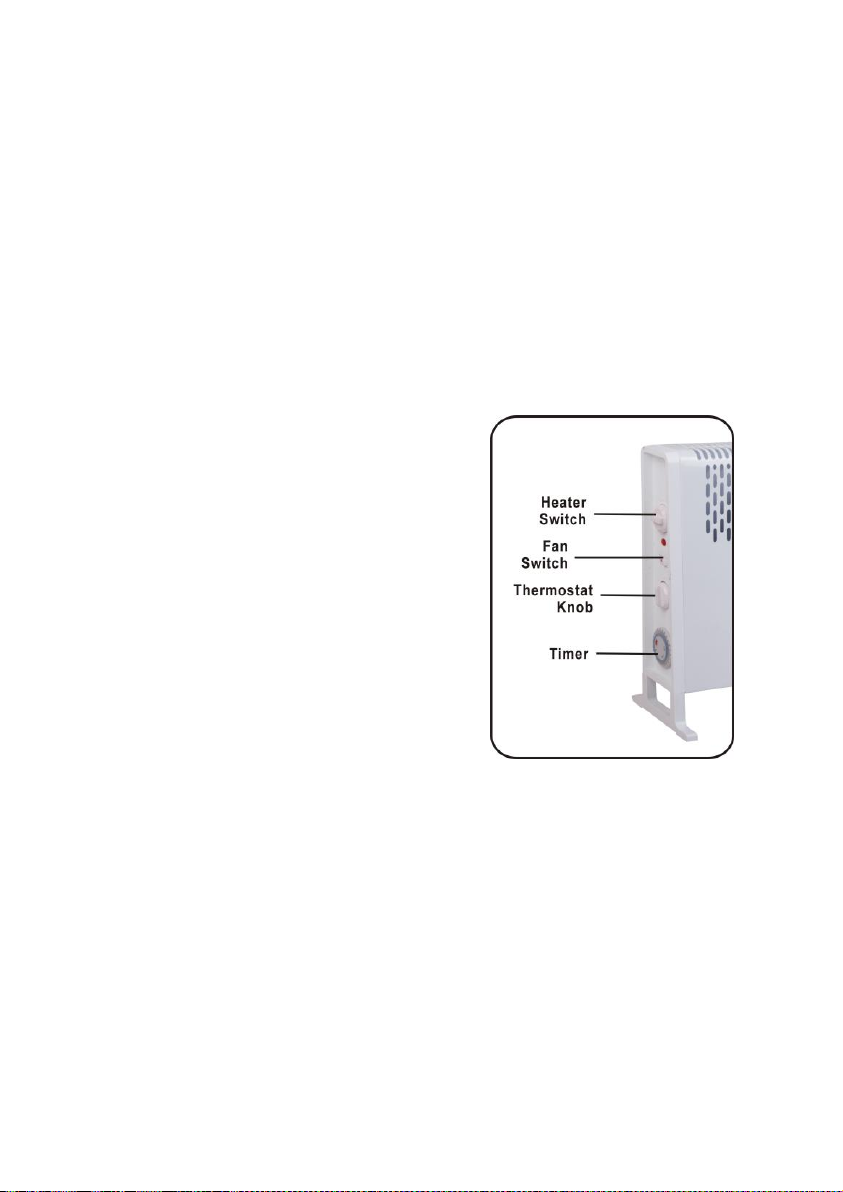

Turn THERMOSTAT KNOB fully in a clockwise direction

to the maximum setting. Turn on the heating elements

by means of HEATER SWITCHES on the side panel.

Turn on the heating elements by means of HEATER

SWITCH on the side panel. You may obtain three

heating settings (750/1250/2000W) by turning the

heater switch knob in a clockwise direction.

When the desired room

temperature has been reached,

the thermostat knob should be

turned slowly anti-clockwise until

the thermostat is heard to click

off and the lights on the element

switches are seen to go out. After

this the heater will keep the air

temperature in the room at the

selected level by switching on

and off automatically.

Fan Operation: You can enable the fan by using the fan

switch placed on the side of the appliance. The fan will only

operate with the thermostat turned on and can be used

when the heating is “on” in order to blow warm air into the

room. In warm conditions the fan can be used with the

heating function turned off, in order to blow cool air into the

room.

Timer Operation:

-This model is also fitted with a 24hr timer which has 96

segments around its circumference, each segment being

equivalent to 15 minutes of time.

Setting the Timer

Ensure the slide switch on the timer is at the mid position

next to the clock symbol.

Rotate the outer ring of the timer in a clockwise direction

until the current time is lined up with the arrow pointer, i.e.

if the time that the timer is being set is 8 p.m., rotate the

outer ring until the number 20 is in line with the arrow

pointer.

Set the time that the heater is required to run, by pulling

the segments around the outer ring forward appropriate

to the running period(s) required.

When set, the heater will operate each day during the

times programmed.

Note that the heater must always be plugged into a power

socket, the element switches must be in the 'on' position

and the thermostat must be suitably set to ensure the

heater will switch on.

With the aid of this timer it is possible to preset the time

and duration of the period(s) that it is desired the heater

will operate, in any 24hr period.

The centre of the timer has a 3 position slide switch.

In the central position (denoted by the clock symbol) the

timer will switch the heater on and off at times set by the

segments, (see setting the timer, below).

The position denoted by the “I”, is a timer override

position. The timer will continue to run but power will be

provided continuously to the heater. This enables the

heater to be on all the time if required. In the position

denoted by the “O”, the timer continues to run but no

power is provided to the heater.

If the heater is required to run continuously the slide switch

on the timer should be set to the “I” position.

If it is subsequently required to revert back to timer

operation, the slide switch on the timer should be set to the

central (clock) position.

PROTECTION AGAINST OVERHEATING

−

An additional fitted safety thermostat protects the

heater against overheating and switches it off

automatically. The service lamp then goes out.

If the device switches itself off, disconnect the mains

plug from the socket. The heater is ready for service

again after a short cooling-off phase (approx.15

minutes). Plug the mains plug back into the socket.

If this repeats itself, first check whether the

thermostat switch is set correctly or if objects hinder

the heating operation.

CLEANING THE HEATER

Always un-plug the heater from the wall socket and allow

it to cool down before cleaning.

Clean the outside of the heater by wiping with a damp

cloth and buff with a dry cloth. Do not use any

detergents or abrasives and do not allow any water to

enter the heater.

STORING THE HEATER

When the heater is not used for long periods of time, it

should be protected from dust and stored in a clean dry

place.

Note: this appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person

responsible for their safety. Children should be

supervised to ensure that they do not play with the

appliance.

Note: When using in timer mode, due consideration

should be given to the fact that the heater may switch

on while unattended.

Information requirements for electric local space heaters

Model identifier(s): UHC-893

Item

Symbol

Value

Unit

Item

Unit

Heat output

Type of heat input, for electric storage local

space heaters only (select one)

Nominal heat

output

Pnom

1.9

manual heat charge control,

with integrated thermostat

[no]

Minimum heat

output

(indicative)

Pmin

manual heat charge control

with room and/or outdoor

temperature feedback

[no]

Maximum

continuous

heat output

Pmax,c

1.9

electronic heat charge

control with room and/or

outdoor temperature

feedback

[no]

Auxiliary electricity consumption

fan assisted heat output

[no]

At nominal

heat output

elmax

Type of heat output/room temperature

control (select one)

At minimum

heat output

elmin

single stage heat output and

no room temperature control

[no]

In standby

mode

elSB

Two or more manual stages,

no room temperature control

[no]

with mechanic thermostat

room temperature control

[yes]

with electronic room

temperature control

[no]

electronic room temperature

control plus day timer

[no]

electronic room temperature

control plus week timer

[no]

Other control options (multiple selections

possible)

room temperature control,

with presence detection

[no]

room temperature control,

with open window detection

[no]

with distance control option

[no]

with adaptive start control

[no]

with working time limitation

[no]

with black bulb sensor

[no]

Contact details Kalliopi Karida & CO., LP

87A, 17th November Str - P.C. 55534 Pylaia - Thessaloniki - Greece

Tel. +302316006600 | Fax +302316006650

NOTICE ABOUT RECYCLING

Your product is designed and manufactured with high quality materials and components which

can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be

disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre.

In the European Union there are separate collection systems for used electrical and electronic

products.

Please help us to conserve the environment we live in!

DECLARATION OF CONFORMITY

Herewith, Kalliopi Karida & CO., LP. states that this product, complies with the requirements of

below directives:

The detailed declaration of conformity can be found at www.united-electronics.gr

EXCLUSIVE IMPORTER IN GREECE:

Kalliopi Karida & CO., LP

87A, 17th November Str - P.C. 55534

Pylaia - Thessaloniki - Greece

T: +302316006600 | F: +302316006650

www.united-electronics.gr

EMC Directive: 14/30/EU

Low Voltage Directive: 14/35/EU

ErP Directive: 09/125/EC

RoHS Directive: 11/65/EU & 15/863/EU

amended by the CE-marking Directive: 93/68/EEC

Inhaltsverzeichnis

Andere UNITED Heizung Handbücher

UNITED

UNITED UHQ-859 Bedienungsanleitung

UNITED

UNITED UHF-828 Bedienungsanleitung

UNITED

UNITED UHF824 Bedienungsanleitung

UNITED

UNITED MICA UHM-852 Bedienungsanleitung

UNITED

UNITED UHR-865 Bedienungsanleitung

UNITED

UNITED UCH-869 Bedienungsanleitung

UNITED

UNITED MICA UHM-782 Bedienungsanleitung

UNITED

UNITED UHF-847 Bedienungsanleitung

UNITED

UNITED UCH-886 Bedienungsanleitung

UNITED

UNITED UHC-826 Bedienungsanleitung

UNITED

UNITED UHC-845 Bedienungsanleitung

UNITED

UNITED UHC-862 Bedienungsanleitung

UNITED

UNITED UHH-816 Bedienungsanleitung

UNITED

UNITED UHP-772 Bedienungsanleitung

UNITED

UNITED MICA UHM-839 Bedienungsanleitung

UNITED

UNITED UHR-873 Bedienungsanleitung

UNITED

UNITED UHC-838 Bedienungsanleitung

UNITED

UNITED ARU-8409 Bedienungsanleitung

UNITED

UNITED UHR-835 Bedienungsanleitung

UNITED

UNITED UHQ-821 Bedienungsanleitung

UNITED

UNITED UHB-878 Bedienungsanleitung

UNITED

UNITED UHM-874 Bedienungsanleitung

UNITED

UNITED UHB-831 Bedienungsanleitung

UNITED

UNITED UHH-812 Bedienungsanleitung

Beliebte Heizung Handbücher anderer Marken

oventrop

oventrop Regucor Series Bedienungsanleitung

Blaze King

Blaze King CLARITY CL2118.IPI.1 Bedienungsanleitung

ELMEKO

ELMEKO ML 150 Bedienungsanleitung

BN Thermic

BN Thermic 830T Bedienungsanleitung

KING

KING K Series Leitfaden

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Kurzanleitung

Well Straler

Well Straler RC-16B Bedienungsanleitung

EUROM

EUROM 333299 Bedienungsanleitung

Heylo

Heylo K 170 Bedienungsanleitung

Eterna

Eterna TR70W Bedienungsanleitung

Clarke

Clarke GRH15 Bedienungsanleitung

IRSAP

IRSAP The Radiator Company Ovali Bedienungsanleitung

Empire Heating Systems

Empire Heating Systems WCC65 Bedienungsanleitung

Wetekom

Wetekom 92 86 43 Bedienungsanleitung

Desa

Desa SPC170-F Bedienungsanleitung

Watlow

Watlow Watrod Electric Tubular Heaters Bedienungsanleitung

Haverland

Haverland ECO-DRY GPS Series Stücklistenhandbuch

Stelpro

Stelpro ASILVC2060 Series Bedienungsanleitung
