Unitronics 1

Vision™ OPLC™ V350-35-TA24

Installation Guide

The Unitronics V350-35-TA24 offers the following onboard I/Os:

12 Digital Inputs, configurable via wiring to include 2 Analog, 2 PT100/TC, and

1HSC/Shaft-encoder Input

10 Transistor Outputs, 2 Analog Outputs

General Description

V350 OPLCs are micro-OPLCs, rugged programmable logic controllers that comprise:

On-board I/O configuration

Built-in operating panel containing a 3.5” Color Touchscreen and programmable function keys

Communications 1built-in serial port: RS232/RS485

Optional: the user may order and install

one or both of the following modules:

-RS232/RS485/Ethernet

-CANbus

Communication Function Blocks

include: SMS, GPRS, MODBUS serial/IP.

Protocol FB enables PLC to

communicate with almost any external

device, via serial or Ethernet

communications

I/O Options V350 supports digital, high-speed, analog,

weight and temperature measurement I/Os via:

On-board I/O configuration

Model-dependent

I/O Expansion Modules

Local or remote I/Os may be added via

expansion port or CANbus.

Information Mode This mode enables you to:

View & Edit operand values, COM port settings, RTC and screen

contrast/brightness settings

Calibrate the touchscreen

Stop, initialize, and reset the PLC

To enter Information Mode, press the <i> button for several seconds.

Programming

Software,

&Utilities

The Unitronics Setup CD contains VisiLogic software and other utilities

VisiLogic

Easily configure hardware and write both HMI and Ladder control

applications; the Function Block library simplifies complex tasks

such as PID. Write your application, and then download it to the

controller via the programming cable included in the kit.

Utilities

Includes UniOPC server, Remote Access for remote programming

and diagnostics, and DataXport for run-time data logging.

To learn how to use and program the controller, as well as use utilities such as

Remote Access, refer to the VisiLogic Help system.

V350-35-TA24 Installation Guide

2Unitronics

Removable

Memory Storage

Micro SD card: store datalogs, Alarms, Trends, Data Tables; export to Excel;

backup Ladder, HMI & OS and use this data to ‘clone’ PLCs.

For more data, refer to the SD topics in the VisiLogic Help system.

Data Tables Data tables enable you to set recipe parameters and create datalogs.

Additional product documentation is in the Technical Library, located at www.unitronics.com,and on

the Unitronics’ Setup CD.

Technical support is available at the site, and from [email protected]om.

Standard Kit Contents

Vision controller Mounting brackets (x2)

I/O connectors (x2) Rubber seal

Battery (installed) 2 sets of key label slides

Programming cable + RS232 adapter Unitronics’ Setup CD

Danger Symbols

When any of the following symbols appear, read the associated information carefully.

Symbol Meaning Description

Danger The identified danger causes physical and property damage.

Warning The identified danger could cause physical and property damage.

Caution Caution Use caution.

Before using this product, the user must read and understand this document.

All examples and diagrams are intended to aid understanding, and do not guarantee operation.

Unitronics accepts no responsibility for actual use of this product based on these examples.

Please dispose of this product according to local and national standards and regulations.

Only qualified service personnel should open this device or carry out repairs.

Failure to comply with appropriate safety guidelines can cause severe injury or property damage.

Do not attempt to use this device with parameters that exceed permissible levels.

To avoid damaging the system, do not connect/disconnect the device when power is on.

Environmental Considerations

Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,

moisture or rain, excessive heat, regular impact shocks or excessive vibration, in accordance

with the standards given in the product’s technical specification sheet.

Ventilation: 10mm space required between controller’s top/bottom edges & enclosure walls.

Do not place in water or let water leak onto the unit.

Do not allow debris to fall inside the unit during installation.

Install at maximum distance from high-voltage cables and power equipment.

Vision™ OPLC™

Unitronics 3

Mounting

Dimensions

Panel Mounting

Before you begin, note that the mounting

panel cannot be more than 5 mm thick.

1. Make a panel cut-out measuring

92x92 mm (3.622”x3.622”).

2. Slide the controller into the cut-out,

ensuring that the rubber seal is in place.

3. Push the 2 mounting brackets into their

slots on the sides of the controller as

shown in the figure to the right.

4. Tighten the bracket screws against the

panel. Hold the bracket securely against

the unit while tightening the screw.

5. When properly mounted, the controller is

squarely situated in the panel cut-out as

shown in the figure to the right.

V350-35-TA24 Installation Guide

4Unitronics

DIN-rail Mounting

1. Snap the controller onto the DIN rail as

shown in the figure to the right.

2. When properly mounted, the controller

is squarely situated on the DIN-rail as

shown in the figure to the right.

Wiring

Do not touch live wires.

Install an external circuit breaker. Guard against short-circuiting in external wiring.

Use appropriate circuit protection devices.

Unused pins should not be connected. Ignoring this directive may damage the device.

Double-check all wiring before turning on the power supply.

Caution

To avoid damaging the wire, do not exceed a maximum torque of 0.5 N·m (5 kgf·cm).

Do not use tin, solder, or any substance on stripped wire that might cause the wire strand

to break.

Install at maximum distance from high-voltage cables and power equipment.

Wiring Procedure

Use crimp terminals for wiring; use 26-12 AWG wire (0.13 mm 2–3.31 mm2).

1. Strip the wire to a length of 7±0.5mm (0.250–0.300 inches).

2. Unscrew the terminal to its widest position before inserting a wire.

3. Insert the wire completely into the terminal to ensure a proper connection.

4. Tighten enough to keep the wire from pulling free.

Input or output cables should not be run through the same multi-core cable or share the same wire.

Allow for voltage drop and noise interference with input lines used over an extended distance. Use

wire that is properly sized for the load.

The controller and I/O signals must be connected to the same 0V signal.

Vision™ OPLC™

Unitronics 5

I/Os

This model comprises a total of 12 inputs and 10 digital, 2 analog outputs. Input functionality can be

adapted as follows:

1. All 12 inputs may be used as digital inputs. They may be wired in a group via a single jumper

as either npn or pnp.

In addition, according to jumper settings and appropriate wiring:

-Inputs 5 and 6 can function as either digital or analog inputs.

-Input 0 can function as a high-speed counter, as part of a shaft-encoder, or as a normal

digital input.

-Input 1 can function as either a counter reset, normal digital input, or as part of a

shaft-encoder.

-If input 0 is set as a high-speed counter (without reset), input 1 can function

as a normal digital input.

-Inputs 7-8 and 9-10 can function as digital, thermocouple, or PT100 inputs; Input 11 can also

serve as the CM signal for PT100.

Input and Output Jumper Settings

The tables below show how to set a specific jumper to change input functionality. To access the I/O

jumpers, you must open the controller according to the instructions beginning on page 10.

Incompatible jumper settings and wiring connections may seriously damage the controller.

Digital Inputs 0-11: Set Type

Set to JP12 (all Inputs)

npn (sink) A

pnp (source)* B

Inputs 7/8: Set Type - Digital or RTD/TC #1

Set to JP1 JP2 JP3

Digital* A A A

Thermocouple B B B

PT100 B A B

Inputs 9/10: Set Type - Digital or RTD/TC #0

Set to JP5 JP6 JP7

Digital* A A A

Thermocouple B B B

PT100 B A B

Input 11: Set Type - Digital or CM for PT100

Set to JP11

Digital* A

CM for PT100 B

Input 5: Set Type - Digital or Analog #3

Set to JP4 JP10 Analog Output 0: Set to Voltage/Current

Digital* A A Set to JP13

Voltage B A Voltage* A

Current B B

Current B

Input 6: Set Type - Digital or Analog #2

Set to JP8 JP9 Analog Output 1: Set to Voltage/Current

Digital* A A Set to JP14

Voltage B A

Voltage* A

Current B B Current B

*Default settings

V350-35-TA24 Installation Guide

6Unitronics

I/O Wiring

I/O Configuration

]

npn Input Wiring

Input wiring npn (sink) HSC input wiring, npn (sink)

pnp Input Wiring

Input wiring pnp (source) HSC input wiring, pnp (source)

Shaft-encoder

Vision™ OPLC™

Unitronics 7

Analog Input Wiring

Analog input wiring, current (2/3 wire) Analog input wiring, current/voltage (4-wire)

Shields should be connected at the signal’s source.

The 0V signal of the analog input and output must be connected to the controller’s 0V.

Thermocouple

Thermocouple 0: use Input 9 as

negative input and 10 as positive.

Thermocouple 1: use Input 7 as

negative input and 8 as positive.

RTD

Type Temp. Range Wire Color

ANSI (USA) BS1843 (UK)

mV -5 to 56mV

B200 to 1820PC

(300 to 3276PF)

+Grey

-Red

+None

-Blue

E-200 to 750PC

(-328 to 1382PF)

+Violet

-Red

+Brown

-Blue

J-200 to 760PC

(-328 to 1400PF)

+White

-Red

+Yellow

-Blue

K-200 to 1250PC

(-328 to 2282PF)

+Yellow

-Red

+Brown

-Blue

N-200 to 1300PC

(-328 to 2372PF)

+Orange

-Red

+Orange

-Blue

R0to 1768PC

(32 to 3214PF)

+Black

-Red

+White

-Blue

S0to 1768PC

(32 to 3214PF)

+Black

-Red

+White

-Blue

T-200 to 400PC

(-328 to 752PF)

+Blue

-Red

+White

-Blue

PT100 (Sensor 0): use Input 9 and 10, related

to CM signal.

PT100 (Sensor 1): use Input 7 and 8, related to

CM signal.

4wire PT100 can be used by leaving one of

the sensor leads unconnected.

V350-35-TA24 Installation Guide

8Unitronics

Analog Outputs Transistor Outputs (pnp)

The 0V signal of the analog input and output must be connected to the controller’s 0V.

Power Supply

The controller requires an external 24VDC power supply.

Anon-isolated power supply can be used if a 0V signal is connected to the chassis.

Install an external circuit breaker. Guard against

short-circuiting in external wiring.

Double-check all wiring before turning on the

power supply.

Do not connect either the ‘Neutral or ‘Line’ signal

of the 110/220VAC to device’s 0V pin.

In the event of voltage fluctuations or non-

conformity to voltage power supply specifications,

connect the device to a regulated power supply.

Earthing the Power Supply

To maximize system performance, avoid electromagnetic interference by:

Mounting the controller on a metal panel.

Earthing the controller’s power supply: connect one end of a 14 AWG wire to the chassis

signal; connect the other end to the panel.

Note: If possible, the wire used to earth the power supply should not exceed 10 cm in length.

However, it is recommended to earth the controller in all cases.

Vision™ OPLC™

Unitronics 9

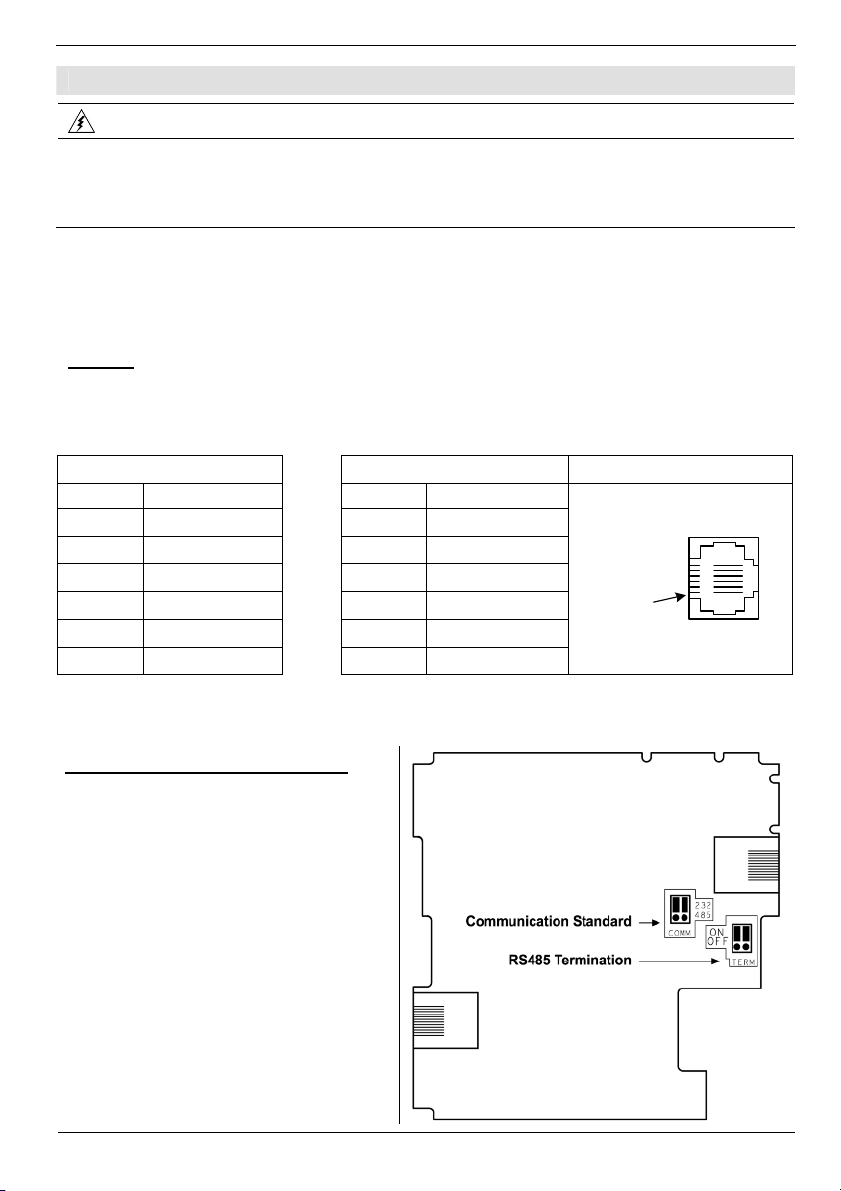

Communication Port

Turn off power before making communications connections.

Caution

Signals are related to the controller’s 0V; the same 0V is used by the power supply.

Always use the appropriate port adapters.

The serial port is not isolated. If the controller is used with a non-isolated external

device, avoid potential voltage that exceeds ± 10V.

Port 1 is type RJ-11 and may be set to either RS232 or RS485 via jumper as shown below.

By factory default, the port is set to RS232, termination ON.

Use RS232 to download programs from a PC, and to communicate with serial devices

and applications, such as SCADA.

Use RS485 to create a multi-drop network containing up to 32 devices.

Pinouts

The pinouts below show the PLC port signals.

To connect a PC to a port that is set to RS485, remove the RS485 connector, and connect the PC to

the PLC via the programming cable. Note that this is possible only if flow control signals are not used

(which is the standard case).

RS232 RS485** Controller Port

Pin # Description Pin # Description

1* DTR signal

1 A signal (+)

20V reference 2(RS232 signal)

3TXD signal 3(RS232 signal)

4RXD signal 4(RS232 signal)

50V reference 5(RS232 signal)

6* DSR signal

6 B signal (-)

Pin #1

*Standard programming cables do not provide connection points for pins 1 and 6.

**When a port is adapted to RS485, Pin 1 (DTR) is used for signal A,

and Pin 6 (DSR) signal is used for signal B.

RS232 to RS485 Jumper Settings

The figure to the right shows the jumper

factory default settings, RS232, RS485

termination ON.

Note that in order:

To change the communication

setting to RS485, both

communication standard jumpers

must be moved

To change the RS485

termination, both termination

jumpers must be moved

To access the jumpers, you must open the

controller according to the instructions

beginning on page 10.

V350-35-TA24 Installation Guide

10 Unitronics

Opening the Controller

Before performing these actions, touch a grounded object to discharge any electrostatic charge.

Avoid touching the PCB board directly. Hold the PCB board by its connectors.

1. Turn off the power supply, disconnect, and dismount the controller.

2. The back cover of the controller comprises 4 screws, located in the corners. Remove the screws,

and pull off the back cover.

Changing I/O Settings

1. The I/O board of the controller is now exposed, enabling you to change I/O settings according to

the jumpers shown on page 5.

Changing Communication Settings

1. To access the communication

jumpers, hold the I/O PCB board by

its top and bottom connectors and

steadily pull the board off.

2. Locate the jumpers, and then change

the settings as required. Jumper

settings are shown on page 9.

Closing the Controller

1. Gently replace the board. Make

certain that the pins fit correctly into

their matching receptacle.

Do not force the board into place;

doing so may damage the controller.

2. Replace the back cover of the

controller and fasten the corner

screws.

Note that you must replace the back cover securely before powering up the controller.

The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole

discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or

temporarily withdraw any of the forgoing from the market.

All information in this document is provided "as is" without warranty of any kind, either expressed or implied, including but not limited to any implied warranties of

merchantability, fitness for a particular purpose, or non-infringement. Unitronics assumes no responsibility for errors or omissions in the information presented in

this document. In no event shall Unitronics be liable for any special, incidental, indirect or consequential damages of any kind, or any damages whatsoever arising

out of or in connection with the use or performance of this information.

The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Unitronics (1989) (R"G) Ltd. or other

third parties and you are not permitted to use them without the prior written consent of Unitronics or such third party as may own them

DIG-V350-TA24 10/08

Inhaltsverzeichnis

Andere Unitronics Controller Handbücher

Unitronics

Unitronics Jazz JZ10-11-R16L Bedienungsanleitung

Unitronics

Unitronics VisionV120-22-UN2 Bedienungsanleitung

Unitronics

Unitronics Vision V120 Bedienungsanleitung

Unitronics

Unitronics UniStream PLC Series Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V350-35-TR20 Bedienungsanleitung

Unitronics

Unitronics UniStream US5-B5-B1 Bedienungsanleitung

Unitronics

Unitronics UniStream USC-B3-R20 Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V570-57-T34 Bedienungsanleitung

Unitronics

Unitronics V120-22-R34 Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V130-33-T38 Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V130 Bedienungsanleitung

Unitronics

Unitronics Samba OPLC SM43-J-R20 Bedienungsanleitung

Unitronics

Unitronics UniStream USC-B5-R38 Bedienungsanleitung

Unitronics

Unitronics Vision V130-33-T2 Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V130-33-TA24 Bedienungsanleitung

Unitronics

Unitronics UniStream USC-B5-TA32 Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V1040-T20B Bedienungsanleitung

Unitronics

Unitronics Jazz JZ20-J-UN20 Bedienungsanleitung

Unitronics

Unitronics Uni-COM UAC-CB-01RS2 Bedienungsanleitung

Unitronics

Unitronics Vision V130-J Series Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V570-57-C30B Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V130-33-T38 Bedienungsanleitung

Unitronics

Unitronics Samba SM70-J-RA22 Bedienungsanleitung

Unitronics

Unitronics Vision V130-J-TA24 Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
