Vision™PLC+HMI

Installation Guide

V130-33-TR34/V130-J-TR34

V350-35-TR34/V350-J-TR34

V430-J-TR34

22 Digital Inputs, including 3 HSC/Shaft-encoder Inputs,

2 Analog inputs

8 Relay Outputs

4 high-speed npn Transistor Outputs

V130-33-R34/V130-J-R34

V350-35-R34/V350-J-R34

V430-J-R34

22 Digital Inputs, including 3 HSC/Shaft-encoder Inputs,

2 Analog Inputs

12 Relay Outputs

General Description

All of the controllers covered in this guide are micro-PLC+HMIs, rugged programmable logic controllers

that comprise built-in operating panels and on-board I/Os.

Item

V130-TR34

V130J-TR34

V130-R34

V130J-R34

V350-TR34

V350J-TR34

V350-R34

V350J-R34

V430J-TR34

V430J-R34

On-board I/O

Model Dependent

Screen

2.4"

3.5" Color Touch

4.3" Color

Touch

Keypad

Yes

None

Function Keys

None

Yes

Com Port, Built-in

RS232/485

Yes

Yes*

USB device, mini-B

None

Yes*

Com Ports, separate

order, user-installed

The user may install a CANbus port (V100-17-CAN), and one of the following:

RS232/RS485 port (V100-17-RS4/V100-17-RS4X)

Ethernet (V100-17-ET2)

Profibus Slave (V100-17-PB1)

* V430J/V350/V350J comprises both RS232/485 and USB ports; note that only one channel may be

used at a time.

Standard Kit Contents

Item

V130-TR34

V130J-TR34

V130-R34

V130J-R34

V350-TR34

V350J-TR34

V350-R34

V350J-R34

V430J-TR34

V430J-R34

Controller

Yes

Terminal Blocks

Yes

Battery (installed)

Yes

Slides

(2 sets of key labels)

None

Yes

None

Mounting Brackets

Yes (2 parts)

Yes (4 parts)

Rubber Seal

Yes

Vision™PLC+HMI Installation Guide

Unitronics

Alert Symbols and General Restrictions

When any of the following symbols appear, read the associated information carefully.

Symbol

Meaning

Description

Danger

The identified danger causes physical and property damage.

Warning

The identified danger could cause physical and property damage.

Caution

Use caution.

Before using this product, the user must read and understand this document.

All examples and diagrams are intended to aid understanding, and do not guarantee operation.

Unitronics accepts no responsibility for actual use of this product based on these examples.

Please dispose of this product according to local and national standards and regulations.

Only qualified service personnel should open this device or carry out repairs.

Failure to comply with appropriate safety guidelines can cause severe injury or property

damage.

Do not attempt to use this device with parameters that exceed permissible levels.

To avoid damaging the system, do not connect/disconnect the device when power is on.

Environmental Considerations

Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,

moisture or rain, excessive heat, regular impact shocks or excessive vibration, in

accordance with the standards given in the product’s technical specification sheet.

Do not place in water or let water leak onto the unit.

Do not allow debris to fall inside the unit during installation.

Ventilation: 10mm space required between controller’s top/bottom edges & enclosure walls.

Install at maximum distance from high-voltage cables and power equipment.

Vision™PLC+HMI

Unitronics

Mounting

Note that figures are for illustrative purposes only.

Dimensions: V130/V350/V130J/V350J

* Note that for models V130J/V350J, the bezel width is 6.7 mm (0.26”).

Dimensions: V430J

Vision™PLC+HMI Installation Guide

Unitronics

Panel Mounting

Before you begin, note that the mounting panel cannot be more than 5 mm thick.

UL listed models:

To meet the UL508 standard, panel-mount the device on the flat surface of a Type 1 enclosure.

1. Make a panel cut-out of the appropriate size:

V130/V350/V130J/V350J: 92x92 mm (3.622”x3.622”).

V430J: 122.5x91.5 mm (4.82”x3.6”).

2. Slide the controller into the cut-out, ensuring that the rubber seal is in place.

3. Push the mounting brackets into their slots on the sides of the panel as shown in the figure below.

4. Tighten the bracket’s screws against the panel. Hold the bracket securely against the unit while

tightening the screw.

5. When properly mounted, the controller is squarely situated in the panel cut-out as shown in the

accompanying figures.

V130/V350/V130J/V350J

V430J

Vision™PLC+HMI

Unitronics

DIN-rail Mounting (V130/V350/V130J/V350J)

1. Snap the controller onto the DIN rail as

shown in the figure to the right.

2. When properly mounted, the controller

is squarely situated on the DIN-rail as

shown in the figure to the right.

Wiring

Do not touch live wires.

Install an external circuit breaker. Guard against short-circuiting in external wiring.

Use appropriate circuit protection devices.

Unused pins should not be connected. Ignoring this directive may damage the device.

Double-check all wiring before turning on the power supply.

Caution

To avoid damaging the wire, do not exceed a maximum torque of 0.5 N·m (5 kgf·cm).

Do not use tin, solder, or any substance on stripped wire that might cause the wire

strand to break.

Install at maximum distance from high-voltage cables and power equipment.

Wiring Procedure

Use crimp terminals for wiring; use 3.31 mm ² –0.13 mm² wire (12-16 AWG):

1. Strip the wire to a length of 7±0.5mm (0.270–0.300“).

2. Unscrew the terminal to its widest position before inserting a wire.

3. Insert the wire completely into the terminal to ensure a proper connection.

4. Tighten enough to keep the wire from pulling free.

Input or output cables should not be run through the same multi-core cable or share

the same wire.

Allow for voltage drop and noise interference with I/O lines used over an extended distance.

Use wire that is properly sized for the load.

The controller and I/O signals must be connected to the same 0V signal.

Vision™PLC+HMI Installation Guide

Unitronics

I/Os

V130/V350/V130J/V350J/V430J-TR34 models comprise a total of 22 inputs and 8 relay, 4 npn

outputs.

V130/V350/V130J/V350J/V430J-R34 models comprise a total of 22 inputs and 12 relay outputs.

Input functionality can be adapted as follows:

22 inputs may be used as digital inputs. They may be wired, in a group, and set to either

npn or pnp via a single jumper.

In addition, according to jumper settings and appropriate wiring:

- Inputs 14 and 15 can function as either digital or analog inputs.

- Inputs 0, 2, and 4 can function as high-speed counters, as part of a shaft-encoder,

or as normal digital inputs.

- Inputs 1, 3, and 5 can function as either counter reset, as part of a shaft-encoder,

or as normal digital inputs.

- If inputs 0, 2 and 4 are set as high-speed counters (without reset), inputs 1, 3 and 5

can function as normal digital inputs.

Input Jumper Settings

The tables below show how to set a specific jumper to change input functionality. To access the I/O

jumpers, you must open the controller according to the instructions beginning on page 12.

Incompatible jumper settings and wiring connections may seriously damage the controller.

Digital Inputs 0-21: Set Type

Set to

JP3 (all Inputs)

npn (sink)

pnp (source)*

Inputs 14/15: Set as Digital or Analog

Set to

JP1 (Input 14)

JP2 (Input 15)

Digital*

Analog

Analog Inputs AN0/AN1: Set Type

Set to

JP5 (AN0)

JP4 (AN1)

Voltage

Current*

*Default settings

Vision™PLC+HMI

Unitronics

I/O Wiring

npn (sink) Input Wiring

Input wiring

HSC input wiring

pnp (source) Input Wiring

Input wiring

HSC input wiring

Shaft-encoder

Vision™PLC+HMI Installation Guide

Unitronics

Analog Input Wiring

Analog input wiring, current (2 wire)

Analog input wiring, current (3-wire)

Analog input wiring, current (4-wire)

Analog input wiring, voltage

Shields should be connected at the signal’s source.

The 0V signal of the analog input must be connected to the controller’s 0V.

npn Outputs

TR34

Vision™PLC+HMI

Unitronics

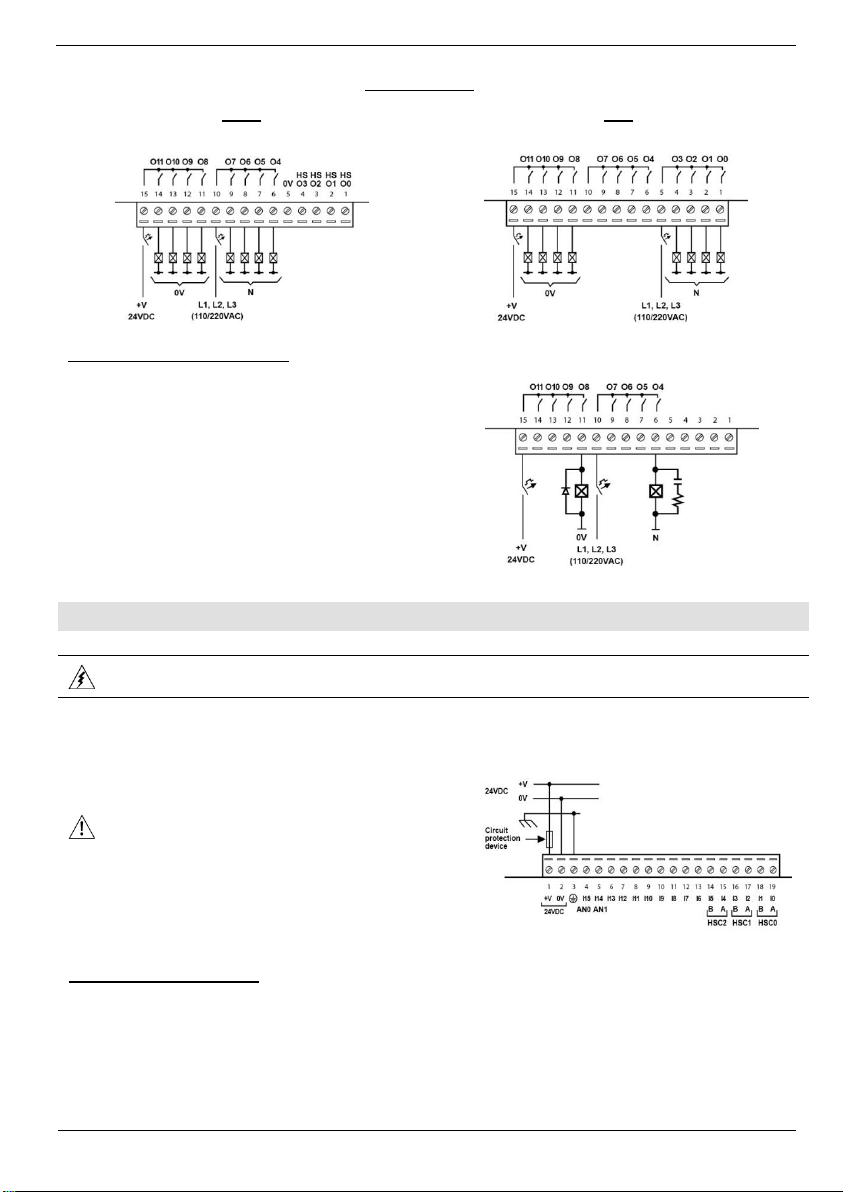

Relay Outputs

TR34

R34

Increasing Contact Life Span

To increase the life span of the

relay output contacts and protect

the device from potential damage

by reverse EMF, connect:

A clamping diode in parallel with each

inductive DC load

An RC snubber circuit in parallel with each

inductive AC load

Power Supply

The controller requires an external 24VDC power supply.

The power supply must include double insulation. Outputs must be rated as

SELV/PELV/Class2/Limited Power.

Use separate wires to connect the functional

earth line (pin 3) and the 0V line (pin 2) to the

system earth ground.

Install an external circuit breaker. Guard

against short-circuiting in external wiring.

Double-check all wiring before turning

on the power supply.

Do not connect either the ‘Neutral’ or ‘Line’

signal of the 110/220VAC to device’s 0V pin

In the event of voltage fluctuations or non-

conformity to voltage power supply

specifications, connect the device to

a regulated power supply.



Earthing the PLC+HMI

To maximize system performance, avoid electromagnetic interference by:

Mounting the controller on a metal panel.

Connect each common and ground connection directly to the earth ground of your system.

For ground wiring uses the shortest and thickest possible wire.

Vision™PLC+HMI Installation Guide

Unitronics

Communication

V130/ V130J

These models comprise a built-in RS232/RS485 serial port (Port 1)

V430J/V350/V350J

These models comprise built-in ports: 1 USB and 1 RS232/RS485 (Port 1).

Note that physically connecting a PC to the controller via USB suspends RS232/RS485

communications via Port 1. When the PC is disconnected, RS232/RS485 resumes.

RS232/RS485 Port

Turn off power before making communications connections.

Caution

Always use the appropriate port adapters.

Caution

Signals are related to the controller’s 0V; the same 0V is used by the power supply.

The serial port is not isolated. If the controller is used with a non-isolated external device,

avoid potential voltage that exceeds ± 10V.

Use RS232 to download programs from a PC, and to communicate with serial devices and

applications, such as SCADA.

Use RS485 to create a multi-drop network containing up to 32 devices.

Pinouts

The pinouts below show the PLC port signals.

RS232

RS485**

Controller Port

Pin #

Description

Pin #

Description

Pin #1

DTR signal

A signal (+)

0V reference

(RS232 signal)

TXD signal

(RS232 signal)

RXD signal

(RS232 signal)

0V reference

(RS232 signal)

DSR signal

B signal (-)

* Standard programming cables do not provide connection points for pins 1 and 6.

** When a port is adapted to RS485, Pin 1 (DTR) is used for signal A,

and Pin 6 (DSR) signal is used for signal B.

Note that it is possible to establish a PC to PLC connection using RS232 even when the PLC is set to

RS485 (this eliminates the need to open the controller to set jumpers).

To do so, remove the RS485 connector (pins 1 & 6) from the PLC and connect a standard RS232

programming cable.

Note that this is possible only if DTR and DSR signals of RS232 are not used (which is the standard

case).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Unitronics Netzwerk-Router Handbücher

Unitronics

Unitronics Vision OPLC V350-35-R34 Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V350-35-T38 Bedienungsanleitung

Unitronics

Unitronics V570-57-T20B Bedienungsanleitung

Unitronics

Unitronics Vision OPLC VV570-57-T20B-J Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V130-33-R6 Bedienungsanleitung

Unitronics

Unitronics V130-33-TRA22 Bedienungsanleitung

Unitronics

Unitronics V350-35-RA22 Bedienungsanleitung

Unitronics

Unitronics V130-33-TR20 Bedienungsanleitung

Unitronics

Unitronics V1210-T20BJ Bedienungsanleitung

Unitronics

Unitronics Vision OPLC V130-33-TR34 Bedienungsanleitung

Unitronics

Unitronics UCR-ST-B8 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
