MRF-260 Base Station

Optimizing Narrow Band Reception

with Complete Control Remotes

Whole House Control

The MRF-260 base station is an “addressable” base station.RF

Addressing gives you the ability to control as many as 60 identical

components throughout a house.To enable better range and reliability

the MRF-260 is equipped with Narrow Band RF reception

Interference Rejection and

Extended Range via Narrow Band

The MRF-260 receives RF (radio frequency) signals via its integrated

RF receiver and antenna.The MRF-260 displays RF interference via a

bright red Status LED which flickers when interference is present if the

ID is set to 0. Simply relocate the MRF-260 should interference occur.

COMPLETE

CONTROL

COMPLETE

The Pioneer in ControlTechnology

1.Your URC Complete Control remote sends radio waves in

every direction, so you enjoy “No More Pointing” operation!

2.The MRF-260’s integrated Narrow

Band RF receiver receives commands

from any URC Complete Control remote.

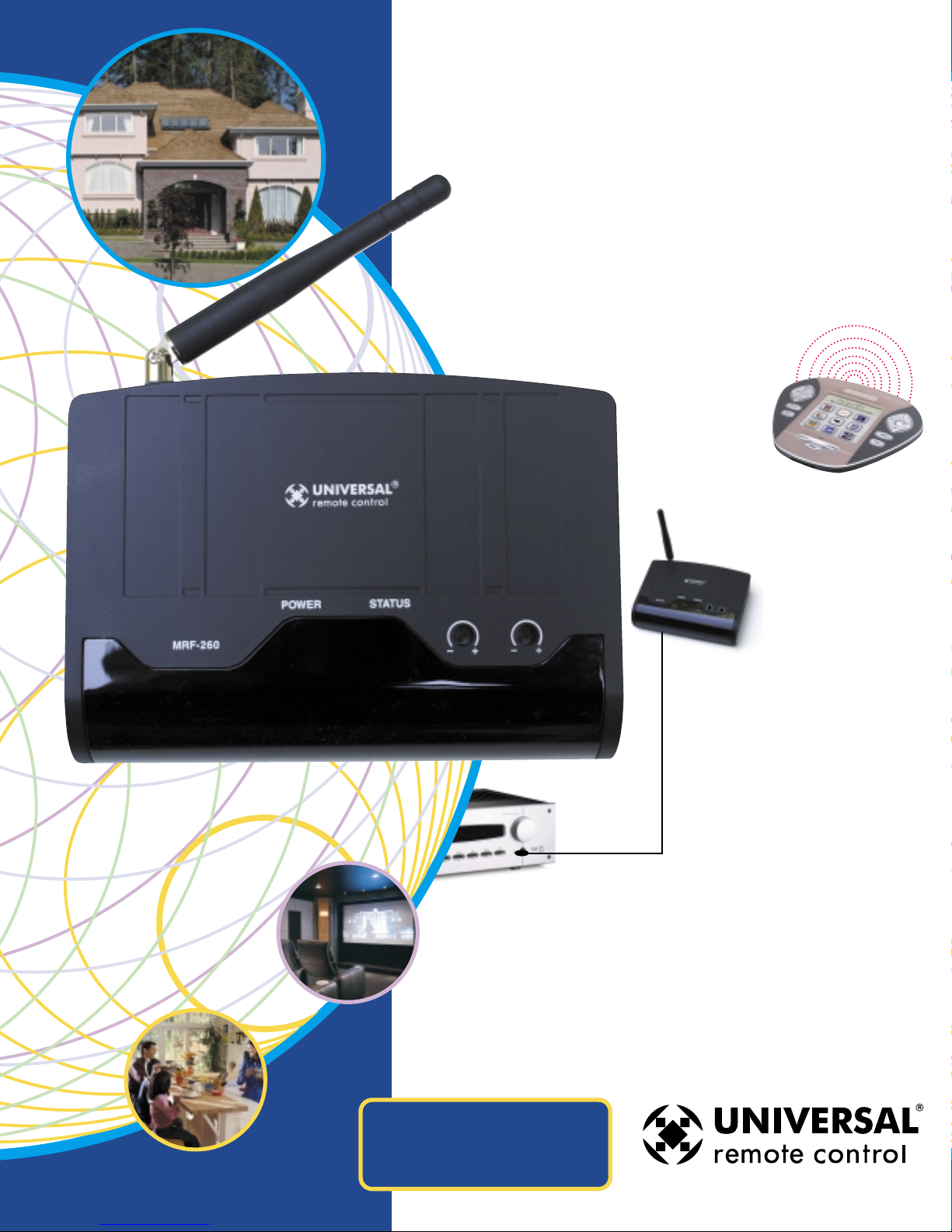

The MRF-260 shown

on left is actual size.

3.The MRF-260’s

built-in Front Blaster

sends commands to

components in the

same cabinet space

as the MRF-260.

4.Self-adhesive “Flashers”affix to the

front panels of your components (over

the built-in IR sensor).The Flashers

relay commands to components out of

sight of the MRF-260’s Front Blaster.

The flashers plug in to the MRF-260’s

rear flasher line outputs via their 10 foot

cables. Uniquely, the MRF-260 can also

connect to rear panel IR Inputs via its

two adjustable Outputs.

COMPLETE ™

CONTROL

COMPLETE

Specifications

Power Supply: 9V DC

(AC Adapter included)

IR Flasher Line Outputs: 3.5mm Mono Mini Jack

RF Frequency: 418MHz Narrow Band RF

Size: 5" x 3.5" x 1.2" (W x D x H) w/o antenna

Weight: 1.3lbs.

Two Fixed IR Outputs Plus ...

The MRF-260 is equipped with two fixed IR line outputs with standard

3.5 jacks for standard IR emitter/ flashers.

...TwoVariable IR Outputs

The MRF-260 is equipped with two adjustable IR line outputs.

Each output can be individually matched to rear panel

IR inputs on any component that is designed

to be operated by a standard IR repeater.

The outputs utilize a 3.5mm jack and are

compatible with standard IR emitter/flashers

as well.

UpTo 15 Equipment Locations with Identical Components

Every URC Complete Control remote is “addressable.”They can be programmed to specifically control

components in a particular room by installing an MRF-260 base station at each location.In operation it’s

simple: when you select a device located in the Den, the remote only sends commands to the Den.When

you select a device located in the Family Room,the remote only sends commands there.

A MRF-260 Can Control an Array of Identical Components

or Identical Zones of a Multi Zone Preamp/Matrix Switcher

Each MRF-260 has four “addressable” IR Line Outputs. For example, you can control up to four identical

TV’s with one MRF-260 or route volume commands for a specific zone to a particular zone IR input on a

multi-zone preamp. If you have more than four identical components or zones, up to 15 additional MRF-

260s can be installed to control them (thus allowing up to 60 identical components or zones in one house).

500 Mamaroneck Avenue,Harrison,NY 10528 Phone:(914) 835-4484 Fax:(914) 835-4532

www.universalremote.com

The Pioneer in ControlTechnology

Two adjustable IR line outputs.

Two fixed IR line outputs.

NOTE: The MRF-260 is ONLY compatible with Narrow Band remotes:the current versions of

the MX-3000, MX-950, MX-900,TX-1000, MX-850,MX-650 and the MX-350 remote controls.The

MRF-260 is compatible with all MX-950s, MX-900s andTX-1000s, but is NOT compatible with

MX-850, MX-650 or MX-350 remote controls manufactured before November 1, 2006 or an

MX-3000 built before April,2005.You can identify the build date of a remote control by looking at

the serial number.The first 6 digits indicate the build date. If the serial number appears as 122905

014054, the first 6 digits indicate that the remote was built on December 29, 2005.
