MX-810 OWNERS MANUAL

Congratulations!

You’ve purchased a unique synthesis of hardware and software engineering,

the Complete Control MX-810. The MX-810 achieves a magnificent combina-

tion of power and flexibility, simplifying and automating operation of even the

most complex system.

User Configurable Screen and Button Lighting

A built in pick up sensor can be set to light the screen and/or the buttons

automatically. Additionally, a dedicated LIGHT button enables the user to

backlight the buttons if the pick up sensor is turned off.

Integrated Sound Signaling

The MX-810 incorporates a small speaker for beeps. Anytime you press a

button, the MX-810 signals that it has understood your command with a

beep sound.

Custom Labeled Buttons

When you pick up the MX-810, it automatically lights up the color LCD

screen which labels the six buttons to either side of the screeen. These

button labels change based on what you are watching or listening to.

Thus, if you have selected Watch TV, you will see a list of buttons that

are useful to that activity, while if you select Watch DVD, the buttons

will control the DVD.

LIGHT Button

Press the Light button on the

side of the MX-810 to back-

light all of the buttons. Of

course, you could opt to set

the buttons to light automati-

cally via the pick up sensor.

Page 2

MX-810 OWNERS MANUAL

Optional RF “No Rules” Operation

In combination with a Complete Control RF Base Station, the MX-810 can

control your system without being in line-of-sight of the equipment.

Either the MRF-350 or the MRF-40 RF base station is compatible with the

MX-810. Both incorporate RF Addressing. RF Addressing gives you the ability

to control equipment locations throughout your home, even if they are con-

cealed in other rooms or are behind closed doors.

4. Self-adhesive “Flashers” affix to the

Infrared sensors on the front panels of your

components. The Flashers relay commands

to components out of sight of the MRF-350’s

Front Blaster. The flashers plug in to the

MRF-350’s rear flasher line outputs via their

10 foot cables. Uniquely, the MRF-350 can

also connect to components with rear panel

IR Inputs via its adjustable IR Line Outputs.

3.The MRF-350’s built-in Front Blaster sends commands to

components in the same cabinet space as the MRF-350.

1.The MX-810 sends radio waves

in every direction, so you don’t

have to point the remote any-

more!

2.The RFX-250 RF Sensor can be freely

positioned for optimal reception.

Page 3

MX-810 OWNERS MANUAL

Installing and Charging the Battery

Open the battery cover by pressing

on the release clip and removing

the cover.

Note that the three contacts on the

battery must connect to the three

spring-loaded contacts in the MX-

810. Angle the battery into the bat-

tery compartment, contacts first,

then gently fit the rear of the battery

into the compartment as well.

Replace the battery cover by insert-

ing the hinged end in first, then

snapping the cover back into place.

You can charge the Lithium Ion bat-

tery by simply plugging the includ-

ed charger into the base of the

remote as shown here.

The MX-810 can be used while

charging.

Page 4

MX-810 OWNERS MANUAL

Programming the MX-810

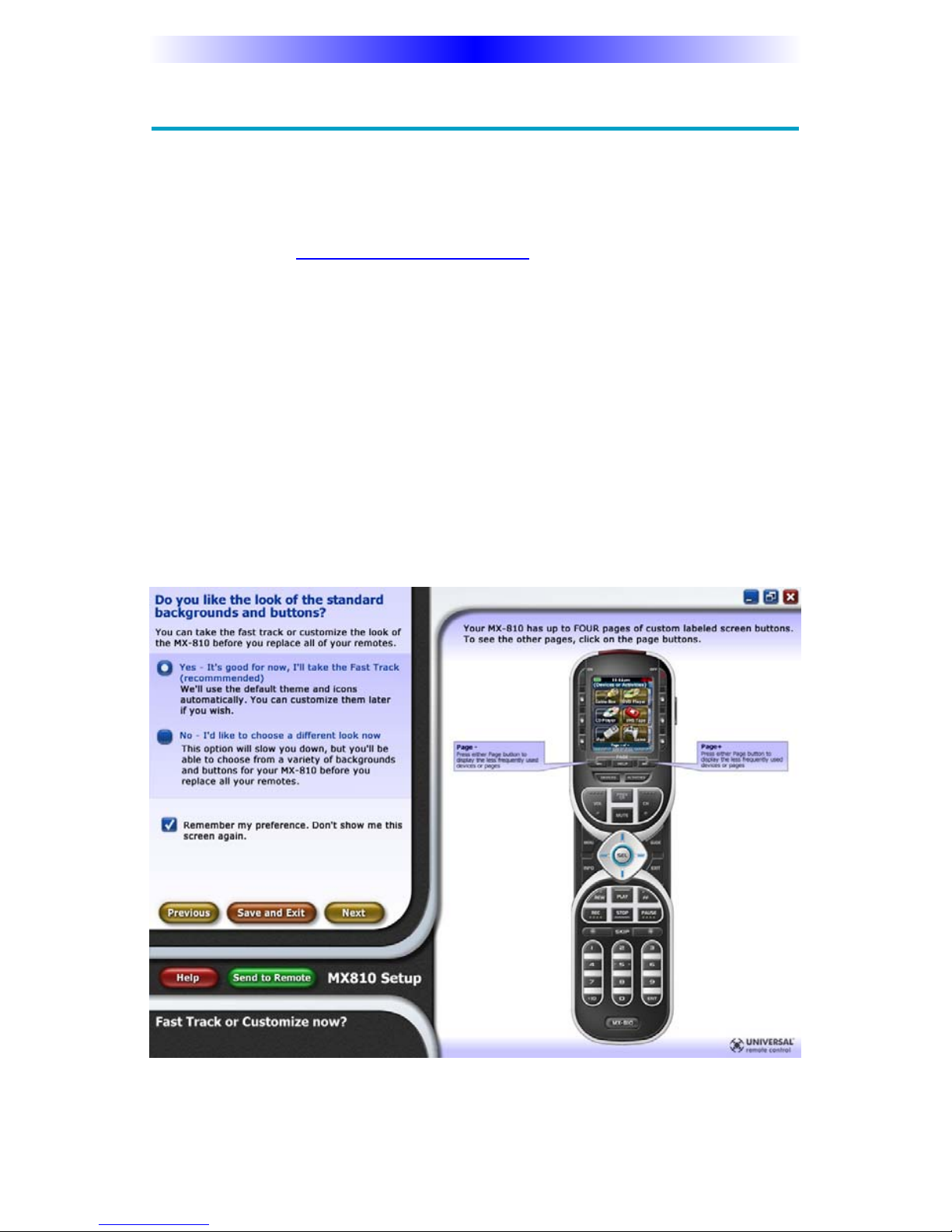

The MX-810 is programmed via a Windows PC equipped with a USB port

(programming cable included), using our proprietary software, MX-810

Setup. You can download this software from our website:

www.universalremote.com

Basic setup takes only a few minutes with this software. However, to fully

automate an audio/video system the programmer must have a detailed

knowledge of each component and how the system is connected and

operated. We highly recommend that you use a professional audio/video

installer to program your MX-810 so you will be able to enjoy all the ben-

efits of the MX-810 as well as one touch operation via Activities.

If you do opt to do some programming on your own, fill out the NOTES at

the end of this manual before beginning. This will greatly speed the

process of programming.

Using the MX-810 to Manually Control a “Device”

Press the MX-810’s DEVICES

button to display all the devices

you can control with your MX-

810.

Your MX-810 can control up to

24 devices. If you have more

than six devices, press either of

the page buttons to display the

other devices in your system.

When you find the device you

want to control, press the corre-

sponding button beside the

screen.

For example, if you press the

Sony VCR button on the screen

shown here, the MX-810 will

become a Sony VCR remote

control.

The MX-810 now displays the device you select-

ed at the top of the screen. Below the title, the

LCD displays the customized names of any

special features you need for the device.

All the hard buttons of the MX-810

have now changed their func-

tions to operate your device.

Page 5

MX-810 OWNERS MANUAL

Page 6

MX-810 OWNERS MANUAL

Using the MX-810 to Automate an “Activity”

You select Activities in the same way that you select Devices. Simply press

the MX-810’s ACTIVITIES button to display all the Activities you can auto-

mate with your MX-810.

However, when

you select an activi-

ty, the MX-810 is

going to automati-

cally reconfigure

your entire Audio

Video system.

For example, if you press Watch

DVD, a whole sequence of events

happens:

While the MX-810 is reconfiguring your

AV system, a status message on the MX-810 lets you

know that it is busy. This reconfiguration of your sys-

tem can take ten to twenty

seconds on some systems.

When the Status message disappears, all of the

MX-810’s buttons and screens are optimized for

the activity you selected.

The Volume and Mute buttons control the

sound you hear.

The rest of the buttons on the remote have new

functions, so that the functions you need most

frequently are immediately available.

1. The TV turns ON.

2. The Audio system turns ON.

3. The DVD player turns ON.

4. The TV changes to the DVD

input.

5. The AUDIO system changes to the

DVD input.

6. The DVD player begins to PLAY.

Status Message

Using the Help System for Automated Activities

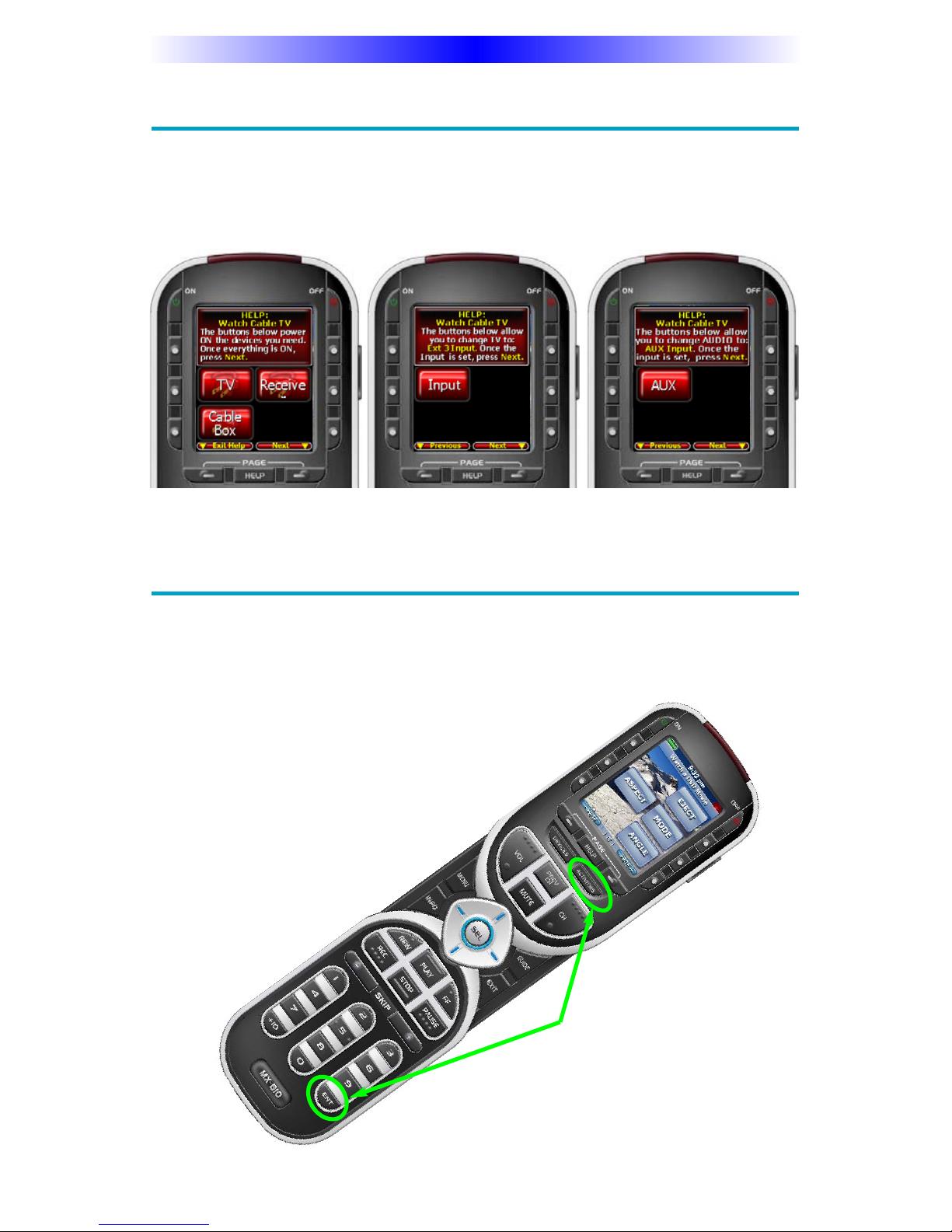

After selecting an activity, if any of the devices or components don’t seem to

be on or are set incorrectly, use the Help button. There may be several help

screens to help you with your activity as shown here:

Accessing the MX-810’s Setup Menus

The MX-810 has internal setup menus that enable you to change the settings

that control your color screen, the button lighting, battery warnings and the

clock. To access these settings, you must press and hold two

buttons at the same time as shown here:

At the same time, press and

hold both the ACTIVITIES

button and the ENTER but-

ton. When the SETUP screen

appears, you can release the

two buttons.

MX-810 OWNERS MANUAL

Once the help screens appear, look at your system. If anything is off, use the buttons on the first screen to

power them on, then press NEXT (the PAGE button). The second and third screens enable you to correct an

input. Additional screens may appear if your system is custom. Exit help by pressing the HELP button again.

Page 7

Inhaltsverzeichnis

Andere Universal Remote Control Universalfernbedienung Handbücher

Universal Remote Control

Universal Remote Control POWERBLASTER MRF100B Bedienungsanleitung

Universal Remote Control

Universal Remote Control MX-890 Bedienungsanleitung

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR3 Bedienungsanleitung

Universal Remote Control

Universal Remote Control CLIKR-5 UR5L-6200L Bedienungsanleitung

Universal Remote Control

Universal Remote Control AVEX R6 - SPECS SHEET Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR4-DSR Bedienungsanleitung

Universal Remote Control

Universal Remote Control CABLEVISION OCE-0027A Bedienungsanleitung

Universal Remote Control

Universal Remote Control MRF-260i Bedienungsanleitung

Universal Remote Control

Universal Remote Control PHAZR -5 UR5U-9000L Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR17E - CODE BOOK Bedienungsanleitung

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700 Bedienungsanleitung

Universal Remote Control

Universal Remote Control WR7 Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR3-J22TWM Administratorhandbuch

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Bedienungsanleitung

Universal Remote Control

Universal Remote Control Atlas M1055 Bedienungsanleitung

Universal Remote Control

Universal Remote Control 4 Function DTV Remote Control Bedienungsanleitung

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-450 Bedienungsanleitung

Universal Remote Control

Universal Remote Control MRF-300/RFX150 Bedienungsanleitung

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR4-DSR Bedienungsanleitung

Universal Remote Control

Universal Remote Control URC-L-1870 Bedienungsanleitung

Universal Remote Control

Universal Remote Control total control TRC-780 Bedienungsanleitung

Universal Remote Control

Universal Remote Control UR4-DSR Bedienungsanleitung

Universal Remote Control

Universal Remote Control Customizer URC-300 Bedienungsanleitung

Beliebte Universalfernbedienung Handbücher anderer Marken

Pronto

Pronto Peel Bedienungsanleitung

GE 24929 Bedienungsanleitung

Radio Shack

Radio Shack Wireless Remote Control System Bedienungsanleitung

AUVIO

AUVIO Universal Home Theater Remote Bedienungsanleitung

Philips

Philips Icon SRU4106 Bedienungsanleitung

THOMSON

THOMSON ROC4309 Bedienungsanleitung

Philips

Philips pm625S Bedienungsanleitung

GE RM94931 Bedienungsanleitung

RCA

RCA RCU600WMS - Universal Remote Control Bedienungsanleitung

Blackweb

Blackweb BWB17AV002 Bedienungsanleitung

Marmitek

Marmitek DoorGuard 300 Bedienungsanleitung

Chunghop

Chunghop RM-L618 Bedienungsanleitung

GE RM24965 Bedienungsanleitung

Anderic

Anderic KTN828 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Bedienungsanleitung

Medion

Medion E74023 Bedienungsanleitung

intensity

intensity RM02A Bedienungsanleitung

GE RM24950 Bedienungsanleitung
