UPC#5696B 56 Pocket Spinner
Revised 01/19/14 Page 1 of 2
PART Quantity Reference
Euro Screws 8A
Push Pins 60 (4 extra) B
Card Clips 28 C
Header Clip 1 D
Allen Wrench 1 E
PART Quantity Reference
Corner Posts 4 F
Top Cap 1 G
Base 1 H
Pockets 28 I
ABCD
E
F
I
H
G
PARTS BAG
PARTS LIST
ASSEMBLY INSTRUCTIONS
Finished Display
51/4"
33/8"
Top
Bottom
Page 2 of 2

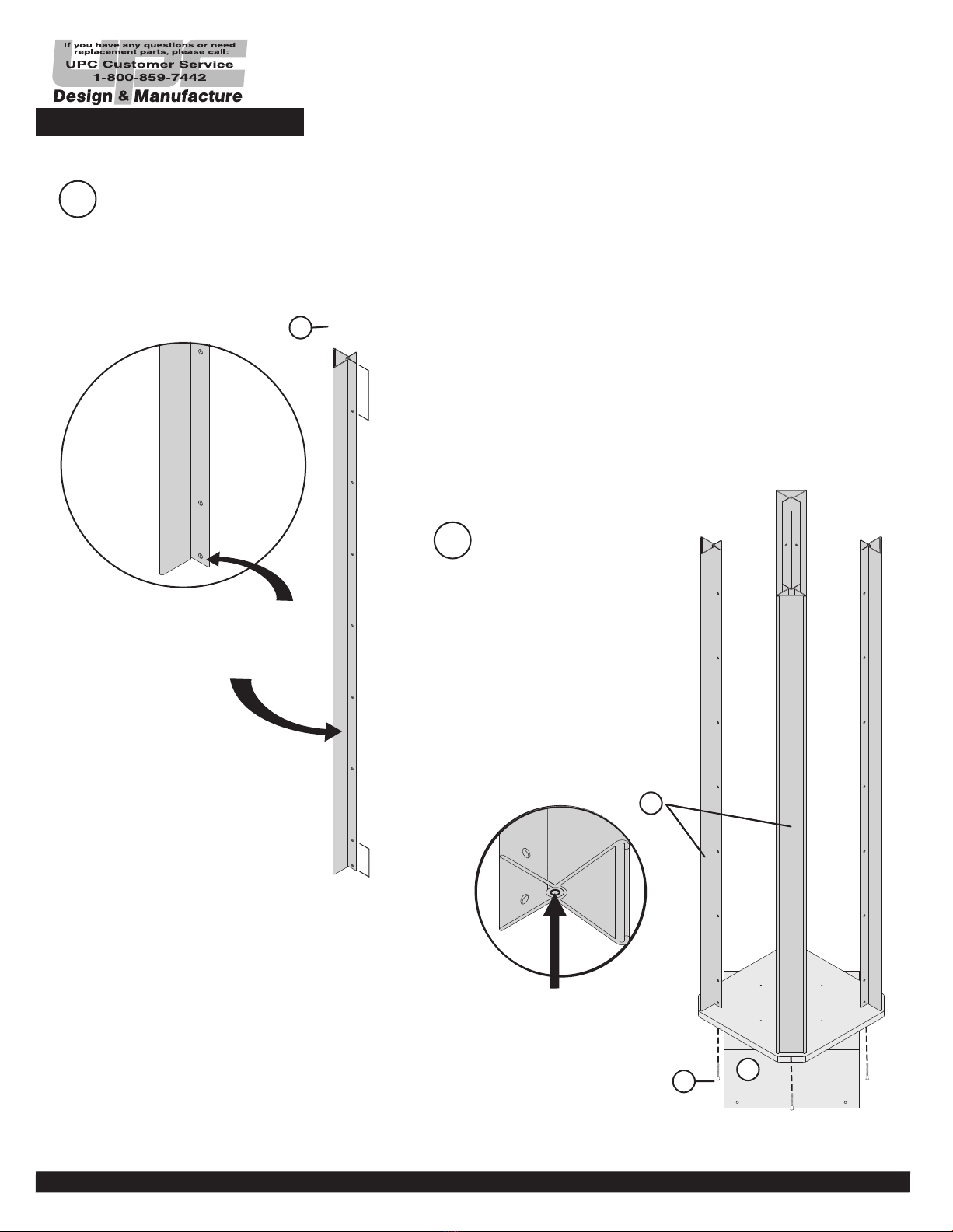

Attach (4) Corner Posts (F)
to the Base (H) using (4)
Euro Screws (A), as shown.
Top must be up, bottom down.
Identify Top and Bottom of
(4) Corner Posts (F).
NOTE: Holes are further
from the top than the bottom.
F
NOTE: There is an
extra hole close to
the bottom end.
NOTE:
Make sure to
install Screw into
round hole
in Corner Posts.
H
A
F
1
2
ASSEMBLY

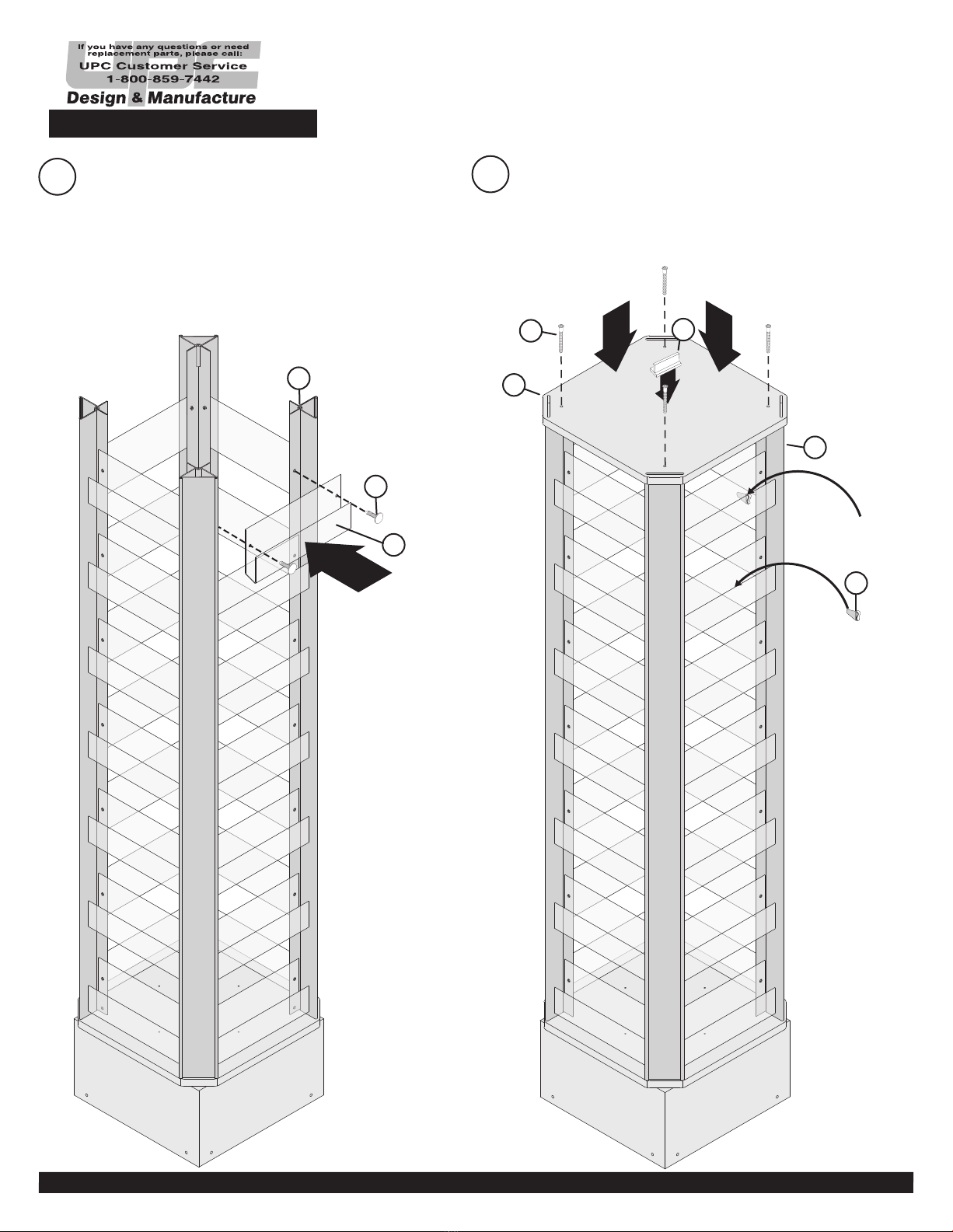

Push (2) Push Pins (B) into each Pocket (I)
then attach to Corner Posts (F).
Note: Be sure Push Pins are tight - the Racks
provide the rigidity of the tower.
Attach Top Cap (G) onto Corner Posts (F) with
(4) Euro Screws (A). Insert Card Clips (C) where
needed. Attach Header Clip (D) in center of
Top Cap (G).
F
C
AD
G
B
F
I
34
ASSEMBLY
Page 2 of 2
