Uplift Desk MON020 Bedienungsanleitung

Range Single Monitor Arm

MON020

Bolt-thru top

Wire clips

(qty 4)

13mm Flat wrench

Step 1.1 - Clamp

Rest the Bottom plate onto the Base’s bolt. Fit the Base around

the back of the desk and tighten the Bolt & Bottom plate into

place using the 6.5 mm Allen wrench.

Step 2

Insert the Gas arm into the Base. Note: The stopping-pin under

the Gas arm restricts rotation to 180°. If you want a full 360°

rotation, remove this pin with the 2mm Allen wrench. (see g. 4)

Insert the Extension arm into the Gas arm, and nish by insert-

ing the Monitor joint into the Extension Arm.

*Once the arm is assembled, you may need to tighten the set

screws

(marked with “ ”)

located at each joint to prevent the

different components from separating apart or drifting on their

own. Use the 3mm Allen wrench provided. Make sure not to

overtighten the set screws.

min thickness

.75’’

max thickness

3.5’’

g. 1 g. 2

g. 4

g. 3

Base

Bottom plate

Parts for Bolt-thru assembly

VESA mount Monitor screw

(qty 4)

Long bolts

(two sizes included:

50mm & 70mm)

Allen wrenches

(set of ve: 2mm, 3mm,

4mm, 6mm, 6.5mm)

Gas arm

Extension arm

Monitor joint

Package Contents

Note:

If the Clamp does not t on your desk, increase or decrease the

span of the clamp by removing the Bottom clamp and Bolt, and

repositioning them. First, unscrew the two screws holding the

Bottom clamp with the 4mm Allen wrench (see g. 1).

For thin desks (.75’’ minimum), reassemble the clamp as shown in

Figure 2. For thick desks (3.75’’ maximum), reassemble the clamp

as shown in Figure 3.

Once the Clamp has been set and ts your desktop, continue on

to Step 2 below.

Step 1.2 - Bolt-thru

To mount your monitor arm through a hole in your desktop (min .4’’,

max 3.15’’ in diameter), rst loosen the big screw inside the clamp

with the 6mm Allen wrench. Note: screw may be tight. Once re-

moved, separate the clamp assembly from the Base.

Place the Base onto the Bolt-thru top as shown. The Base’s small

peg should t into the small hole of the Bolt-thru top. Rotate until

the large hole lines up with the notch at the front of the base.

Place assembly completely over the hole facing the front of desk.

Select a Long bolt: the 50mm Bolt ts desks .6’’ to 1.38’’ thick, and

the 70mm Bolt ts desks 1.38’’ to 2.13’’ thick. Insert the Long bolt

thru the Bottom plate. Note: Bottom Plate must be wide enough

to straddle the hole’s diameter. Thread the bolt into the Base as-

sembly by hand and tighten using the 6.5mm Allen wrench.

Note: There are two ways to attach this monitor arm to your desktop: Clamp and Bolt-thru assembly. Determine if you need

to attach it around the back side of your desk (follow Step 1.1) or through a hole from .4’’ to 3.15’’ in diameter (follow Step 1.2).

***

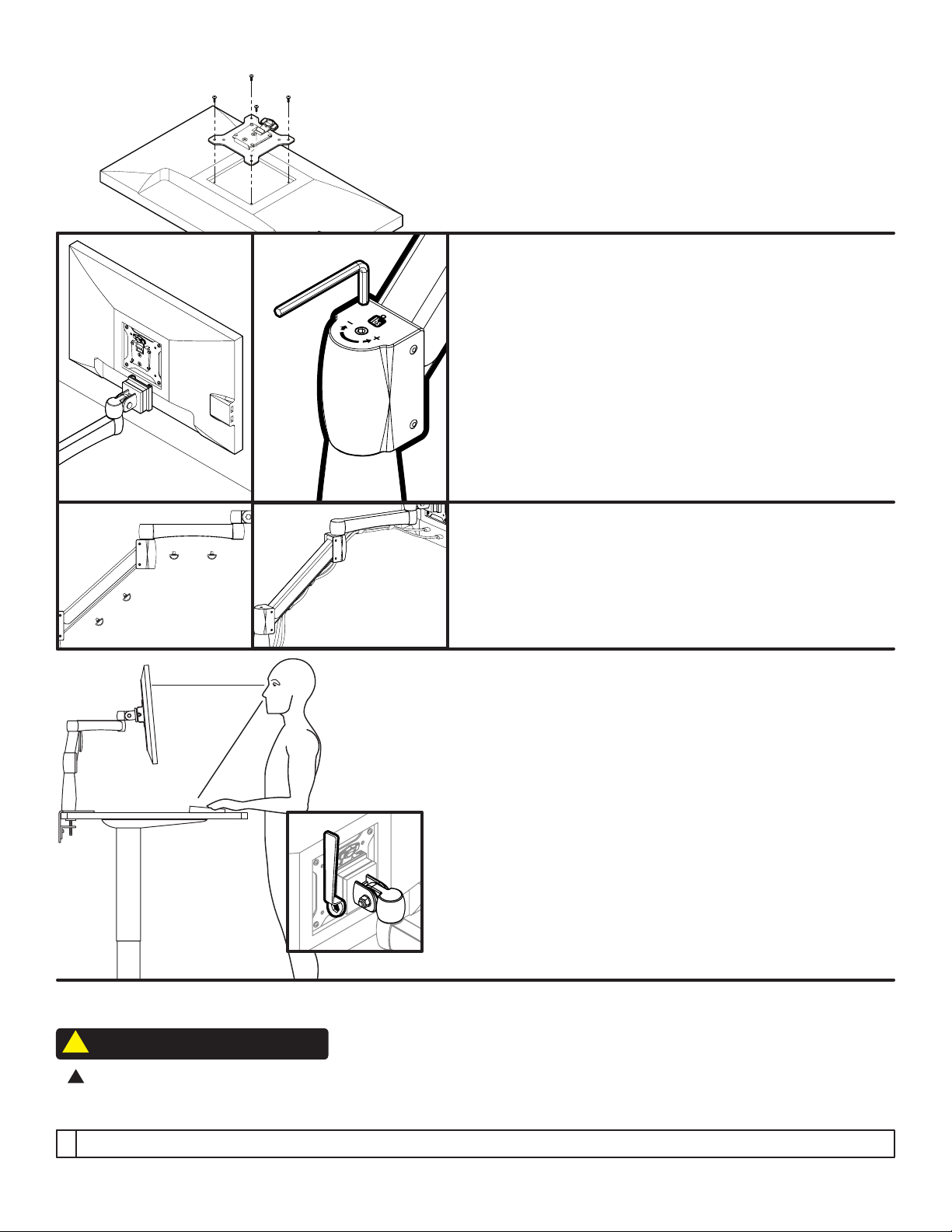

Step 3

Place monitor face down on a at surface, making sure not to

scratch your monitor screen. Attach the VESA mount to the

back of the monitor using a Phillips screwdriver and the four

(4) Monitor screws provided. The mount is designed to t

the industry standard VESA 75mm & 100mm hole patterns.

Note: make sure the tab on the VESA mount is facing the top

of the monitor.

Step 4

Slide the VESA mount with monitor attached into the Monitor joint

mount. Hold rm as you insert it until you feel it click into place.

The Gas arm is factory set for a standard 17” monitor. If you nd

that after you place the monitor into the proper position that it

either lifts or drops, then the tension of the Gas arm needs to be

adjusted. To do this, adjust the set screw located at the lower

section of the Gas arm.

You will need to hold the gas arm horizontally, parallel with the

desktop, while turning the set screw with the supplied 6mm

Allen wrench to either increase or decrease the supporting

weight. Adjust until the monitor arm holds its position when

you let it go.

Step 5

Insert the provided Wire clips into the underside of the Hori-

zontal and Gas arms. Run the cables through the clips. Make

sure the cables are not pulled tight. There should be some slack

in the cables to allow the arm to move freely without being

restricted.

This guide is a component of the UPLIFT Desk Single monitor arm. This guide is a part of the scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: uplift-

desk.com. Excerpts or copies may not be forwarded to third parties or used in any other published form without the prior written consent of UPLIFT Desk.

These instructions are subject to United States copyright law.

CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may

result in damage or personal injury. Retain manual for future reference.

CAUTIONS & WARNINGS

Step 6 Monitor Ergonomics

Screen Distance: Set screens about an arm’s length (approxi-

mately 18’’-28’’) from your eyes. If print is too hard to read, it is

better to make the print larger on your screen than to move the

screen closer.

Monitor Height: The top of the monitor should be level with

your eyes.

Monitor Tilt: The monitor should be tilted slightly up so it’s eas-

ier to see the screen when the top of the monitor is level with

your eyes. If the joint holding the monitor does not move, loos-

en the hex bolt on the Monitor joint slightly with the 13mm Flat

wrench.
