UPOWER Ecoline UE-24Li10BL Bedienungsanleitung
Issued Date > 2017-07-27
Issued Version > V00
LITHIUM IRON PHOSPHATE BATTERY
01
1. General Information
2. Specification (@Battery initial Temp25±5°C)
NO. Items Criteria
10Ah
9.5Ah
0.256KWh
Rated Capacity
Minimum Capacity
Energy
Floating charge voltage
Internal resistance
Limited charge voltage
25.6V
≥25.6V
27.6±0.2V
2
3
4
5
7
8
Nominal Voltage
Outgoing Voltage
≤60mΩ
29.2±0.2V
Standard charge current 5A9
Maximum charge current 10A@Battery initial Temp 25±5°C10
Standard discharge current 10A11
1
Series parallel application6Series connection is prohibited
Multi-application - LiFePO4 Power
UE-24Li10BL
This specification defines the performance of rechargeable LiFePO4 battery pack UE-24Li10BL manufactured by
UPOWER, S.L., describes the type, performance, technical characteristics, warning and caution of the battery
pack. The battery pack support Bluetooth communication function. Through Android and IOS APP, can read the
battery status and information. Especially due to the Android system’s openness, different smart phone manufactu-
rer will have their own different Bluetooth hardware version and customized feature Android systems.
So the APP may not work well on some smart phones (with Android system) due to compatible issue.
It is necessary for the customer to confirm whether the phone is compatible for the APP.
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
02
NO. Items Description
Length: 150±2mm
Width: 68±2mm
Height: 135±2mm
Dimension
Self-discharge rate
Operating Temperature
Approx: 2.6±0.5Kg
Charging:0~45°C
Residual capacity:≤3%/month; ≤15%/years
16
17
18
Weight
Discharging:-20~60°C
Recommended operating temperature:15°C~35°C
Reversible capacity:≤1.5%/month; ≤8%/years
Storage Temperature & Humidity Range
Less than 1 month:-20°C~35°C，45% RH~75％RH
19
Less than 3 months:-10°C~35°C，45% RH~75％RH
Recommended storage environment:
15°C~35°C,45% RH~75％RH
15
Long time storage:
If the battery need be stored for a long time, the voltage should be 26.4V (50% SOC), and stored in the
condition as storage proposal. It need at least one charge & discharge cycle every six months
3. Test Condition
3.1 Standard Test Conditions
3.1.1 Unless otherwise specified, all performance tests is required conducted at temperature 25
°C
±2
°C
,
Humidity less than 45% ~ 75% RH.
3.1.2 Unless otherwise specified, the tested product is required unused within two month after outgoing.
UE-24Li10BL
Maximum discharge current 15A @Battery initial Temp 25±5°C12
Pulse discharge current Withstand the 30A/3s13
20V14 Discharge cut-off voltage
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542

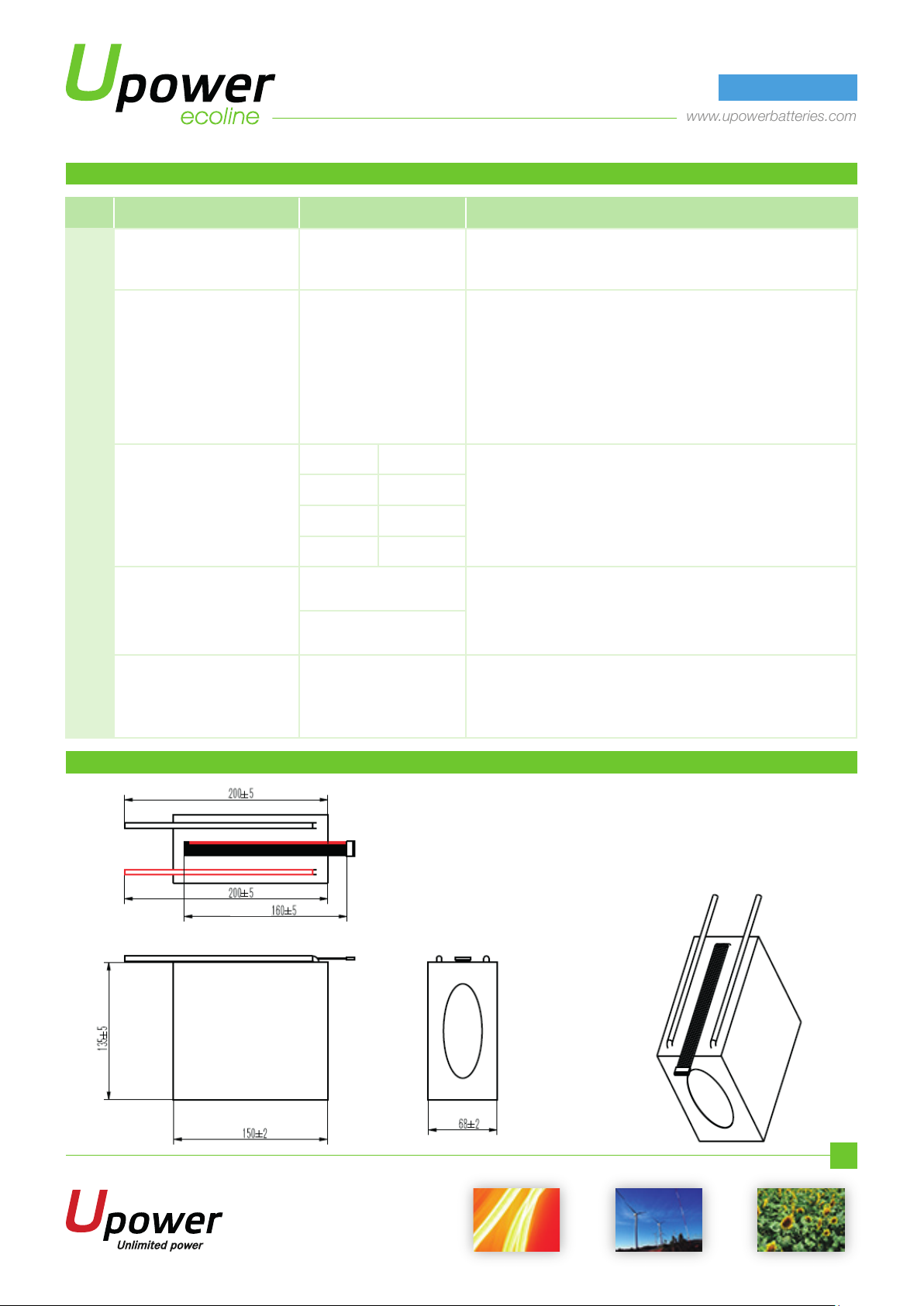

5. Dimensional Drawing
03
NO. Items
-20°C
Testing method
Internal resistance1≤130mΩ 50% battery SOC state frequency of 1 KHZ ac
resistance tester.
Criterion
Discharge
Temperature
Characteristics
At 25±5°C discharge the battery with the current of
0.33C to the cut-off voltage. Store the battery at
various temperatures for 2h and discharge the
battery with 0.33C to the cut-off voltage.
0°C
25°C
55°C
≥70%
≥80%
100%
≥95%
Charge the battery to full capacity and store it for 28
days, and then discharge it with 0.33C to the cut-off
voltage.
Charge Retention
ability
Residual
capacity ≥80%
Discharge with the current of 0.33C until it can’t
discharge, and then rest it for 1h. Charge the battery
following CC (0.33C)/CV (14.6V) mode to full capacity,
and then rest it for 1h. Repeat above process until full
charged capacity is no more than 80% of normal
value. Accumulated times is defined as cycle life.
2Cycle life (DOD%100) ≥2500 cycles
3
4. Product Performance
4Recovery
capacity ≥90%
UE-24Li10BL
Though,user can read the battery system information
such as voltage, current, SOC, temperature…
and so on.
Communication
Function Bluetooth5
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
04
6. Transportation
• Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be
created to protect the battery.
• Battery should be stayed in the warehouse 15ºC 〜35ºC where it’s dry, clean, shade and well-ventilated.
• The battery should be stored in 50% SOC during transportation.
• The battery need to be charged every 6 months if out of use.
• Keep the battery against dropping, turning over and serious stacking during loading.
7. Warning & Tips
Please read and follow the specification and caution remarks on battery surface before use the battery. Improper
use may cause heat, fire, rupture, damage or capacity deterioration of the battery. UPOWER, S.L. describes is not
responsible for any accidents caused by the usage without following our specification.
• The battery must be far away from heat source, high voltage, and avoid to be exposed in sunshine for long time.
• Never throw the battery into water.
• Do not put the battery in a charger or equipment with wrong terminals connected.
• Never connect the positive and negative of battery with metal.
• Avoid excessive physical shock or vibration. don't hit, fall, stamp on the battery.
• Without the permission of the manufacturer and guidance, forbidden to remove or to assemble the battery.
• Do not use the battery mixed with other different manufacturer, type, or model batteries.
• Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some
function and reduce the life.
• When battery run out of power, please charge your battery timely (≤15 day).
• Please use the matched or suggested charger for this battery.
• If battery emit peculiar smell, heating, distortion or appear any abnormity during working or storage, please stop
using and take it out from device.
• If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor
immediately.
• Please far away from children or pets.
• Do not put disuse battery into a fire or water.
• The battery pack supports up to 4 series-connected applications.
• Parallel connection of this battery pack is allowed under condition that voltage difference ≤0.2V,
parallel numbers ≤4 groups, and operated by professionals.
UE-24Li10BL
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
05
8. Battery Operation Instruction
8.1 Charge and discharge
8.1.1 Charging current:Do not surpass the largest charging current that specification stipulated.
8.1.2 Charging voltage:Do not surpass the highest limited voltage that specification stipulated.
8.1.3 Charging temperature:within temperature scope that specification stipulated.
8.1.4 Charge with constant current, then with the constant voltage, no reverse charge, which is dangerous.
8.1.5 Special note:
Short time doesn't affect the use of the battery overcharge too, but for a long period of time over
discharge or over charge can affect the function of the battery failure, or the battery can't use permanent,
appear serious safety hazards, need long time floating please use the recommended floating model
specification. Battery when not in use for a long time, because of its own self-discharge characteristics
can also cause discharge, to prevent the occurrence of a discharge, battery should maintain a certain
capacity, maintain the voltage at 50% state of SOC.
9. Other Chemical Reaction
Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a
long period of time without being used. In addition, if the various usage conditions such as charge, discharge,
ambient temperature, etc. are not maintained within the specified ranges, the life expectancy of the battery may
be shortened or the device in which the battery is used may be damaged by electrolyte leakage. If the discharge
time is much shorter than the normal after full charged, even battery is charged correctly, and this may indicate it is
time to change the battery.
UE-24Li10BL
www.upowerbatteries.com
66A Tzar Asen Srt.
Sofia, Republic of Bulgary
Tel. (+34) 918 021 649
Fax. (+34) 917 750 542
