USX-MOUNT WMM012-01 Bedienungsanleitung
W
MM012-
01
INSTRUCTION MANUAL
For 26-60" TV
If you have any questions along the way, just give us a call
1-800-460-0956 or mail to [email protected].
We’re ready to help!
R
Before getting started, let’s check below lists to make sure it is just right for you!
2
3
4
5
2
Does your TV
(including accessories)
weigh MORE than
100 lbs. (45.5 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(NOT INCLUDE)
Tape
Measure
CAUTION
Pencil
Level
Screw
driver
Electric
Drill
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
Drywall with
wood studs?
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Solid concrete
1/2 in.
(13 mm)
Socket
Wrench
Stud
Finder
5/32 in.
(4 mm)
Wood
Drill Bit
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
3/8 in.
(10 mm)
Masonry
Drill Bit
Hammer
1
Check your TV
VESA is within
Min and Max size
No? This mount is NOT compatible.
Yes? Perfect !
MAX:400mm/15.75"
(MIN:
75
mm/
2
.9
5
")
MAX:400mm/15.75"
(MIN:
75
mm/
2
.9
5
")
?
Unsure?
Call Customer Service:
1-800-460-0956
CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS
100 LBS
(45.5 kg)
Per
fect!
Per
fect!
Wood Stud Install
Concrete Install
!
CAUTION:
DO NOT
install into
drywall alone
!
TV INTERFACE
3-D
WALL PLATE
FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED
TOP VIEW - EXTENDED
SIDE VIEW - RETRACTED
3
+5°
-15°
TOP VIEW - EXTENDED
MAX:400mm[15.75in]
MIN:
75
mm[
2
.9
5
in]
400mm
[15.75in]
MIN: 75mm
[2.95in]
406mm
[16.00in]
203mm
[8.00in]
236mm
[9.29in]
9mm
[0.35in]
MAX:400mm[15.75in]
150mm
[5.91in]
285mm
[11.22in]
420mm
[16.54in]
26mm
[1.02in]
78mm
[3.06in]
+45°
-45°
435mm
[17.13in]
Dimensions
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
Parts and Hardware for STEP 1
4
Parts and Hardware
!
M4x12mm
M6x12mm
M4x30mm
M6x35mm
Spacers
TV Screws
x4 x4
x4 x4
M8x
45
mm
M6x17mm
M8x22mm
M4 M6
10mm
2.5mm
Washers
x4
x4
x4 x4
x
8
x
4
x4
a
b
f
e
d
gh
ij
k
l
M8x25mm
x4
c
TV Brackets
04
x2

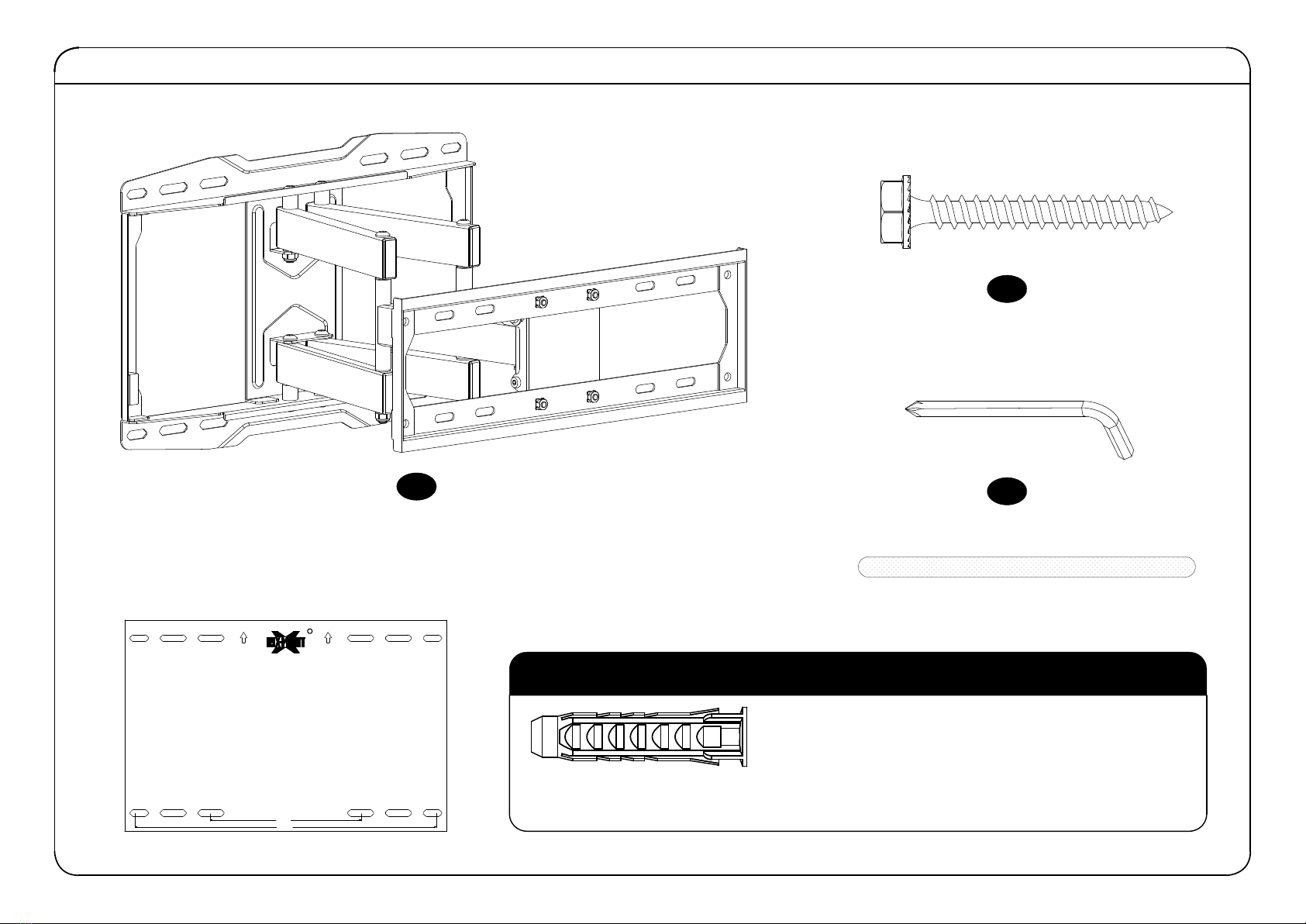

Parts and Hardware for STEP 2
5
Allen Key
Lag Bolt
Wa
ll
P
l
a
te
Velcro x3
Mounting template
8"(423.2mm)
16"(846.4mm)
R
03
x1
01
x4
02
x1
Concrete Wall
Anchor
4pcs
Contact us at telephone
1-800-460-0956
(USA)
or mail to [email protected]. to have
these additional pieces shipped directly to you.
Concrete wall anchor (NOT INCLUDED)
6
M8
M6
M4
1-1
Select TV Screws
STEP 1 Attach Brackets to TV
1-2
Figure out the suitable position of brackets
7
INSTALL UP/DOWN IF NEEDED
TV BRACKETS MUST BE LEVEL
LOW MOUNTING HOLES HIGH MOUNTING HOLES
!
!
Tips: If you need to combine
M6/M8(
c/e
/f) screw
s
with
2.5mm spacer
s
(
i
),
you have to remove the inner circle.
Yes,
choose suitable screws, washers and spacers.
1-4
Attach the TV Plate
No!
No,
choose suitable screws and washers.
1-3
Need Spacer?
8
b
a
c
k
l
e
d
f
k
l
i
h
j
g
04
04
Centre line
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm).
● Minimum
wood stud
size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm).
● Maximum horizontal space between fasteners: 16 in. (406 mm).
● Stud center must be verified.

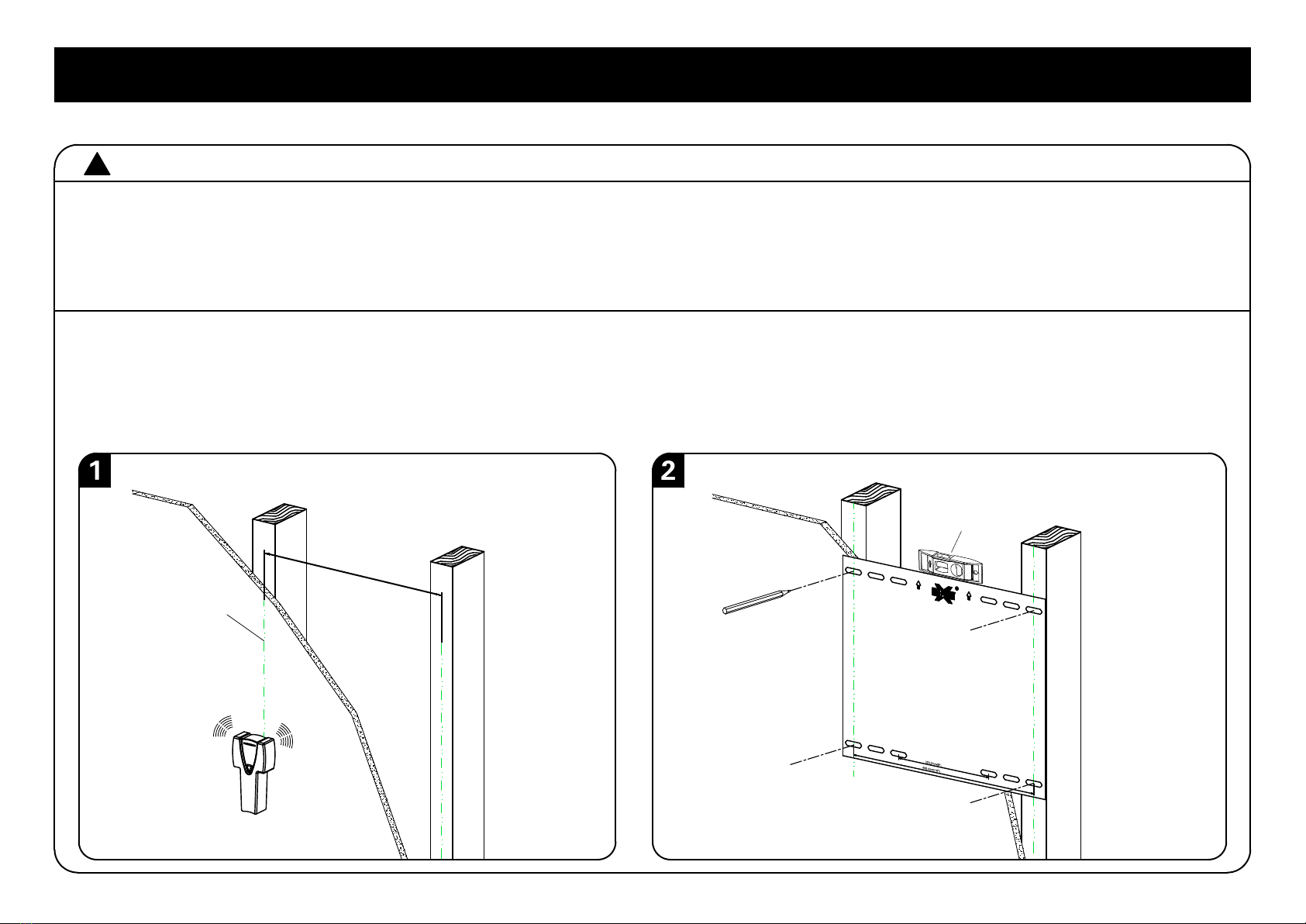

1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the mounting template at your desired height and line up the holes with your stud center line.
Level the mounting template and mark the hole locations.
Again, find another wood stud
8
"
/16"
9
STEP 2A Attach Wall Plate to Wall Wood Stud Option
!
Mounting template
Bubble
level
3. Drill pilot holes using a 5/32 in. (4 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.36 in. (60 mm). Be sure to drill into the center
of the studs.
4. Install wall plate using lag bolts . Tighten the lag bolts only until they are pulled firmly against
the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts
.
Go to STEP 3 on PAGE 13.
5/32"
(4mm)
10
No!
Bubble
level
UP
2.36
"(
60
mm)
!
!
03 01
03
01
