USX-MOUNT XML020-24K Bedienungsanleitung
XML020-24K
INSTRUCTION MANUAL
R
USA-B0
For 42-80" TV
If you have any questions along the way, just message
to us. We’re ready to help!
2
MAX:600mm/23.62"
(MIN:200mm/7.87")
MAX:400mm/15.74"
(MIN:100mm/3.94")

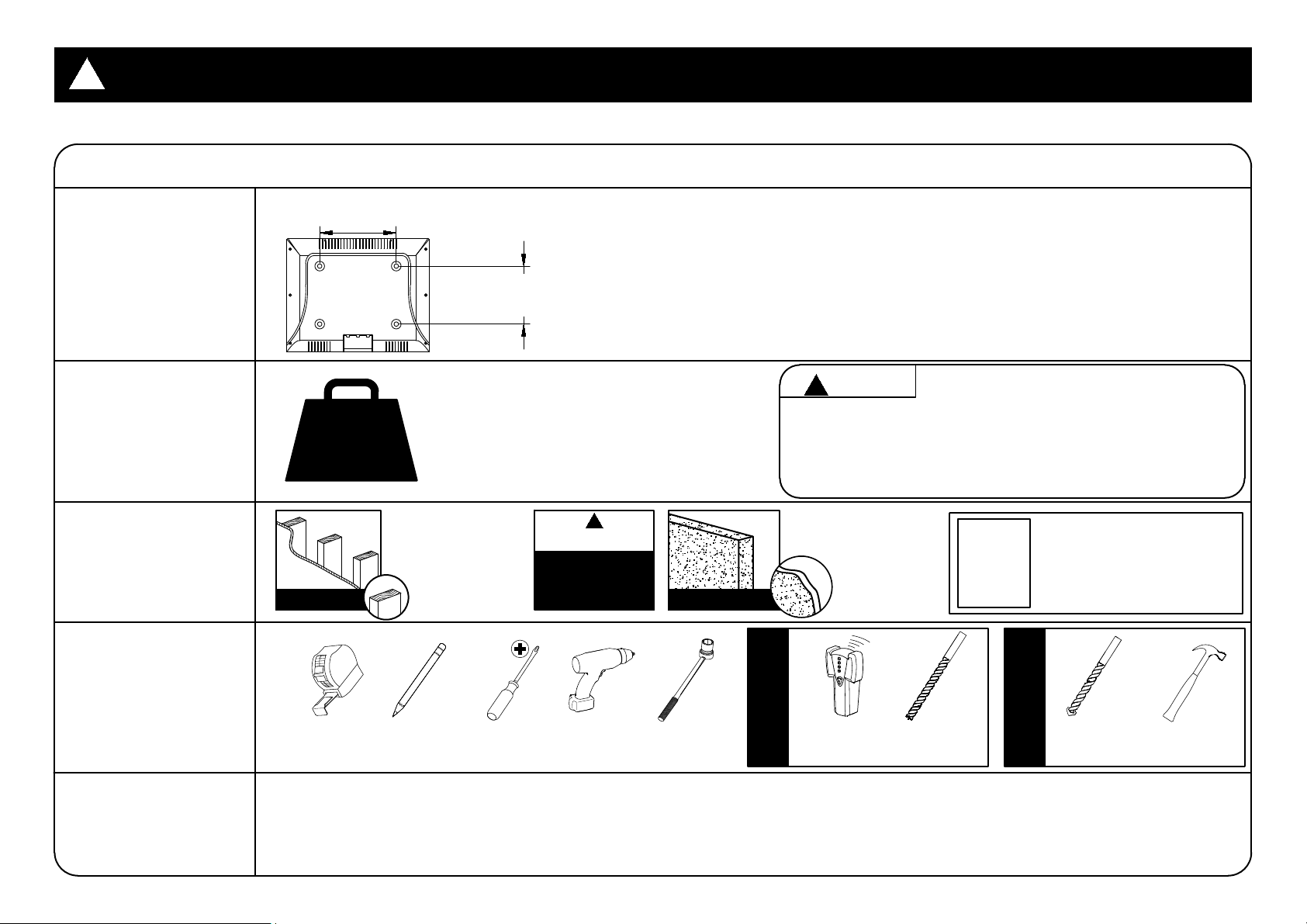

Before getting started, let’s check below lists to make sure it is just right for you!
2
3
4
5
Does your TV
(including accessories)
weigh MORE than
110 lbs. (50 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(NOT INCLUDE)
CAUTION
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
Drywall with
wood studs?
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Solid concrete
Stud
Finder
7/32 in.
(5.5 mm)
Wood
Drill Bit
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
3/8 in.
(10 mm)
Masonry
Drill Bit
Hammer
1
Check your TV
VESA is within
Min and Max size
No? This mount is NOT compatible.
Yes? Perfect !
Tape
Measure Pencil Screw
driver
Electric
Drill
1/2 in.
(13 mm)
Socket
Wrench
?Unsure?
Mail to us via Amazon.
CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS
!
Max:
110 LBS
(50 kg)
!
Concrete Install
Per fect !Per fect !
CAUTION:
DO NOT
install into
drywall alone
!
Wood Stud Install
TV INTERFACE
3-D
WALL PLATE
FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED
TOP VIEW - EXTENDED
SIDE VIEW - EXTENDED
3
+5°
-15°
SIDE VIEW - EXTENDED
+45°
Dimensions
293mm
[11.55in]
420mm
[16.54in]
649mm
[25.56in]
685mm
[26.97in]
67mm
[2.63in]
425mm
[16.73in]
245mm
[9.65in]
609mm
[24in]
406mm
[16in]
9mm
[0.35in]
200mm
[7.87in]
600mm
[23.62in]
400mm
[15.74in]
100mm
[3.94in]
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
4
Parts and Hardware for STEP 1
TV Brackets
x2
Spacers
TV Screws
M4x12mm
M6x12mm
M8x25mm
M4x30mm
M6x35mm
M8x
45
mm
x4 x4
x4 x4
x4 x4
M6x17mm
M8x22mm
M4 M6
10mm
2.5mm
Washers
x4
x4 x4
x
8
x
4
x4
06
ad
b
c
e
f
gh
ij
k
l
Parts and Hardware
!
5
Parts and Hardware for STEP 2
Lag Bolt
x4
Wa
ll
P
l
a
te U
nit
x1
Allen Key
x1
Extension Arm
M6x1
6
mm Bolt
x2
M6x
8
mm Bolt
Extension Arm
x2 x2
Parts and Hardware for STEP 3
x
8
Velcro x3
Mounting template
Contact us
and
message to us
to have these
additional pieces shipped directly to you.
Concrete Wall
Anchor
4pcs
8"(314.16mm)
16"(628.33mm)
24"(942.49mm)
R
05
01
02 03 04
07 08
Co
ncrete wall anchor (NOT INCLUDED)
6
M8
M6
M4
1-1
Select TV Screws
S
TEP
1
Attach Brackets to TV
1-2
Figure out the suitable position of brackets
7
INSTALL UP/DOWN IF NEEDED
TV BRACKETS MUST BE LEVEL
LOW MOUNTING HOLES HIGH MOUNTING HOLES
06
!
!
Tips: If you need to combine M6/M8(c/e/f) screws with
2.5mm spacers( i ), you have to remove the inner circle.
1-4 Attach the TV Plate
No!
1-3 Need Spacer?
8
abc
lk
def
k l
gh i j
No, choose suitable screws and washers.
Yes, choose suitable screws, washers and spacers.
Centre line
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
● Minimum
wood stud
size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Maximum horizontal space between fasteners: 24 in. (609 mm)
● Stud center must be verified

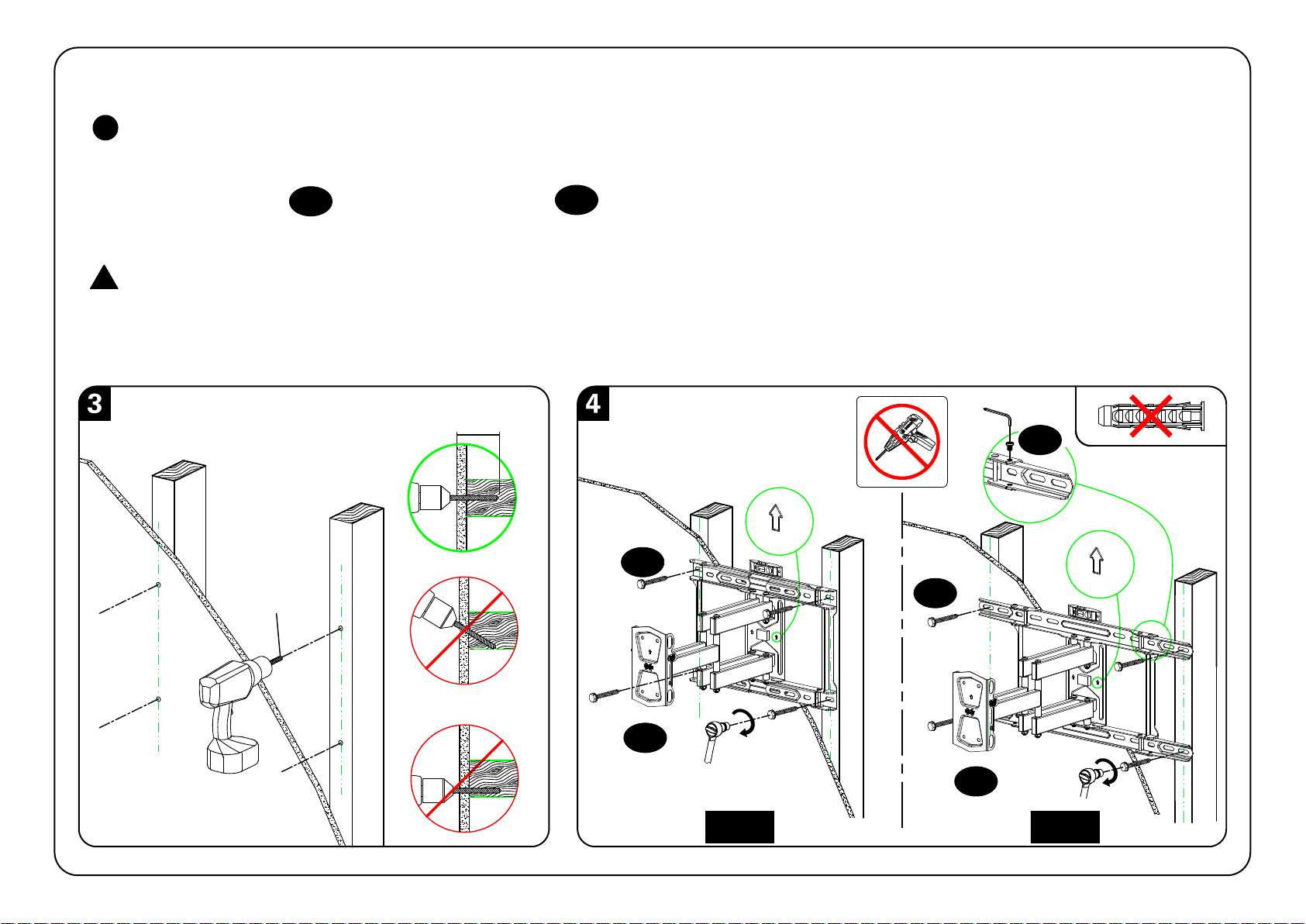

1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the mounting template at your desired height and line up the holes with your stud center line.
Level the wall plate and mark the hole locations.
Again, find another wood stud
16"
/24
"
Mounting template
9
S
TEP
2A
Attach Wall Plate to Wall Wood Stud Option
!
3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center
of the studs.
4. Install wall plate using four lag bolts . Tighten the lag bolts only until they are pulled firmly
against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts
.
Go to STEP 4 on PAGE 14.
2.5"(64mm)
7/32"
(5.5mm)
No!
UP
10
05 01
UP
01
05
05
02
16in 24in
!
!
01
