Utilitech 148003 Bedienungsanleitung

WARNING:

FOR YOUR PROTECTION, ALWAYS

DISCONNECT PUMP FROM POWER

SOURCE BEFORE HANDLING.

2 in. on

.4 in. off

Discharge

1-1/4 in.

Pipe

Base

1. Install the snap-

on strainer (C) by

lining up the pump

(A) base to match

the strainer. Push

down gently until it

latches.

2. Attach 1-1/4 in. pipe or

tting (not included) to

pump (A) discharge,

or screw the garden

hose adapter/check

valve (B) into the pump

discharge.

NOTE: Be sure the

garden hose adapter/

check valve is installed

with the word ‘Top’

facing up.

3. If using garden hose

(not included), thread

the female end of the

garden hose into the

male end of the garden

hose adapter (B).

For best performance,

unwind the hose before

starting the pump.

4. Place pump (A) in an

upright position on

the pool cover where

water will collect. Do

not suspend pump (A)

by the discharge hose

or power cord.

Be sure pump (A) is

not sitting in mud,

sand, or debris.

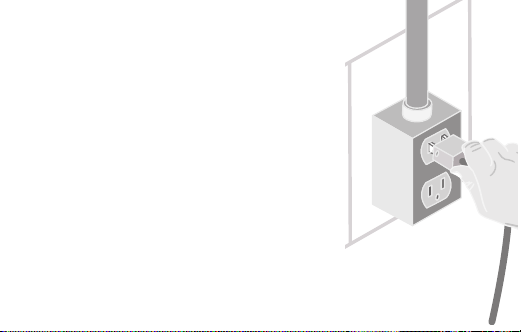

5. Plug the pump into a properly

grounded, GFCI 115 V

outlet. For safety, the pump

should always be electrically

grounded to a suitable

electrical ground, such as a

grounded water pipe, properly

grounded metallic raceway, or

ground wire.

6. The pump (A) will turn

on when the water

level around the pump

reaches approximately

2 in. Water must contact

the pump sensors in

order for it to turn on.

When the water level

drops to approximately

.4 in., pump (A) will run

for 10 additional seconds

and then turn o󰀨.

QUICK START GUIDE. SEE INSTRUCTION

MANUAL FOR COMPLETE DETAILS.

ITEM #0955587

UTILITY POOL COVER PUMP

MODEL #

148003

SW1181 B

Printed in China
