V-TAC 7817 Bedienungsanleitung

Installation Instruction

Product Code: SKU 7817

Product Description: SELF TEST-LED EMERGENCY EXIT BOX WITH ARROW UP LEGEND

Routine Testing

Specification

Testing Record

Testing should be carried out in accordance with the recommendations of BS5266 & EN50172.

1. Do not switch off unswitched mains supply after installation. If interruption is unavoidable, the batteries must be

disconnected or damage to the batteries may occur. Leave the luminaire on continuous charge for 24 hours.

2. A monthly functional test should be conducted manually.

3. Annually, a full three hour duration test should be conducted manually.

4. Batteries should be replaced when the luminaire no longer meets the 3 hours duration performance.

5. Testing is performed by interrupting the unswitched supply for the test duration manually or self-test function

complying with IEC62034.

During testing the luminaire should remain illuminated in emergency mode.

6. Ensure that the ‘charge indicator’ is ‘ON’ during ‘Charging Mode’.

If the charge indicator (LED) is unlit, this signifies a fault.

7. Replace faulty light source and batteries immediately.

To assist with this testing, a test record is included below.

To increase the chance of a fault being reported between monthly tests, it is desirable that staff are made aware

of the purpose of the indicator.

Functional/DurationMonth Year 1 Year 2 Year 3 Year 4 Year 5

Product: _______________ Location:_____________ Installation Date:____________

Emergency Power:

Viewing Distance:

EM Duration:

Charging Time:

Ambient Temp:

Emergency Mode:

Function:

Battery:

Warranty:

<4W

30M(EU ) / 24M(AU)

1H/3H/8H

24 hours

5-45°C

Maintained

Self-test

LiFePO4 3.2V 1.5Ah

4 years (battery 2 years)

420

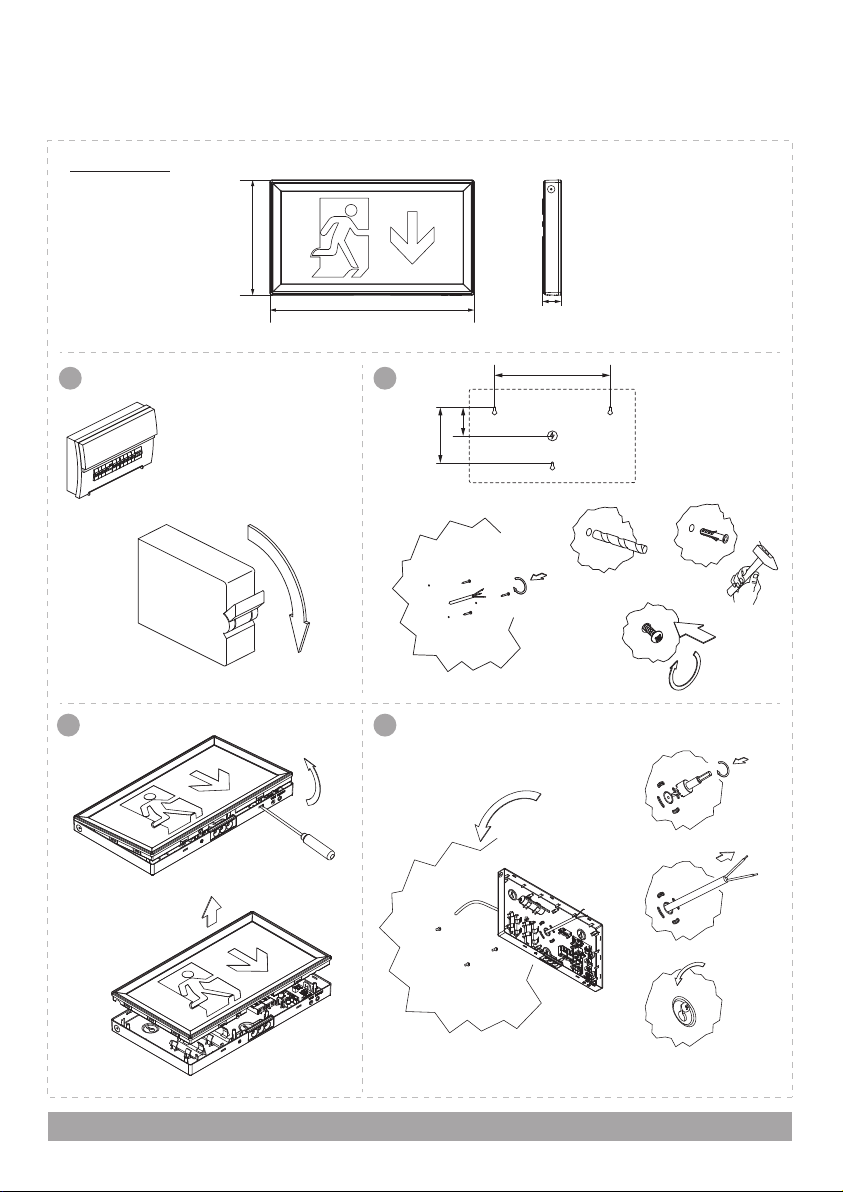

Installation Instruction

3 4

1 2

ALWAYS SWITCH OFF THE

MAINS SUPPLY BEFORE

INSTALLATION OR SERVICING

Dimension

186mm

330mm 30mm

110

230

56.4

8 9

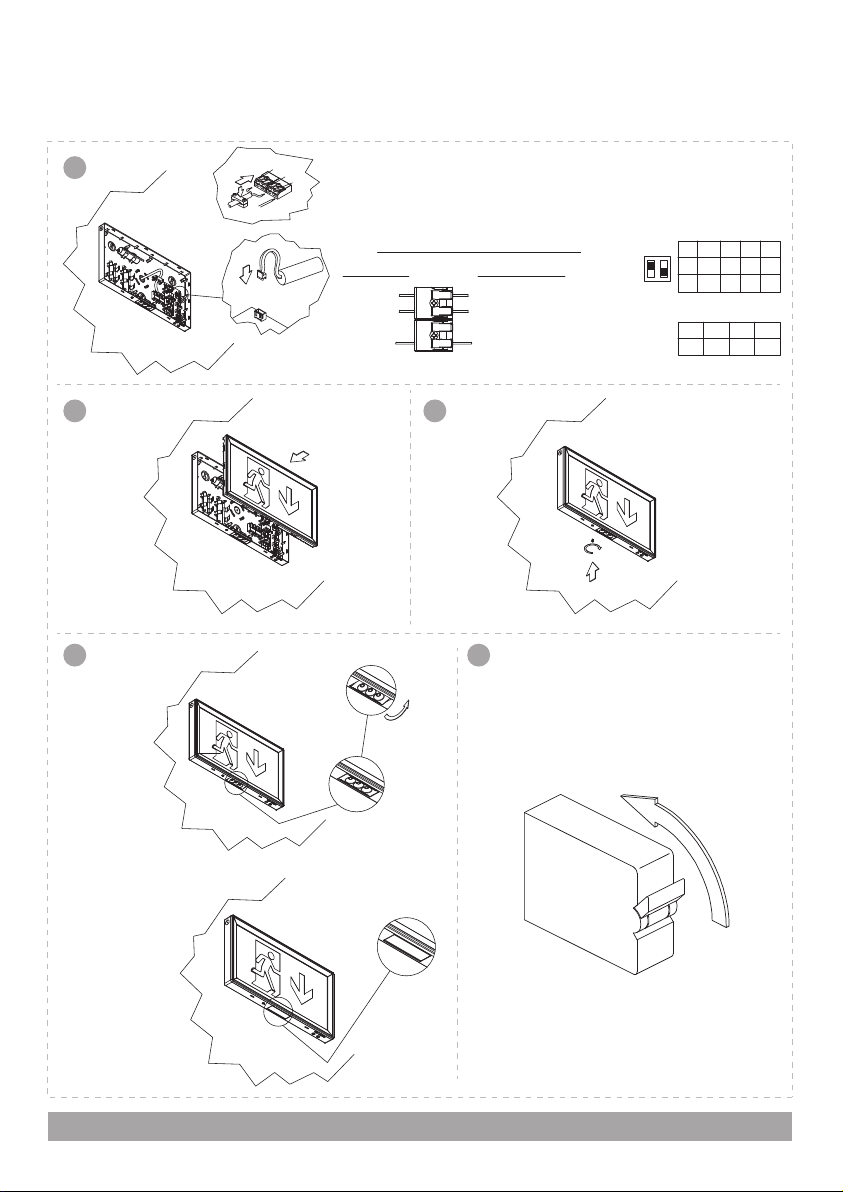

Installation Instruction

EMERGENCY TERMINATIONS

'L' UNSWITCHED SUPPLY

'Ls' SWITCHED SUPPLY

'N' NEUTRAL

Blue (N)

Brown (L)

LUMINAIRE MAINS SUPPLY 1

onoff

1 2

onoff

off onoffon

8H 3H 3H 1H

130lm80lm80lm

10lm

Duration

Downward Light

NLLs

Connect battery

to converter

Adjust lens

angle

Lens version

Closed

cover

Eco version

Pictogram Replacement

1 2

3 4

Specifications for Self Test

Function Test

The function test is carried out every month for 3 minutes. It will check the connection of battery,

battery discharging and the connection of LED module.

Duration Test

An initial duration test is carried out at first power on, but after 24 hours charging. The yearly

duration test is carried out for 3 hours on one day within the 300th day to the 365th day every

year. It will also check the connection of battery and LED module.

A bi-colour indicator will indicate the normal and abnormal status. Green is for conditions are

normal and red for the faulty conditions.

LED Colour Status

On Time

(Seconds)

Off Time

(Seconds)

Description

Green

Permanent on / / Normal status when mains connected

Slow flash 1s 1s Duration test running

Fast flash 0.2s 0.2s Function test running

Normal flash

three times only

0.5s 0.5s Time reset

Red

Permanent on / / Battery failure

Slow flash 1s 1s Lamp failure

Fast flash 0.2s 0.2s

Duration failure - the capacity of the

battery is not enough

Both Off

Off / / Emergency mode

A test switch is applied for different functions activated manually.

Duration

Function

Press for <2s

Simulate emergency mode

Press for 3-5s

Start duration test manually. The test can be aborted by pressing off (1-2s).

Press for 5-8s

Start Function test manually for 60s.

The test can be aborted by pressing off (1-2s).

Press for >10s

Time Reset

Note:

When the mains is on, the green indicator will be permanent on. It will check the connection of

battery and the connection of LED module. If it is a non-maintained fitting, the connection of LED

module no need to be checked. When the mains is off, no test will perform.

The luminaries on which we want to perform the function and duration tests must be connected

to the mains supply for at least 24 uninterrupted hours. If the mains is off during these tests, the

tests will be postponed for 3 days.

When the fault is corrected, the indicator will only be reset to its normal status after mains

reconnected or test switch pressed.

An accuracy of the timing of the test interval is ensured that it has an accuracy of ±75 s per

week. The timing function will be retained through periods of mains supply failure or interruption

for up to 7 days.
