V-ZUG DSTS9 Bedienungsanleitung

Operating instructions

Recirculation box

Range hood

Thank you for choosing to buy one of our products. Your appliance is made to

high standards and is easy to use. Nevertheless, please take the time to read

these operating instructions in order to familiarize yourself with the appliance

and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance

at the time these operating instructions went to press. The right to make tech-

nical modifications for the purpose of the further development of the appli-

ances is reserved.

Variations depending on the model are noted in the text.

Contents

2

1 Safety precautions 4

1.1 Symbols used ........................................................................................................ 4

1.2 General safety precautions ................................................................................. 5

2 Disposal 6

3 Appliance description 7

3.1 Features .................................................................................................................. 7

4 Replacing the activated charcoal filter 8

5 Accessories and spare parts 10

6 Service & Support 11

1 Safety precautions

1.1 Symbols used

Denotes important safety precautions.

Failure to observe said precautions can result in injury or in damage

to the appliance or fittings!

Information and precautions that should be observed.

Information on disposal

Information about the operating instructions

▸ Indicates step-by-step instructions.

–Describes how the appliance reacts to the steps taken.

▪Indicates a list.

1 Safety precautions

1.2 General safety precautions

▪Read the operating instructions before using the appliance for

the first time!

▪This appliance can be used by children aged 8 and above

and by persons with reduced physical, sensory or mental cap-

abilities, or lack of experience and/or knowledge, provided

they are supervised or have been instructed on the safe use

of the appliance and have understood the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be undertaken by children without su-

pervision.

▪If an appliance is not equipped with a mains cable and a plug

or other means for disconnecting from the mains with a con-

tact opening on each pole complying with the conditions of

overvoltage category III for full isolation, an isolating device

must be incorporated into the permanently installed electrical

installation in accordance with the installation regulations.

▪If the mains cable of this appliance is damaged, it must be re-

placed by the manufacturer or its Customer Services or a sim-

ilarly qualified person in order to avoid hazard.

2 Disposal

Packaging

▪All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))

are marked and should, if possible, be collected for recycling and disposed

of in an environmentally friendly way.

Disconnection

▪Disconnect the appliance from the mains. With a fixed appliance, this is to

be carried out by a qualified electrician!

Safety

▪Disable the appliance to prevent accidents caused by improper use, espe-

cially through children playing.

▪Pull the plug out of the mains socket or have the appliance disconnected

from the mains by an electrician. Then cut the mains cable off flush with the

appliance.

Disposal

▪The old appliance should not be discarded as worthless rubbish. If dis-

posed of correctly, the raw materials can be recovered for recycling.

▪The symbol on the identification plate warns that the appliance may not

be disposed of in normal household waste.

▪The appliance must be disposed of in accordance with local regulations on

waste disposal. For more information on the handling, disposal and recyc-

ling of the product, please contact the local authorities, the local recycling

facilities for household waste or the retailer from whom you purchased the

appliance.

3 Appliance description

3.1 Features

1 Activated charcoal filter

2 Recirculation box

3 End piece

4 Exhaust air conduit

5 Downdraft hood

6 Hob hood

4 Replacing the activated charcoal filter

Activated charcoal filters are only used in the recirculation model.

The activated charcoal filters can be disposed of in the household

waste.

The activated charcoal filter needs

replacing after an operating period

of max. 3 years. Activated charcoal

filters cannot be washed or regen-

erated.

▸ Open the service opening.

▸ Detach the recirculation box 1

from the end piece 2.

▸ Loosen screws 1 and remove

the cover 2 from the recircula-

tion box.

▸ Remove the 6 activated charcoal

filters 1 from the recirculation

box.

▸ Clean the recirculation box with

a slightly damp cloth and neutral

cleaning agent, then wipe dry.

4 Replacing the activated charcoal filter

▸ Insert the new activated charcoal

filters into the clean recirculation

box.

▸ Reattach the cover 2 securely

with screws 1.

▸ Attach and seal the recirculation

box 1 to the end piece 2.

▸ Close the service opening.

–The downdraft hood is ready

for operation.

5 Accessories and spare parts

Please give model number of the appliance and exact designation of the ac-

cessory or spare part when ordering parts.

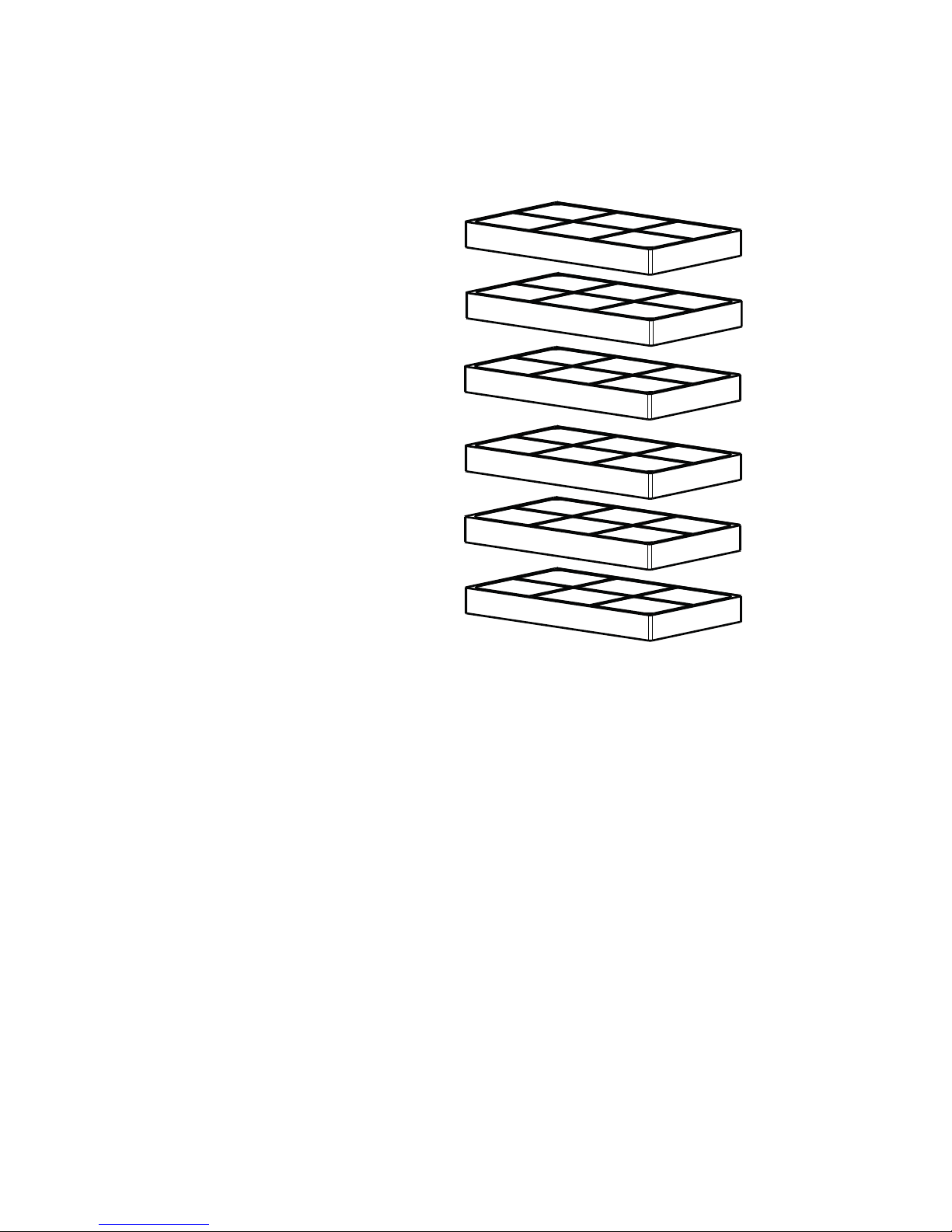

6 activated charcoal filters

The recirculation box contains 6 activ-

ated charcoal filters. Replace all the

old activated charcoal filters at the

same time.

Model no.:

64004 (DSTS9)

64005 (DSMS)

Accessories:

Article no. 1012161
