V-ZUG LEVANTE Bedienungsanleitung

Range hood

Levante

Operating instructions

V-ZUG Ltd

Thank you for choosing to buy one of our products. Your appliance is made

to high standards and is easy to use. Nevertheless, please take the time to

read these operating instructions in order to familiarize yourself with the

appliance and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appli-

ance at the time these operating instructions went to press. The right to make

technical modifications for the purpose of the further development of the

appliance is reserved.

Symbols used

➤Indicates step-by-step instructions.

– Describes how the appliance reacts to the steps taken.

• Indicates a list.

Validity

The model number corresponds to the first 3 digits on the identification plate.

These operating instructions apply to the model:

Variations depending on the model are noted in the text.

Denotes important safety precautions. Failure to observe said

precautions can result in injury or damage to the appliance or

fittings!

Denotes useful tips for the user.

Type Model-no. Size system

DW-L9 990 90

Contents

1 Safety precautions 4

1.1 Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.4 Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Appliance description 8

2.1 Extraction model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Recirculation model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.5 Operating and display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3Use 11

3.1 Intensive level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.2 Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4 Care and maintenance 13

4.1 Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.2 Metal grease filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.3 Cleaning and replacing the metal grease filter and the long-life

activated charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.4 Replacing halogen spotlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5 Trouble-shooting 20

5.1 What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

6 Accessories and spare parts 21

7 Technical data 22

8Disposal 23

9Notes 24

10 Index 26

11 Repair service 27

1 Safety precautions

In accordance with the requirements of IEC 60335-1:

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless supervised or unless they have been given instruction

concerning the use of the appliance by a person responsible for their

safety.

1.1 Before using for the first time

• The appliance must be installed and connected up to the electricity supply

according to the separate installation instructions. The necessary work

should be carried out by a qualified fitter or electrician.

• Dispose of the packaging material in accordance with local regulations.

The appliance corresponds to recognised technology standards

and the relevant safety regulations. Proper use of the appliance is

however essential to avoid damage and accidents. Please

therefore follow the precautions given in these operating instruc-

tions.

1 Safety precautions

1.2 Correct use

• The appliance is designed for use in the home for extracting cooking fumes

and smells from above the cooking surface.

• Any repairs, modifications or manipulations to the appliance, especially

any electrically live parts, should only be carried out by the manufacturer,

its Customer Services or similarly qualified persons. Repairs if carried out

incorrectly may cause serious injury, damage to the appliance and fittings,

as well as affect the functioning of the appliance. If the appliance is not

working properly or in case of a repair order, follow the instructions given

in the 'Repair service' section. Please contact our Customer Services if

necessary.

• Use original spare parts only.

• Retain these operating instructions for future reference. If you sell or pass

the appliance on to a third party, please ensure these operating instruc-

tions, together with the installation instructions, accompany the appliance.

In this way, the new owner can inform themselves about how to use the

appliance correctly and read the pertinent safety precautions.

1.3 Children in the home

• Packaging material e.g. plastic and polystyrene can be dangerous for

children. Danger of suffocation! Please keep packaging material away from

children.

• The appliance is designed for use by adults who are familiar with these

operating instructions. Children are often unable to recognise the danger

of electrical appliances. Ensure proper supervision and do not allow

children to play with the appliance – there is a danger that children could

hurt themselves.

1 Safety precautions

1.4 Note on use

• If the appliance is visibly damaged, do not use it. Contact our Customer

Services.

• If the appliance is not operating properly, disconnect it from the electricity

supply immediately.

• If the mains cable of the appliance is damaged, it must be replaced by

Customer Services in order to avoid hazard.

• Caution: Accessible parts may become hot when used with cooking

appliances.

• Do not flambé food underneath the hood as the grease filters if laden with

grease could catch fire.

• If frying on the cooking surface, do not leave the frying appliance

unattended. The cooking oil in the frying appliance could overheat and

catch fire. Constantly monitor the temperature of the cooking oil, keeping

it below the temperature at which it can catch fire. Change the cooking oil

regularly – dirty oil catches fire more easily than clean oil.

• Clean the filters regularly. Failure to do so can increase the fire hazard due

to the build-up of grease in the grease filter.

• Do not operate the individual cooking zones of the cooking surface without

a pan on them or with an empty pan on them so as to avoid damaging the

appliance or the kitchen fittings through a build-up of heat. Avoid open fires

with oil, gas, wood and coal fired cookers.

• Ensure there is adequate ventilation when the extraction fan is on so as to

avoid creating a disturbing underpressure in the kitchen and to achieve

optimal air extraction.

• Avoid a cross-current of air, which could blow the cooking vapours over

the cooking area.

1 Safety precautions

• If other appliances – fuelled by gas or other fuels – are being used at the

same time, ensure that there is a sufficient supply of fresh air. This does

not apply to air recirculation appliances.

• If other firing systems are being used at the same time (e.g. wood, gas, oil

or coal-fired heating appliances), safe operation is only possible providing

a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the

location of the appliance. Risk of toxic fumes! An adequate flow of fresh air

must be guaranteed e.g. via non-closable openings in doors or windows

and in combination with an air-intake/exhaust-air wall box or by other

technical means.

• When carrying out maintenance work on the appliance, including replacing

the light bulb, cut off the electricity supply to the appliance (remove the

screw fuse from the holder or switch the circuit breaker off, or disconnect

from the mains supply).

• When cleaning the appliance make sure no water gets inside the

appliance. Use a moderately damp cloth. Do not spray the inside or

outside of the appliance with water. Do not use a steam cleaner. If water

gets inside the appliance, it can cause damage.

2 Appliance description

The appliance is designed to extract cooking fumes and smells from the

cooking area.

This particular model can be used to extract or recirculate air.

2.1 Extraction model

A fan extracts cooking fumes and smells from above the cooking surface. The

metal grease filters clean the extracted air, which is passed through a

connecting pipe fitted with an integrated non-return valve and through the air

duct to the outside.

2.2 Recirculation model

After being filtered through the metal grease filter, the cooking fumes and

smells above the cooking area are passed through an activated charcoal

filter. The filtered air is then circulated back into the room through the top

openings.

When the appliance is in use, ensure there is a sufficient supply of

fresh air to replace the air that is being extracted.

If activated charcoal filters are not supplied with the appliance, these

should be ordered and installed before using the appliance.

2 Appliance description

2.3 Features

• 1 extraction fan

• Illumination

• 1 metal grease filter

• 1 Longlife activated charcoal filter (not included in scope of delivery)

The extraction fan has 4 power levels.

• 1 = low, 2 = medium, 3 = high extraction rates and intensive level.

• Power levels 1–3 are suitable for continuous operation.

• The intensive level is used for short bursts of intensive extraction of

cooking fumes and smells, e.g. when searing meat. The intensive level runs

for a maximum of 5 minutes at a time.

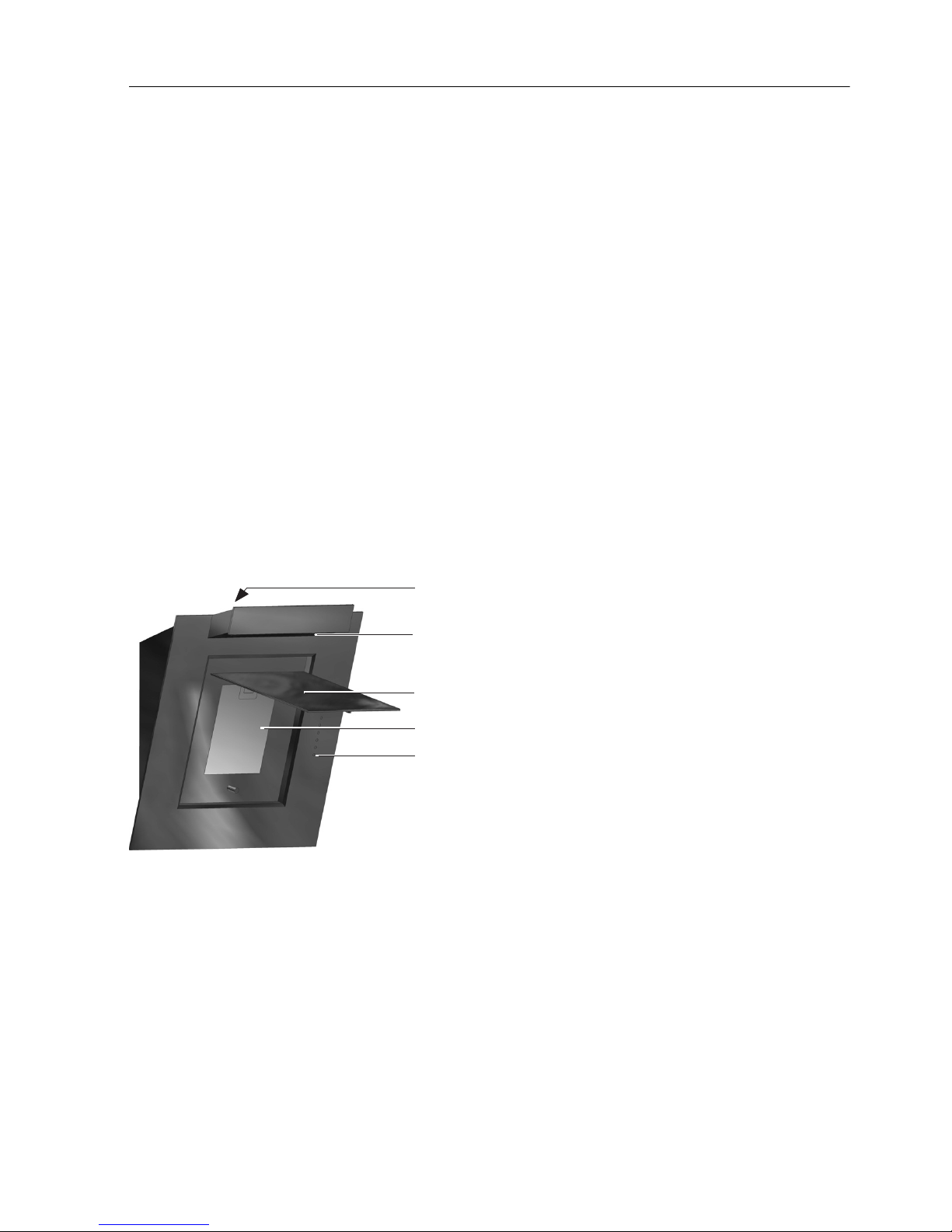

2.4 Construction

1Operating elements

2Metal grease filter for extraction model or,

Metal grease filter combined with long-life carbon filter for air recircu-

lation model

3Glass panel, fold-away

4Illumination

5Air recirculation with recirculation model

2 Appliance description

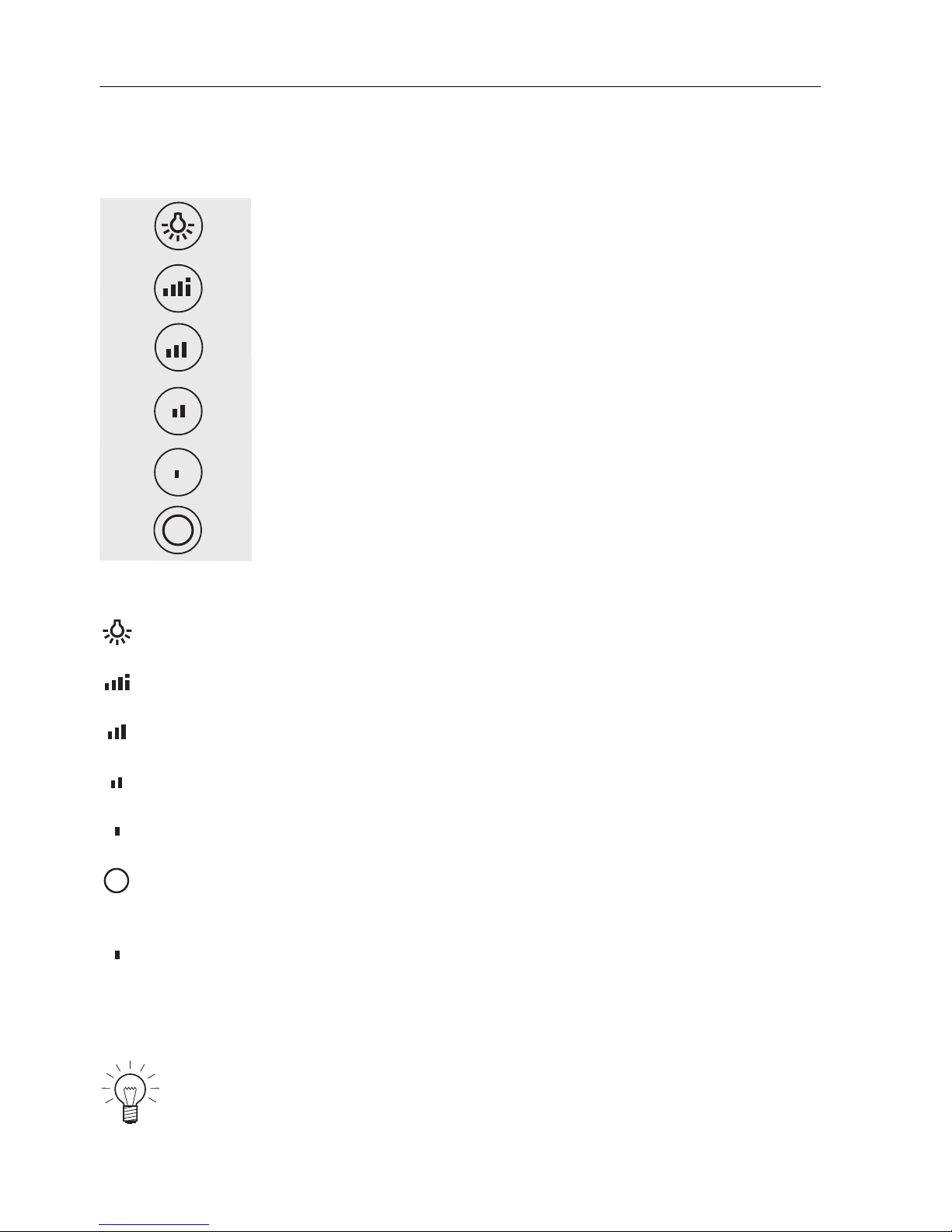

2.5 Operating and display elements

Illumination ON/OFF

Intensive level

Power level 3

Power level 2

Power level 1/saturation indicator for filters

Switch OFF

Flashing: Cleaning the metal grease filter (Extraction model)

Cleaning the metal grease filter and long-life activated

charcoal filter (Recirculation model)

Depending on the model and features, the specification of the

appliance may differ from the standard specification described herein.
