Vacon 10 Montageanleitung

1•vacon vacon-adp-mcaa adapter

Tel. +358 (0)201 2121 • Fax +358 (0)201 212205

vacon adp-mcaa communication adapter for vacon

10, user’s instructions

1. INTRODUCTION

VACON-ADP-MCAA communication adapter has two functionalities:

1) It is needed as an adapter between Vacon 10 and the PC cable when Vacon 10 is

connected to a computer.

2) The adapter functions also as a parameter memory device that can store param-

eter settings from the drive. The parameter settings can be copied to another drive

with the help of this adapter.

NOTE! The parameters can only be

copied to another Vacon 10 drive of

same power and voltage!

VACON-ADP-MCAA communication adapter delivery includes only the adapter.

VACON-ADP-MCAA KIT delivery includes the adapter and the PC connection cable.

vacon-adp-mcaa adapter vacon •2

24-hour support +358 (0)201212575 • Email: [email protected]

2. DESCRIPTION OF DIFFERENT PARTS AND THEIR FUNCTIONS

Communication adapter external parts I:

Figure 1.1: Communication adapter external parts I

1) Communication indicator (green): the indicator blinks when information is

being transferred between the MCA adapter and the drive.

2) Error indicator (red); blinks when when there is an error in communication

between MCA adapter and the drive.

3) Upload button: Pressing this button uploads the parameter settings from

the drive to the adapter.

4) Download button: Pressing this button downloads the parameter settings

from the adapter to the drive.

5) Battery cover: Cover for a 9V battery (for future use).

3•vacon vacon-adp-mcaa adapter

Tel. +358 (0)201 2121 • Fax +358 (0)201 212205

Communication adapter external parts II:

Figure 1.2: Communication adapter external parts II

6) RJ-45 connector: Connector for the PC-cable.

7) Connector for the Vacon 10

8) Fitting clamps for attaching the adapter to the drive

9) Connector for external power supply (for future use)

vacon-adp-mcaa adapter vacon •4

24-hour support +358 (0)201212575 • Email: [email protected]

3. USING THE VACON-ADP-MCAA ADAPTER

3.1 Functionality of the led indicators

Figure 1.3: Functionality of the LED indicators

COMM

ERROR

COMM

ERROR

COMM

ERROR

Communication LED on (green):

Ready state, e.g. data

transfer completed

Error LED on (red):

Fault state, communication

error between the MCA and the drive.

COMM LED blinks:

MCA and the drive are communicating

(for example parameter up-/downloading)

5•vacon vacon-adp-mcaa adapter

Tel. +358 (0)201 2121 • Fax +358 (0)201 212205

3.2 Connecting Vacon 10 to a PC with the MCAA adapter

1Make sure that Vacon 10 is powered off.

Remove the rubber plug covering the connector port of the drive, see

below:

Connect the MCAA adapter to the drive, see below:

4Connect the PC cable to the adapter and to your PC.

vacon-adp-mcaa adapter vacon •6

24-hour support +358 (0)201212575 • Email: [email protected]

3.3 Disconnecting Vacon 10 from the PC

3.4 Copying parameter settings from a drive to another

NOTE! The parameters can only be copied

to another Vacon 10 drive of same power

and voltage!

5Power on Vacon 10. You can now adjust parameter settings, control the

operation of the drive, monitor the drive with VaconLive PC-software or

update the software of the drive by using VaconLoader PC-software

1Make sure that Vacon 10 is powered off.

2Remove the PC cable and disconnect the adapter from the drive by

pressing the fitting clamps on the sides of the adapter. (See Figure 1.2)

3Insert the rubber plug back on the connector port of the drive

1Make sure that Vacon 10 is powered off and connect the MCAA adapter to

the drive. See steps 1-3 in Chapter 3.2.

2Power on the drive and press the upload button on the adapter to upload

the parameter values from the drive to the adapter. Wait until the COMM

LED stops blinking.

3Power off the drive and remove the MCAA adapter. See step 2 in ch. 3.3

4Connect the adapter to the other drive according to the procedure

described above.

5Power on the drive and press the download button on the adapter to

download the parameter values from the adapter to the drive. Wait until

the COMM LED stops blinking.

6Power off the drive and remove the MCAA adapter. The parameter set-

tings from the first drive have now been copied onto this drive.

Andere Handbücher für 10

Inhaltsverzeichnis

Andere Vacon Controller Handbücher

Vacon

Vacon 20 x Wartungs- und Serviceanleitung

Vacon

Vacon 100 INDUSTRIAL Benutzerhandbuch

Vacon

Vacon 10 Bedienungsanleitung

Vacon

Vacon 100 INDUSTRIAL Bedienungsanleitung

Vacon

Vacon 10 Bedienungsanleitung

Vacon

Vacon CANopen OPTE6 Bedienungsanleitung

Vacon

Vacon NX ACTIVE FRONT END II Gebrauchsanweisung

Vacon

Vacon optc3 Bedienungsanleitung

Vacon

Vacon 100 INDUSTRIAL Bedienungsanleitung

Vacon

Vacon 20 x Bedienungsanleitung

Vacon

Vacon 100 INDUSTRIAL Bedienungsanleitung

Vacon

Vacon nxp/c Bedienungsanleitung

Vacon

Vacon X5 Bedienungsanleitung

Vacon

Vacon 500X Bedienungsanleitung

Vacon

Vacon 100 INDUSTRIAL Bedienungsanleitung

Vacon

Vacon 100 INDUSTRIAL Bedienungsanleitung

Vacon

Vacon NX Bedienungsanleitung

Vacon

Vacon 100 INDUSTRIAL Bedienungsanleitung

Vacon

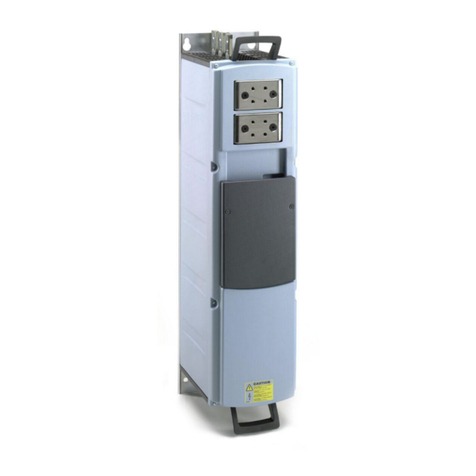

Vacon NXP Bedienungsanleitung
