Vacron VVH-MDE204 Bedienungsanleitung
VVH-MDE204
Vehicle Video Recorder
User Manual
2014 OCT. V2.0
Vehicle DVR System
i
Safety Precautions
To Whom It May Concern
Thanks for your patronage. Please contact your local dealer for any
assistance. We will backup services via local dealers. Rights are
reserved to upgrade software and hardware without notice beforehand.
Please read this manual prior to use of this product.
Installation Precautions
Make sure power connections clear enough to you before
installation.
System installation is required professional installers and
ventilation space.
Please use recommended and genuine storage device.
Please contact local dealers in case of service requirement.
In Use Precautions
Please keep the inner components off any solid or liquid.
Please do not disassemble the equipment for warranty issue.
Please contact local dealers or the manufacturer for prompt
service.
Please remove the battery if remote control keeps idle for quite a
long while.
The equipment best connects with ground wire in case of outdoor
cameras connection or alarm I/O connection. This is to keep the
DVR away from static electricity damage.
Vehicle DVR System
ii
Vehicle DVR system provides remote access to the users as well.
Please use proper domain name for the system. No charge
domain name could become off line from time to time.
Surrounding
Please have the DVR under recommended temperature away
from the sun and heating source.
Please keep this equipment away from humid surrounding.
Please keep this equipment away from smoke and dust.
Please do not drop the equipment.
Please keep this equipment in ventilation space.
Please supply rated voltage and Amp. To the equipment.
Please keep flammable objects away from the equipment.
Notice :
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, no change to the
antenna or the device is permitted. Any change to the antenna or the device could
result in the device exceeding the RF exposure requirements and void user’s
authority to operate the device.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: 1) this device may not cause harmful interference, and 2) this device must accept
any interference received, including interference that may cause undesired operation.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
Vehicle DVR System
iii
CONTENT
A.PACKAGING ................................................................................................................................1
B.FEATURE....................................................................................................................................... 2
C.SPECIFICATIONS......................................................................................................................... 3
D.DIMENSIONS .............................................................................................................................. 4
E.FRONT / REAR PANEL ................................................................................................................ 5
F.RECORD / STOP .......................................................................................................................... 8
G.REMOTE CONTROL .................................................................................................................... 9
H.GUI & OPERATION................................................................................................................... 11
I.OSD MENU ................................................................................................................................13
J.PLAYBACK SETUP ..................................................................................................................... 21
K.PC PLAYER ................................................................................................................................. 23
L.FORMAT / RECOVERY .............................................................................................................. 33
M.WIFI NETWORK CONFIGURATION ........................................................................................ 38
N.REMOTE ACCESS ...................................................................................................................... 39
O.CAPACITY EVALUATION OF CONTINUOUS RECORDING STORAGE DEVICE................... 59
Vehicle DVR System
1
A. Packaging
1. Accessories
3Pin Power Cable x 1PCS
Alarm Harness x 1PCS
Mono Audio Microphone x 1PCS
3 Meter IR Cable Lead and Foam Tape x 1PCS
Velcro x 1PCS
Remote Control x 1PCS
CD x 1PCS
Quick User Guide x 1PCS
2. Review
Please review the package first. The packaging material can resist impact
during delivery. Please remove the PE bag to make sure no damage on the
housing. Finally make sure the screws are not loose.
Front Panel and Rear Panel
Keypad on the front panel and port on the rear panel are described in manual.
Please make sure the model number on the label comes to the same as the
model you purchase. Product labeling has significant meaning to after sale
service. You will be asked to provide model number and serial number the
time you contact our service team.
Vehicle DVR System
2
B. Feature
Equipped with 4 cameras to record front/rear/left/right/inner of a car
VIDEO OUTPUT to monitor to playback video at site.
H.264 video compression codec
Recording Resolution：D1 & CIF
Graphic User Interface
x1 audio / x3 Alarm Input / x1 Alarm Output
Reliable event log good for quick search
Time and date record display on screen
System initialized after memory card loaded and power supplied.
SD card recording against rugged condition
Three axis G-Sensor
GPS provides speed, coordinate and route
Wi-Fi playback and live view video via smart phone
Vehicle DVR System
3
C. Specifications
Item Description
Type 4ch Vehicle System
Video Format NTSC/PAL
OS Embedded Linux
Video Input 4 Cameras
Camera Power Output x4 Power12V / 250mA
Video Output x1 Video Output
Audio Input x1 Audio Input
Audio Output x1 Audio Output
Alarm I/O x3 Alarm Input / x1 Alarm Output
Operation Interface GUI
Language English/Traditional Chinese/Simplified Chinese
NTSC Max. 120 fps @D1
PAL Max. 100 fps @D1
NTSC Max. 120 fps @CIF
Recording Frame
PAL Max. 100 fps @CIF
Display Mode Full Screen / Quad
Operation Mode Recording / Playback
NTSC 720 x 480
Live PAL 720 x 576
NTSC 360x240@CIF/
720x480@D1/
Resolution
Record
PAL 360x288@CIF
720x576@D1/
Vehicle DVR System
4

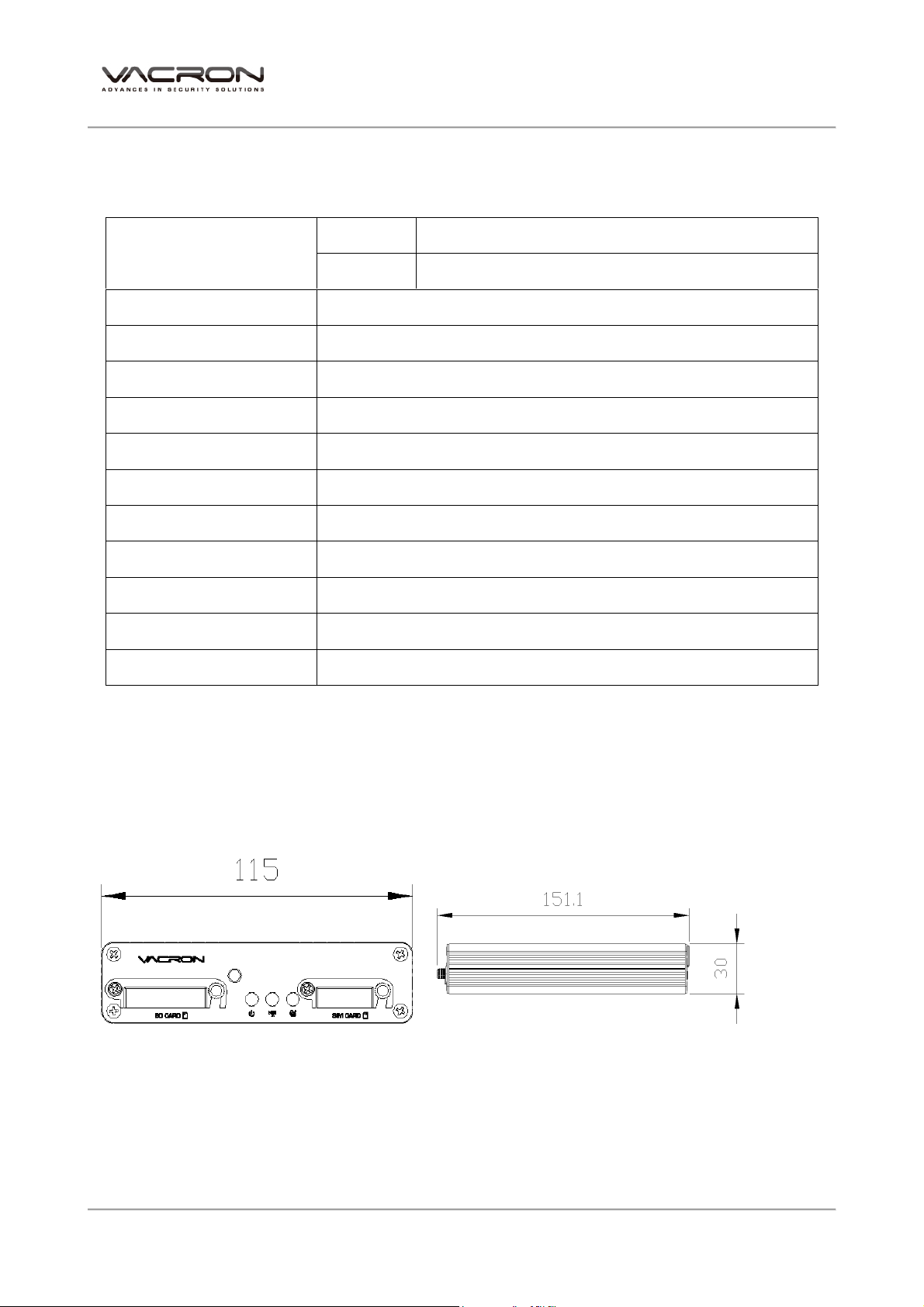

D. Dimensions
Unit：mm
Mode Time/Date Event Record
Search Full Screen Yes
Indicator 3 LED (REC、GPS、Power)
Video Loss Alert Yes
Buzzard Yes
G-SENSOR Three Axis G-Sensor
GPS Option – Speed / Coordinate/ Route
Wi-Fi Option – live view via Smart Phone
Remote Control Cable Lead Provided
Watch Dog Auto Reboot after Power Cut
Power Input (1) DC 8V~32V (2)ACC Bonus Power Subject to Software
Dimensions 151mmX115mmX30mm(LXWXH)
Operation Temperature -20℃~65℃
Vehicle DVR System
5

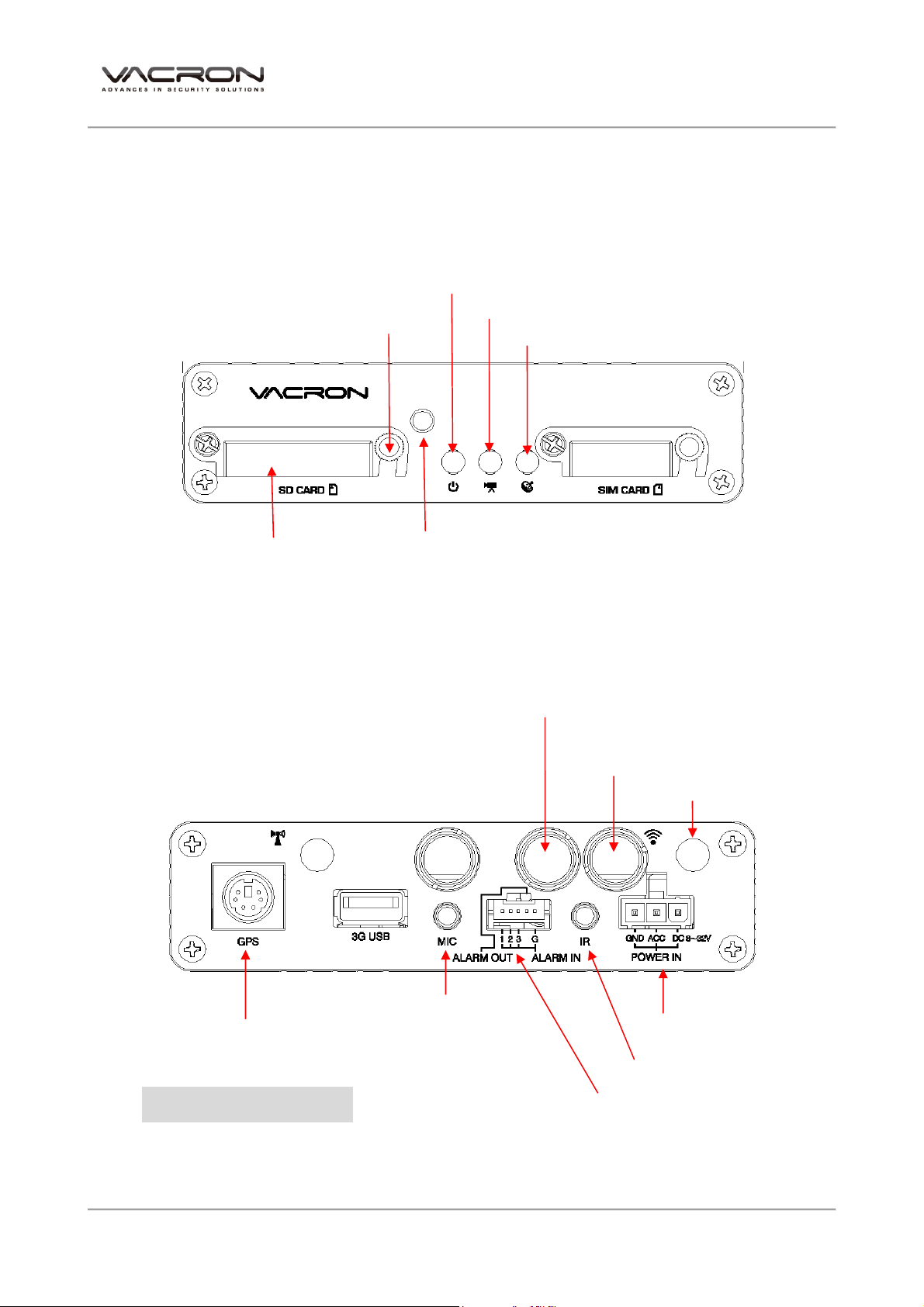

E. Front / Rear Panel
1. Front Panel
2. Rear Panel
※GPS / Wi-Fi Option
3. Installation Guide
GPS
Power
SD Card Slot IR Receiver
SD Card Locker Record
GPS Port
Wi-Fi Antenna
Audio Input
IR Cable Lead
ALARM I/O
DC8~32V
Camera # 2 /#3 /#4 Input
Video Output/Audio
Output/Camera # 1
Vehicle DVR System
6

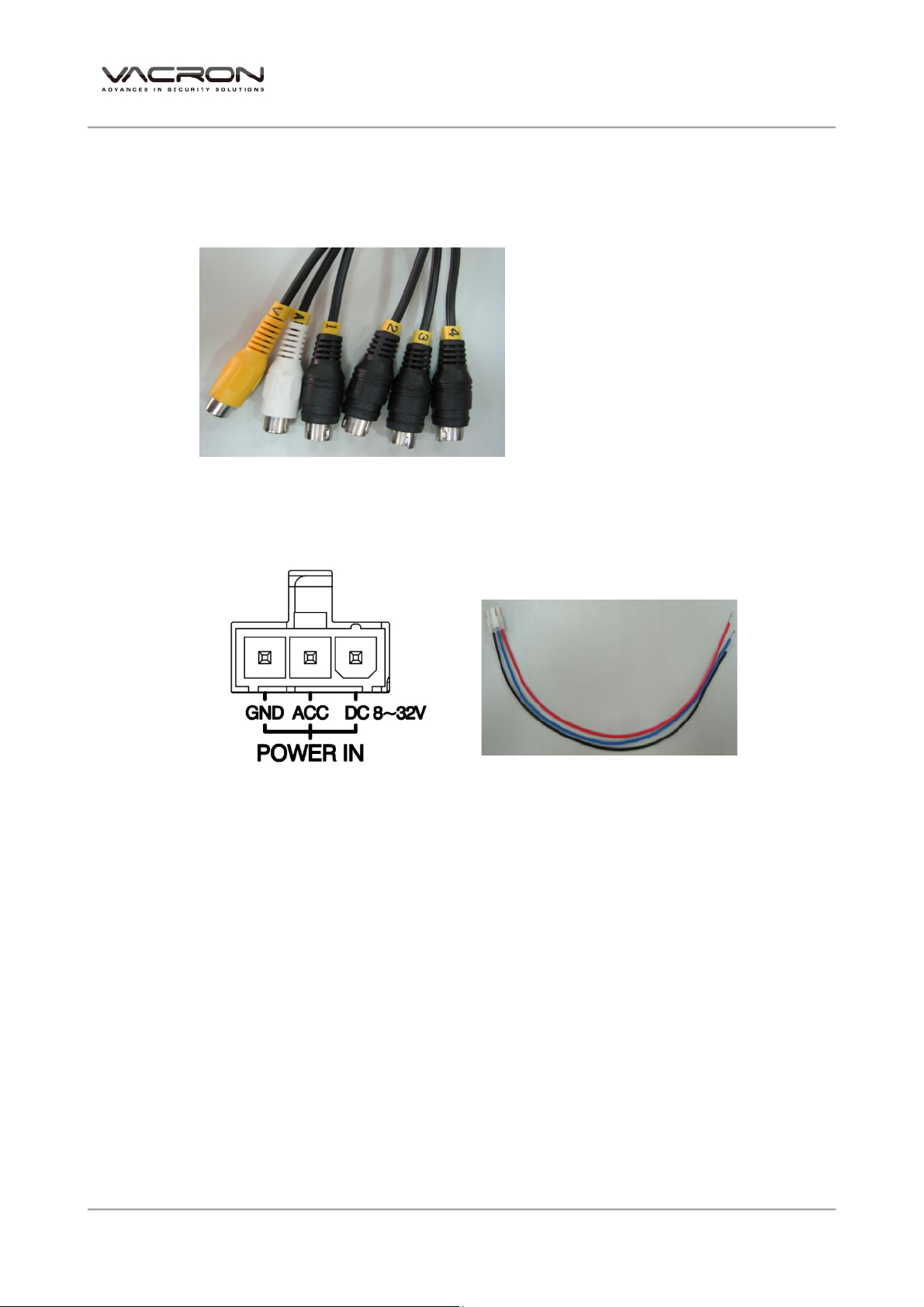

Video Output / Audio Output / Video Input
V. Video Output
A. Audio Output
1. Video Input
2. Video Input
3. Video Input
4. Video Input
Power I/O
3Pin Power Cable
3Pin Power Cable Definition：
1. Red - DC8~28V Vehicle Power Input - Positive
2. Blue - ACC Control
3. GND –Ground Wire - Negative
★ Sending +12~28Vin condition of alarm setting
V A 1 2 3 4
