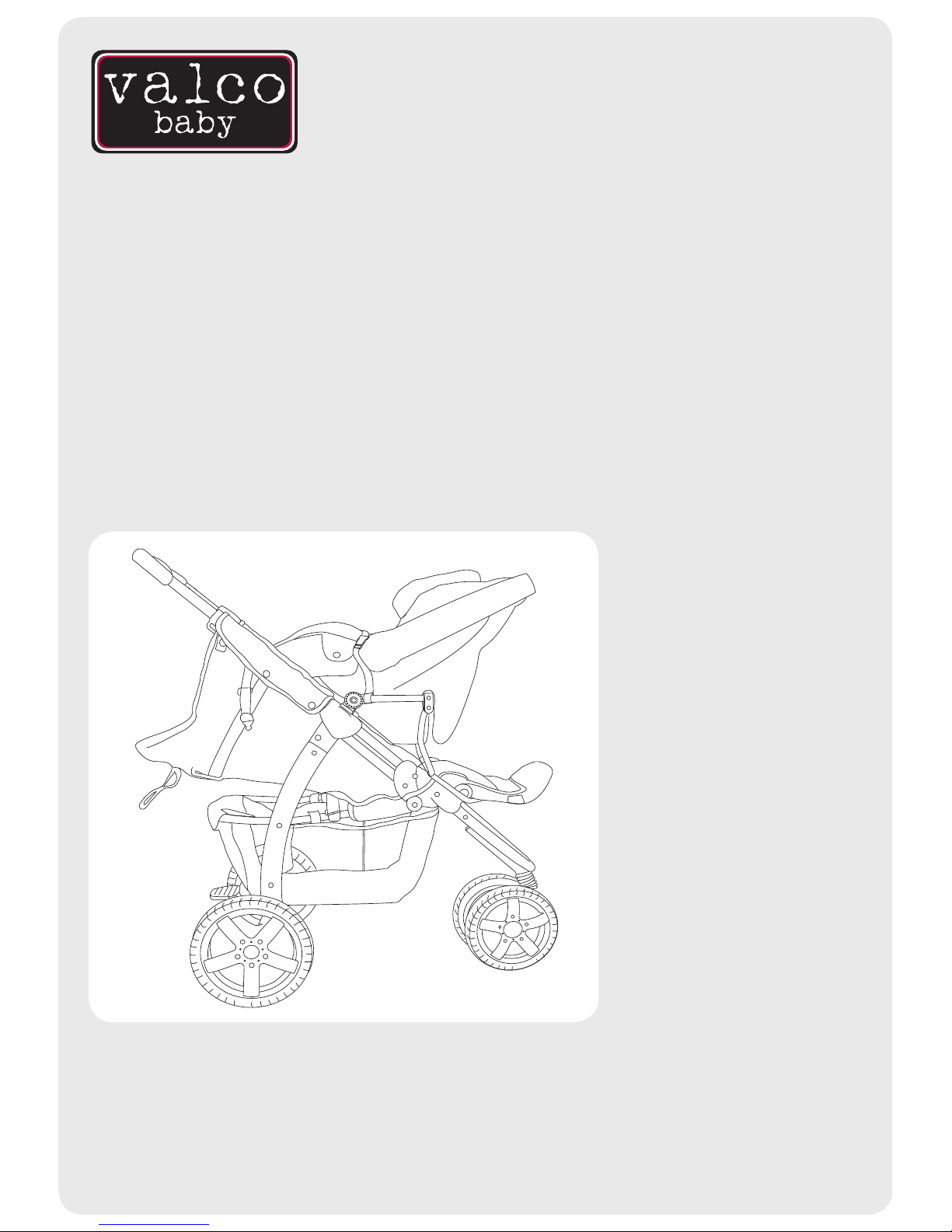

VALCOBABY Latitude Installations- und Betriebshandbuch

Thank you for purchasing a quality VALCO product. Please read and follow the instructions outlined in this

guide carefully. Familiarise yourself with the construction and safety features; be sure that you understand all

the warnings and safety guidelines before use. This product is for use with the VALCO Latitude stroller in North

American only. This product is not intended for use in Australia.

Important: Please read the following instructions carefully before assembling this product. Retain this

guide in a safe place for future reference.

PRODUCT REFERENCE GUIDE

Due to our policy of continuous

product development, this

product is constantly evolving. It

is possible that some features or

procedures outlined here have

changed since this document

was written. If you are unsure

of any procedure shown here,

please contact us via the web at

info@valcobaby.com to obtain

the most up to date information

before use. Include the batch

number, which can be found on a

sticker on the frame.

All pictures and diagrams herein

are provided for illustration

purposes only. Actual product,

colour or fabric may vary. VALCO

reserves the right to modify or

alter any specication or colour

without notice or obligation to

modify any product previously

purchased

FURTHER INFORMATION

North America only

www.valcobaby.com

1800 610 7850

Latitude Car Seat

Adapter

Compatible with most Peg Perego Car Seats

INSTALLING YOUR PEG PEREGO

CAR SEAT ADAPTOR

FIGURE A

1. Begin preparing the Latitude stroller for

the Car Seat Adaptor by removing the canopy

(hood), from the stroller, and reclining the

seat to its fully reclined position, (detailed

instructions in the Latitude Stroller Instruction

Manual).

FIGURE B

2. Remove the bumper bar, (detailed

instructions in the Latitude Stroller Instruction

Manual).

FIGURE C

3. Remove the Peg Perego Adaptor Bar from the

box, and dispose of all packaging responsibly.

4. By pulling the curved metal bar downwards

all the way, the adaptor will be in position for

installation.

Figure D

5. You are ready to connect the adaptor to the

stroller.

IMPORTANT WARNING: ALWAYS TEST THAT ALL

STRAPS ANd buckLEd ARE SEcuRELY ENGAGEd

bEFORE uSE.

Seat Reclined

press

Bumper Bar

FIGURE E

6. Align an adapter connector piece with the

corresponding raised piece on the stroller

(where the hood connects) (4).

7. Slide the connector piece onto the stroller. Be

sure that the adapter is locked into place (5).

8. Repeat on the other side.

FIGURE F

9. The Adaptor is now secured to the frame,

with the support bar resting at the edge of the

seat, above the footrest.

10. Adjust the footrest upwards.

To do so: Press the adjust button, and move the

footrest to the desired position.

FIGURE G

11. Located on the car seat adaptor are two

sets of tether straps. The rst set (as shown in

Figure G) rest on the foot rest of the stroller.

Adjust these straps so they wrap underneath

the foot rest of the stroller.

12. Secure by inserting the male clip into the

female end. Ensure these straps are as tight as

possible.

13. The adaptor is now securely attached to

your stroller. You may readjust the footrest to

suit your child.

FIGURE H

14. Position the Car Seat so the infant is facing

the handlebar of the stroller.

15. Line the Car Seat up with the adaptor bar

so that the Car Seat rests on the adaptor bar

when inserted.

Press

WARNINGS

•Always follow car seat manufacturers instructions when in use.

•Be sure to check that all straps and buckles are securely xed and in place

before use.

• Check all parts for breakage or fatigue before use. Discontinue immediately if

any part is found to be damaged or broken.

• NEVER leave any child unattended at any time.

• This product is intended for use in North America only. It is not intended for

use in Australia.

• This product is intended for domestic use only. It is not intended for

commercial use.

In North America only

www.valcobaby.com

1 800 610 7850

FIGURE I

16. Once your car seat is inserted, locate the

remaining set of straps.

17. Take the Male/Female strap and slip the

strap through the car seat belt hook on the side

of the car seat.

18. Repeat with the other strap.

19. Insert Male clip into its Female counterpart

and buckle.

20. Adjust straps to tighten around car seat.

TO REMOVE YOUR CAR SEAT:

21. Reverse the steps outlined in Figure I and

lift out the car seat.

TO REMOVE YOUR ADAPTOR:

22. Undo the buckle under the footrest, slide

the connector pieces from the stroller and

remove adaptor.
