Valmet Flowrox FXM Series Handbuch

Installation, operation and

maintenance instructions for

Flowrox™ FXM peristaltic metering

tube pumps

These instructions must be read carefully and understood prior to the installation, use, and servicing of this

product.

Installation, maintenance and

operating instructions

4FXM70EN - 8/20222

DISCLAIMER

ALL INTELLECTUAL PROPERTY RIGHTS TO THIS MANUAL “MANUAL” BELONG TO VALMET CORPORATION

“VALMET” WHICH REMAINS THE SOLE OWNER OF THESE RIGHTS. OWNERSHIP OF THESE RIGHTS ARE

NOT TRANSFERRED FROM VALMET TO ANYONE IN CONNECTION WITH THIS MANUAL. THIS MANUAL

IS INTENDED TO BE USED ONLY BY VALMET CUSTOMER AND EXCLUSIVELY FOR THE PURPOSES OF THE

AGREEMENT UNDER WHICH THIS MANUAL IS DELIVERED TO VALMET CUSTOMER. WITHOUT THE PRIOR

WRITTEN EXPLICIT CONSENT FROM VALMET, NO PART OF THIS MANUAL SHALL BE USED, REPRODUCED,

COPIED, TRANSLATED,CONVERTED, ADAPTED, STORED IN A RETRIEVAL SYSTEM , COMMUNICATED OR

TRANSMITTED BY ANY MEANS, OR FOR ANY COMMERCIAL OR OTHER PURPOSES, INCLUDING , BUT NOT

LIMITED TO, SALE, RESALE, LICENS, RENT OR LEASE.

THIS MANUAL PROVIDES INSTRUCTIONS TO CARRY OUT CERTAIN ACTIVITIES AND IS DESIGNED AND

MEANT TO GUIDE AND ASSIST PROFESSIONAL AND PROPERLY TRAINED EXPERTS IN PERFORMING

THEIR FUNCTIONS. EVERYONE MUST BECOME FAMILIAR WITH ALL INSTRTUCTIONS IN THIS MANUAL

BEFORE ANY INSTALLATION, USE, MAINTENANCE, REPAIR OR ANY OTHER ACTIONS OF THE RESPECTIVE

GOODS AND/OR SERVICES WHICH THIS MANUAL APPLIES TO. ALL INSTRUCTIONS MUST BE FOLLOWED

CAREFULLY. HOWEVER, OBSERVANCE OF ANY PART OF THE INSTRUCTIONS PRESENTED IN THIS MANUAL

MAY BE OMITTED IN EVENT WHEN IT IS REQUIRED OR ALLOWED BY LAW

VALMET HAS TAKEN EVERY CARE IN THE PREPARATION OF THE CONTENT OF THIS MANUAL, BUT DOES

NOT MAKE ANY REPRESENTATIONS, WARRANTIES OR GUARANTEES OR, EXPRESS OR IMPLIED, AS TO THE

ACCURACY OR COMPLETENESS OF THIS MANUAL. ALL USERS MUST UNDERSTAND AND BE AWARE THAT

UPDATES AND AMENDMENTS WILL BE MADE FROM TIME TO TIME TO THIS MANUAL. ALL USERS ARE

OBLIGATED TO FIND OUT AND DETERMINE WHETHER THERE HAVE BEEN ANY APPLICABLE UPDATES OR

AMENDMENTS TO THIS MANUAL. NEITHER VALMET NOR ANY OF ITS DIRECTORS, OFFICERS, EMPLOYEES,

SUBCONTRACTORS, SUBSUPPLIERS, REPRESENTATIVES OR AGENTS SHALL BE LIABLE IN CONTRACT,

TORT OR IN ANY OTHER MANNER WHATSOEVER TO ANY PERSON FOR ANY LOSS, DAMAGE, INJURY,

DEATH, LIABILITY, COST OR EXPENSE OF ANY NATURE, INCLUDING WITHOUT LIMITATION INDIRECT,

INCIDENTAL, SPECIAL, CONSEQUENTIAL, PUNITIVE OR DIRECT DAMAGES AND/OR LOSSES ARISING OUT

OF OR IN CONNECTION WITH THE CREATION, DELIVERY, POSSESSION AND/OR USE OF THIS MANUAL.

HOWEVER, NOTHING IN THIS PARAGRAPH IS DEEMED TO EXCLUDE OR RESTRICT ANY LIABILITY WHICH

CANNOT BY MANDATORY LAW BE EXCLUDED.

FLOWROX IS EITHER REGISTERED TRADEMARK OR TRADEMARK OF VALMET CORPORATION OR ITS

SUBSIDIARIES OR AFFILITIATES IN THE UNITED STATES AND/OR IN OTHER COUNTRIES. ALL OTHER

TRADEMARKS, LOGOS, BRANDS AND MARKS DISPLAYED IN THIS MANUAL ARE PROPERTY OF THE

RESPECTIVE OWNERS UNLESS STATED OTHERWISE.

34FXM70EN - 8/2022

READ THESE INSTRUCTIONS FIRST!

ese instructions provide information about safe handling and

operation of the product.

If you require additional assistance, please contact the

manufacturer or manufacturer’s representative.

SAVE THESE INSTRUCTIONS!

Addresses and phone numbers are printed on the back cover.

Table of Contents

1 EU DECLARATION OF

CONFORMITY 4

1.1 Introduction 5

1.2 Available Models 5

1.3 Specifications 7

1.4 Materials of construction 8

1.5 Features 8

1.6 Agency Listings 9

2 Installation 10

2.1 Mounting Location 10

2.2 Dimensions 11

2.3 Installing Suction Strainer 12

2.4 Input Power Connections 12

2.5 WIRING TERMINALS AND I/O SCHEMATICS 14

3 How To Operate FXM 16

3.1 Menu Navigation 17

3.2 Configuration Menu 18

4 Input Setup 23

4.1 MAX Flowrate (output calibration) 25

4.2 Contact Input 32

4.3 Remote/Local Control 32

4.4 Conditional Contact Input Naming 33

4.5 Conditional Logic Control 33

5 Output setup ( alarm relays )

5.1 Signal Output 35

6 Pump Maintenance 36

6.1 Routine Inspection and Maintenance 36

6.2 How to Clean and Lubricate the Pump 36

6.3 Reverse Rotor Rotation 36

6.4 Tube Replacement 37

6.5 FLOWROX Model FXM2 replacement parts list 40

6.6 FLOWROX Model FXM3 replacement parts list 42

APPENDICES 44

Warranty 44

4FXM70EN - 8/2022

1 EU DECLARATION OF CONFORMITY

is declaration is issued under the sole responsibility of the manufacturer:

Valmet Flow Control Oy

Marssitie 1

53600 Lappeenranta

Finland

Tel. +358 (0)10 417 5000

Product model/type: FXM Peristaltic Metering Tube Pump

e object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Machinery Directive 2006/42/EC: Annex II A

Electro-Magnetic Compatibility Directive 2014/30/EU

Low Voltage Directive 2014/35/EU

Follow the pump installation, operating and maintenance instructions in this manual.

Person authorised to compile the technical le is Technology Manager Jarmo Partanen.

On behalf of Valmet Flow Control Oy

In Lappeenranta, 13th May 2022

Riku Salojärvi

Head of Operations

54FXM70EN - 8/2022

1.1 Introduction

Congratulations on purchasing the Flowrox variable speed Peristaltic Metering Pump.

Your Flowrox pump is pre-congured for the tubing that shipped with your metering pump.

Your new pump has been pressure tested at the factory with clean water before shipping. You may notice trace amounts of clean water in the

pre-installed tube assembly. This is part of our stringent quality assurance program.

Flowrox FXM pumps are for industrial and laboratory applications. Only qualified personnel is allowed to install and operate the pump.

1.2 Available Models

Feed rate Max Max FXM2 Model Numbers

Speed Pressure

FXM2 Tube Pumps Norprene®

Meets FDA criteria for food | Excellent chemical resistance | CIP | SIP

liter/h

(gal/h)

ml/min

(oz/min) RPM bar

(psi) 115V AC (US) 230V AC (US) 230V AC (EU) 230V AC (UK) 230V AC (AUS)

.002 - 11

(0.0005 - 2.9)

.04 - 183

(0.0014 - 6.2) 175 8.6

(125) FXM2-S-34-N011 FXM2-S-35-N011 FXM2-S-36-N011 FXM2-S-37-N011 FXM2-S-38-N011

.018 - 92

(0.0048 - 24.3)

.3 - 1533

(0.010 - 52.5) 175 8.6

(125) FXM2-S-34-N092 FXM2-S-35-N092 FXM2-S-36-N092 FXM2-S-37-N092 FXM2-S-38-N092

.035 - 176

(0.009 - 46.5)

.6 - 2933

(0.020 - 99.2) 175 2.1

(30) FXM2-S-34-N176 FXM2-S-35-N176 FXM2-S-36-N176 FXM2-S-37-N176 FXM2-S-38-N176

 

FXM2 Tube Pumps Tygon lined Norprene®

Meets FDA criteria for food | Superior chemical resistance

liter/h

(gal/h)

ml/min

(oz/min) RPM bar

(psi) 115V AC (US) 230V AC (US) 230V AC (EU) 230V AC (UK) 230V AC (AUS)

.030 - 165

(0.008 - 43.6)

.5 - 2750

(0.017 - 93.0) 175 3.5

(50) FXM2-S-34*-T165 FXM2-S-35*-T165 FXM2-S-36*-T165 FXM2-S-37*-T165 FXM2-S-38*-T165

 

FXM2 Tube Pumps Tygothane®

Meets FDA criteria for food | Resistant to oils, greases and fuels

liter/h

(gal/h)

ml/min

(oz/min) RPM bar

(psi) 115V AC (US) 230V AC (US) 230V AC (EU) 230V AC (UK) 230V AC (AUS)

.030 - 162

(0.008 - 42.8)

.5 - 2700

(0.017 - 91.3) 175 4.5

(65) FXM2-S-34*-G162 FXM2-S-35*-G162 FXM2-S-36*-G162 FXM2-S-37*-G162 FXM2-S-38*-G162

4FXM70EN - 8/2022

Feed rate Max Max FXM2 Model Numbers

Speed Pressure

FXM3 Tube Pumps Norprene®

Meets FDA criteria for food | Excellent chemical resistance | CIP | SIP

liter/h

(gal/h)

ml/min

(oz/min) RPM bar

(psi) 115V AC (US) 230V AC (US) 230V AC (EU) 230V AC (UK) 230V AC (AUS)

.05- 268

(0.013 - 70)

0.9 - 5617

(0.030 - 189.9) 175 2.1

(30)

FXM3-S-

34*-N269

FXM3-S-

35*-N269

FXM3-S-

36*-N269

FXM3-S-

37*-N269

FXM3-S-

38*-N269

.11 - 529

(0.029 - 139.7)

1.8 - 8550

(0.061 - 289.1) 175 3.4

(50)

FXM3-S-

34*-N529

FXM3-S-

35*-N529

FXM3-S-

36*-N529

FXM3-S-

37*-N529

FXM3-S-

38*-N529

.17 - 840

(0.045 - 221.9)

2.8 - 14000

(0.095 - 473.4) 175 2.1

(30)

FXM3-S-

34*-N840

FXM3-S-

35*-N840

FXM3-S-

36*-N840

FXM3-S-

37*-N840

FXM3-S-

38*-N840

 

FXM3 Tube Pumps Tygon lined Norprene®

Meets FDA criteria for food | Superior chemical resistance

liter/h

(gal/h)

ml/min

(oz/min) RPM bar

(psi) 115V AC (US) 230V AC (US) 230V AC (EU) 230V AC (UK) 230V AC (AUS)

.06 - 307

(0.016 - 81.2)

1.0 - 6167

(0.034 - 208.5) 175 2.1

(30)

FXM3-S-

34*-T300

FXM3-S-35*-

T300

FXM3-S-36*-

T300

FXM3-S-37*-

T300

FXM3-S-38*-

T300

 

FXM3 Tube Pumps Tygothane®

Meets FDA criteria for food | Resistant to oils, greases and fuels

liter/h

(gal/h)

ml/min

(oz/min) RPM bar

(psi) 115V AC (US) 230V AC (US) 230V AC (EU) 230V AC (UK) 230V AC (AUS)

.06 - 350

(0.016 - 94.2)

1.0 - 5833

(0.034 - 197.2) 175 4.5

(65)

FXM3-S-

24*-G350

FXM3-S-35*-

G350

FXM3-S-36*-

G350

FXM3-S-37*-

G350

FXM3-S-38*-

G350

        

• The Flowrox Peristaltic Pump’s motor speed is linear over

the entire 0.02% to 100% adjustment range.

• Output versus pressure is nearly linear in all models.

Larger tubes exhibit greater losses.

• The pressure, temperature, operational speed, application

media and viscosity will affect hose lifetime.

• For optimum tube life, specify the pump so that it operates

at the lowest possible RPM and pressure.

* Inlet/outlet connection type:

blank = 3/8” OD x 1/4” ID tubing compressions type

connections (available on FXM2 only)

P = 1/2” MPT

B = 1/2” ID hose barb type connections (available on FXM3

models only)

74FXM70EN - 8/2022

1.3 Specifications

Maximum working pressure (excluding pump tubes):

FXM2: 8.6 bar / 125 psi

FMX3: 4.5 bar / 65 psi

Note: see individual pump tube assembly maximum pressure

ratings in Section 1.2 (Available Models)

Maximum Fluid temperature:

54°C / 129°F

Minimum and maximum ambient operating or storage

temperature:

0°C to 46°C / 32° to 115°F

Operating Voltage:

FXM-M2 MODELS: 96 to 264VAC-50/60Hz, 190W

FXM-M3 MODELS: 96 to 264VAC-50/60Hz, 190W

Power Cord Options:

115V60Hz = NEMA 5/15 (USA)

230V60Hz = NEMA 6/15 (USA)

230V50Hz = CEE 7/VII (EU)

230V50Hz = BS 1363 (UK)

230V50Hz = AS 3112 (Australia/New Zealand)

Enclosure:

NEMA 4X (IP66), Polyester powder coated aluminum.

Maximum Overall Dimensions:

FXM-M2 models (WxHxD): 236 mm x 307 mm x 329 mm

FXM-M3 models (WxHxD): 320 mm x 383 mm x 387 mm

Approximate shipping wt:

FXM-M2 models: 14.0 kg / 31 lbs.

FXM-M3 models: 22.0 kg /48.5 lbs.

Motor speed adjustment range 5.000:1:

0.02% - 100% motor speed

Motor speed adjustment resolution:

0.1% increments > 1% motor speed

0.01% increments > 0.2% - 1% motor speed

Maximum viscosity:

5,000 centipoise

Maximum suction li:

9 m, 0.9 bar / 29.5 , 13 psi

Display

3.5” Backlit high resolution

Display Languages

English, Spanish, French, German, Russian or Finnish

selectable.

Keypad

Eleven button positive action tactile switch keypad.

Security

Programmable 4-digit password.

Other:

Indoor use only

Altitude: up to 2000 m / 6561.7 

Humidity: 0-95% RH

Mains uctuations: +/- 10%

Overvoltage category: II

Wet location: no

Pollution degree: 2

4FXM70EN - 8/2022

1.4 Materials of construction

Wetted components:

Pump Tube Assembly (Model Specic - 2 provided):

Tubing: . . . . . . . . . . . . Norpreneor Tygon lined Norprene

or Tygothane

Adapter ttings: . . . . . . PVDF

Connections tubings:

Suction Tubing: . . . . . . . . 3/8” OD x 1/4” ID x 10’ Clear PVC

(FXM2)

Discharge Tubing: . . . . . . . 3/8” OD x 1/4” ID x 10’

Polyethylene (FXM2)

Suction Strainer: . . . . . . . . Polypropylene

Non-Wetted components:

Enclosure:

A356 (AlSi7Mg) Aluminum (Polyester powder coated)

Pump Head:

PBT GF30

Pump Head Cover:

Clear Acrylic

Permanently lubricated sealed motor sha support ball

bearing.

Cover Screws:

Stainless Steel umb Screws

Roller Assembly:

Rotor:..................................PBT GF30

Rollers: ..................... ..........POM

Roller Bearings:......................Ball Bearings

Motor Sha:

Chrome plated steel

Tube Leak Detection (TLD) System Sensor pins,

non-contact:

Brass

Power Cord and Connector:

Power cord with plug (see page 7, 14) and Amphenol female

pin connector type DC-03BFFB

Connector in pump PWF-03-PMMS SC7001, male pins

copper alloy

Mounting plate:

Stainless steel AISI 316

1.5 Features

• Peristaltic pump design does not have valves that can

clog requiring maintenance.

• Self priming even against maximum line pressure.

By-pass valves are not required. Cannot vapor lock or

lose prime. Siphoning cannot occur.

• Output rates to: 840 liter/h and pressures up to 8.6 bars.

• No maintenance brushless variable speed motor.

• Specially engineered tubing for long life at high

pressures.

• Non-contact capacitive Tube Leak Detection (TLD)

system. Senses tube failure by detecting chemical in the

pump head. No false triggering.

• 5000:1 turndown ratio.

• SCADA Inputs include: 4-20mA, 0-10VDC, and Pulse

inputs for remote external speed control and 0-30 VDC /

contact closure remote start/stop.

• Operator friendly digital touch pad with menu driven

software.

• Multi-color backlit LCD displays remote/local control

status, motor speed, output rate, input signal values,

service and alarm status.

• Outputs include: Scalable 4-20mA or pulse, one

250V/6A relay and four 125VAC 0.5Amp / 30VDC

2Amp contact closures assignable to monitor up to 17

different pump functions including TLD, FVS, remote/

local control setting, motor on, fault, current operating

mode, and others.

• Two CNC precision machined squeeze rollers and two

alignment rollers for optimum squeeze, unparalleled

accuracy, and tube life.

• Heavy duty rotor - plastic rotor means no flexing and

increased accuracy (no metal springs or hinges to

corrode).

• Inject at maximum pressure in either direction

(clockwise and counter clockwise).

• Compatible with output Flow Verification Sensor (FVS)

system.

• Auto-restart feature which will restore pump to operating

state it was in when power was lost.

94FXM70EN - 8/2022

Enclosure Rating:

NEMA 4X: Constructed for either indoor or outdoor use to

provide a degree of protection to personnel against incidental

contact with enclosed equipment; to provide a degree of

protection against falling dirt, rain, sleet, snow, windblown

dust, splashing water, and hose-directed water; and that will

be undamaged by external formation of ice on enclosure.

IP66: No ingress of dust; complete protection against contact.

Water projected in powerful jets against enclosure from any

direction shall have no harmful eects.

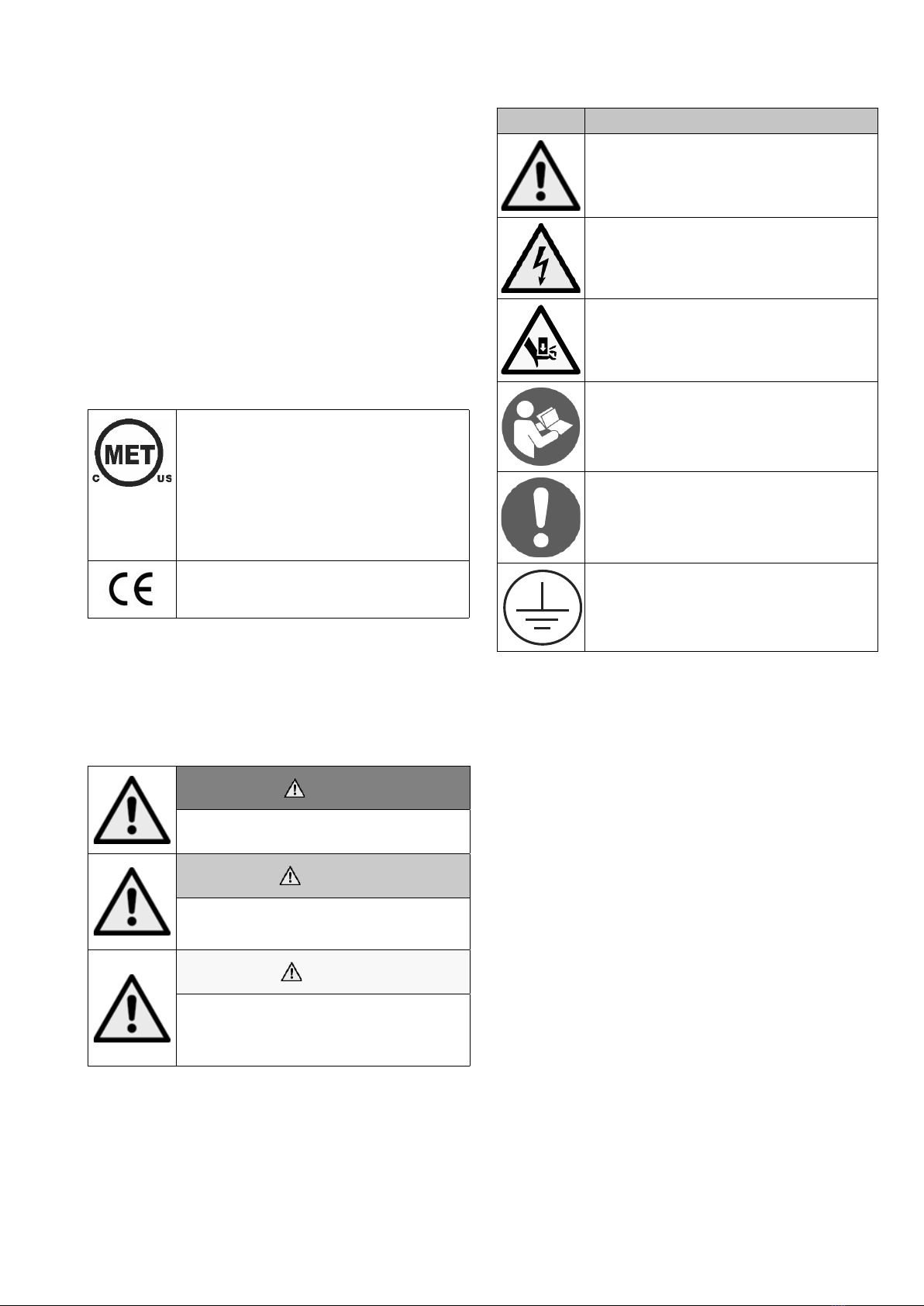

1.6 Agency Listings

This pump is MET listed (E115105) to conforms to the

following:

UL Standard 778, 6th edition, Motor-Operated Water

Pumps

Certified to CAN/CSA Standard C22.2 No. 108-14, 5th

edition, Liquid Pumps

EN 61010-1, Safety requirements for electrical

equipment for measurement, control, and laboratory use

- Part 1: General requirements

Low Voltage Directive 2014/35/EU

EMC Directive 2014/30/EU

Machinery Directive 2006/42/EC

In this manual, the following symbols are used to highlight

the parts requiring particular attention:

Hazard severity panels.

DANGER!

DANGER indicates a hazard with a high level of risk

which, if not avoided, will result in death or serious injury.

WARNING!

WARNING indicates a hazard with a medium level of

risk which, if not avoided, could result in death or serious

injury.

CAUTION!

CAUTION indicates a hazard with a low level of risk

which, if not avoided, could result in minor or moderate

injury.

Symbol Explanation

Risk to personal safety:

Neglecting the safety measures can cause serious injury

or death.

Electrocution hazard.

Crushing hazard.

Read the operation and maintenance instructions:

Read and understand the operation and maintenance

instructions before using the product.

Mandatory action symbol:

Obey these instructions to prevent machine malfunctions.

Ground, Protective Conductor Terminal

4FXM70EN - 8/2022

2 Installation

Risk of chemical overdose. Make sure pump does not

overdose chemical during backwash and periods of no

flow in circulation system.

Always wear protective clothing, face shield, safety

glasses and gloves when working on or near your

metering pump. Additional precautions should be taken

depending on solution being pumped. Refer to MSDS

precautions from your solution supplier.

All diagrams are strictly for guideline purposes only.

Always consult an expert before installing metering

pump on specialized systems. Metering pump should be

serviced by qualified persons only.

2.1 Mounting Location

Choose an area located near chemical supply tank, chemical

injection point, and electrical supply. Install pump where

it can be easily serviced. Note, Pump is not certied for

classied EX/ATEX areas

• Mount pump to a secure surface using fixing plate.

• Mount pump close to injection point. Keep inlet

(suction) and outlet (discharge) tubing as short as

possible. Longer discharge tubing increases back pressure

at pump head.

• A backflow prevention check valve is recommended at

the discharge of the pump to prevent system fluid from

flowing back through the pump during tube replacement

or if the tube should rupture.

• A pressure relief valve is recommended at the discharge

of the pump to prevent premature wear and damage to

the pump tube in the event the discharge line becomes

blocked.

• The FXM does not require back pressure. Pressure

regulator valves are not required. Keep the discharge

pressure as low as possible to maximize tube life.

• An anti-siphon valve is not required, siphoning cannot

occur.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Valmet Wasserpumpe Handbücher

Valmet

Valmet Flowrox LPP-T32-T80 Handbuch

Beliebte Wasserpumpe Handbücher anderer Marken

Neptun

Neptun NPHW 5500 Bedienungsanleitung

Sensidyne

Sensidyne Gilian BDX-II Montage- und Bedienungsanleitung

Draper

Draper 47808 Bedienungsanleitung

Trolla

Trolla 12820 Bedienungsanleitung

Sunfab

Sunfab SVH Series Bedienungsanleitung

WilTec

WilTec 50740 Bedienungsanleitung

Fieldmann

Fieldmann FVC 5015 EK Bedienungsanleitung

Everbilt

Everbilt EFSUB5-122HD Bedienungsanleitung

Graco

Graco Husky 3300e Bedienungsanleitung

esotec

esotec 101018 Bedienungsanleitung

moyno

moyno 2000 CC Bedienungsanleitung

Becker

Becker BASIC VASF 2.80/1-0.AC230 Bedienungsanleitung

Sykes AmeriPumps

Sykes AmeriPumps GP100M Fehlerbehebungshandbuch

DUROMAX

DUROMAX XP WX Series Bedienungsanleitung

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Bedienungsanleitung

Franklin Electric

Franklin Electric IPS Bedienungsanleitung

Xylem

Xylem e-1532 Series Bedienungsanleitung

Milton Roy

Milton Roy PRIMEROYAL Bedienungsanleitung
