Vanco EVMX4444 Bedienungsanleitung

Vanco Part Number

EVMX4444

HDMI® 4x4 Matrix

Selector Switch

www.vanco1.com • 800.626.6445

HDMI® 4x4 MATRIX

SELECTOR SWITCH

www.vanco1.com 800.626.6445

1. Do not expose this unit to water,

moisture, or excessive humidity.

2. Do not install or place this unit

in a built-in cabinet, or other

conned space without adequate

ventilation.

3. To prevent risk of electrical shock

or re hazard, due to overheating

do not obstruct unit’s ventilation

openings.

4. Do not install near any source of

heat, including other units that

may produce heat.

5. Do not place unit near ames.

6. Only clean unit with a dry cloth.

7. Unplug unit during lightening

storms or when not used for

an extended period of time.

A surge protector is strongly

recommended.

8. Protect the power cord from

being walked on or pinched,

particularly at the plugs.

9. Use unit only with accessories

specied by the manufacturer.

10. Refer all servicing to qualied

personnel.

CAUTION

HDMI is a very complex technology requiring continuous authentication of the signal

and the same video resolution and audio settings on all electronic equipment in the

system. When there are multiple sources and displays, the video resolution and

audio setting on all connected units must be adjusted to correspond with that of the

display having the lowest video and audio capability.

WARNING

DEAR CUSTOMER

Thank you for purchasing this product.

For optimum performance and safety, please

read these instructions carefully before connecting,

operating or adjusting this product. Please keep this

manual for future reference.

This product is 100% inspected and tested in the United

States to verify HDMI performance parameters.

www.vanco1.com 800.626.6445 3

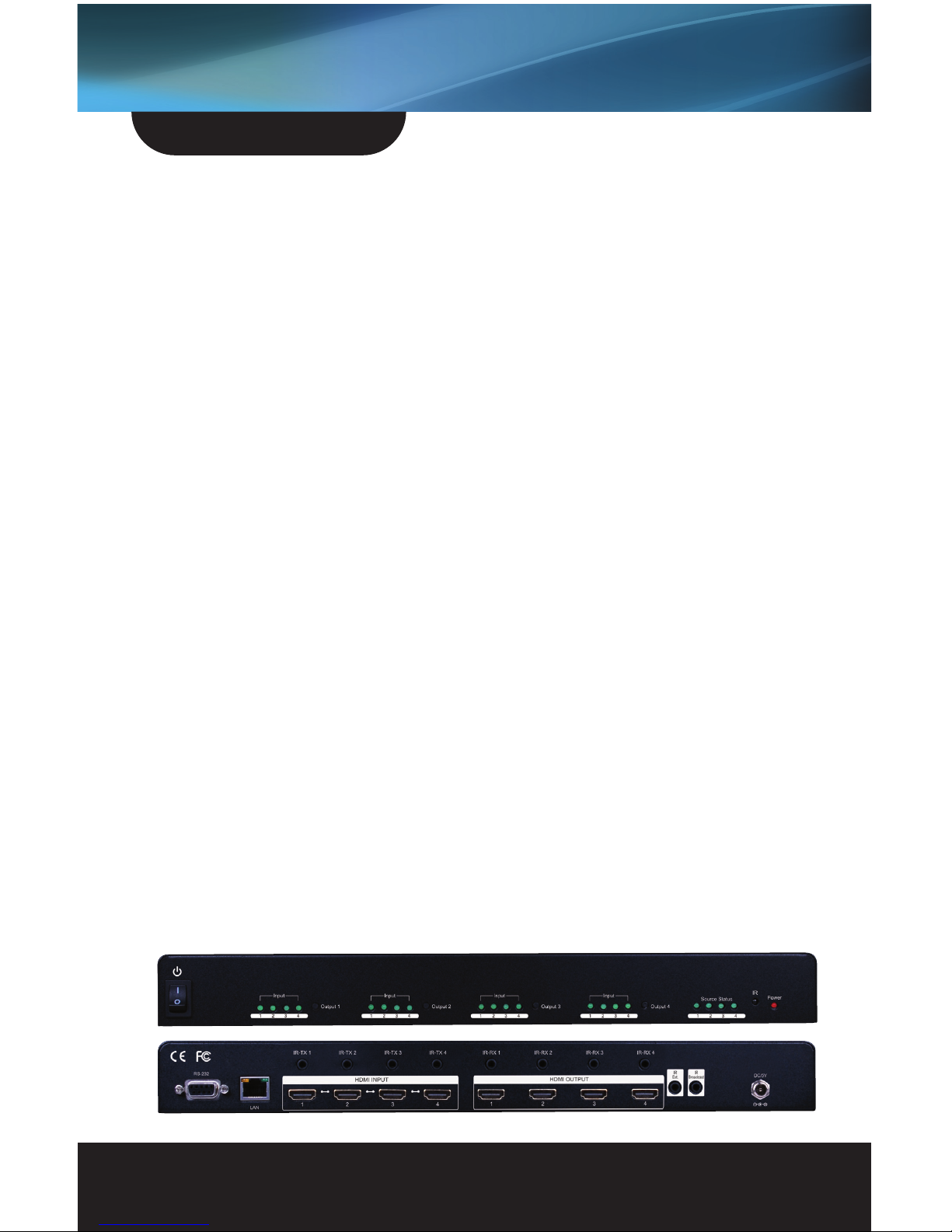

INTRODUCTION

The Evolution by Vanco EVMX4444 HDMI 4x4 Matrix Selector Switch allows 4 HDMI

sources to be distributed to up to 4 displays simultaneously. Have multiple sources

displayed simultaneously on any display or have a single source duplicated on multiple

displays, exibility for the perfect solution. With an output bandwidth of 6.75 Gbps over

HDMI, the EVMX4444 is capable of full 1080p HD video and HD multi-channel audio

distribution with simple control using the front panel or remotely via IR Receivers at display

locations. Also features EDID management, which allows and encourages source and

display “handshake” for seamless integration. In addition, EVMX4444 is also equipped with

RS-232 and LAN connectivity which allows for rmware updates and third party integration.

For reliable, no-nonsense HDMI distribution and control on a budget, over short distances,

the EVMX4444 Matrix Selector Switch is a great choice for any application.

FEATURES

HDMI® 4x4 Matrix Selector Switch

Part # EVMX4444

• Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays

• 1080p HD Matrix Switcher providing a perfect solution for Home or Retail AV as well

as Commercial and Hospitality installations on a budget

• Features EDID management which supports default HDMI EDID and has the ability to

learn the EDID of display equipment for any “handshake” issues

• HDCP Compliant

• Supports HDMI Deep Color and 3D

• Supports 7.1 channel digital audio

• Wideband bi-directional IR pass-through (20 to 60 kHz)

• Choose from 5 switching modes – front panel buttons, Local remote control, RS232

control, IR call-back (dedicated IR extension cable connected to IR extension port, and

IR emitters on sources required), and Ethernet control

• Easy installation with rack-mounting and wall-mounting design, rack mounting ear set

included

• Dimensions: 14.6”(371mm)Wx1.57”(40mm)Hx4.65”(118mm)D

www.vanco1.com 800.626.6445

SPECIFICATIONS

TECHNICAL SPECS

HDCP Compliance...................................................... Yes

Video Bandwidth ........................................................ Single-link 225Mhz [6.75 Gbps]

Video Support ........................................................... 480i/480p/720p/1080i/1080p @60 36-bit color

Audio Support ........................................................... Surround Sound (up to 7.1 ch) or stereo digital audio

ESD Protection .......................................................... [1] Human body model — ±19kV [air-gap discharge]

& ±12kV [contact discharge] [2] Core chipset — ±8kV

PCB stack-up ............................................................ 4-layer board [impedance control — differential

100Ω; single 50Ω]

Input ........................................................................ 4x HDMI / 1x RS-232 / 1x Ethernet / 1x IR socket for

IR receiver

Output...................................................................... 4x HDMI

HDMI connector ........................................................ Type A 19 pin female

RJ-45 connector........................................................ WE/SS 8P8C with 2 LED indicators

RS-232 connector ..................................................... DE-9 [9-pin D-sub female]

3.5mm connector ...................................................... [System IR] Receives IR commands from remote

control

MECHANICAL SPECS

Housing .................................................................... Metal enclosure

Fixedness.................................................................. 1RU rack-mount with ears

Power supply............................................................. 5V 4A DC

Power consumption.................................................... 20 Watts [max]

Operation temperature............................................... 32-104 degrees F

Storage temperature.................................................. -4 - 140 degrees F

Relative humidity ....................................................... 20-90% RH (no condensation)

PACKAGE CONTENTS

• (1) EVMX4444 HDMI 4x4 Matrix Selector Switch

• (5) IR Receiver (RX)

• (4) IR Blaster (TX)

• (1) DC 5V4A in-line with C7 power cord

• (1) Rack-mounting ear set

• (1) IR remote control

• (1) Installation software CD

• (1) User Manual

www.vanco1.com 800.626.6445 5

1. Power Switch:

2. Port 1-4: Input source channels mapping LED for each output channel

3. Port 1-4 Select: Push button for selecting input channels

4. Source Status: Input source indicator LED

5. IR SENSOR: IR sensor for receiving the IR commands from IR remote

6. LED: Power indicator

7. RS-232: RS-232 control port

8. Ethernet: Ethernet control port

9. IR Blaster 1-4: 3.5mm IR blaster socket for individual HDMI source contro

10. INPUT 1-4: HDMI inputs

11. IR Receiver 1-4: Infrared 3.5mm socket for plugging in the extension cable of IR

receiver

12. OUTPUT 1-4: HDMI outputs

13. System IR Receiver: Ext. IR receiver

14. All IR Output: 3.5mm IR blaster socket for HDMI source control on all 4 inputs

15. +5V DC: 5V DC power jack

PANEL DESCRIPTIONS

7 8

345 6

151413

www.vanco1.com 800.626.6445

EDID

The EDID switch allows for EDID learning or to pre-set an EDID to encourage a “handshake” between the

display and source.

The EDID learning function is only necessary whenever any display on the HDMI output port is not outputting

audio and video properly. Because the HDMI source devices and displays may have various level of capability in

playing audio and video, the general principle is that the source device will output the lowest standards in audio

format and video resolutions to be acceptable among all HDMI displays connected. In this case, a 720p stereo

HDMI signal output would be probably the safest choice. The EDID function can also force the matrix to learn

the EDID of the lowest capable HDMI display among others to make sure all displays are capable to play the

HDMI signals normally.

There are two methods for EDID Learning as shown below:

1. IR Remote Control: Please refer to the Operation Control – IR Remote Control

section

2. Software Control: Please refer to the Operation Control – EDID section

EDID Settings:

There are eight embedded default EDID settings as shown below,

1. Full-HD(1080p@60)-24bit 2D & 2ch

2. Full-HD(1080p@60)-24bit 2D & 7.1ch

3. Full-HD(1080p@60)-24bit 3D & 2ch

4. Full-HD(1080p@60)-24bit 3D & 7.1ch

5. HD(1080i@60)(720p@60)-24bit 2D & 2ch

6. HD(1080i@60)(720p@60)-24bit 2D & 7.1ch

7. Full-HD(1080p@60)-36bit 2D & 2ch

8. Full-HD(1080p@60)-36bit 2D & 7.1ch

www.vanco1.com 800.626.6445 7

OPERATION CONTROL - IR

REMOTE CONTROL

1. INPUT/OUTPUT Switch - Push the corresponding button on the remote to select Input & Output port.

Ex: Select Input 2 to Output 3 - The button highlighted in the red circle button shown below to select Input 2

to Output 3

2. Function Key

Button Function

OFF Standby mode

ON Power on the matrix switcher

STATUS Preset output status

SAVE Save current mapping mode

PRESET Preset mapping mode

DEFAULT EDID Begin default EDID selection

LEARN EDID Begin EDID learning from one output

CLEAR Clear the previous IR operation procedure

TAKE Trigger the previous setting

F1 Reserved

F2 Reserved

www.vanco1.com 800.626.6445

www.vanco1.com 800.626.6445 9

1. System Requirement

1) OS Information: MS WinXP/7

2) Baud rates: 9600

3) Software size: 3 MB

4) Minimum RAM requirement: 256 MB

OPERATION CONTROL – Software control through RS-232

OPERATION CONTROL - SOFTWARE

CONTROL THROUGH RS-232 AND

ETHERNET PORT

1. I/O Routing Button

2. Rename I/O Button

3. EDID Button

4. Network Button

5. F/W Update & Default Reset Button

6. Refresh COM Port

7. COM Port Selection

8. Connection Status

9. Connect/Disconnect Button

10. Control SW via RS-232

11. Control SW via Network

12345

678911

www.vanco1.com 800.626.6445

1. I/O Routing Button

I/O:

Select the input

Click “Send” to change the I/O setting

Save Mapping:

Select Mapping(1-8)

Click “Save” button to save current mapping

Preset Mapping:

Select Mapping(1-8)

Click “Recall” button to recall previous mapping which are saved
