Vanco Part Number:

EVSW1061

6x1 Multi-Format

Scaler Switcher

www.vanco1.com • 800.626.6445

6x1 MU LT I - FORM AT

S C A L E R SW I TC H E R

www.vanco1.com 800.626.6445

1. Do not expose this unit to water, moisture, or

excessive humidity.

2. Do not install or place this unit in a built-in

cabinet, or other conned space without

adequate ventilation.

3. To prevent risk of electrical shock or re

hazard, due to overheating do not obstruct

unit’s ventilation openings.

4. Do not install near any source of heat,

including other units that may produce heat.

5. Do not place unit near ames.

6. Only clean unit with a dry cloth.

7. Unplug unit during lightening storms or when

not used for an extended period of time. A

surge protector is strongly recommended.

8. Protect the power cord from being walked on

or pinched, particularly at the plugs.

9. Use unit only with accessories specied by

the manufacturer.

10. Refer all servicing to qualied personnel.

CAUTION

HDMI is a very complex technology requiring continuous authentication of the signal and the same

video resolution and audio settings on all electronic equipment in the system. When there are multiple

sources and displays, the video resolution and audio setting on all connected units must be adjusted

to correspond with that of the display having the lowest video and audio capability.

WARNING

DEAR CUSTOMER

Thank you for purchasing this product.

For optimum performance and safety, please

read these instructions carefully before connecting, operating or

adjusting this product. Please keep this manual for future reference.

This product is 100% inspected and tested in the United States to verify

HDMI performance parameters.

www.vanco1.com 800.626.6445 3

INTRODUCTION

The EVSW1061 is a compact 6x1 multi-format switcher with 6 video inputs (3 HDMI, 2 VGA, 1 HDMI/MHL), 2 auxiliary audio

inputs (switched following VGA), 1 HDMI output and 3 audio outputs (1 dual-mono analog audio, 1 3.5mm stereo audio, 1

optical audio).

It not only switches VGA or HDMI/DVI/MHL input signals to HDMI output but can also scale to 6 different resolutions. The

bypass HDMI feature provides comprehensive resolution capacities up to 4K & 1080p 3D. The unit also supports RS232

and IR control and as well as EDID management. The EVSW1061 works in a variety of applications from security monitoring,

conference rooms, classrooms, control center and smart homes to name a few.

FEATURES

6 x 1 Multi-Format Switcher Scaler

Part # EVSW1061

• Compact 6x1 multi-format switcher with 6 video inputs (3 HDMI, 2 VGA, 1 HDMI/MHL), 2 auxiliary audio

inputs mirrored to the VGA inputs, 1 HDMI output and 3 audio outputs (1 dual-mono analog audio, 1

3.5mm stereo audio, 1 optical audio)

• Switches VGA or HDMI/DVI/MHL input signals to HDMI output

• Scales to 6 different resolutions, VGA to HDMI output - Output resolutions selectable to assure

preferred output. Supports various output resolutions, such as 1920x1200, 1920x1080, 1360x768,

1280x800, 1024x768, 1280x720

• Bypass HDMI feature provides comprehensive resolution capacities up to 4K & 1080p 3D

• Transmits 4K/UHD @ 30 HZ up to 50 ft. / 15m

• Supports RS232 and IR control

• Supports advanced EDID management

• Supports MHL 2.0, Maximum Resolution 1080p

• MHL auto detection, Supports device charging over MHL, maximum 5V 900mA

• HDCP 1.4 Compliant

• Two input switching modes: auto-switching or manual-switching

• Intuitive indicator for power connect states, source selection, and output resolution selection

• Supports Audio and Video output management via Output Black button

• Features a Type A USB port for Firmware upgrades

• Compact design for easy operation, works in a variety of applications from security monitoring,

conference rooms, classrooms, control center and smart homes

• Features off memory for reliable operation - input and output mapping is automatically stored and

recalled when the unit is powered on and off and in the event of a power outage

• Supports hot plug

• Dimensions: 13.7” W x 1.1” H x 4.3” D

www.vanco1.com 800.626.6445

SPECIFICATIONS

Input ........................................................................ 3 HDMI, 2 VGA, 1 HDMI/MHL

Input Connector ......................................................... 4 female HDMI (Type-A)

2 female VGA (15Pin)

Input Video Signal ...................................................... HDMI/DVI/MHL,VGA

Output...................................................................... 1 HDMI

Output connector....................................................... 1 female HDMI

Output Video Signal.................................................... HDMI

Resolution................................................................. HDMI: up to 4Kx2K; VGA: output resolution

selectable

Standard................................................................... Compliant with VGA&DVI, MHL 2.0, HDMI1.4, HDCP

1.4

Audio Input................................................................ 2 stereo audio inputs for VGA

Audio Input Connector ................................................ 2 3.5mm Stereo jacks

Audio Output ............................................................. 1 Dual-Mono analog audio, 1 stereo audio, 1 optical

audio

Audio Output Connector ............................................. 1 3-pin pluggable terminal block (3.81mm), 1 3.5mm

jack, 1 SPDIF ber connector

Control Ports ............................................................ RS232, IR remote

Panel Control............................................................. Front Panel Button

Pin conguration........................................................ 2 = TX, 3 = RX, 5 = GND

Power Supply ............................................................ DC 5V 3A

Power Consumption ................................................... 3.8 (Max)

Dimensions ............................................................... 13.7” W x 1.1” H x 4.3” D

Weight ..................................................................... 0.63Kg

Temperature ............................................................. 0-50 Degrees C

Reference Humidity.................................................... 10% ~ 90%

Transmit Distance...................................................... 4Kx2K≤15m

Note: Compact Scaler Switcher supports 4k&1080p 3D HDMI signal, please adopt quality HDMI cables

compliant with HDMI1.4 for reliable transmission when connecting

www.vanco1.com 800.626.6445 5

PACKAGE CONTENTS

• EVSW1061 Scaler Switcher

• IR Receiver

• IR Remote

• DC 5V 3A Power Supply

• Mounting Hardware

• (2) 3-pin Pluggable terminal blocks

• Product Manual

Format Resolution

HDMI/DVI/MHL 800x600@60Hz, 800x600@72Hz, 800x600@75Hz,

1024x768@42Hz, 1024x768@60Hz, 1024x768@70Hz,

1024x768@75Hz, 1024x768@85Hz, 1152x864@75Hz,

1280x768@60Hz, 1280x768@75Hz, 1280x768@85Hz,

1280x960@60Hz, 1280x960@85Hz, 1280x1024@60Hz,

1280x1024@75Hz, 1280x1024@85Hz, 1365x1024@60Hz,

1365x1024@60Hz, 1600x1024@60Hz, 1600x1200@60Hz,

1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz,

1600x1200@85Hz, 1680x1050@60Hz, 1792x1344@60Hz,

1856x1392@60Hz, 1856x1392@75Hz, 1920x1080@60Hz,

1920x1200@60Hz, 1920x1440@60Hz, 3840x2160@24Hz,

3840x2160@30Hz, 3840x2160@25Hz, 4096x2160@24Hz,

4096x2160@25Hz, 4096x2160@30Hz

VGA 800x600@60Hz, 800x600@72Hz, 800x600@75Hz,

1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz,

1280x768@60Hz, 1280x768@75Hz, 1280x960@60Hz,

1280x1024@60Hz, 1280x1024@75Hz, 1365x1024@60Hz,

1365x1024@75Hz, 1600x1024@60Hz, 1600x1200@60Hz,

1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz,

1680x1050@60Hz, 1792x1344@60Hz, 1920x1080@60Hz,

1920x1200@60Hz

www.vanco1.com 800.626.6445

1. Power LED: Indicator for power status. Off when no power; Constantly green when the system is in

working; Constantly red when the system is enter in standby.

2. Inputs LED: Constantly green when choosing the corresponding audio source.

3. Auto-switching LED: Constantly green when enter in auto-switching mode.

4. Output resolution selection LED: Constantly green when choosing the corresponding output resolution

(Input is VGA).

5. Source/Auto: Audio source selection button: switching circularly between HDMI1, HDMI2, HDMI3,

HDMI4, VGA1, VGA2. dial left to select the previous one, dial right to select the next one; Switching mode

selection button: Press and hold for 3 seconds or more to enter in auto-switching mode, press and hold

for 3 seconds or more again to enter in manual-switching mode.

6. Resolution/FW Update: Output resolution manual switching button for VGA input: selection circularly

among 1920×1200, 1920×1080, 1360×768, 1280×800, 1024×768, 1280×720.default

resolution:1920×1080; Firmware updating button: press and hold for 7 seconds or more to enter in

software updating procedure. All LED blinking when the system is loading rmware

7. Output Black: Press to switch on/off audio&Video output. All LED turn off except power LED when switch

off output.

8. HDMI Inputs: 4 HDMI/DVI/MHL video source input ports (embedded HDMI audio format: PCM).

9. VGA Input : 2 VGA video source input ports.

10. Audio Inputs: 2 3.5mm stereo audio source input ports, switched following the corresponding VGA.

11. HDMI Output: HDMI video output port.

12. 3P Audio Output: Dual-Mono analog audio output port.

13. 3.5mm Audio Output: stereo audio output port.

14. Optical Output: optical audio output port.

15. Firmware: Type-A USB port for updating rmware.

16. RS232: Serial port, 3-pin pluggable terminal block, connect with control terminal (e.g. a PC) to control

Compact Scaler Switcher.

17. IR IN: connect to an IR Receiver, to receive IR signal send by corresponding IR remote.

18. DC 5V: Connect to a DC 5V 3A power adapter.

PANEL DESCRIPTIONS

123456 7

10 11 12 13

10 14 15 16 17 18

www.vanco1.com 800.626.6445 7

CONNECTION DIAGRAM

CONNECT AND OPERATE

1. Connect HDMI/DVI/MHL sources (example: DVD player) to HDMI input ports of Compact Scaler Switcher

with HDMI cables

2. Connect VGA sources (example: DV Camera) to VGA input ports of Compact Scaler Switcher with VGA

cables

3. Connect sources to the Audio input ports of Compact Scaler Switcher with audio cables

4. Connect a HDMI display (example: HDTV) to HDMI output port of Compact Scaler Switcher

5. Connect audio ampliers (example: speaker/earphone) to audio outputs of Compact Scaler Switcher

6. Connect a control device (example: PC) to the RS232 port of Compact Scaler Switcher

7. Connect an IR Receiver working voltage: 5V to the IR IN port of Compact Scaler Switcher

8. Plug DC 5V 3A power adapter to Compact Scaler Switcher

IR RX

AV Receiver

Cable/SatelliteBlu-Ray Apple TV

Cable/Satellite

HDTV

PC PC

www.vanco1.com 800.626.6445

FRONT PANEL CONTROL

Front panel buttons can be used for source selections, adjusting output resolution, front panel buttons

management, software updating and output screen settings. There are 6 sources for choose in total, including

HDMI1, HDMI2, HDMI3, HDMI/MHL4, VGA1, VGA2. Video signals support auto-switching and manual-

switching (factory default).

Manual-switching:

Dial back arrow to select the previous source, dial forward arrow to select the next source.

Auto-switching:

Press and hold for SOURCE/AUTO for 3 seconds or more to enter in auto-switching/ manual-switching mode.

In this mode, select input source via front panel button is not available, but RS232 command and IR remote

are able to switch mode. The auto LED turn green and keep on.

The auto-switching mode abides by the following:

New input:

Once detecting a new input signal, the switcher would switch to this new signal automatically.

Rebooting device:

The EVSW1061 have the ability to save the last conguration before losing power. If the last switching mode

is auto-switching, once rebooted, the switcher will automatically enter auto-switching mode, then detect all

inputs and memorize their connection status for future rebooting using. If the last displayed signal is still

available, the unit will output the signal. If not, the unit will detect all the inputs signals with priority from

HDMI1 to VGA2. When detected the rst signal, it will transfer to output.

Signal removing:

Once removing the current display signal, Compact Scaler Switcher will detect all input signals with priority

from HDMI1 to VGA2. It will transfer the signal rstly detected to be available to output devices

RS232 CONTROL

First, connect Compact Scaler Switcher with an input device and an output device. Then, connect it with a

computer which is installed with RS232 control software. There is a Vanco branded application that can be

found at:

http://www.vanco1.com/content/pages/tech-support.aspx

The serial protocol is as follows. Please visit the product page at www.vanco1.com for further commands and

drivers.

Baud Rate................................................................. 9600

Data Bit.................................................................... 8

Stop Bit .................................................................... 1

Parity ....................................................................... None

www.vanco1.com 800.626.6445 9

FIRMWARE UPDATE

The EVSW1061 supports rmware updating via USB ash disk. The procedures as follows:

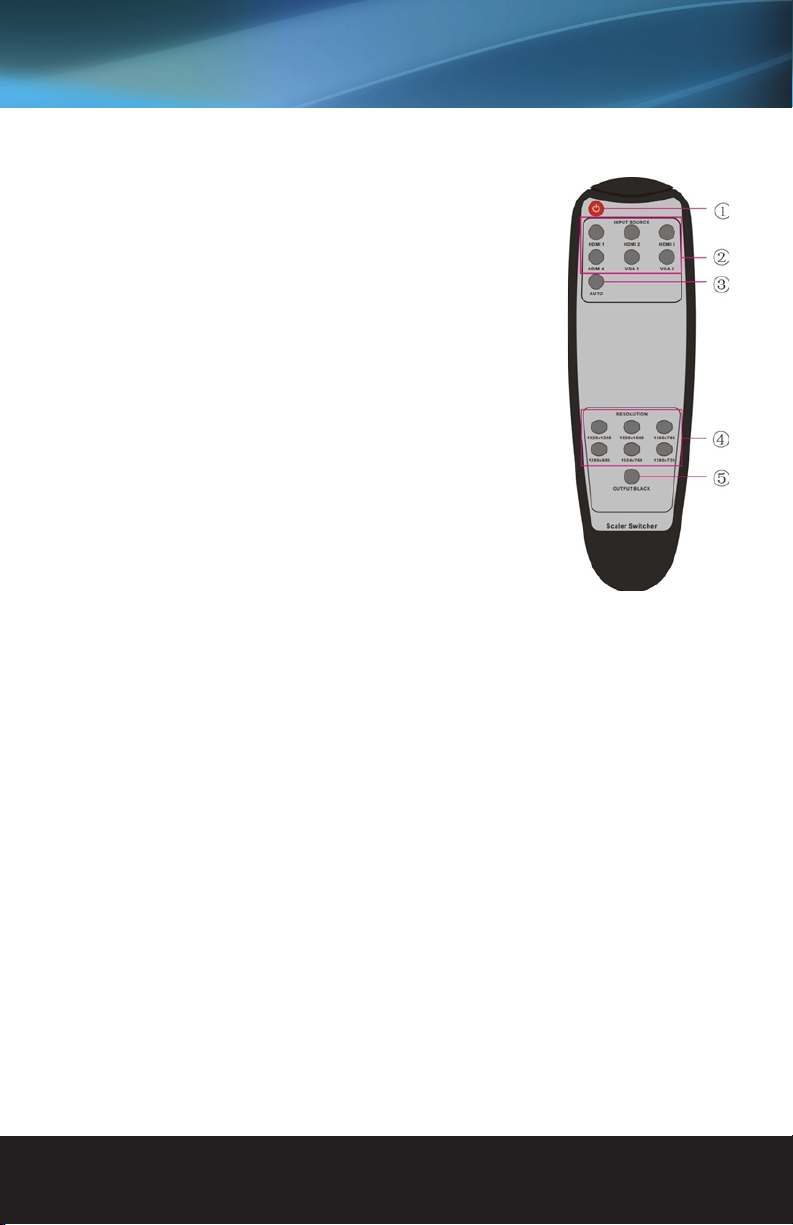

1. Standby button: Enter/ exit standby mode.

2. Input channel selection buttons: Selection video source via pressing

corresponding button (audio switched following the corresponding VGA).

3. Auto button: Enter/ exit auto-switching mode.

4. Resolution selection buttons: Select resolution via pressing

corresponding button.

5. Output black button: Press to switch on/off Audio& Video output

1. Copy the le “MERGE.bin” to the root directory of a USB ash disk. (Make sure the le is copied to

the root directory for normal use. The “MERGE.bin” le is provided/ authorized by Vanco engineering

department.

2. Plug the USB ash disk into the FIRMWARE port on its rear panel.

3. Press the button “RESOLUTION/FW UPDATE” for 7 seconds or more to update the rmware

automatically. This can also be accomplished by sending the serial command 50698% to update

software.

IR CONTROL

www.vanco1.com 800.626.6445

SAFETY AND NOTICE

To insure the best from the product, please read all instructions carefully before using the device. Save this

manual for further reference.

• Unpack the equipment carefully and save the original box and packing material for possible future

shipment

• Follow basic safety precautions to reduce the risk of re, electrical shock and injury to persons.

• Do not dismantle the housing or modify the module. It may result in electrical shock or burn.

• Using supplies or parts not meeting the products’ specications may cause damage, deterioration or

malfunction.

• Refer all servicing to qualied service personnel.

• To prevent re or shock hazard, do not expose the unit to rain, moisture or install this product near

water.

• Do not put any heavy items on the extension cable in case of extrusion.

• Do not remove the housing of the device as opening or removing housing may expose you to dangerous

voltage or other hazards.

1. PROBLEM: Power LED dosen’t work or no response to any operation. CAUSE: Fail connection of power

cord. Power adapter isn’t suitable SOLUTION: Make sure the power cord connection is normal. Please

replace the power adapter with factory default.

2. PROBLEM: No output image on display when switching. CAUSE: Fail or loose connection. Solution: Make

sure the connection is secure.

3. PROBLEM: Output image with snowake or ghost CAUSE: Bad quality of the connecting cable, or

exceeding the transmission distance allowance. SOLUTION: Replace with higher quality or proper distance

cable.

4. PROBLEM: Cannot control the device via front panel buttons. CAUSE: Front panel buttons are locked.

SOLUTION: Send command 50605% to unlock it

5. PROBLEM: Cannot select source via SOURCE/AUTO buttons. CAUSE: In auto-switching mode. SOLUTION:

Press it and hold for 3 seconds or more to enter in manual-switching mode

6. PROBLEM: Cannot control the device by control device (e.g. a PC) through RS232 port. CAUSE: Wrong

RS232 communication parameters. SOLUTION: Type in correct RS232 communication parameters.

7. PROBLEM: Cannot control the device by control device (e.g. a PC) through RS232 port. CAUSE: Broken

RS232 port. SOLUTION: Send it to authorized distributor for return.

8. PROBLEM: Cannot control the device via IR remote. CAUSE: The battery has run off. SOLUTION: Change

for new battery.

9. PROBLEM: Cannot control the device via IR remote CAUSE: The IR remote is broken. SOLUTION: Send

it to authorized distributor for return.

10. PROBLEM: Cannot control the device via IR remote. CAUSE: Beyond the effective range of the IR signal or

not pointing at the IR receiver. SOLUTION: Adjust the distance and angle and point right at the IR receiver.

TROUBLE-SHOOTING

Inhaltsverzeichnis

Andere Vanco Schalten Handbücher

Vanco

Vanco Evolution EVSW4K41 Bedienungsanleitung

Vanco

Vanco PULSEAUDIO PA-SW31T Bedienungsanleitung

Vanco

Vanco 280759 Bedienungsanleitung

Vanco

Vanco EVMX4016 Bedienungsanleitung

Vanco

Vanco Evolution EVSW1041 Handbuch

Vanco

Vanco Evolution EVMX4K04 Bedienungsanleitung

Vanco

Vanco Evolution EVSW1040 Bedienungsanleitung

Vanco

Vanco Evolution EVMX44PRO Bedienungsanleitung

Vanco

Vanco VPW-280794 Bedienungsanleitung

Vanco

Vanco EVMX44QI Bedienungsanleitung

Vanco

Vanco HDMX4K44 Bedienungsanleitung

Vanco

Vanco EVMX4444 Bedienungsanleitung

Vanco

Vanco HDSW4K31 Bedienungsanleitung

Vanco

Vanco Evolution EVSW41KVM Bedienungsanleitung

Vanco

Vanco VPW-280789 Bedienungsanleitung

Vanco

Vanco HDBT8x7 Bedienungsanleitung

Vanco

Vanco Evolution EVMX4004 Bedienungsanleitung

Vanco

Vanco Evolution EVMX88PRO Bedienungsanleitung

Vanco

Vanco HDMISW41 Montageanleitung

Vanco

Vanco Evolution EVSW21MV Handbuch

Vanco

Vanco Evolution EVSW1042 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
