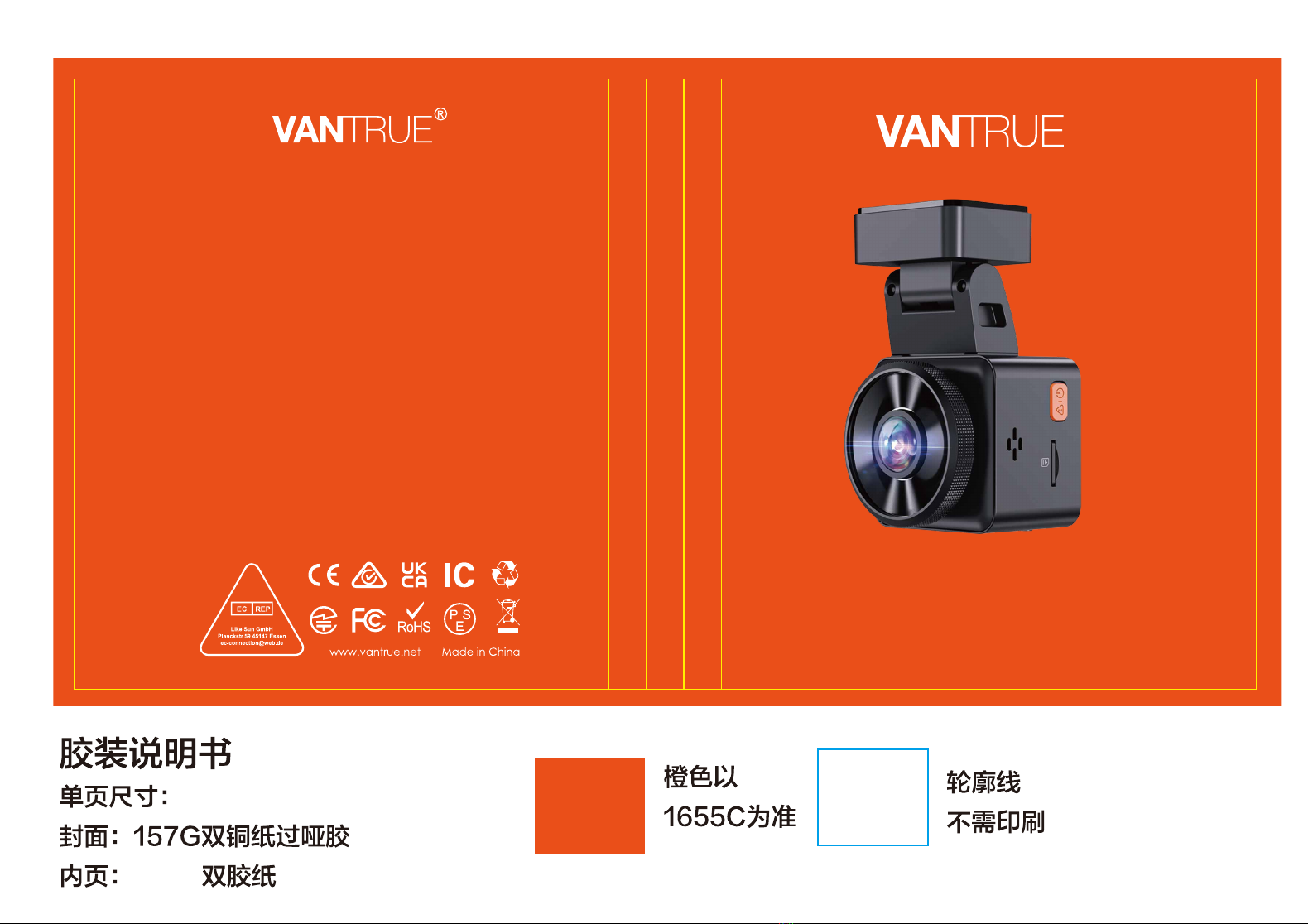

Vantrue Element 1 Lite Bedienungsanleitung

Element 1 Lite

User Manual

122mmX130mm

70g

Smart Cube

Voice Controlled Dash Cam

Hey, find us here:

www.vantrue.net/contact facebook.com/vantrue.live

CONTENTS

VERZEICHNIS

CONTENU

SPIS TREŚCI

Installation

Instalacja

125

120

161

Warranty & Support

Kundendienst

Garantie & Support

Gwarancja & wsparcie

119

160

Specifications

Produktspezifikationen

Spéciﬁcation

Dane techniczne

Camera Overview

Beschreibung der Rumpfteile

Vue d'ensemble de la caméra

Budowa kamery

122

135

Basic Operation

Funktion

Opérationdebase

Podstawowe funkcje

121

What’s in the box?

Was ist in der Box？

Qu'ya-t-ildanslaboîte？

Co znajdziemy w pudełku？

- 1 -

1.WhatʼsintheBox?

Optional Accessories

A. Vantrue E1 Lite

Dash Cam

D. Type C Data Cable

(3.3ft, for transferring

files only)

Crowbar

C. Car Charger with

Built-in Type C Cable

(11.5ft)

E. Warning Stickers

H. User Manual

B. GPS Adhesive

Mount

CPL Filter

Electrostatic stickers

Element 1 Lite

User Manual

Smart Cube

Voice Controlled Dash Cam

- 2 -

2. Camera Overview

NO. DescriptionName

During video recording, long press to turn off the

screen, short press to stop video recording and

enter standby mode; you can confirm the

selected option in the menu; when playing back

files, you can play/pause files

1 Microphone

3Button

Serial Number Serial number for warranty registration.

Records clear audio with the video footage.

1 2

13 15

E1 Lite

- 3 -

4 During video recording and standby, long press

to quickly enter parking mode, and short press to

turn on/off the microphone; in menu settings,

long press to scroll through menu options, and

short press to display the next menu option;

during file browsing, long press to scroll to display

file, short press to display the next file; in playback

mode, short press to pop up the delete file menu.

Button

5 Button

SD Card Slot

Speaker

Long press to turn on/off WiFi; short press to enter

standby mode.

Mount Port Connect to Type C cable or car charger for

external power supply.

Support Micro SD Card up to 512GB in FAT32,

Class 10

Button

Delivers sound during video playback.

Front Camera Front Facing Camera for video recording road

events.

For connecting mountMount Interface

Power Port

Press to force reset the device.Reset Button

Screen 1.54” LCD Display Screen

Long press to turn on/off the dash cam; short

press during recording to enter event recording

mode; short press to capture pictures during

event recording.

Connect to Type C cable or car charger for

external power supply；Connect the data cable

for data transferring.

- 4 -

Screen Overview

DescriptionLED Status

15 Camera is recordingBlinking green light

Steady green light In standby status

1920x1080P(HDR) 30FPS

MP/H

00:00:37

2022-01-05 14:09:07

120

Loop Recording OFF

G-Sensor OFF

G-Sensor ON

Parking Mode

Recording Time

(Current Clip)

Mic is ON

Mic is OFF

NO Memory card inserted

00:00:37

Current Date and

Time (12/24H)

Time lapse On

Collision Detection ON

Motion Detection ON

1080P Low Bitrates Recording ON

15FPS

720P Low Bitrates Recording ON 15FPS

Low Framerate Parking Mode ON

Memory card inserted

Emergency File Lock

Recorded Driving Speed

(KMH or MPH)

Video Resolution

Loop Recording Time

Icons for Indicating

Buttons

GPS Signal Connecting

GPS Signal Locked

Voice Assistant

- 5 -

Before using this card, please follow the steps below to format it properly:

If the camera is recording, please press the recording icon to pause

the recording, then press the menu icon to enter the menu, then

enter the “System”, select the format card , and confirm to format the

memory card until it prompts "Formatted successfully".

3. Installation

3.1 Installing a Memory Card (Recommend Vantrue U3 high-speed microSD

card).

Please use a genuine Micro SD memory card from 32GB to 512GB with a

speed rating of U3 higher. We recommend using Vantrue Micro SD Card

(not included in the box). Please insert the SD card when dash cam is off.

Memory card installation: There is an icon indicating the insertion direction

of the memory card. Please push the memory card into the card slot

according to the direction indicated by the icon, until a "click" sound is

heard in the card slot, indicating that the memory card is inserted properly.

To remove the card, power off the camera first, then push the card into

the slot until it clicks again. (The following is a line drawing of a memory

card inserted into Element 1 Lite).

- 6 -

If it prompts "card error, please format" after you insert the memory card,

you can directly click the menu icon to enter and start the formatting

process.

We recommend formatting once a month to ensure the normal use of

the dash cam;

Do not remove or insert the memory card during recording to avoid

losing important videos.

Please do not use bad cards or low-speed cards on the dash cam, as

it is easy to stop or lose the recording due to the failure of the memory

card.

Before formatting the memory card, please check the emergency

video folder in the SD card to see if there are any videos that need to

be saved separately, so as not to delete important videos by mistake.

REMINDER:

3.2 Camera Installation

1. Align the mount with the dash cam mount interface, then push the

mount in until the mount is installed.

Step 1
