VAULT Professional Series Bedienungsanleitung
PROFESSIONAL SERIES
CUSTOM BUILT
DEBOXING AND INSTALLATION
INSTRUCTIONS
1. Vault cabinets are shipped in wood crates that are designed and constructed to ensure they are
protected during transport. The massive wood crates include thick foam insulation.
2. Snap the metal bands with shears.
3. Begining with the top, remove the all of the screws with a portable drill and discard the lid.
4. Remove the front side of the crate, then remove both sides.
PROFESSIONAL SERIES
CUSTOM BUILT

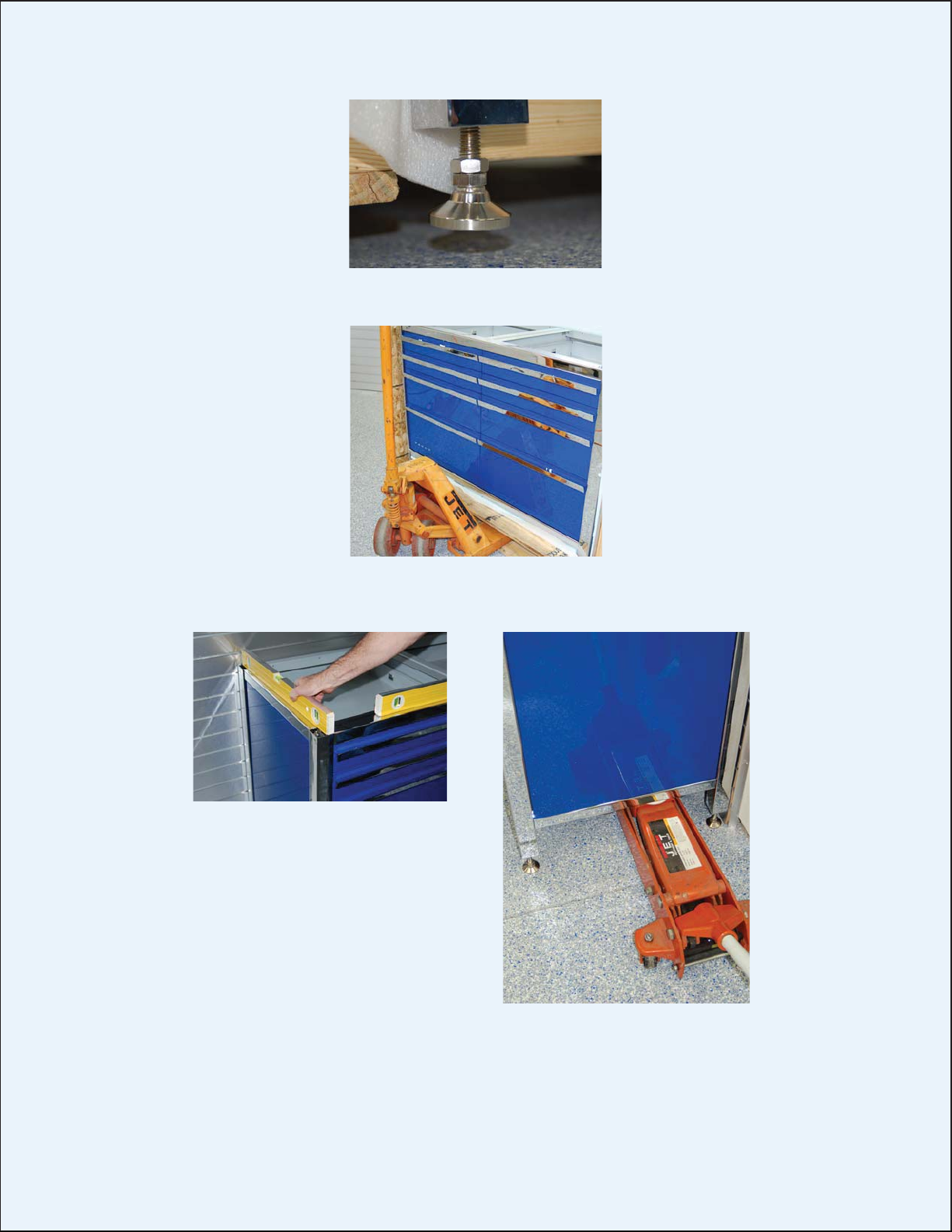

5. Using a pallet jack, raise cabinet and screw leg levelers into the bottom of each frame.
6. With the leg levelers installed, raise cabinet on pallet jack and move into position.
7. With cabinet in positon and using a level, raise and lower leg levelers until it is level with the
floor and adjoining cabinets.
PROFESSIONAL SERIES
CUSTOM BUILT

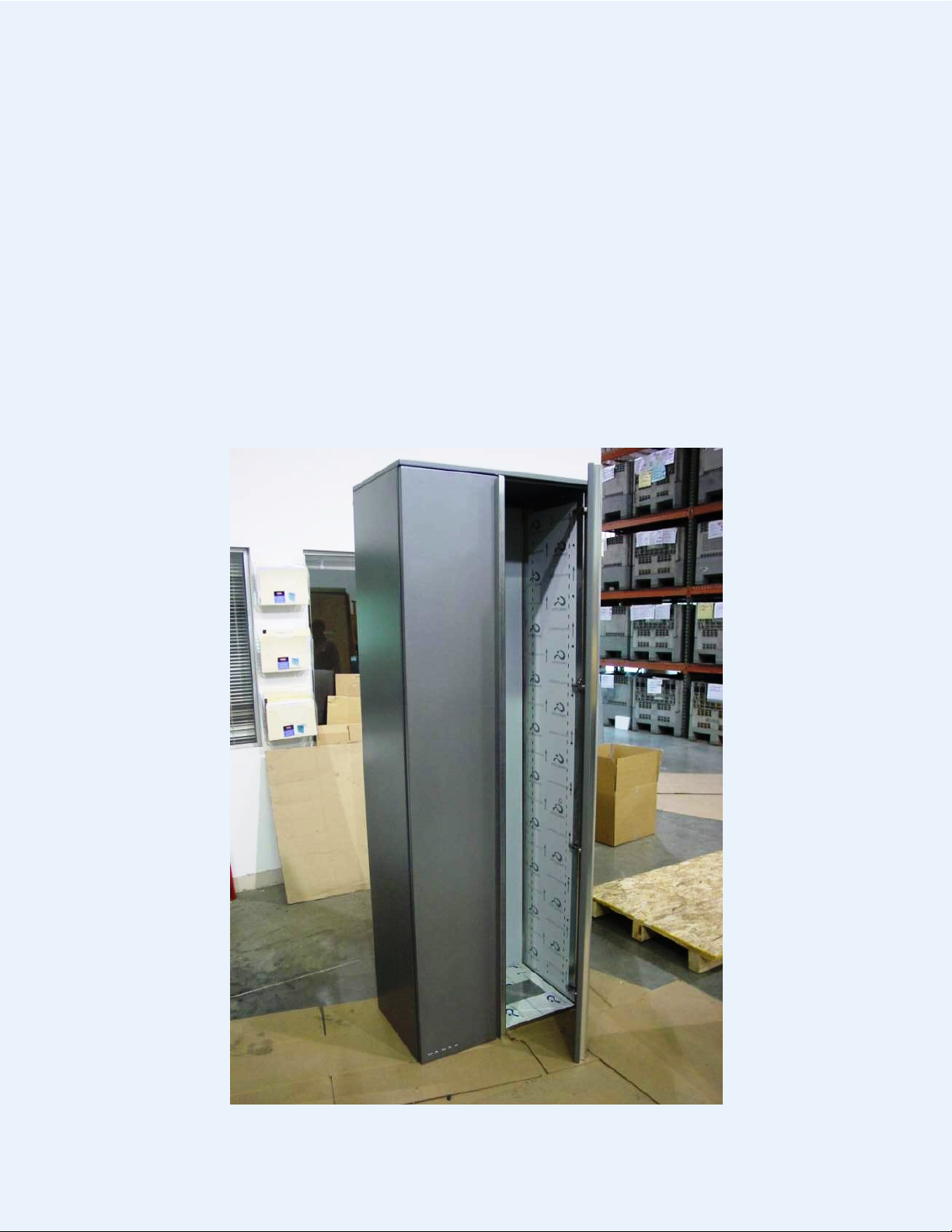

REMOVING PROTECTIVE FILM
INSTRUCTIONS
Your VAULT cabinets have a protective vinyl film that covers many surfaces. It is necessary to use
protective film for two purposes:
(a) To protect metal parts from damage during manufacturing AND
(2) Prevent scratches to the panels during assembly and transit.
A key to make removal of the protective film easier is to remove large sections, versus small
sections.
Start with a corner and/or corner and crumple the film until it bunches up and begin pulling
sections that are 12” in width across or larger. Once you get a large section started, the wrap will
pull off the metal much more easily. The key lies in pulling large sections. Small sections will
simply break off and you’ll have to restart the process over.
PROFESSIONAL SERIES
CUSTOM BUILT
ADJUSTING DRAWER BODIES
AND THEIR OPERATION
VAULT® has designed our drawers so that they can be easily removed to make cleaning easier. To
remove the drawer, simply pull the drawer open and lift the drawer up and outward.
[Note: Your drawer can be permanently fixed, preventing its removal, by using a screw through the
front pocket hole, or bending the locking tab but we DO NOT recommend this option because it is
not necessary and permanently alters your cabinets.]
It is not uncommon for drawer bodies to rattle during transportation to the extent where they
become misadjusted or lift off the drawer slides during transportation.
To install the drawer on the slide, position the rear drawer tabs into both rear slide pockets on the
slides. Guide front tabs into front pockets and push firmly into place making sure drawer that the
cut-out tabs on the drawers fit snugly into the drawer pockets.
If your drawer slides do not operate smoothly, place a small amount of White Lithium Grease
(non-aerosol) on the stainless steel ball bearings and the ridge of their travel. Operate the slide
back and forth until the entire travel is liberally covered with grease and operating smoothly.

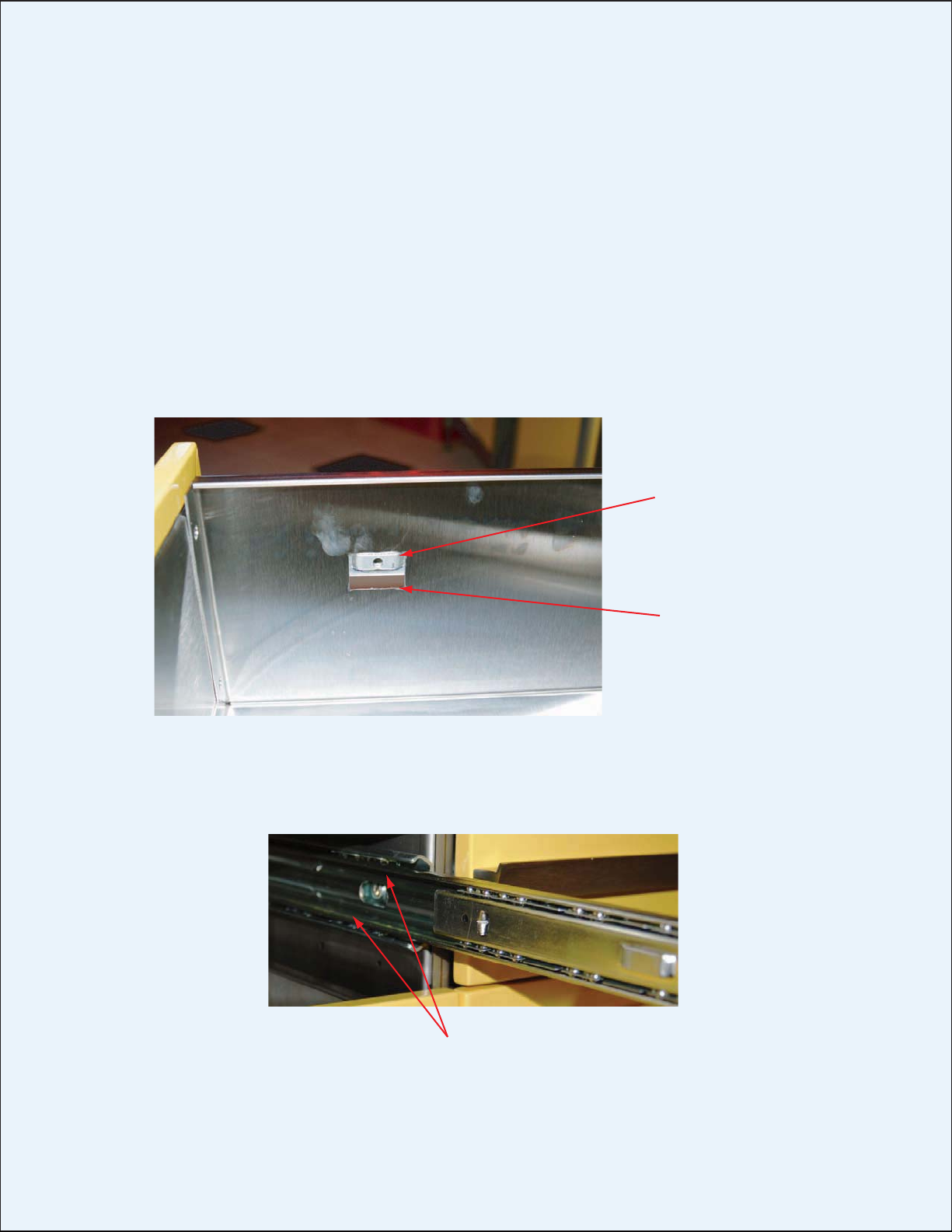

There are two cut out tabs on each
side of a drawer body which
fit into the drawer slide pockets.
Pocket on drawer slide
This is the drawer slide “travel” and
location to place a small amount of
white lihium grease.
PROFESSIONAL SERIES
CUSTOM BUILT
Now that all the cabinets are installed, it is time to align doors and drawers. This is a critical, final step to ensure
perfect cabinetry lines.
All VAULT® cabinets have fully adjustable hinges manufactured by industry leader ‘Blum’. Should the doors on your
VAULT® cabinets come out of alignment over time (such as rubbing against the frame), you can easily adjust them in 3
directions, using a Phillips head type screwdriver and following these easy instructions. If you need additional
technical support on adjusting your Blum hinges, you may call the manufacturer directly at (800) 438-6788.
DOOR ADJUSTMENT
Use this screw to adjust the gap
between doors, walls and other
cabinets for parallel alignment.
DOOR HEIGHT ADJUSTMENT SIDE ADJUSTMENT DOOR DEPTH ADJUSTMENT
Use these two screws to adjust the
height of the doors and/or align the
top and bottom of the doors.
Use this screw to bring to door into
alignment with neighboring
cabinet doors/drawers.
IMPORTANT: DO NOT adjust these two
screws as doing so can void your warranty.
These screws mount the door hinge to your
cabinet and are not meant to be adjusted.
