About this manual

This user manual is meant to support you during operation of the PROBA 5. This manual should be

used in combination with the VASP manual. This manual only describes the PROBA speciﬁc part of the

VASP software.

Always consult your supplier in case of maintenance or repairs!

Used notations

Manual change notes

Release Date Remarks

1.1 07-12-2018 First release

References

Reference to other documents

like drawings and descriptions

of components.

Important

Important information which is

assumed as being known with

this user manual.

Extra info

Background information.

PROBA 5 Doc.nr: 170366 Version: 1.1

Page 4of 32

Safety

⇒These rules of prevention of accidents must be kept near the machine.

⇒To prevent a lack of clarity in pictures it is prohibited to make copies of this document. Only

original colour-prints guarantee a clear result.

⇒Use the installation only as described in this manual. Other use van lead to dangerous

situations and/or damage to installation or products.

⇒Be sure to remove all tools from the machine after any maintenance.

Read this ﬁrst!

Before the installation is going to be used, the instructions mentioned below have to be

considered. The guarantee of the installation expires if any damage, failure or shortcoming is a

result of negligence or non-observance of the points mentioned below.

Page 5of 32

PROBA 5 Doc.nr: 170366 Version: 1.1

Table of contents

1 Tab Overview 6

1.1 Modify overview 7

1.1.1 Product image 7

1.1.2 Show sensor 7

2 Tab Controller 8

2.1 Main control 8

2.1.1 (De)activate items 8

2.1.2 Cell operation 9

2.1.2.1 Operation mode - Hold 9

2.1.2.2 Operation mode - Ripe 10

2.1.2.3 Operation mode - Standby 11

2.1.2.4 Operation mode - Stop 11

2.1.2.5 Manual ventilation 11

2.1.2.6 Operation mode - ULO 12

2.1.3 Batch setting 13

2.1.4 Used presentations & symbols 14

2.1.4.1 Cell 14

2.1.4.2 Fan 14

2.1.4.3 Evaporator 14

2.1.4.4 Airbag 15

2.1.4.5 Door 15

2.1.4.6 Gas cylinder 15

2.1.4.7 Measurements 16

2.1.4.7.1 General measurements 16

2.1.4.7.2 Speciﬁc measurements 17

2.2 Subtab Programs 18

2.2.1 Selected series - Temperature 19

2.2.2 Selected series - Gas Concentration 19

2.2.3 Selected series - Gas Time 19

2.2.4 Selected series - Ventilation 20

2.2.5 Selected series - Humidity 20

2.2.6 Selected series - Pressure 20

2.2.7 Selected series - Pressure Reverse 20

2.2.8 Selected series - Fan speed 20

3.1 Simple control panel 21

3 Operation with the control panel 21

3.2 Operating the Proba using a touchscreen. 23

3.2.1 Conﬁguring the IP addresses 23

3.2.2 The main screen 24

3.2.2.1 Registration 24

3.2.2.2 Components of the main screen 25

3.2.2.3 Reading the temperature sensors 25

3.2.2.4 Reading other sensors 26

3.2.2.5 Programme settings 26

3.2.2.6 Control panel - Parameter settings 28

3.2.2.7 Alarms 28

4 List of ﬁgures 30

PROBA 5 Doc.nr: 170366 Version: 1.1

Page 6of 32

1 Tab Overview

Depending on the license, you should ﬁrst select a location and then the required overview is shown. If

the location option is not in your license, the overview tab will directly show.

In the tab ‘Overview’ all conﬁgured controllers are shown. There are maximal 100 controllers available

on one location. These controllers are divided on four pages.

Select a cell to show the concerning details in a new tab. In this way multiple cells can be selected

what will lead to multiple tabs (see next chapter).

Fig. 1

Overview location

Tab list

Use tab ‘List’ to get an

overall view of all cells with

corresponding general

measurements.

Visibility of

current phase

Current phase is only presented

if it is active.

Back ground colour is also used for status:

Ripening

Gassing

ULO

Failure

Greyed out

= not active

communication

Humidity

Selection of a

group cells

Gas concentration

Pressure

Pressure reverse

Status Name of batch

Current average of controlled

temperature

Average setpoint control

temperature

Current status of cell section:

heating

cooling

oﬀ

Current phase of cell:

ventilation phase

gassing phase

humidifying phase

Door

closed

Door

open

Page 7of 32

PROBA 5 Doc.nr: 170366 Version: 1.1

The appearance of the room in the overview can be modiﬁed.

The product image can be changed or removed and a selection of the sensors can made.

To make these modiﬁcations, just right click on the room and left click on the required action.

Fig. 2

Modify room appearance

1.1.1 Product image

Use this selection to choose the desired graphic presentation of the fruit. Consult your supplier in

case another picture is needed.

Fig. 3

Product selection

1.1.2 Show sensor

Use this selection to select the control sensors that are shown as text at right side of cell.

The unit which is entered, will also be used for the view at the bottom of the room view.

Fig. 4

Sensor selection

1.1 Modify overview

PROBA 5 Doc.nr: 170366 Version: 1.1

Page 8of 32

2 Tab Controller

Each cell is independently controlled by a controller. Via tab ‘Controller’ the right commands and

setpoints are send to each controller.

All ripening processes are based on pre-deﬁned program templates. If necessary it is possible to

change the selected program temporarily. As a result, the standard program template is used again

each next time the ripening process is started.

2.1 Main control

The default view shows complete status of selected cell.

Fig. 5

Controller - main control

2.1.1 (De)activate items

It is possible to (de)activate sensors and zones individually in each cell. De-activated items are shown

as greyed out.

1. Select item with right mouse button.

2. Select or de-select ‘Activate’.

Fig. 6

(De)activated items

Modify

programs

See “§2.2 Subtab Programs”

on page 18 for modifying

program templates.

Cell, see page 14

Fan, see page 14

Evaporator, see page 14

Air bag, see page 15

Door, see page 15

Measurements, see page 16

General zone measurement, see page 16

General cell measurements, see page 16

Gas cylinder, see page 15

Cell operation control, see page 9

Reset controller alarm relays (Urgent & Not Urgent)

and acknowledge errors to controllers

Batch setting, see page 13

7 11 126

activated de-activated

Page 9of 32

PROBA 5 Doc.nr: 170366 Version: 1.1

2.1.2 Cell operation

Green led indicates if item is activated.

Start manual ventilation

Fig. 7

Cell operation - overview

2.1.2.1 Operation mode - Hold

Select ‘Hold’ to maintain a constant ventilation regime with ﬁxed relative humidity, fan speed and

temperature setting. However, it is possible to (de-)activate ventilator and heating manually.

Control

mode

Hold: see page 9

Ripe: see page 10

Standby: see page 11

Stop: see page 9

Start vent: see page 11

Manual operation possible if enabled.

This depends on the cell status.

Visual items depend on current cell status.

Hold status; Manual regime for ventilation and manual setting

for relative humidity, fan speed and temperature. Manual

operation for ventilator and heating are enabled.

Ripe status; Ripening is done according ripening program.

Manual operation for ventilator, heating and gassing are

enabled.

Standby status; Manual regime for gassing and ventilation

and manual setting for relative humidity, fan speed and

temperature.

Manual operation for ventilator, heating and gassing are

enabled.

Stop status; Ripening is stopped. Manual operation for

ventilator, heating and gassing are enabled.

Don’t wait until start moment, but start program direct.

Progress of ripening

PROBA 5 Doc.nr: 170366 Version: 1.1

Page 10 of 32

Ventilation pause time

Setpoint relative

humidity

Setpoint temperature

Ventilation activation time

Interrupt hold mode

Start hold mode

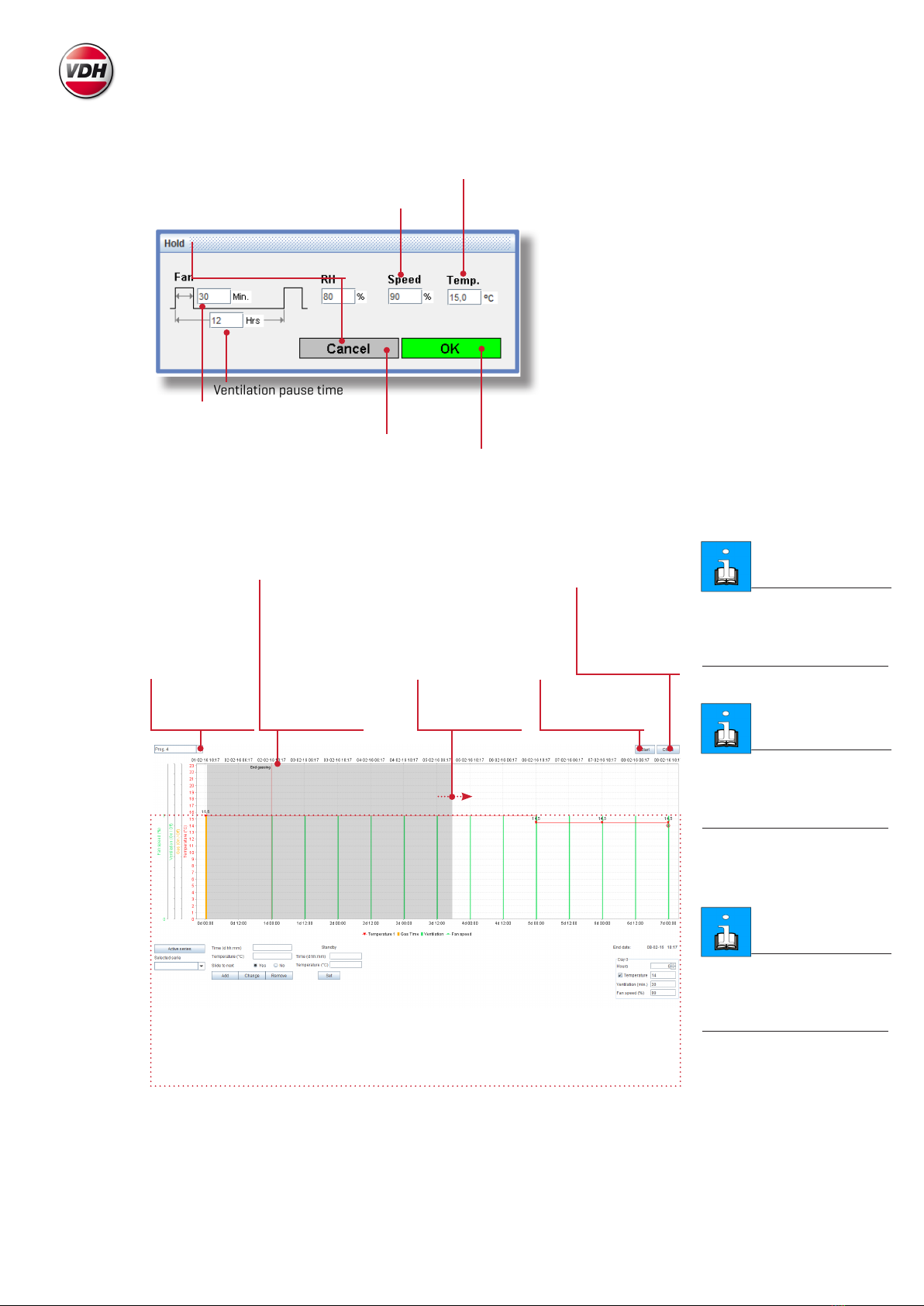

Fig. 8

Hold parameters

2.1.2.2 Operation mode - Ripe

Select ‘Ripe’ to start a completely automatic controlled ripening process.

A new window is displayed:

Fig. 9

Ripening graph

When the graph window is closed and ‘Ripe’ mode is still active it is possible to (de-)activate

ventilator, heating and gassing manually.

Enter batch

ﬁrst

To activate any mode it is

necessary to enter batch

information ﬁrst.

Update

display

Use left mouse button to update

the current progress of an

activated process.

Select available

program

template

It is possible to edit

current program

template temporarily

in the same way as

during conﬁguration.

See “§2.2 Subtab

Programs” on page

18 for details.

Progress of

activated

ripening process

Start

ripening process

Close window

Ripening

process remains

active in case it

is activated.

Conﬁgure

programs

In “§2.2 Subtab Programs” on

page 18 is explained how to

conﬁgure program templates.

Setpoint fan speed

Andere Handbücher für PROBA 5 Compact

Inhaltsverzeichnis

Andere VDH Thermostat Handbücher

VDH

VDH ALFA 35 DP Bedienungsanleitung

VDH

VDH ALFA 51 Bedienungsanleitung

VDH

VDH ALFA 59 Bedienungsanleitung

VDH

VDH ALFA D1-DP Bedienungsanleitung

VDH

VDH ALFA 71 Bedienungsanleitung

VDH

VDH ALFANET 71 Bedienungsanleitung

VDH

VDH ALFA(NET) 51 Bedienungsanleitung

VDH

VDH ALFANET 85 Bedienungsanleitung

VDH

VDH ALFA(NET) 33 Bedienungsanleitung

VDH

VDH ALFA 29 Bedienungsanleitung

VDH

VDH ALFA 71 MODulation Bedienungsanleitung

VDH

VDH ALFA 71 MOD Bedienungsanleitung

VDH

VDH ALFANET 33 Bedienungsanleitung

VDH

VDH ALFANET 31 Bedienungsanleitung

VDH

VDH ALFA 31 DP Bedienungsanleitung

VDH

VDH ALFA 75 RTDF Bedienungsanleitung

VDH

VDH ALFA 23 Bedienungsanleitung

VDH

VDH ALFA 33DP Bedienungsanleitung

VDH

VDH ALFA 75 RTDF Bedienungsanleitung

VDH

VDH ALFANET 71 Bedienungsanleitung

VDH

VDH ALFA 33 DP Bedienungsanleitung

VDH

VDH ALFA 15 Bedienungsanleitung

VDH

VDH ALFANET51 RTDN Bedienungsanleitung

VDH

VDH PROBA 5 Compact Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung
