Velleman K8088 Bedienungsanleitung

RGB Controller

K8088

ILLUSTRATED ASSEMBLY MANUAL H8088IP-1

Total solder points: 117

Difficulty level: beginner 1 2 3 4 5 advanced

Controlincandescentbulbs,LEDs,

commonanodeledstrips,etc...

Specifications

 256 intensity levels/ch.

 voltage output : same as input voltage

 current limit possible (on-board resistor needed)

 LED PWM freq. : 82Hz

 power supply : 10 - 15Vdc / 9A max.

 dimensions : approx 80x70x23mm

Features:

 suited for both incandescent bulbs and LEDs

 up-down level adjust for each output

 hard transition effects : runnning light, Strobo, Colour loops, etc...

 smooth fade effects : colour change, flame effect, random colours, slow off etc...

 wide-range effect speed adjust

 Hi power MOSFET outputs

 memory for last selected effect & speed

 easy up/down effect select

 suited for common anode RGB strips

Specifications:

 256 intensity levels/ch.

 voltage output : same as input voltage

 current limit possible (on-board resistor needed)

 LED PWM freq. : 82Hz

 power supply : 10 - 15Vdc / 9A max.

 dimensions : approx 80x70x23mm

Features & Specifications

Ideal for use with flexible LED light lights strips, ex. RGB Led. (ordernr. LDB1-HS3027AC)

Assembly hints

1. Assembly (Skipping this can lead to troubles ! )

Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.

1.1 Make sure you have the right tools:

• A good quality soldering iron (25-40W) with a small tip.

• Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the tip, to give it a wet look. This is called ‘thinning’ and will

protect the tip, and enables you to make good connections. When solder rolls off the tip, it needs cleaning.

• Thin raisin-core solder. Do not use any flux or grease.

• A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads, hold the lead so they

cannot fly towards the eyes.

• Needle nose pliers, for bending leads, or to hold components in place.

• Small blade and Phillips screwdrivers. A basic range is fine.

For some projects, a basic multi-meter is required, or might be handy

1.2 Assembly Hints :

⇒Make sure the skill level matches your experience, to avoid disappointments.

⇒Follow the instructions carefully. Read and understand the entire step before you perform each operation.

⇒Perform the assembly in the correct order as stated in this manual

⇒Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.

⇒Values on the circuit diagram are subject to changes.

⇒Values in this assembly guide are correct*

⇒Use the check-boxes to mark your progress.

⇒Please read the included information on safety and customer service

* Typographical inaccuracies excluded. Always look for possible last minute manual updates, indicated as ‘NOTE’ on a separate leaflet.

Assembly hints

1.3 Soldering Hints :

1- Mount the component against the PCB surface and carefully solder the leads

2- Make sure the solder joints are cone-shaped and shiny

3- Trim excess leads as close as possible to the solder joint

REMOVE THEM FROM THE TAPE ONE AT A TIME !

DO NOT BLINDLY FOLLOW THE ORDER OF THE

COMPONENTS ONTO THE TAPE. ALWAYS CHECK

THEIR VALUE ON THE PARTS LIST!

 R1 : 330 (3 - 3 - 1 - B)

 R2 : 330 (3 - 3 - 1 - B)

 R3 : 330 (3 - 3 - 1 - B)

R4,R5 & R6 : see page 9 &10

 R7 : 180 (1 - 8 - 1 - B)

 R8 : 390 (3 - 9 - 1 - B)

 R9 : 1K (1 - 0 - 2 - B)

 R10 : 47K (4 - 7 - 3 - B)

2. Resistors

R...

Construction

 D1 :1N4007

CATHODE

3. Diode. Watch the polarity!

 J

1. Jumper wire

 RA1 : 10K (103)

4. Resistor array

 IC1 :14p

5. IC socket. Watch the

position of the notch!

D...

 C1 : 100nF (104)



C2 : 100nF (104)



C3 : 100nF (104)

 C4 : 15pF (15)

 C5 : 15pF (15)

6. Capacitors.

C...

 SW2 : Blue up

 SW3 : Green up

 SW4 : Red up

 SW5 : Red down

 SW6 : Green down

 SW7 : Blue down

7. Push buttons

SW...

 C6 : 100µF / 25V

11. Electrolytic Capacitor.

Watch the polarity !

C...

 SW1 : ON / OFF

 SW8 : RGB / effect -mode

8. Switches

SW1.

construction

 VR1 : UA78L05

9. Voltage regulator

VR...

 SK1 : 2p "12Vdc"

 SK2 : 2p "Red"

 SK3 : 2p "Green"

 SK4 : 2p "Blue"

10. Terminal blocks



X1 : 20MHz

12. Crystal

X...

Construction

 LD1 : 3mm Red "R"

 LD2 : 3mm Green "G"

 LD3 : 3mm Blue "B"

COLOR= 2...5

LD...

CATHODE

12. LEDs. Watch the polarity!

17mm

14mm

 TR1 : BUK9535-55

 TR2 : BUK9535-55

 TR3 : BUK9535-55

13. Transistors

14mm

 IC1 : VK8088

(programmed PIC16F630-I/P)

14. IC

IMPORTANT

Apply an extra layer of

solder on all copper

PCB tracks.

Description

1) On/off switch

2) Mode switch. Select between ‘RGB’- and ‘Effect’-mode

‘RGB’-mode: Red, Green and Blue output levels can be

individually adjusted by means of the up/down buttons

‘Effect’-mode: Allows to choose between 11 built-in effects

3) Output indicator leds.

4) Power supply connector.

5) RED output (3A DC max.)

6) GREEN output (3A DC max.)

7) BLUE output (3A DC max.)

8) RED-level down / ‘previous effect’-button

9) RED-level up / ‘next effect’-button

10) GREEN-level down / ‘reduce effect speed’-button

11) GREEN-level up / ‘increase effect speed’-button

12) BLUE-level down / ‘previous colour’-button

13) BLUE-level up / ’next colour’-button

7654

Connection

Incandescent lightbulb or halogen lightbulb:

connect the lightbulb to the output R, G or B.

Place a wire jumper for R4, R5 and R6.

 Polarity is not important. 3A /channel max (36W@12V).

LED-strip with common anode (+) :

Connect the common anode to the (+) of the 12VDC power supply.

Connect the cathode (-) of each colour to the (-) of R,G or B on the K8088.

Place a wire jumper for R4, R5 and R6.

 Max. current consumption is 3A/channel.

12VDC

- +

12VDC

- +

COM

Anode R G B

LED:

 LEDs require a series resistor (R4, R5 or R6)

Determine led voltage drop (Check manufacturer datasheet).

Rule of thumb: red: 1.7V, green: 2V, blue: 3..4V).

Next, check required LED current.

Example:

Red LED, 1.7V drop, required current: 20mA

Resistor calculation: (12V-1.7V) / 0.020 = 515 ohm (choose nearest value,

e.g. 560 ohm)

Resistor power rating calculation: (12V-1.7V) x (12V-1.7V) / 560 = 0.19W

(choose a 0.25W resistor)

Connection

12VDC

- +

C (-)

A (+)

Inhaltsverzeichnis

Andere Velleman Controller Handbücher

Velleman

Velleman E305DC Bedienungsanleitung

Velleman

Velleman HQ Power VDPDMXC174 Bedienungsanleitung

Velleman

Velleman VM192IR Bedienungsanleitung

Velleman

Velleman HQ POWER VDPDMXC144 Bedienungsanleitung

Velleman

Velleman VMA333 Bedienungsanleitung

Velleman

Velleman VM192RF Bedienungsanleitung

Velleman

Velleman HQRC10001 Bedienungsanleitung

Velleman

Velleman K2639 Bedienungsanleitung

Velleman

Velleman Vellight LEDC25 Bedienungsanleitung

Velleman

Velleman High-Q Velleman-kit K6000 Bedienungsanleitung

Velleman

Velleman SOL30UC2 Bedienungsanleitung

Velleman

Velleman CHLSC1 Bedienungsanleitung

Velleman

Velleman VDP100TT Bedienungsanleitung

Velleman

Velleman HQ Power VDPDMXC136 Bedienungsanleitung

Velleman

Velleman VMB2BL Bedienungsanleitung

Velleman

Velleman HQ-Power VDLC6000 Bedienungsanleitung

Velleman

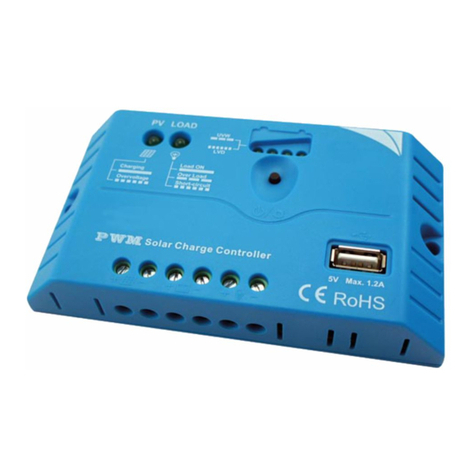

Velleman SOL10UC3 Bedienungsanleitung
