Velleman CAMSCC16 Bedienungsanleitung

CAMSCC16

WDR HIGH RESOLUTION COLOUR CAMERA

CAMÉRA COULEUR WDR HAUTE RÉSOLUTION

USER MANUAL 3

NOTICE D’EMPLOI 14

CAMSCC16

28/05/2009 ©Velleman nv

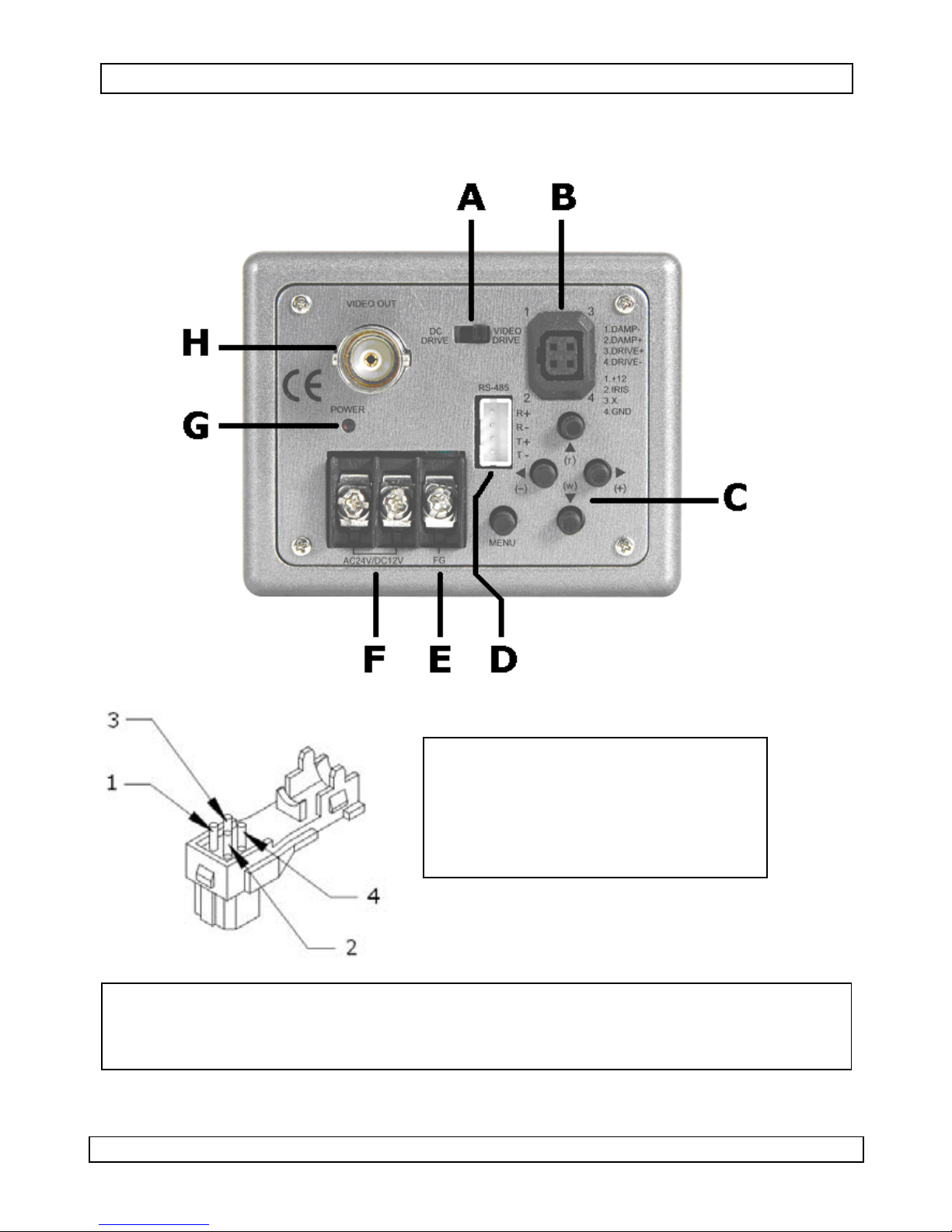

Figure 1

DC drive

1 DAMP-

2 DAMP+

3 DRIVE-

4 DRIVE+

1 2 3 4

Video drive Power Video Not used GND

Alimentation Vidéo Non utilisé Masse

CAMSCC16

28/05/2009 ©Velleman nv

User manual

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal

of the device after its lifecycle could harm the environment. Do

not dispose of the unit (or batteries) as unsorted municipal

waste; it should be taken to a specialized company for recycling.

This device should be returned to your distributor or to a local

recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing the Velleman! Please read the manual thoroughly

before bringing this device into service. If the device was damaged in transit,

don't install or use it and contact your dealer. Damage caused by disregard of

certain guidelines in this manual is not covered by the warranty and the

dealer will not accept responsibility for any ensuing defects or problems.

Content: camera | mounting bracket + screws |

2. Safety Instructions

For indoor use only. Keep this device away from rain, moisture,

splashing and dripping liquids. Do not use in high humidity locations.

Keep the device away from children and unauthorised users.

There are no user-serviceable parts inside the device. Refer to an

authorized dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages

of this manual.

•Protect this device from shocks and abuse. Avoid brute force when

operating the device.

•Protect the device against extreme heat and dust.

•Familiarise yourself with the functions of the device before actually using it.

•All modifications of the device are forbidden for safety reasons.

•Only use the device for its intended purpose. Using the device in an

unauthorised way will void the warranty.

CAMSCC16

28/05/2009 ©Velleman nv

4. Features

•high sensitivity, low smear, high anti-blooming and high S/N ratio

•removable IR-Cut filter provides change from colour to B/W mode

automatically or manually for day and night surveillance

•RS-485/422 remote control via PELCO D&P protocol

•with built-in auto electronic shutter

•special functions via on-screen display (OSD) set-up menu

oprivacy masking

opositive / negative image

ovideo mirror function

odigital zoom

•no lens included

5. Overview and use

Refer to the illustrations on page 2of this manual.

A Iris Video/DC drive selector. Set to video drive when using a video driven

auto iris lens (based on brightness of the image in the video signal), or to

DC drive in case a direct driven auto iris lens is used (via a control signal

from the camera).

B Auto iris lens connector. Supplies power and control signals to the auto

iris lens. Refer to page 2for the pin lay-out.

Note: a DC drive lens uses two coils, a driving coil (DRIVE) that

opens/closes the iris and a damping coil (DAMP) that stabilizes the

movement of the iris.

C Control buttons:

(T)/SZoom Tele or Up (S)

(W)/TZoom Wide or Down (T)

(+)/►Increase Value (＋)

(-)/◄Decrease Value (－)

Menu Enter or Exit Setup Menu

D Serial connector: to connect an external keyboard.

E Signal G

ound (FG): in case of a distorted signal, connecting this

terminal to earth might enhance the signal.

F Power supply: connect a 12VDC or 24VAC power supply to these

terminals (no polarity).

G Power LED: on when power is present on the terminals [F].

H Video output connector (BNC): connect the camera to a monitor (not incl.).

CAMSCC16

28/05/2009 ©Velleman nv

6. Installation

mounting

•Mount the included mounting bracket on the top or bottom of the camera

using the 2 screws. Note that an additional mounting bracket is required

to fix the camera to the wall or ceiling.

•Connect the video output [H] to a monitor or other video device via a

75type coaxial cable (not incl.).

•Mount a lens (not incl.) to the front of the camera.

oWhen using a C-mount lens, the C/CS adaptor (metal ring) must remain

in place; screw the C-mount lens clockwise into the adaptor.

oWhen installing a CS-mount lens, use the small hex key to loosen the

hex screws on the top and at the bottom of the C/CS adaptor (do not

remove them completely) and unscrew the adaptor counter clockwise.

Screw the CS mount lens clockwise into the camera body. Do not tighten

the hex screws too hard to avoid damage to the lens or housing.

•Set the iris Video/DC drive selector [A] to the correct position depending on

the mounted lens type.

•Connect the auto iris lens connector [B]. Refer to page 2 for the applicable

pin layout.

•Connect an external keyboard (not incl.) to the serial connector [D]. The

layout of the connector depends on the connected keyboard.

RS-485

RS-422

R+ Interface receive+

- Interface receive-

T+ Interface t

ansmit+

T- Interface transmit-

CAMSCC16

28/05/2009 ©Velleman nv

PELCO or compatible

CAMERA ID 0-253 for Pelco-P

1-255 for Pelco-D

PROTOCOL AUTO/PELCO

SPEED 2400/4800/9600/19200

PARITY NONE

Note: max. cable length for RS-422/RS-485 is 1.219m for a 24 gauge wire

(±0.56mm). It is recommended to use shielded twisted pair.

•Connect a suitable power supply (not incl.) to the power input terminals.

Make sure that power supply is off before connecting. Note that the camera

accepts both AC 24V and DC 12 V power sources (non-polarity).

7. Operation

•Normal display mode:

PELCO Keyboard Camera Function

OPEN Brightness +

CLOSE Brightness -

Twist Joystick clockwise or Zoom In Zoom Tele

wist Joystick counter clockwise or Zoom Out Zoom Wide

NEAR None

FAR None

Move Joystick Left None

Move Joystick Right None

Move Joystick Up None

Move Joystick Down None

Enter 95; Hold the PRESET key (approximately five

seconds) until the main menu appears on the

screen.

Accessing OSD Main

•OSD setup menu mode:

PELCO Keyboard Camera Function

OPEN Sub Menu Enter

CLOSE Sub Menu Exit

NEAR Cursor Up

FAR Cursor Down

Move Joystick Left Decrease (-)

CAMSCC16

28/05/2009 ©Velleman nv

Move Joystick Right Increase (+)

Move Joystick Up Cursor Up

Move Joystick Down Cursor Down

Twist Joystick clockwise or Zoom In None

wist Joystick counter clockwise or Zoom Out None

Refer to PELCO Keyboard (or manufacturer) manual for more

information.

8. On Screen Display (OSD)

Main menu

•To display the setup menu, select the menu-command or press the menu

button on the back of the device.

•Use S(T)/ T(W) control buttons to select each item.

•Use ◄(－)/ ►(＋) control buttons to change the data. Press and hold for

faster adjustment.

•Use MENU control button to ENTER/ EXIT the menu display.

MAIN MENU VER.xxxx

EXPOSURE

WDR

DAY/NIGHT

WHITE BALANCE

PRIVACY MASK

EFFECT

DISPLAY

COMMUNICATION

DEFAULT

EXIT

Exposure menu

EXPOSURE

LENS TYPE

BRIGHTNESS

AGC MODE

AGC MAX

AGC ADJ

FLICKERLESS

SHUTTER SPD

DSS MAX

DEFAULT

RETURN

DC/VIDEO

AUTO

165

OFF

CAMSCC16

28/05/2009 ©Velleman nv

•The lens type can be set to DC/VIDEO or MANUAL. When set to

DC/VIDEO, the switch [A]must be set in the correct position depending

on the mounted lens.

•Brightness range: 0~36.

•Set Automatic Gain Control (AGS) mode to AUTO or MANUAL.

•AGC MAX is only available when AGC MODE is set to AUTO. Range

0~255. When AGC MAX <165 the AE option in the DAY/NIGHT menu (see

below) becomes unavailable (NA).

•AGC ADJ is only available when AGC MODE is set to AUTO. Set fixed gain

value between 0~255.

•Set FLICKERLESS to ON to eliminate the effect of fluorescent lighting on

image quality. When set to “ON”, AGC mode automatically switches to

MANUAL.

Note: this option is not available (NA) when WDR mode is ON.

•SHUTTER SPD mode is fixed (NTSC: 1/100 and PAL: 1/120) when

FLICKERLESS mode is set to “ON”.

The SHUTTER SPD mode can be set to AUTO, NORMAL (NTSC: 1/60 and PAL:

1/50), 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/20000, and 1/50000.

Note: when SHUTTER SPEED is set to 1/250, 1/500, 1/1000, 1/2000,

1/4000, 1/10000, 1/20000 or 1/50000 AGC mode automatically

switches to MANUAL.

Note: this option is not available (NA) when WDR mode is ON.

•DSS MAX: Low speed shutter control, offers optimal brightness level (the

higher the value, the higher the brightness level).

•DEFAULT: return to the factory-default configuration.

RETURN: Return to previous page.

WDR menu

WDR MODE

WDR LEVEL

BLC MODE

BLC LEVEL

BLC AREA

DEFAULT

RETURN

•When Wide Dynamic Range (WDR) is set to ON, digital zoom will

automatically switch to x1 and BLC MODE, BLC LEVEL AND BLC AREA

switch to not available (NA).

•WDR LEVEL (0~255): the higher the value, the higher the brightness

level.

•Backlight Compensation (BLC) MODE can be set to “ON/ OFF” (when WDR

mode is OFF).

CAMSCC16

28/05/2009 ©Velleman nv

•BLC LEVEL (0~15): the higher the value, the higher the backlight

compensation level. (Only when WDR mode is OFF).

•BLC AREA can be set to 7 predefined areas: (only when WDR mode is

OFF).

(1) CENTER (2)

OPS (3)

OPL (4) BOTTOMS

(5) BOTTOML (6) LEFT (7) RIGHT

DAY/NIGHT menu

DAY/NIGHT

D/N MODE

DAY→NIGHT

NIGHT→DAY

SENSOR LEVEL

FILTER DELAY

DEFAULT

RETURN

AE VALUE

SENSOR VALUE

212

???

•Select D/N mode: AE, SENSOR, DAY or NIGHT.

oAE: mode defined by the DAY→NIGHT and NIGHT→DAY threshold

values. Auto switches between colour and B/W.

When AGC MAX < 165, AE function is not available.

oSENSOR: auto switches between colour and B/ W according to

SENSOR LEVEL and FILTER DELAY values.

oDAY: fixed colour mode.

oNIGHT: fixed B/W mode.

•DAY→NIGHT: switch to B/W mode when AE value “DAY→NIGHT” value

(in AE mode).

CAMSCC16

28/05/2009 ©Velleman nv

•NIGHT→DAY: switch to colour mode when AE value “NIGHT→DAY”

value (in AE mode).

•SENSOR LEVEL: increase the value to delay the switchover to B/W mode.

Decrease the value to switch to B/W mode faster (only available when

D/N mode is set to SENSOR).

•FILTER DELAY: set a delay time (0~15s) for switching from colour to B/W

mode in environments where rapid light condition changes occur (only

available when D/N mode is set to SENSOR.

•AE VALUE: when in D/N AE mode, the current AE value is shown.

•SENSOR VALUE: when in D/N SENSOR mode, the current SENSOR value

is shown.

•The table shown below shows reference values. , please setup according

to the current scene.

Lens Type Shutter

Speed WDR DAY→NIGHT NIGHT→DAY

DC Drive

Video Drive NA/ Normal On / Off 83 212

Manual Iris NA On 83 195

Manual Iris Auto Off 83 212

Normal 83 212

WHITE BALANCE menu

WHITE BALANCE

WB MODE

RED GAIN

BLUE GAIN

PUSH AUTO

DEFAULT

RETURN

AUTO

•Select WB mode: AUTO, INDOOR, OUTDOOR, MANUAL, or PUSH AUTO.

•RED GAIN/ BLUE GAIN are only available when WB MODE is set to

MANUAL.

•When WB MODE is set to PUSH AUTO:

oPUSH AUTO ON: enable auto tracing white balance.

oPUSH AUTO OFF: Disable auto tracing white balance.

Inhaltsverzeichnis

Sprachen:

Andere Velleman Digitalkamera Handbücher

Velleman

Velleman CAMCOLVC15 Bedienungsanleitung

Velleman

Velleman CAMSCC14 Bedienungsanleitung

Velleman

Velleman CAMSCC17 Bedienungsanleitung

Velleman

Velleman CAMTVI11 Bedienungsanleitung

Velleman

Velleman CAMCOL6A Bedienungsanleitung

Velleman

Velleman CAMSETW9 Bedienungsanleitung

Velleman

Velleman CAMTVI9 Bedienungsanleitung

Velleman

Velleman CAMZWMBLAH2N Bedienungsanleitung

Velleman

Velleman CAMCOLBUL35 Bedienungsanleitung

Velleman

Velleman CAMCOLBUL24Z Bedienungsanleitung

Velleman

Velleman AVMOD9 Bedienungsanleitung

Velleman

Velleman CAMCOLBUL2N1 Bedienungsanleitung

Velleman

Velleman CAMZWBUL13 Bedienungsanleitung

Velleman

Velleman CM1F005 (CAMCOLVC9) Bedienungsanleitung

Velleman

Velleman CAMTVI17 Bedienungsanleitung

Velleman

Velleman CAMCOLVC10 Bedienungsanleitung

Velleman

Velleman CAMWH4 Bedienungsanleitung

Velleman

Velleman CAMCOLBUL25 Bedienungsanleitung

Velleman

Velleman CAMCOLVC20 Bedienungsanleitung

Velleman

Velleman CAMSETW15 Bedienungsanleitung

Velleman

Velleman CAMSET29 Bedienungsanleitung

Velleman

Velleman CAMCOLVC2N Bedienungsanleitung

Velleman

Velleman CAMSCC15 Bedienungsanleitung

Velleman

Velleman CAMD5 Bedienungsanleitung

Beliebte Digitalkamera Handbücher anderer Marken

Mercury

Mercury 350K Bedienungsanleitung

Pentax

Pentax Optio LS 465 Bedienungsanleitung

Sanyo

Sanyo VPC-S1085 Bedienungsanleitung

GE SMART A1255 Bedienungsanleitung

Point Grey

Point Grey Gazelle Bedienungsanleitung

Nikon

Nikon COOLPIX A Bedienungsanleitung

Pentax

Pentax P-5 Bedienungsanleitung

BlazeVideo

BlazeVideo A280 Bedienungsanleitung

Sony

Sony MCA-20 Bedienungsanleitung

Sony

Sony Alpha DSLR-A290 Bedienungsanleitung

ATIK Cameras

ATIK Cameras One Bedienungsanleitung

CohuHD Costar

CohuHD Costar 3930 Series Bedienungsanleitung

Leica

Leica M10-R Bedienungsanleitung

FujiFilm

FujiFilm FinePix A700 Bedienungsanleitung

Lorex

Lorex LNZ81P25 Series Bedienungsanleitung

GE J1470S Bedienungsanleitung

Sony

Sony A6700 Benutzerhandbuch

Canon

Canon EOS ELAN7 Bedienungsanleitung
