EIGHT CHANNEL RF REMOTE CONTROL

Emetteur RF 8 canaux 15

8-channel RF remote control 3

ForusewiththeK8056/VM118relaycard

FCC information for the USA

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Consult the dealer or an experienced radio/TV technician for help.

If the user modifies this unit, and these modifications are not approved by Velleman, the FCC may withdraw

the user’s right to operate the equipment.

Details on the FCC regulation can aslo be found on the internet at http://www.fcc.gov

For questions regarding your product, contact:

Velleman Inc, 7354 Tower Street, Fort Worth, TX 76118

Or head office Velleman:

Legen Heirweg 33, 9890 Gavere

Belgium

FCC approved ID code : NLO8058

Thank you for purchasing this module. Please read the instructions carefully to ensure correct and safe use of this device.

WARRANTY

This product is guaranteed against defects in components and construction from the moment it is purchased and for a period of TWO YEAR starting from the

date of sale. This guarantee is only valid if the unit is submitted together with the original purchase invoice. VELLEMAN components Ltd limits its

responsibility to the reparation of defects or, as VELLEMAN components Ltd deems necessary, to the replacement or reparation of defective components.

Costs and risks connected to the transport, removal or placement of the product, or any other costs directly or indirectly connected to the repair, will not be

reimbursed by VELLEMAN components Ltd. VELLEMAN components Ltd will not be held responsible for any damages caused by the malfunctioning of a unit.

CONTENTS :

FEATURES & SPECIFICATIONS .................................................................................................................................................................. 4

USE ................................................................................................................................................................................................................... 5

SETUP .............................................................................................................................................................................................................. 6

SAFETY AND WARNING INSTRUCTIONS.................................................................................................................................................. 8

READ THE OPERATING AND MAINTENANCE INSTRUCTIONS IN

THIS USER’S GUIDE CAREFULLY.

TRANSMITTER :

FEATURES

 Works together with the K8056/VM118 relay card.

 8 addresses allow the use of multiple receivers

 'all clear'- function

 Toggle or momentary mode for each key

 Open-field range up to 50m

 Rubber keypad

SPECIFICATIONS

 8 digital encoded channels

 433MHz operation

 LED function/mode indication

 Power supply: 3 AAA batteries (not included)

 Dimensions: 150x58x23mm

 FCC approved ID code: NLO8058

Velleman hereby certifies that the device VM118 meets the essential requirements and all other relevant

stipulations of directive 1999/5/EG and 1995/5/EC.

For the complete conformity declaration check out :http://www.velleman.be/downloads/doC/declaration_VM118.pdf

Transmitter

USE

Transmitter

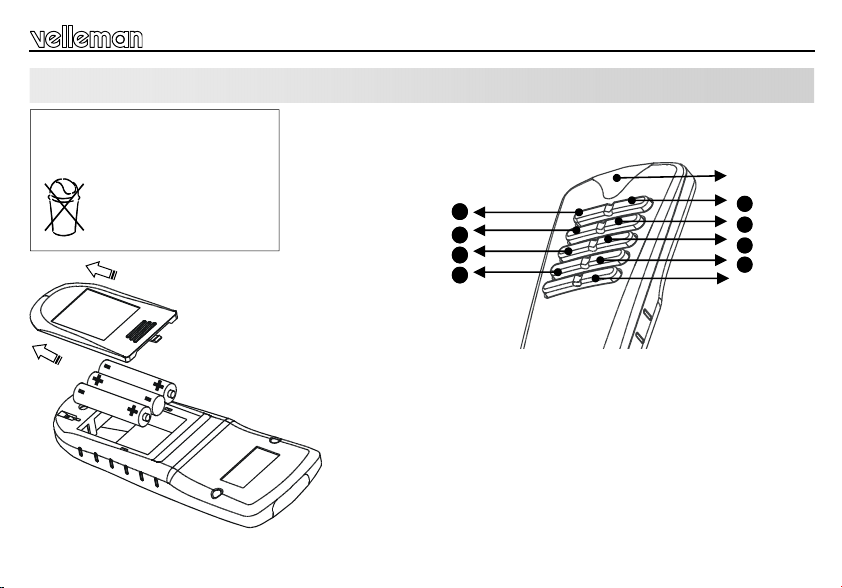

Insert the batteries in the battery

compartment as indicated in figure

and close the compartment.

Remark : Respect your

national and local laws when

disposing of empty batteries.

• Channels 1..8 can be configured as 'toggle' (on/off) or pulse (see set-up)

• The indicator LED will briefly light when a button is pressed.

• Briefly pressing the shift button turns off all relays.

Note: All settings remain in memory after battery replacement

SHIFT

CHANNEL SELECTION

LED

Hold 'shift' until the LED lights to enter the 'set-up' mode.

Choose one of the following options by pressing the corresponding button :

(1) ‘Toggle’/’pulse’-selection.

(2) Display the current remote control address

(3) Change remote/relay card address

(4) Force remote/relay card address to address 1

(1) ‘Toggle’/’pulse’-selection (LED flashes once) :

Allows you to select ‘toggle’ or ‘pulse’mode for each channel.

Pressing a channel button (1..8) repeatedly allows you to choose between 'toggle'- and 'pulse'-mode for that particular

channel (LED flashes once : pulse, two flashes : toggle).

Press 'shift' to leave this mode. Press ‘shift’ again to leave set-up mode.

(2) Display the current remote control address on the K8056/VM118 relay card (LED flashes twice) :

Relay LEDs display the address in binary fashion i.e. LD8 : LSB, LD1 : MSB

Press ‘shift’ to leave the set-up mode.

(3) Change the current address of the remote and relay card (available addresses : 1..8) (LED flashes three times) :

Press button 1..8 to change the current address of the remote and the relay card.

The relay card will display the current address in binary fashion (see (2)).

Attention : All active cards will respond to this command (except when the ‘remote control’ jumper on the relay card is set to

‘off’). Press ‘shift’ to leave this mode. Press ‘shift’ again to leave the set-up mode.

SETUP

Setup

4) Force the remote/relay card to address 1.

If the receiver (e.g. K8056 or VM118) has been set to an address other than 1..8, you can force it to respond to address 1.

 Attention : All active cards will respond to this command (except when the ‘remote control’ jumper on the relay card is

set to ‘off’). Press ‘shift’ to leave the set-up mode.

Setup

All repairs should be executed by qualified technicians.

Avoid the installation of the module in locations with standing or running water or excessive humidity. Indoor use only !

SAFETY INSTRUCTIONS

 Handle the module gently and carefully. Dropping it can damage the circuit board.

 Never exceed the protection limit values indicated in the specifications.

 As safety requirement vary, please check with your local authorities.

 Facilitate the operation of the device by familiarising yourself with its adjustments and indications.

 Velleman modules are not suitable for use or as part of life support systems, or systems that might create hazardous situations of kind.

WARNINGS

Repair under warranty is only possible with date and proof of purchase.

Safety & warning instructions

WAARBORG

Dit produkt is gewaarborgd wat betreft gebreken in materialen en vakmanschap op het ogenblik van de aankoop en dit gedurende een periode van TWEE

JAAR vanaf de aankoop. De waarborg geldt enkel indien het produkt voorgelegd wordt samen met het origineel aankoop bewijs. De verplichtingen van

VELLEMAN COMPONENTS N.V. beperken zich tot het herstellen van defecten of, naar vrije keuze van VELLEMAN COMPONENTS N.V., tot het vervangen

of herstellen van defecte onderdelen. Kosten en risico’s van transport; het wegnemen en terugplaatsen van het produkt, evenals om het even welke andere

kosten die rechtstreeks of onrechtstreeks verband houden met de herstelling, worden niet door VELLEMAN COMPONENTS N.V. vergoed. VELLEMAN

COMPONENTS N.V. is niet verantwoordelijk voor schade van gelijk welke aard, veroorzaakt door het falen van een product.

INHOUD :

KENMERKEN & SPECIFICATIES................................................................................................................................................................ 10

GERBUIK........................................................................................................................................................................................................ 11

INSTELLING................................................................................................................................................................................................... 12

VEILIIGHEIDSAANWIJZINGEN EN WAARSCHUWINGEN...................................................................................................................... 14

LEES DE GEBRUIKS - EN ONDERHOUDSAANWIJZINGEN VAN DE

HANDLEIDING ZORGVULDIG DOOR.

Hartelijk dank voor de aanschaf van deze module. Lees de gebruiksaanwijzing aandachtig, zodat u het apparaat op de juiste

manier gebruikt.

Zender

ZENDER :

EIGENSCHAPPEN

 Voor gebruik met de K8056/VM118 relaiskaart

 Dankzij de 8 adressen kunnen meerdere ontvangers worden gebruikt

 'All clear'- functie

 Voor elke uitgang kunt u momentcontact of wisselcontact instellen

 Bereik tot 50m (ononderbroken gezichtslijn)

 Rubberen toetsenbord

TECHNISCHE GEGEVENS

 8 digitaal gecodeerde kanalen

 Werkt op 433MHz

 LED indicatie functie/mode

 Voeding : 3 AAA batterijen (niet bijgeleverd)

 Afmetingen: 150x58x23mm

 FCC goedgekeurd ID code : NLO8058

Hierbij verklaart Velleman components N.v. dat het toestel VM118 in overeenstemming is met de essentiële eisen

en de andere relevante bepalingen van richtlijn 1999/5/EG en 1999/5/EC.

Voor de volledige overeenstemmende verklaring zie : http://www.velleman.be/downloads/doC/declaration_VM118.pdf
