Vello BG-C12 Bedienungsanleitung

BG-C12

BATTERY GRIP

Designed for the Canon 7D

Mark II DSLR Camera

USER’S MANUAL

Introduction

Thank you for choosing Vello and congratulations

on your new BG-C12 battery grip purchase. Enjoy

the many benefits that a battery grip offers, such as

extended shooting time and more control and comfort

when shooting in a vertical (portrait) orientation.

The Vello BG-C12 is compatible with the Canon 7D

Mark II DSLR camera. The BG-C12 accepts two Canon

LP-E6 rechargeable batteries, or six AA batteries

(alkaline, Ni-MH, lithium, or nickel-manganese) can

be used instead for added convenience. The BG-C12

is equipped with an alternate shutter-release button,

AF area selection button, AF start button, AF point

selection, AE lock/FE lock button, multi-controller

button, multi-function button, and main dial for

shooting in a vertical position.

Please read through this entire manual before using

the BG-C12 battery grip.

Precautions

1. The BG-C12 should be used only with compatible

devices specified in this manual.

2. Use only with batteries and battery holders

recommended in this manual.

3. Cover the power terminals with the contact cap

when the BG-C12 is not in use. This prevents

electrical shorts caused by metal objects touching

the power terminals.

4. When the battery holder is removed from the

grip, remove the batteries or place the holder in

a container to prevent electrical shorts caused by

contact with other metal objects.

5. If you notice smoke, an unusual smell or

noise from the battery pack, discontinue use

immediately. Remove the batteries and take the

device to a Vello authorized reseller.

6. Set the grip’s control-lock switch to the locked

position when not shooting vertically.

7. The battery level may not display properly if

batteries are inserted before mounting the grip.

8. Remove batteries from the grip when not in use.

9. Do not attempt to disassemble.

10. Avoid water or extreme humidity and keep in a

dry and cool place.

11. Keep out of reach of children.

OVERVIEW INTRODUCTION

ASSEMBLY

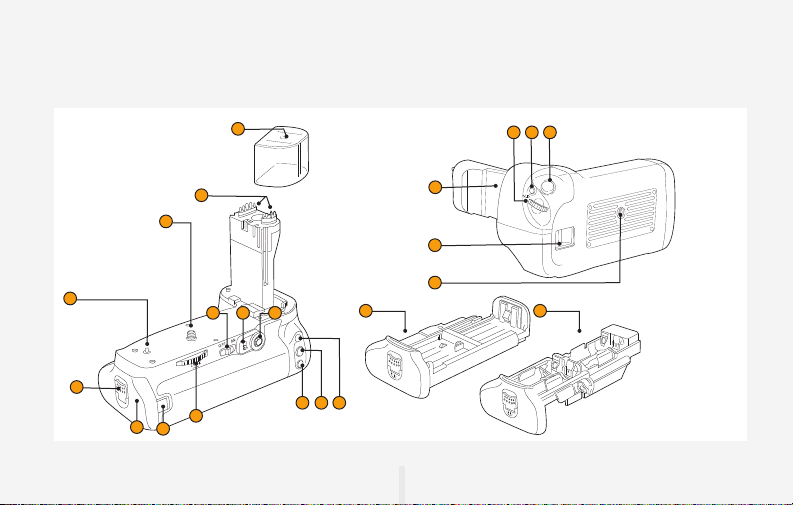

Overview

12 13 14

115

21 22

1617

1110

Contact Cap

Protects grip contacts. Keep covered

when the grip is not in use.

2Electrical Contacts

Communicates with the camera

electronics.

Mounting Screw

Aligns with the camera’s tripod

socket.

4Guide Pin

Helps align the camera to the grip.

5Battery Tray Lever

Locks and unlocks the battery

compartment door.

6Battery Tray Compartment

Houses the battery tray.

7DC Coupler Cord Mount

Groove for use with the Canon AC

Power Adapter (ACK-E6).

8Attachment Wheel

Secures the grip to the camera.

9Control-Lock Switch

To prevent accidental triggering,

the control-lock switch (labeled

OFF ON) disables or enables the

BG-C2’s controls. Your camera will

continue to draw power from the

BG-C2 when the switch is in the

OFF position. Unlock prior to use by

switching to the ON position. The

control lock is not a power switch.

10 AF Area Selection Button*

11 Multi-Controller Button*

12 AF Point Selection/Magnify Button*

AE Lock/FE Lock/Index/Reduce

Button*

AF Start Button*

15 Shutter-Release Button*

16 Multi-Function (M-Fn) Button*

Main Dial*

18 Camera Battery Chamber Cover

Holder

Stores the cover when the grip is

mounted.

19 Hand Strap Mount

20 Tripod Socket

21 Battery Tray

Holds up to two Canon LP-E6

batteries.

22 AA Battery Tray

Holds up to six AA batteries.

* Performs the same function as on the

camera.

OVERVIEW INTRODUCTION

ASSEMBLY

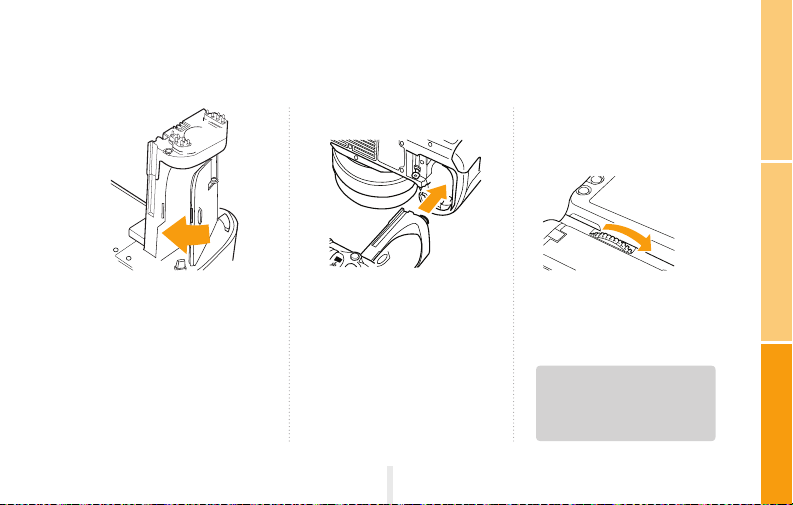

Attaching The Grip

1. Ensure that the power is

turned off on the camera

and that the control-lock

switch is set to OFF on the

battery grip.

2. Remove the battery

from the camera battery

compartment.

3. Open the camera

battery chamber cover

and remove as indicated

above.

4. To prevent loss, place the

battery chamber door

into the BG-C12 battery

door compartment. Align

your camera’s battery

chamber door with the

BG-C12 battery door

compartment. Insert the

door’s bottom pin (1)

into the compartment.

Pull the door’s release

latch down (2) and insert

the top of the door into

the compartment (3) as

indicated by the arrows.

Swing the door shut to

lock it in place.

5. Remove the protective

cap and connect the BG-

C12 grip to the camera,

while aligning the grip’s

mounting screw with the

camera’s tripod socket.

6. Rotate the attachment

wheel in the direction

shown by the arrow until

it is firmly tightened.

When removing the grip,

turn the camera power off,

remove batteries, and replace

protective contact cap.

OVERVIEW INTRODUCTION

ASSEMBLY

Inserting Batteries

1. Ensure that the power is

turned off on the camera

and the grip. Use your

fingernail to flip out the

battery tray lever so you

can rotate and pull as

indicated above, and slide

the battery tray out of the

grip.

2. Canon LP-E6 batteries:

Insert up to two batteries

by placing them into either

slot in the battery tray,

while ensuring the correct

orientation as shown on

the tray.

3. AA batteries: Place six

new AA batteries of the

same type into the AA

battery holder as shown,

while ensuring that

they are in the correct

orientation.

4. Rotate the battery tray

lever counterclockwise

and slide the battery tray

all the way into the grip.

Rotate the lever clockwise

and push it back into place

to lock the tray.

5. Switch the grip control-

lock to ON and then turn

on the camera’s power.

Check the battery level

in the control panel or

viewﬁnder.

6. Household Power Outlet:

The Canon ACK-E6

AC Power Adapter Kit

(sold separately) can be

connected to the grip.

Place the DC coupler

through the small groove

on the back of the grip.

Ensure that the cord

doesn’t get pinched by the

battery holder.

Make sure the camera's power

switch is in the Off position

before mounting the DC

coupler.

OVERVIEW INTRODUCTION

ASSEMBLY

Specifications

Power Source 1. One or two Canon LP-E6 rechargeable batteries

2. Six AA/LR6 alkaline batteries

3. Works with the Canon AC Adapter Kit ACK-E6 (sold separately)

Operating Temperature 32°F–04°F (0°C–40°C)

Dimensions (W × H × D) 5.9˝ × 4.5˝ × 3.4˝ (5.3 × .3 × 8.6 cm)

Weight 2 oz. (340 g) (without batteries)

Specications and design are subject to change without notice.

AA batteries do not provide as much shooting time as LP-E6 rechargeable batteries. Performance of AA batteries may also be dependent

on brand and storage conditions. AA batteries may not function under 68ºF (20ºC).

Please note: When using the AA battery tray, the battery indicator will only work with Ni-MH batteries.

This product is not compatible with Duracell®brand alkaline batteries.

When the camera’s internal GPS is enabled, the camera will continue to draw power from the battery, even when the camera is turned off.
