Vello FreeWave Flash Trigger LR Bedienungsanleitung
FREEWAVE
FLASH TRIGGER LR
USER MANUAL
Multiple triggering modes enable you to fire
all channels simultaneously or separate your
receivers into separate channels. With a 1/250
sec. sync speed, the Vello FreeWave Flash
Trigger LR’s transmitter and receiver are easy
to set up and use. The wireless capabilities
and embedded antenna eliminate clutter,
and the transmitter’s ability to tilt makes it
very compact while being used on-camera.
INTRODUCTION
Thank you for choosing Vello.
The Vello FreeWave Flash Trigger LR is an
8-channel, extended range wireless flash
trigger with digital circuitry. This device
uses a powerful 2.4 GHz radio signal,
maximizing your photographic potential
by extending the signal strength.
With an extended range of up to 600 ft.
(183 meters), you can use the Vello
FreeWave Flash Trigger LR confidently in
nearly all photography settings. The wireless
signal empowers you to trigger your hot
shoe or studio flash units without a line-
of-sight view, making it easier to set up
wireless connections separated by a barrier.
2
RFW-LR
RFW-LR-R
BOX CONTENTS
RFW-LR
• Transmitter
• Receiver
• 4x AA batteries
• 3.5 to 3.5 mm
sync cable
• 3.5 mm to 1/4"
monoplug adapter
• 2x lanyards
• Pouch Case
• User manual
RFW-LR-R
• Receiver
• 2x AA batteries
• 3.5 to 3.5 mm
sync cable
• 3.5 mm to 1/4"
monoplug adapter
• 1x lanyard
• User manual
3
4
FEATURES
Extended Range: Up to 600 feet (183 m)
Powerful 2.4 GHz signal: Reduced
interference and improved wireless signal
strength
8 digital channels: Avoids interference
from other wireless remote controls
All trigger mode: Can re all channels
at once
Low-prole construction: Tilting
joint reduces transmitter’s on-camera
presence
Hot shoe and studio ash use:
Compatible with most ashes
Internal antenna: Embedded antenna
reduces unit size
Compatible with the Vello Captain
TTL transmitter Ch. 1-4: Receiver
can be triggered via Vello Captain TTL
Transmitter
5
COMPATIBLE DEVICES
The Vello FreeWave Flash Trigger LR
transmitter and receiver is compatible with
most hot-shoe and lights, studio lights. The
Vello FreeWave Flash Trigger LR does not
transmit through-the-lens (TTL) settings;
therefore, we recommend using a fully
manually controlled hot-shoe flash with
this device. The power output must always
be set manually. Most flashes that can be
operated manually are compatible, except
Pentax, Sony/Minolta, and Sony Multi-
Interface flashes. The Vello Flash Trigger LR
Receiver is also compatible with the Vello
Captain TTL transmitter channels 1-4.
6
PRECAUTIONS
• Please read and follow these instructions
and keep this manual in a safe place.
• There are no user-serviceable parts
inside the devices. Do not attempt
to disassemble or perform any
unauthorized modification.
• Do not operate the transmitter or receiver
in the presence of flammable gas or vapors.
• Do not handle with wet hands or
immerse in or expose to water or
rain. Failure to observe this precaution
could result in fire or electric shock.
• Keep out of reach of children. This
device contains small parts which
may pose a choking hazard.
• Observe caution when handling batteries.
Batteries may leak or explode if improperly
handled. Use only the batteries listed
in this manual. Make certain to align
the battery with the correct polarity.
• Batteries are prone to leakage when
fully discharged. To avoid damage to
the product, be sure to remove the
batteries when leaving the product
unattended for prolonged periods
or when no charge remains.
7
• Handle the units with care.
• Do not use or leave the devices
in conditions of extreme heat,
severe cold, or high humidity.
• Turn o the power of the camera
and studio flash before inserting
or removing the remote.
• Dispose of used batteries, packaging, and
old devices in accordance to appropriate
local environmental regulations.
• Clean the unit with a soft, dry cloth.
• Make sure the item is intact and
that there are no missing parts.
• All photos are for illustrative
purposes only.

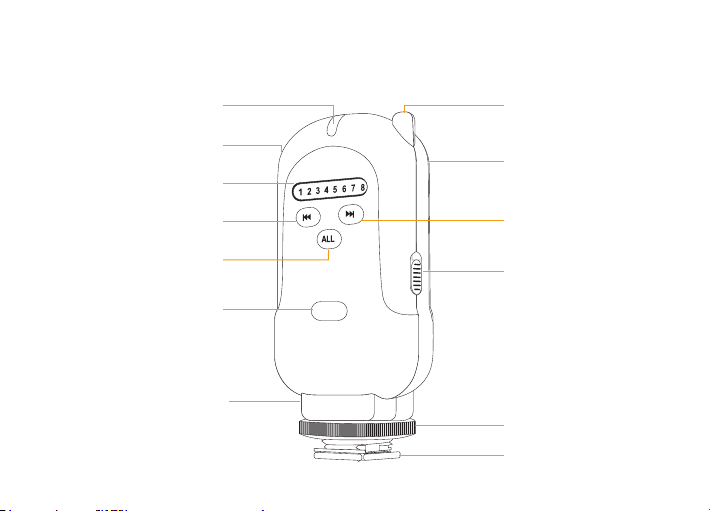

LED confirmation light
Lanyard loop
Channel indicator panel
Channel down selector button
All-channel selector button
Test button
Low-profile tilt joint
Channel up selector button
Battery compartment
(on back)
On/O switch
Tightening ring
Hot-shoe foot
Internal antenna
8

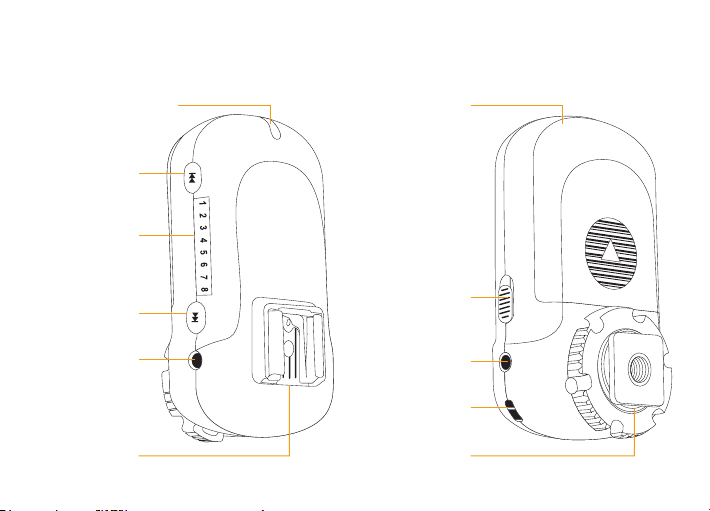

OVERVIEW Transmitter
LED confirmation light
Channel down
selector button
Channel
indicator panel
Channel up
selector button
3.5 mm flash
output port
Hot-shoe
mount
Lanyard loop
On/O switch
5V input
Battery compartment
Cold-shoe mount /
1/4"-20 threaded socket 9
Receiver
10
INSTALLING THE BATTERIES & TURNING ON THE DEVICE
The Vello FreeWave Flash Trigger LR
transmitter and receiver each take two AA
batteries. To install the batteries, simply
remove the battery compartment door
on the back of each unit. With the door
removed, insert the batteries using the
correct polarity as displayed within the
compartment. Once secured, reinstall
the battery compartment doors.
To turn on the Vello FreeWave Flash
Trigger LR transmitter or receiver, simply
slide the on/o switch to the ‘on’ position.
Reverse this step to turn the device o.
