Venstar T1100RF Bedienungsanleitung

Venstar Inc. 08/07

Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage

Electric Cooling & 2 Stage Gas Heating, Heat Pump, Electric or Hydronic Heat.

Thermostat

residential

T1100RF

PROGRAMMABLE

7-DAY

PROGRAMMABLE

7-DAY

up to

& 2-cool

up to

& 2-cool

2-heat

WIRELESS

THERMOSTAT

OWNER’S

MANUAL

OWNER’S

MANUAL

Digital

HEAT

COOL HEAT

PUMP

Control up to 2 Heat & 2 Cool Stages

Full Range of Compatibility for Use on

Gas/Electric, HP, Electri and Hydronic Heat

7-Day Programmable

4 Settings/Day

Auto Changeover

5 minute Built-In Compressor Protection

Self-Prompting Programming w/ Copy

Full Electronic

Display Either F or C

Back-Lit Display

Keypad Lockout

Large Easy-to-Read Display

Programmable Fan

Dual Setpoint w/ Adjustable Deadband

‘O’ or ‘B’ Terminal

Optional Power Supply (ACC0800)

Non-Volatile Memory

Wireless: Transmits up to 500 feet,

through walls and floors - 418 MHZ

will not interfere with other systems

Receiver capable of listening to up

to 4 thermostats

Thermostat capable of transmitting

to multiple receivers

No wires to run

Ideal for century old homes

Ideal for keeping the baby’s room

the perfect temperature

Unique Features

Applications

Table Of Contents

Page 1

This device complies with Part 15 of the FCC

Rules. Operation is subject to the following

two conditions: (1) this device may not

cause harmful interference, and (2) this

device must accept any interference

received, including interference that may

cause undesired operation.

FT1100RF

FCC ID MUH-T10013

CAUTION Follow Installation Instructions carefully.

DISCONNECT POWER TO THE HEATER -

AIR CONDITIONER BEFORE REMOVING

THE OLD THERMOSTAT AND INSTALLING

THE NEW THERMOSTAT.

WARNING

FRONT PANEL

DISPLAY

QUICK START Set the clock and go

SELECTING THE HEAT

OR COOL MODE

BASIC OPERATION

PROGRAMMING A DAILY

SCHEDULE

ADVANCED SETUP

ABOUT ADVANCED FEATURES

& OPERATION

WARRANTY

P/N T1100RF

Venstar Inc. 08/07

FAN

MODE

HEAT

COOL

AUTO

6:03

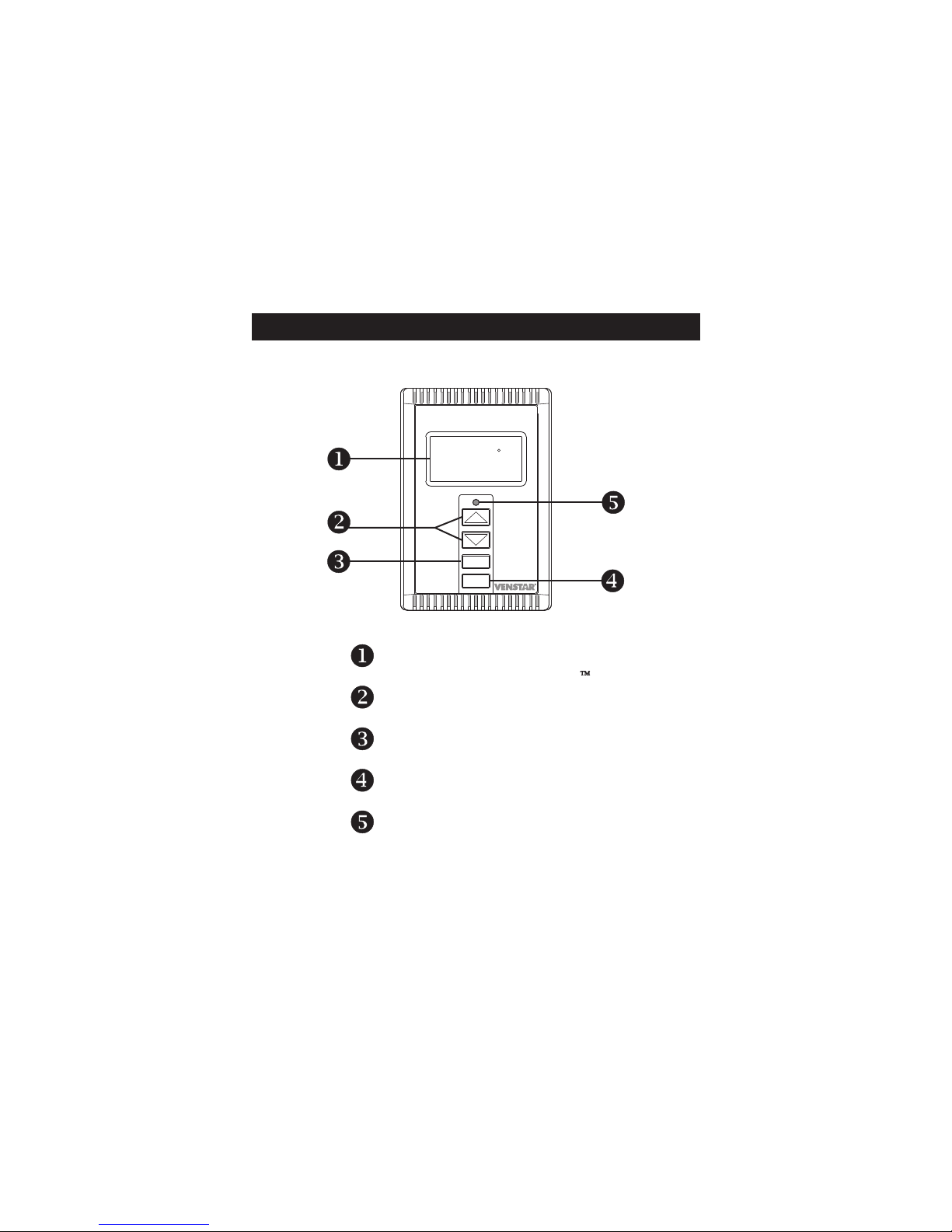

Front Panel

Liquid Crystal Display

with Thermoglow

Up/Down Buttons

Mode Button

Fan Button

Transmission Indicator

Blinking Green = Communicating

with the Receiver

Page 2

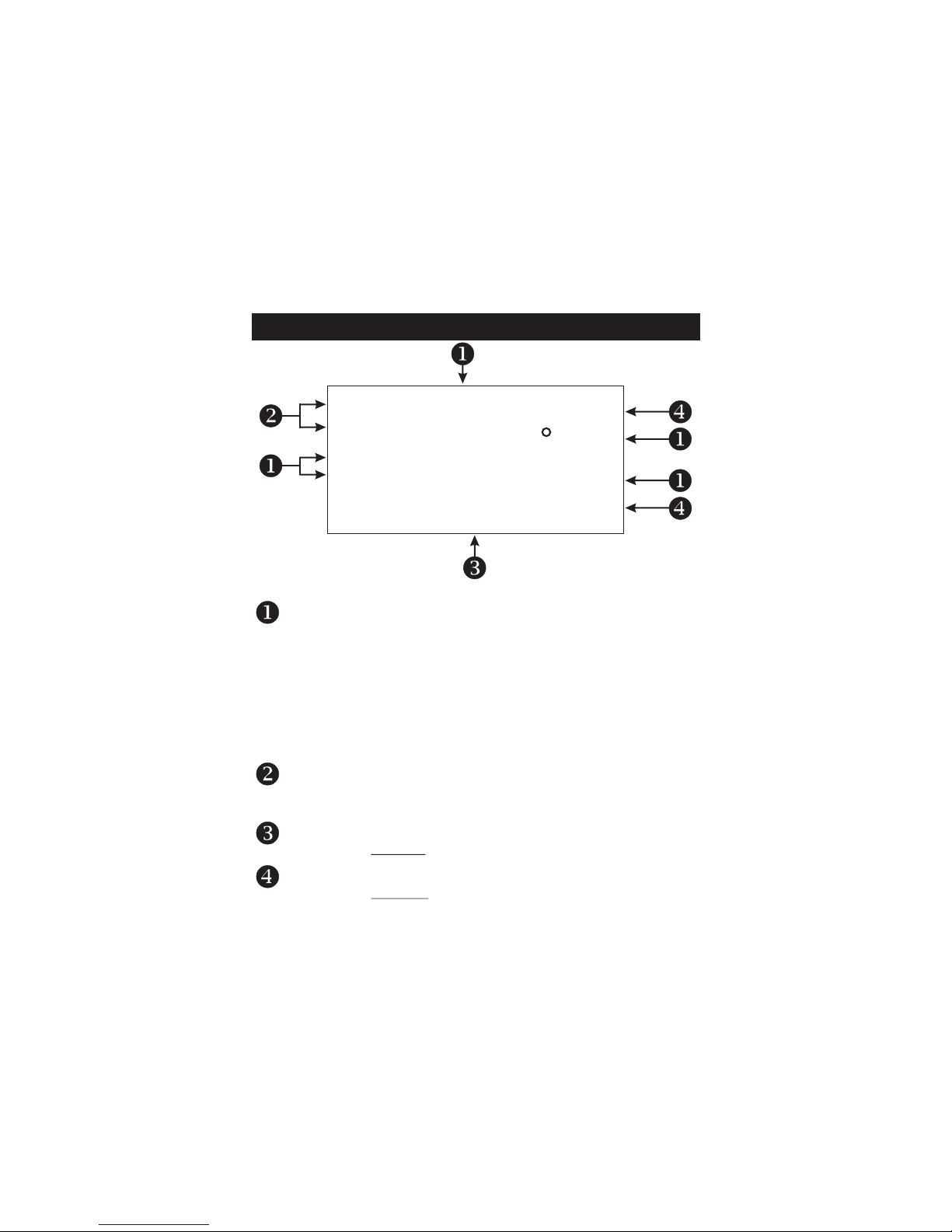

Display

HEAT

COOL

OFF

AUTO

Fan On

Program

Locked

Setup

I8 88

Day

Night

Evening

Morning

SuMTuWThFSa

Mode Indicators - Page 6

Selects the operational mode of the equipment.

HEAT - Indicates the heating mode.

COOL - Indicates the air conditioning mode.

AUTO - Indicates the system will automatically

changeover between heat and cool modes

as the temperature varies.

PROGRAM ON - Indicates the time period

program is enabled to run.

OFF - Indicates heating and cooling are turned off.

Clock with Day of the Week - Page 5

Indicates the current time and day. This clock is

also used to program the time period schedules.

Room Temperature Display

Indicates current room temperature.

Desired Set Temperature - Page 7

Indicates desired room temperature(s).

Page 3

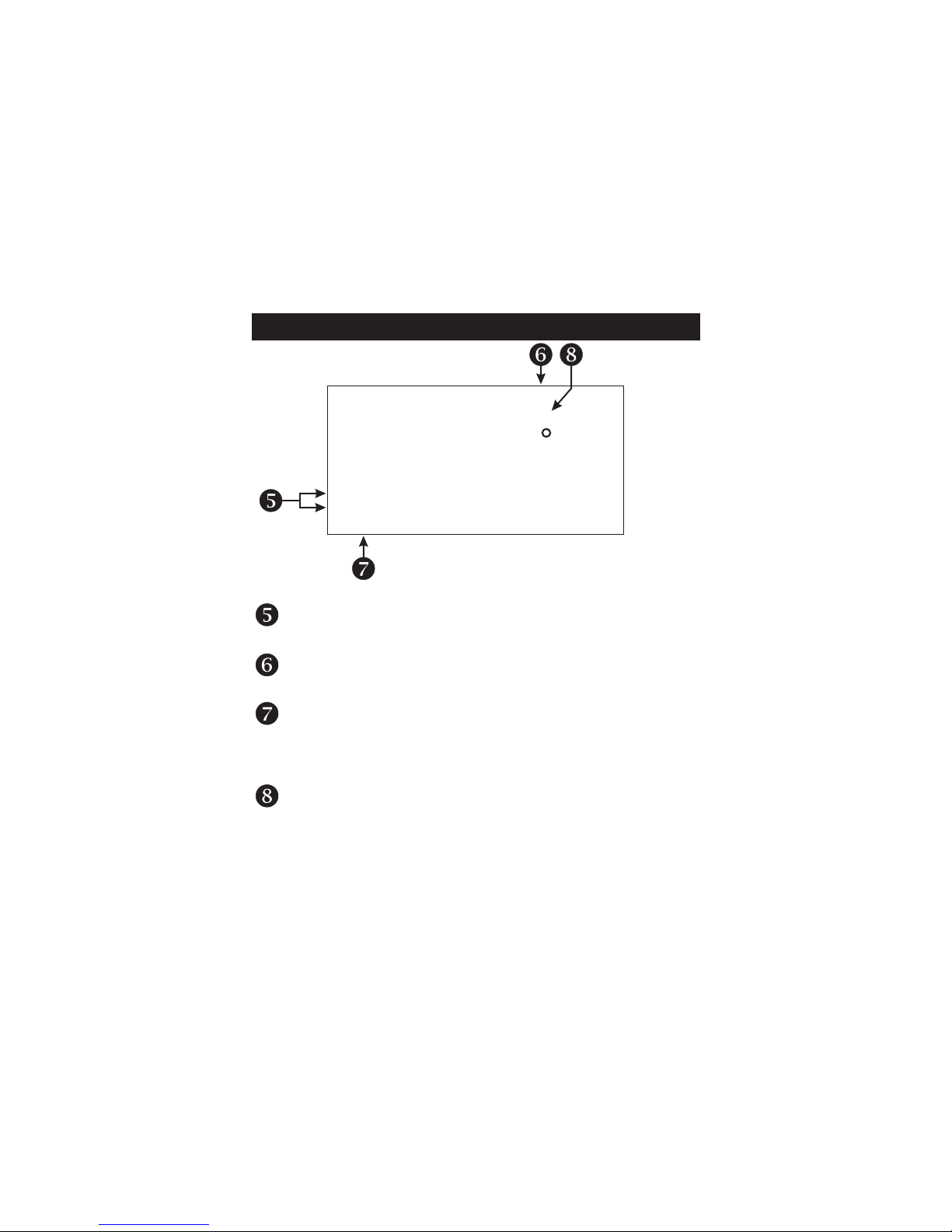

Display

Morning, Day, Evening &Night icons - Pages 8-10

Indicates the day part of the time period program.

Setup icon - Pages 12-14

Indicates the thermostat is in the setup mode.

Fan On icon - Page 7

Indicates constant, continuous fan operation.

When Fan On is not lit - indicates the fan will only

operate when necessary to heat or cool.

Locked icon - Page 18

Indicates the keypad has been locked.

HEAT

COOL

OFF

AUTO

Fan On

Program

Locked

Setup

I8 88

Day

Night

Evening

Morning

SuMTuWThFSa

Page 4

MODE

FAN

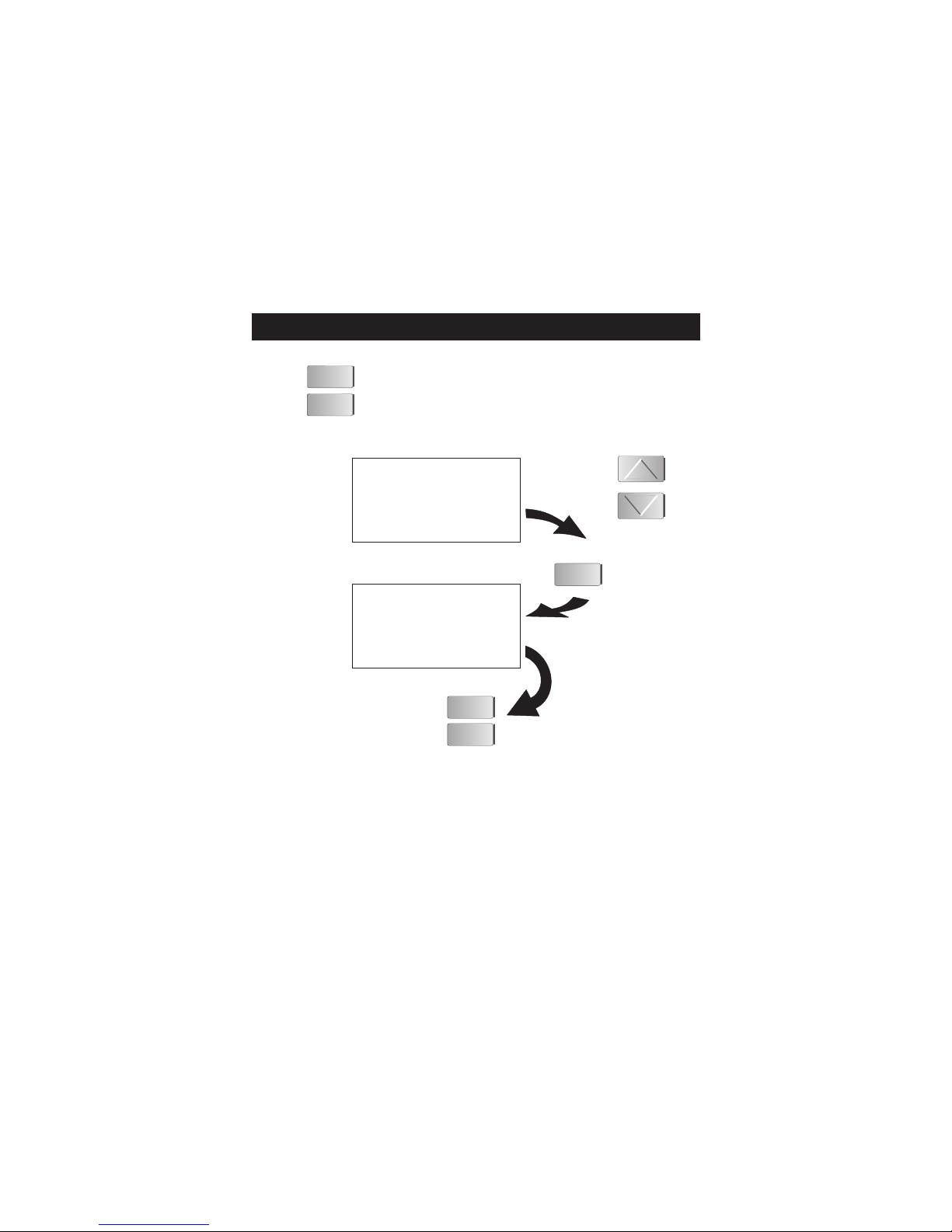

Quick Start Set the Clock and Go

Setup

Press

MODE

Setup

I2 00 i

Press the MODE button.

While holding MO D E ,

press the FAN button for

two seconds to enter Setup

screens.

MODE

FAN

buttons.

To adjust the

Clock or Day use

During Setup & Programming:

Pressing the UP or DOWN

butt on will modify the

flashing selection.

The thermostat is preprogrammed from the factory to operate

one or two stage equipment* without the need for further

programming. To optimize the installation of this thermostat,

follow the instructions in the Advanced Setup section.

* The thermostat is not preprogrammed from the factory to operate

electric heat or heat pump systems. To control these systems,

follow the instructions in the Receiver manual.

Setting the Clock

Setting the Day

Tip: To change hours

quickly, press and

hold the FAN button,

then press the UP or

DOWN button.

Press the MODE button.

While holding MO D E ,

press the FAN button for

two seconds to enter Setup

screens.

Page 5

Page 6

HEAT

I2 00

COOL

HEAT

COOL

AUTO

OFF

HEAT

COOL

ProgramOn

Day

Press

MODE

Press

MODE

Press

MODE

Press

MODE

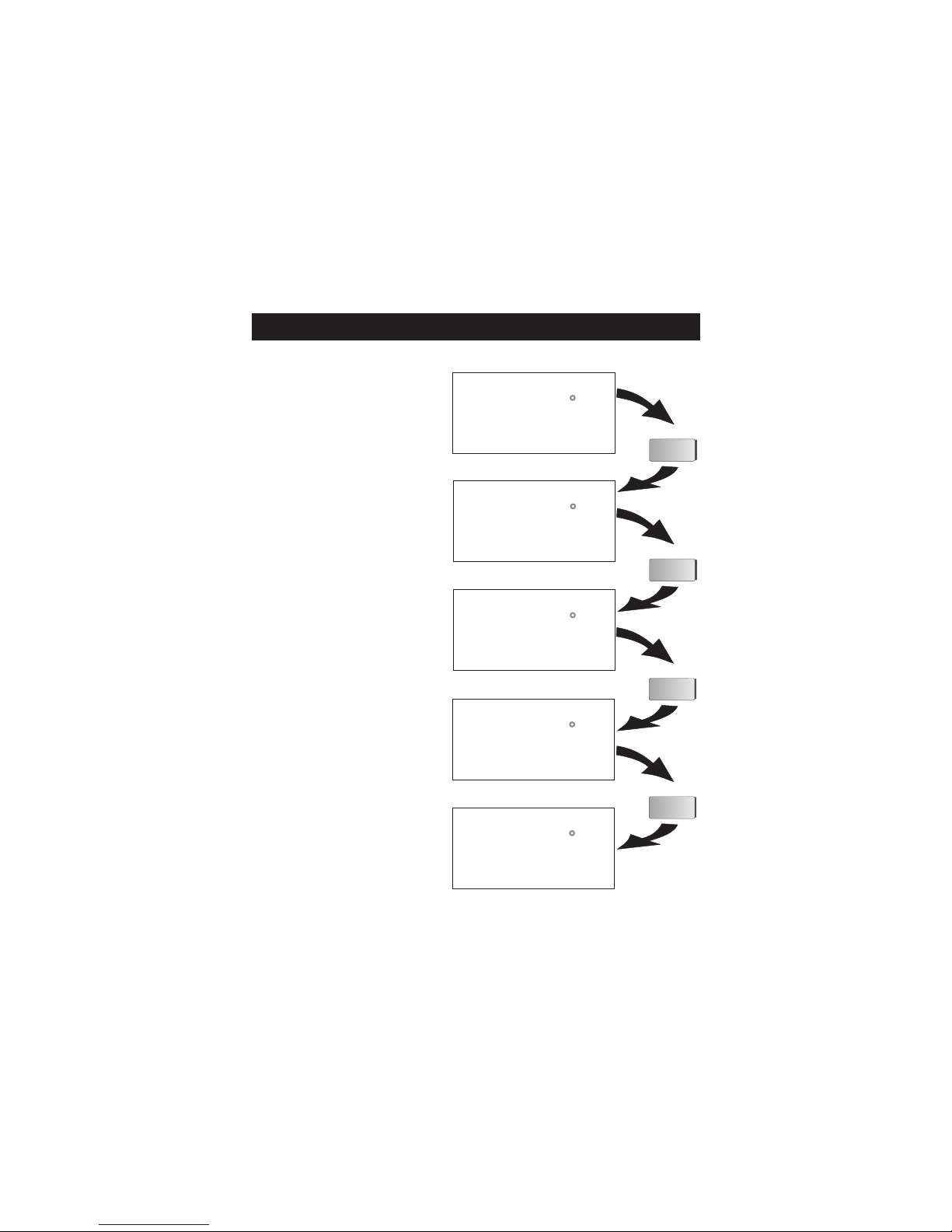

Select Mode by Pressing the MODE Button

The HEAT setting indicates the

temperature the room has to

reach before the furnace will

turn on to heat the room.

Heating Only

The COOL setting indicates the

temperature the room has to

reach before the air conditioner

will turn on to cool the room.

Cooling Only

OFF indicates both heating

and air conditioning

systems are turned off.

Off

AUTO will automatically select

heat or cool based on room

temperature demand.

Heating or Cooling

Time Schedule for

Heating or Cooling

The Program On setting will

activate the time period

programming for the cooling

or heating setpoint ONLY

(Morning, Day, Evening

& Night Periods).

Selecting the Heat or Cool Mode

I2 00

Basic Operation

HEAT

COOL

AUTO

12:00

buttons.

Adjust the desired

set temperature with the

Press

FAN

HEAT

COOL

12:00

Fan On

Using the Fan Button

Fan On indicates constant fan

operation. You may turn the fan

on even if the thermostat is in the

Off mode. Pressing the FAN button

toggles this feature on or off.

HEAT OR COOL MODE

Pressing the UP or DOWN button in Heat or Cool mode will

adjust only the heat or cool set temperature.

COOL

12:00

buttons.

Adjust the desired

set temperature with the

Selecting Your Desired Temperature

(adjusting the setpoints)

AUTO OR PROGRAM MODE

Pressing the UP or DOWN button in Auto or Program mode will

adjust both the heat and cool set temperatures simultaneously.

Page 7

Note: If the backlight is set to OFF, any button press will turn on the

backlight for 8 seconds. To change a setting, you must immediately

press the button again.

*Time period programming is only

available on Unit Number 1.

(Unit # 1 only)

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Continued

Start

6 00

Morning

COOL

6 00

Morning

HEAT

COOL

6 00

Morning

Use the Programming Worksheet on

the back cover to help with this section.

Press the MODE button. While holding MODE,

press the UP button for two seconds to enter

time period programming.*

Adjust the start time

for Morning.

Select the day

of week.

(M - Su)

Adjust the cooling

setpoint for Morning.

(35 - 99 )

Adjust the heating

setpoint for Morning.

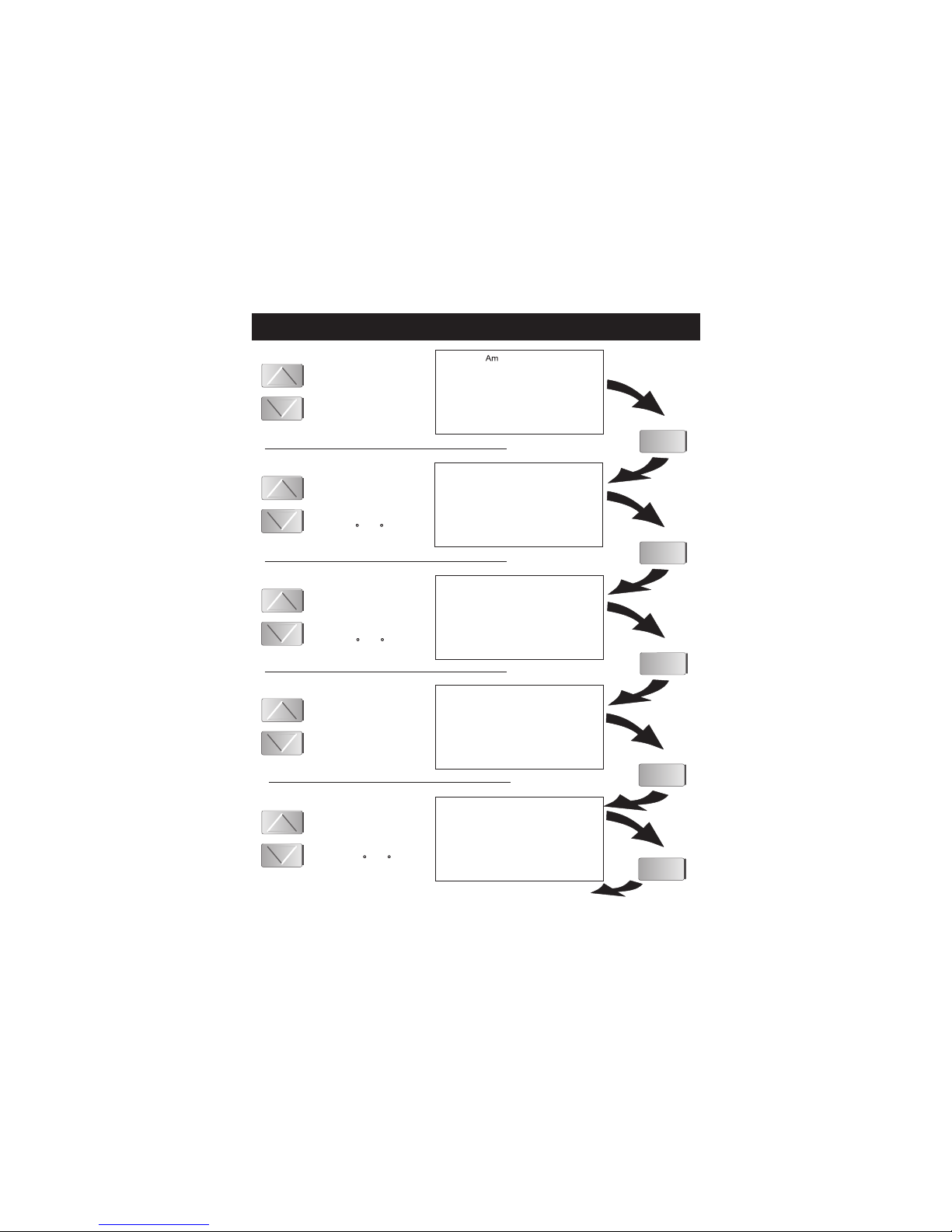

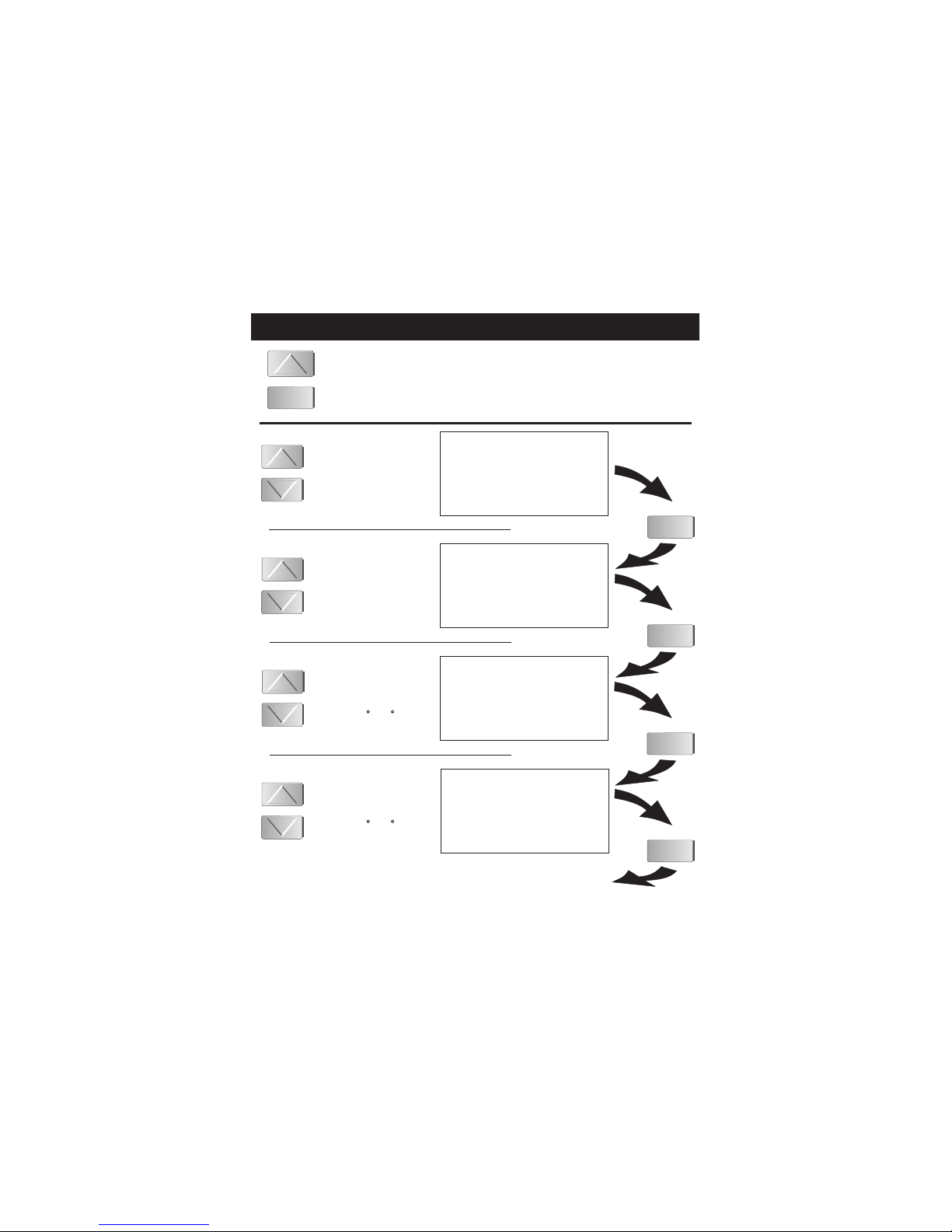

Programming a Daily Schedule

Page 8

(35 - 99 )

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Continued

Start

8 00

Day

COOL

8 00

Evening

COOL

6 00

Start

6 00

Evening

Day

HEAT

COOL

8 00

Adjust the start time

for Evening.

Adjust the start time

for Day.

Adjust the cooling

setpoint for Evening.

Adjust the heating

setpoint for Day.

Adjust the cooling

setpoint for Day.

(Unit # 1 only)Programming a Daily Schedule

Page 9

(35 - 99 )
