Ventair ROYALE DC Series Bedienungsanleitung

INSTRUCTION MANUAL

(This photo is for reference only; it does not mean you are purchasing an identical product.

Fan picture is for illustration purposes only. Styles may vary according to the particular model.)

Ceiling Fan Installation Manual, Rev 1.0

ROYALE DC SERIES

Models: ROY1304WH-DC, ROY1304WHL-DC

⚫INSTALLATION

⚫OPERATION

⚫MAINTENANCE

⚫WARRANTY INFORMATION

CAUTION

Read Instructions Carefully

For Safe Installation and

Fan Operation

THANK YOU FOR PURCHASING

Thank you for purchasing this quality Ventair ceiling fan. To ensure correct function and safety, please

read all instructions before using the product and keep all instructions for future reference.

SAFETY PRECAUTIONS

1. The appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning the use of the appliance by a person responsible for their

safety.

2. Children should be supervised to ensure that they do not play with the appliance.

3. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local

wiring rules.

WARNING:

FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION

MUST BE INCORPORATED INTO THE FIXED WIRING IN

ACCORDANCE WITH THE WIRING RULES.

As outlined in clause 7.12.2 of AS/NZS 60335-1 for meeting the

minimum electrical safety of this standard.

Please note warranty will be void if installation is without an all-pole

disconnection incorporated in the fixed wiring in accordance with the

wiring rules.

Example: If a fan is connected to a circuit that can be isolated via an

all-pole safety switch at the switchboard, then this is considered to be

an all-pole disconnection to the ceiling fan electrical circuit, meeting

the requirements of clause 7.12.2 of AS/NZS 60335.1.

A single-pole switch on the active of the receiver input of remote

control must also be included in the wiring, and located in the

same room as the ceiling fan.

4. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection

facilities. Contact your local government for information regarding the collection systems available. If

electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the

ground water and get into the food chain, damaging your health and well-being.

5. The structure to which the fan is to be mounted must be capable of supporting a weight of 30kg.

6. The fan should be mounted so that the blades are at least 2.1m above the floor.

7. Only a licensed electrician should handle the installation.

8. The replacement of parts of the safety suspension system device shall be performed by the

manufacturer, its service agent or suitably qualified persons.

9. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a

sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the

suspension system shall be performed by the manufacturer, its service agent or suitably qualified

persons.

10. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the

ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.

BEFORE INSTALLATION

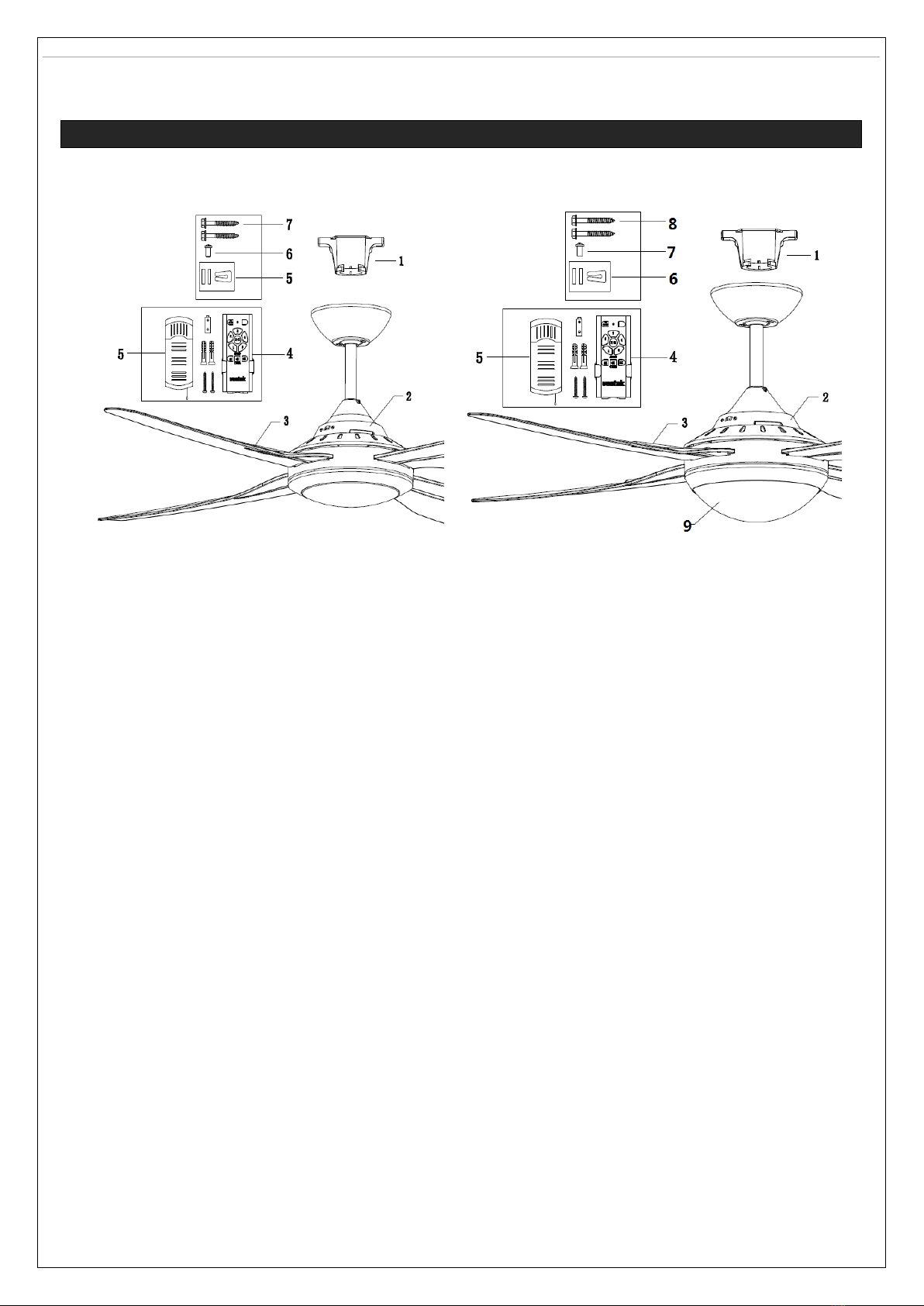

Unpack the fan and carefully identify the parts. Please refer to Fig 1.

FAN WITHOUT LIGHT

FAN WITH LED LIGHT

Mounting bracket x 1

Pre-assembled fan motor, down rod, canopy

and bottom cover x 1

Pre-assembled fan motor, down rod, canopy

and bottom cover x 1

Blades x 4

Remote contro x1

Remote control x 1

Receiver x 1

Balancing kit x 1

Blade screws x 9 (1 x spare)

Wooden screws for mounting bracket x 2

9．

Light kit x 1 –

LED driver

LED panel

Plastic diffuser

Fig. 1

INSTALLING THE MOUNTING BRACKET

•The ceiling fan must be installed in a location so that the blades have a minimum 300mm spacing

from the tip of the blade to the nearest objects or walls.

•Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at

least 30kg, with the two long screws provided. Ensure at least 30mm of the screw is threaded into

the support.

NOTE: The bracket screws provided are for use with wooden structures only. For structures

other than wood, the appropriate screw type MUST be used.

Angled Ceiling Installation

This fan hanging system supports a maximum 13-degree angled ceiling installation.

Fig. 2

Fig. 3

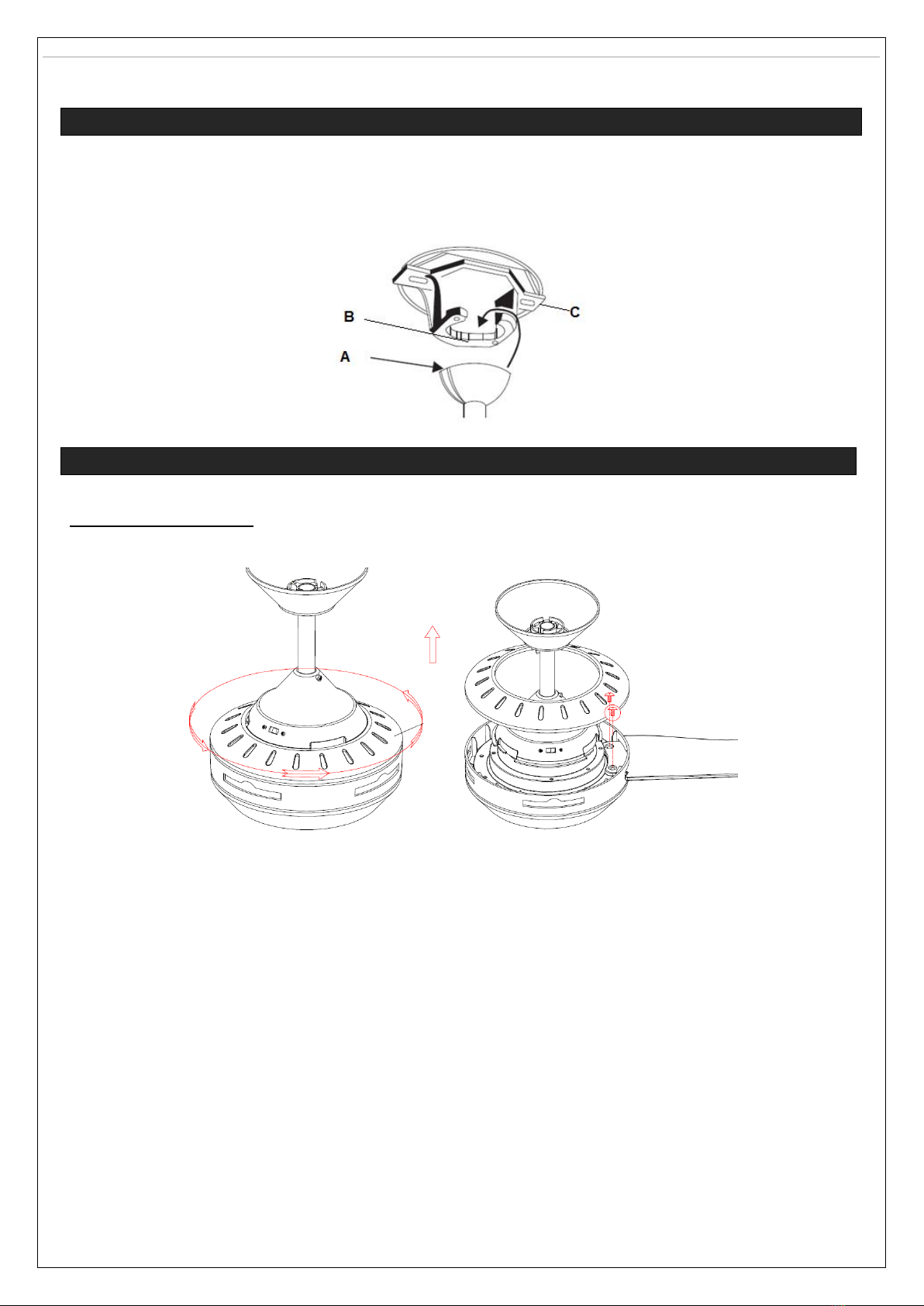

HANGING THE FAN

Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is

positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in

operation. (Fig.4)

BLADE INSTALLATION

BLADE ATTACHMENT (Fig. 5)

1. Remove the top motor housing from the fan body by turning the top motor housing anticlockwise.

2. Insert the blade into the square slot of the motor.

3. Secure the blade on the bracket by using 2 blade screws, ensuring they are tightened

simultaneously.

4. Once completed, repeat the process on the remaining blades.

5. Replace the top motor housing.

Fig. 4

Fig. 5

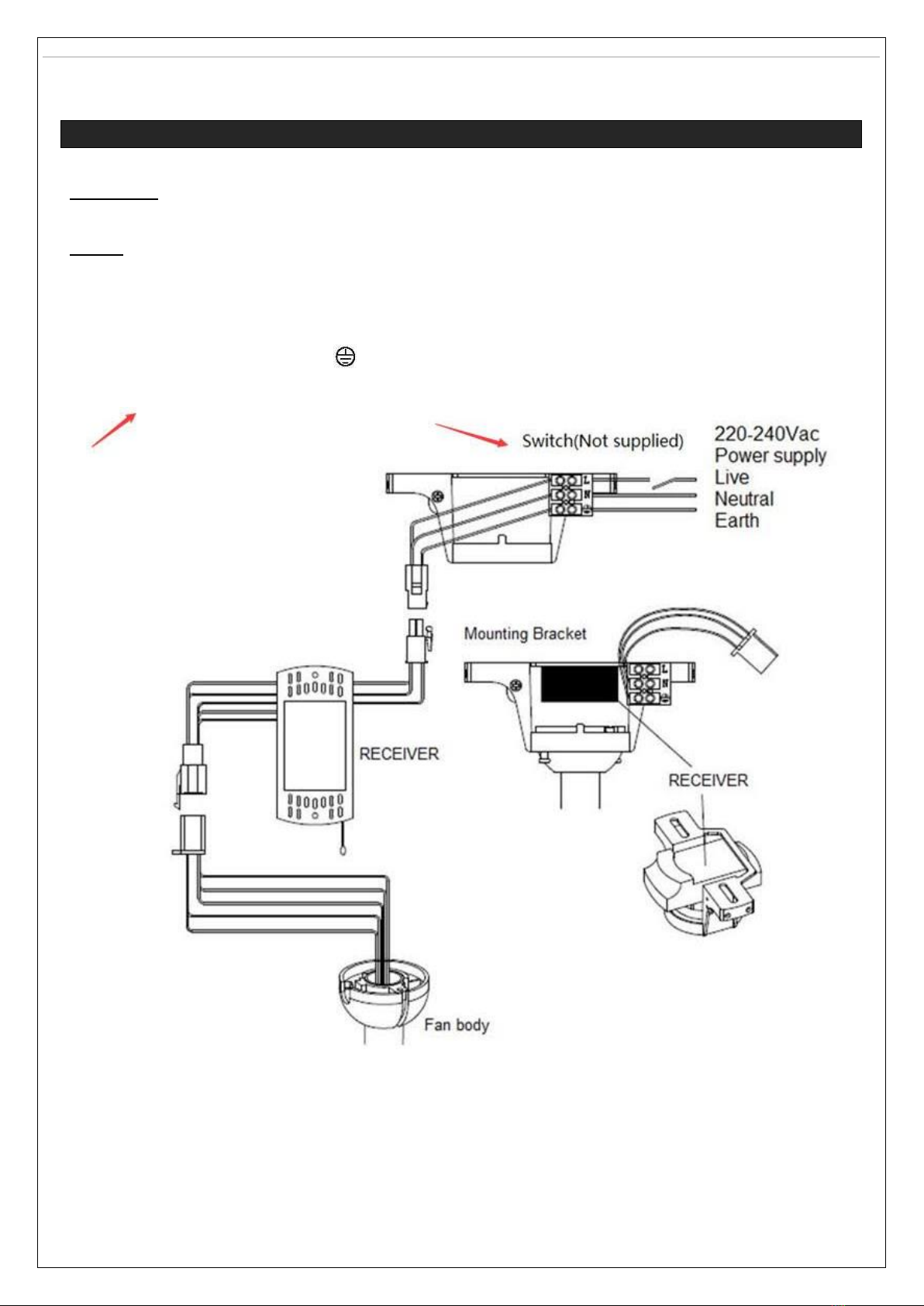

ELECTRICAL WIRING DIAGRAM

WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A

LICENSED ELECTRICIAN.

NOTE: AN ADDITIONAL ALL POLE DISCONNECTION MUST BE INCORPORATED IN THE FIXED

WIRING IN ACCORDANCE WITH THE WIRING RULES.

⚫Connect “LIVE”supply wire to the “L” of the terminal block on the mounting bracket.

⚫Connect “NEUTRAL” supply wire to the “N” of the terminal block on the mounting bracket.

⚫Connect “EARTH” wire to the “ ” of the terminal block on the mouthing bracket.

⚫To be installed by a licensed electrician in accord with AS/NZS 3000.

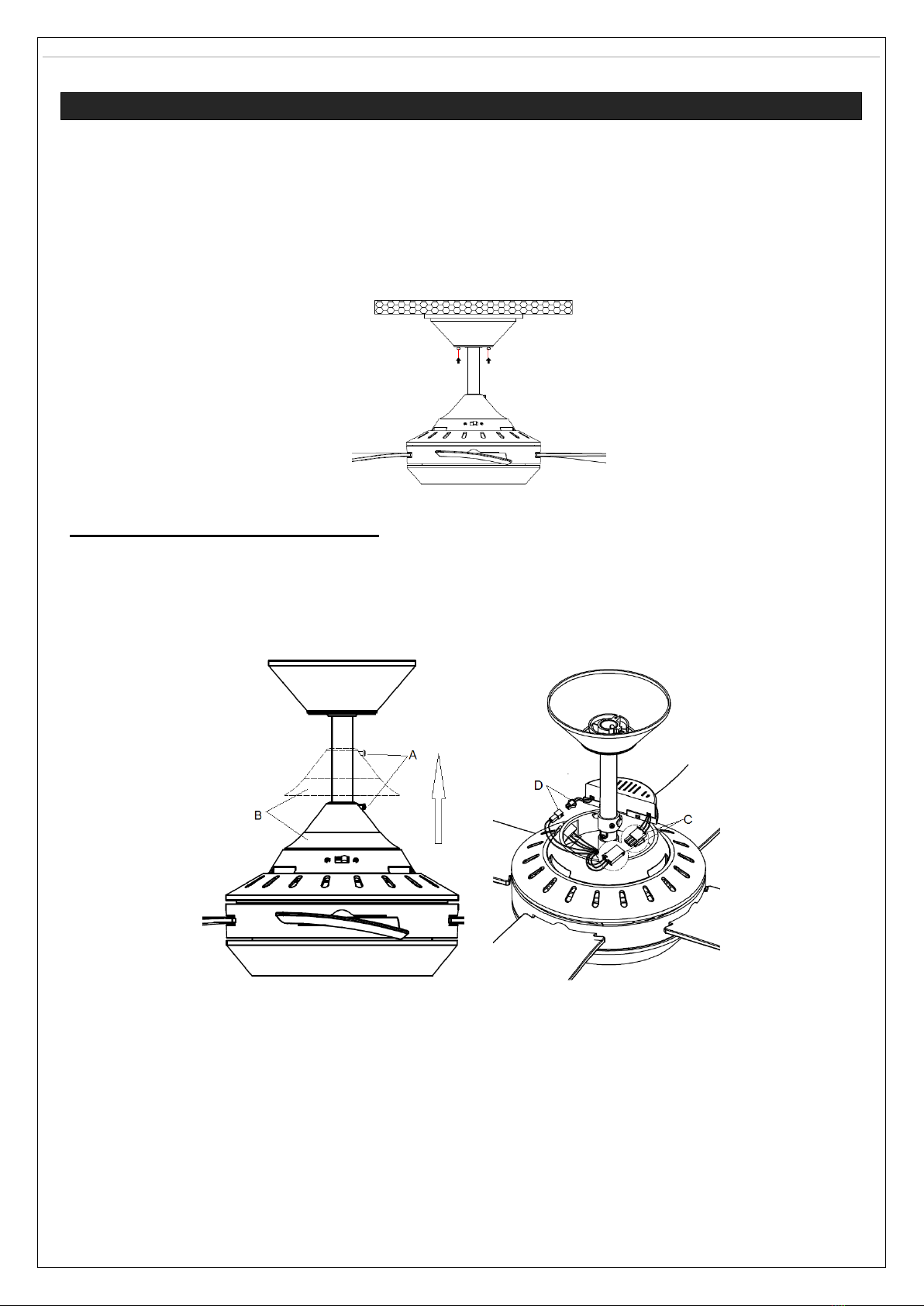

FINISHING THE INSTALLATION

⚫After completing the electrical connection at the mounting bracket terminal block, connect the ceiling

fan wiring by the quick connector plug.

⚫Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy

and that the wires are not damaged during this step. Secure the canopy to the hanger bracket using

the screws provided.

How to replace the LED driver (For models with light kit)

NOTE: Always turn OFF the power at the mains switch before attempting to replace the LED driver.

Loosen the screw (A) to lift the top housing (B). Replace the LED driver by unplugging the connectors (C,

D). Reposition the top housing and secure it on the down rod by screw.

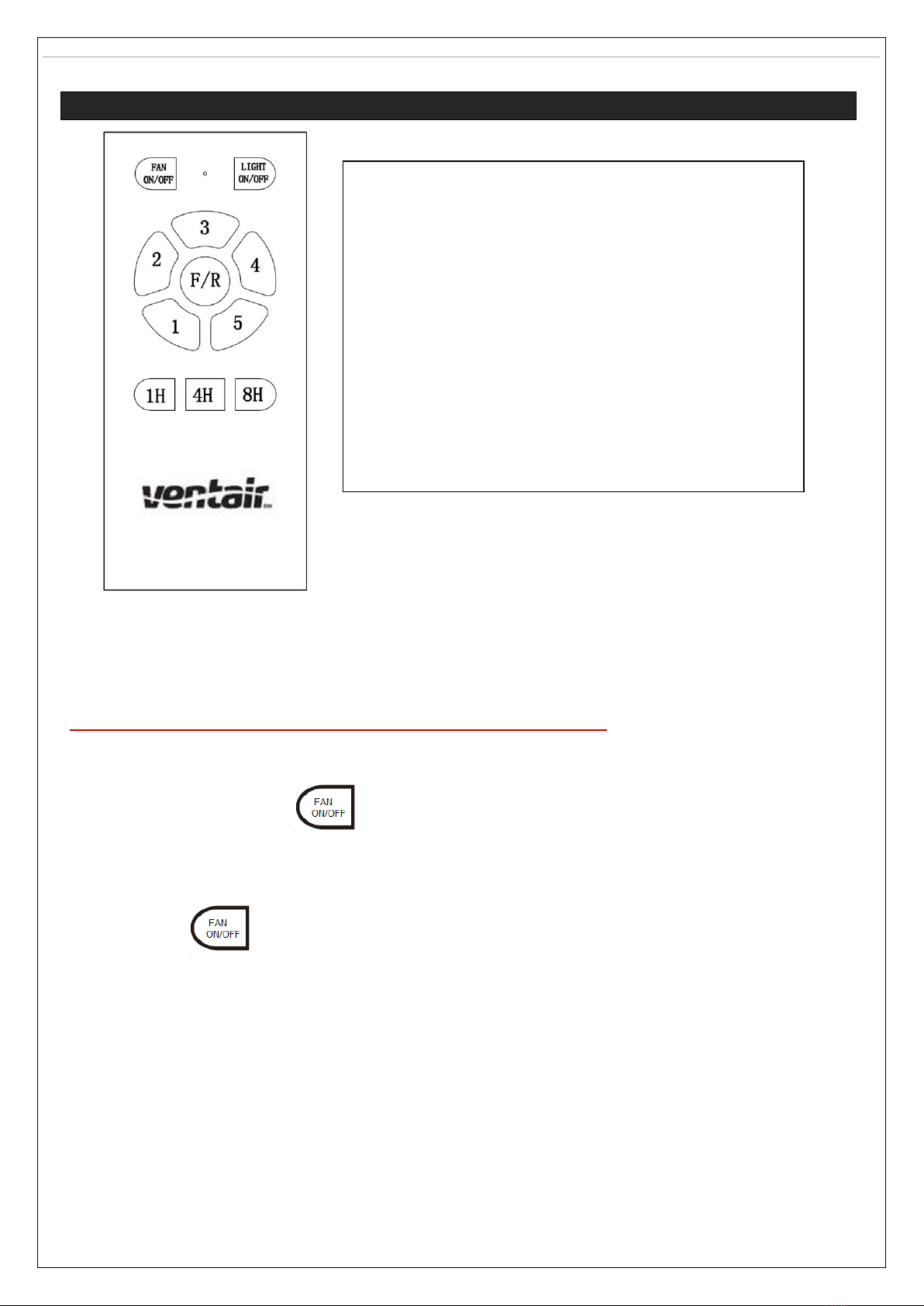

HOW TO USE REMOTE CONTROL

This Remote control comes pre-paired at the factory and is ready to use. Pairing will only be

required in situations mentioned below.

Use one remote handset to control 2 or more DC ceiling fans

•Switch off the main power (isolation switch) to all ceiling fans.

•Press and hold the “ ” button on the remote for 5 seconds ‘within 30 seconds’ of

re-instating the power (isolation switch ON). The fans will have a “bee-bee” sound to

indicate the paring process is activated.

•Press “ ” and change the speed of the ceiling fan by the remote to check the

operation and successful paring.

Note: Use same pairing process if replacing existing handset with new handset (EG: in case

of fault or damage to original handset).

1. F/R button: Press F/R button to set up ceiling fan to

operate in forward or reverse.

2. FAN ON/OFF button: Press to turn ON or turn OFF

the ceiling fan.

3. Timer button: Press Timer button to enable fan to

automatically switch OFF after 1Hr-4Hr-8Hr.

4. Light ON/OFF button: Press to turn ON/OFF light.

5. Speed button: Press to turn on ceiling fan at 1-2-3-4-5

speed. (The fan will resume operation at the last speed

setting before power off.)

REPAIRING THE FAN RECEIVER AND REMOTE

NOTE: The remote and receiver has already been paired at the factory. When the ceiling fan is

installed for the first time, pairing of the remote and receiver is NOT required.

Should the remote and receiver lose control after installation or during use, the pairing of the remote and

the receiver must be repaired. Below are the operating symptoms and method to repair the pairing of the

DC ceiling fan remote and receiver.

Issues:

•Loss of control - Fan is only running at high speed after installation

•Loss of control - No reverse function after installation

•Loss of control - Remote cannot communicate with the receiver

Solution:

•Switch off the main power to ceiling fan.

•Press and hold the “ ” button on the remote for 5 seconds ‘within 30 seconds’ of

re-instating the power (isolation switch ON). The fan will have “bee-bee” sound to indicate the

paring process is activated.

•Turn ON and change the speed of the ceiling fan by the remote to check the operation and

successful paring.

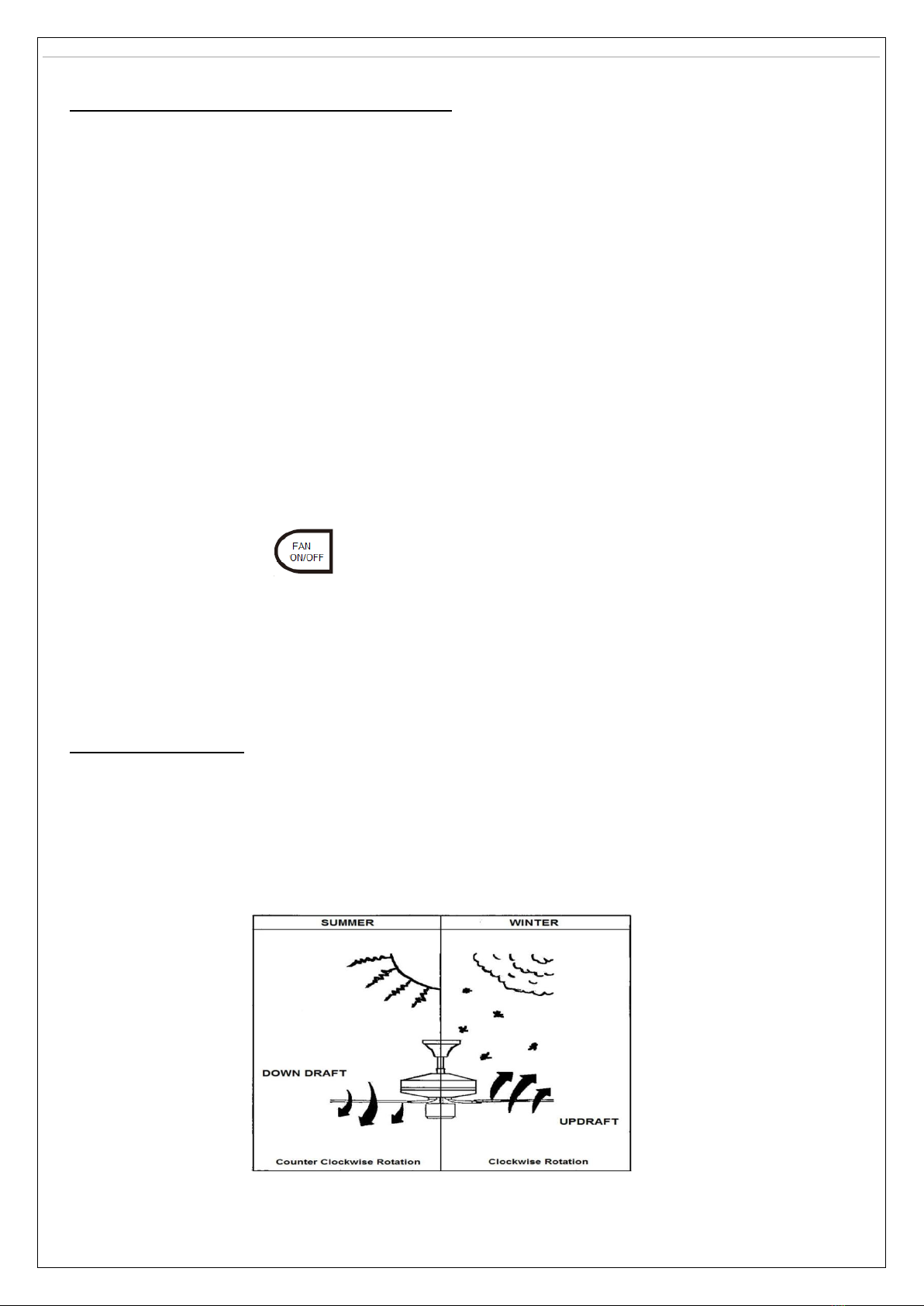

REVERSE FUNCTION

Your ceiling fan can operate either in fan mode or reverse fan mode.

Forward Mode: The fan rorates in an anticlockwise direction. The airflow will be directed downwards, for

cooling in summer.

Reverse Mode: The fan rorates in a clockwise direction. The airflow will be directed upwards, for energy

conservation in winter.
