VICI DBS MISTRAL EVOLUTION 10 Bedienungsanleitung
1
MISTRAL EVOLUTION
USER MANUAL www.vicidbs.com
Version 1.03.0000
TECH SUPPORT
Europe, Asia, Africa, Australia & New Zealand:
techsupport@vicidbs.com
USA, Canada, Central & South America:
techsupportus[email protected]om
Italy
VICI AG INTERNATIONAL
Parkstrasse 2
CH-6214 Schenkon
Switzerland
tel: +41 41 925-6200
fax: +41 41 925-6201
web: www.vicidbs.com
APPLICABLE MODELS
This manual is applicable to the following models:
• Mistral Evolution 10
• Mistral Evolution 25
• Mistral Evolution 35
• Mistral Evolution 40
Version 1.03.0000
1
MISTRAL EVOLUTION
USER MANUAL www.vicidbs.com
Version 1.03.0000
TABLE OF CONTENTS
1. VERSION HISTORY................................................................................................................................ 2
2. INTRODUCTION.................................................................................................................................... 3
2.1. Symbol Denitions...............................................................................................................................3
3. SAFETY.................................................................................................................................................. 4
3.1. Personal Safety Instructions.................................................................................................................4
3.2. Instrument Safety Instructions ............................................................................................................4
4. SPECIFICATIONS................................................................................................................................... 5
5. PRESENTATION OF DEVICE ................................................................................................................. 6
5.1. Front View............................................................................................................................................6
5.2. Back View ............................................................................................................................................6
5.3. Connections ........................................................................................................................................7
5.4. Power Supply Settings ........................................................................................................................7
5.5. Transport and Storage ........................................................................................................................7
6. SCHEMES .............................................................................................................................................. 8
6.1. Fluidics.................................................................................................................................................8
6.1.1. Mistral Evolution 10.....................................................................................................................8
6.1.2. Mistral Evolution 25, 35 and 40 ..................................................................................................9
6.2. Electrical............................................................................................................................................10
6.2.1. Mistral Evolution 10..................................................................................................................10
6.2.2. Mistral Evolution 25, 35 and 40................................................................................................11
7. STARTING THE GENERATOR .............................................................................................................. 12
8. SOFTWARE.......................................................................................................................................... 13
8.1. Overview of the Menus.....................................................................................................................13
8.2. Parameters ........................................................................................................................................13
8.3. Diagnostic .........................................................................................................................................14
9. OPTIONAL EXTERNAL TANK.............................................................................................................. 14
9.1. Size of Tank .......................................................................................................................................14
9.1.1. Tank Size Calculation................................................................................................................15
9.2. Where to Get the Tank......................................................................................................................15
10. ALARMS & PRE-ALARMS .................................................................................................................. 15
10.1. Pre-Alarms.......................................................................................................................................15
10.2. Alarms .............................................................................................................................................16
11. TROUBLESHOOTING......................................................................................................................... 17
2
MISTRAL EVOLUTION
USER MANUAL www.vicidbs.com
Version 1.03.0000
1. VERSION HISTORY
VERSION DATE COMMENT/CHANGE
1.00.0100 01/10/2017 Layout and initial release, VICI DBS
1.01.0000 12/20/2018 Update
1.02.0000 05/18/2020 New layout, images and graphics, VICI Gig Harbor Group
1.03.000 06/17/2021 Minor edits, updated specs for Mistral Evolution 10, new electrical
and uidic schematics
3
MISTRAL EVOLUTION
USER MANUAL www.vicidbs.com
Version 1.03.0000
2. INTRODUCTION
The VICI DBS® Mistral Evolution (PSA technology) includes two dynamically balanced, long-life compressors
and delivers a continuous or on demand stream of pure nitrogen gas of 99.5% with a ow rate to 40 L/min.
It uses pressure swing adsorption (PSA) system which removes oxygen, carbon dioxide and water from
compressed air. The resulting stream of pure nitrogen is ideal for LCMS instruments and other laboratory
applications where inert gases are required.
2.1 Symbol Denitions
SYMBOL DESCRIPTION
General warning. Caution is necessary when operating the device or control
close to where the symbol is placed, or to indicate that the current situation
needs operator awareness or operator action in order to avoid undesirable
consequences.
The manual must be consulted in all cases where this symbol is marked on
the device.
Risk of asphyxia. Caution is necessary when operating the device in a not
sufciently ventilated area.
Oxidant material. Caution is necessary due to the presence of oxidant material.
WEEE symbol. When discard this product, it must be sent to separate collection
facilities for recovery and recycling.
Fuse. Notify replaceable fuse place.
OR
OR
OR
4
MISTRAL EVOLUTION
USER MANUAL www.vicidbs.com
Version 1.03.0000
3. SAFETY
3.1 Personal Safety Instructions
When using your Mistral Evolution generator, basic safety precautions should always be followed, including
the following:
• The quantity of dust in the ambient Air can be very different from one place to another.
We recommend to replace the dust lters every 4000h. In some dusty areas, this
maintenance need to be performed more frequently.
• Clogged dust lter may damage the device or give a bad Nitrogen quality.
• The power supply main cable connector is the disconnect device in case of
emergency, it must be easily accessible at any time.
• If the Mistral Evolution is used in a way not specied by VICI DBS, the protection
provided by the equipment could be compromised.
3.2 Instrument Safety Instructions
• The Mistral Evolution is a Nitrogen Generator. Do not let it run with the outlet open to
the air in a low volume room.
• The increase of the Nitrogen (and decrease of oxygen) may cause human disease.
It is the responsibility of the user to check if the room is appropriate or if an O2
measurement is necessary.
• The Mistral Evolution rejects Oxygen as waste.
• Oxygen ratio in the air could change around the device in a low volume or not
sufcient ventilated room.
• If fuel gases are present around, their explosive or ammable limits could be
affected. It is the responsibility of the user to make sure the room is appropriate,
or if an O2 measurement is necessary.
5
MISTRAL EVOLUTION
USER MANUAL www.vicidbs.com
Version 1.03.0000
4. SPECIFICATIONS
MISTRAL
EVOLUTION 10
MISTRAL
EVOLUTION 25
MISTRAL
EVOLUTION 35
MISTRAL
EVOLUTION 40
Nitrogen ow rate L/min 10 25 35 40
Nitrogen purity +99.5% 99% 98% 97%
Dewpoint oC (oF) -50 (-58)
Outlet pressure barg (psig) 3 (45) 8 (116)
Technology Carbon molecular sieve
Warm up time (minutes) 20
LED indicators Power on/off, system ready, errors
Electricity supply 110-120V 60Hz / 220-240V 50Hz
Power consumption (watts) 800 1800
Noise level 55 dBA @ 1 meter
Dimensions mm (in) 482W x 641H x 835D (18.9W x 25H x 33D)
Weight kg (lbs) 70 (155) 90 (198)
Shipping dimensions mm (in) 550W x 800H x 940D (21.6W x 31.4H x 37D)
Shipping weight kg (lbs) 95 (210) 115 (254)
Operating temp oC (oF) 15 to 35 (59 to 95)
Outlet connection 6 mm OD compression or 1/4”
Certication CE, FCC, MET (UL and CSA compliant)
MODELS & SPECS
OPERATING CONDITIONS
Environment Indoor
Temperature oC (oF) 10 to 40 (50 to 104)
Relative Humidity 0 to 80% rF with no condense / 0 to 99% rF with condense drain
Altitude <2000m (from 800 to 1150 hPa)
Instrument position Horizontal
Transient overvoltage Up to the levels of OVERVOLTAGE CATEGORY II
Heat dissipation Approximately 2700 Btu/h
Enclosure protection IP20
Mechanical impact rating IK08
Transient overvoltage <2500 kV (accept temporary overvoltage from power supply net)
6
MISTRAL EVOLUTION
USER MANUAL www.vicidbs.com
Version 1.03.0000
5. PRESENTATION OF THE DEVICE
5.1 Front View
Command Buttons (x3)LED Indicator Lights
Backlit Display
5.2 Back View
Relay Alarm
Outlet Compressor
Box Cooling System
Dust Silencer Filter
Outlet Water
Purge
Outlet N2 with Valve
Outlet Pressure
Service Box
Flow Set Pressure
Line Pressure
Power Supply
On/Off Switch
7
MISTRAL EVOLUTION
USER MANUAL www.vicidbs.com
Version 1.03.0000

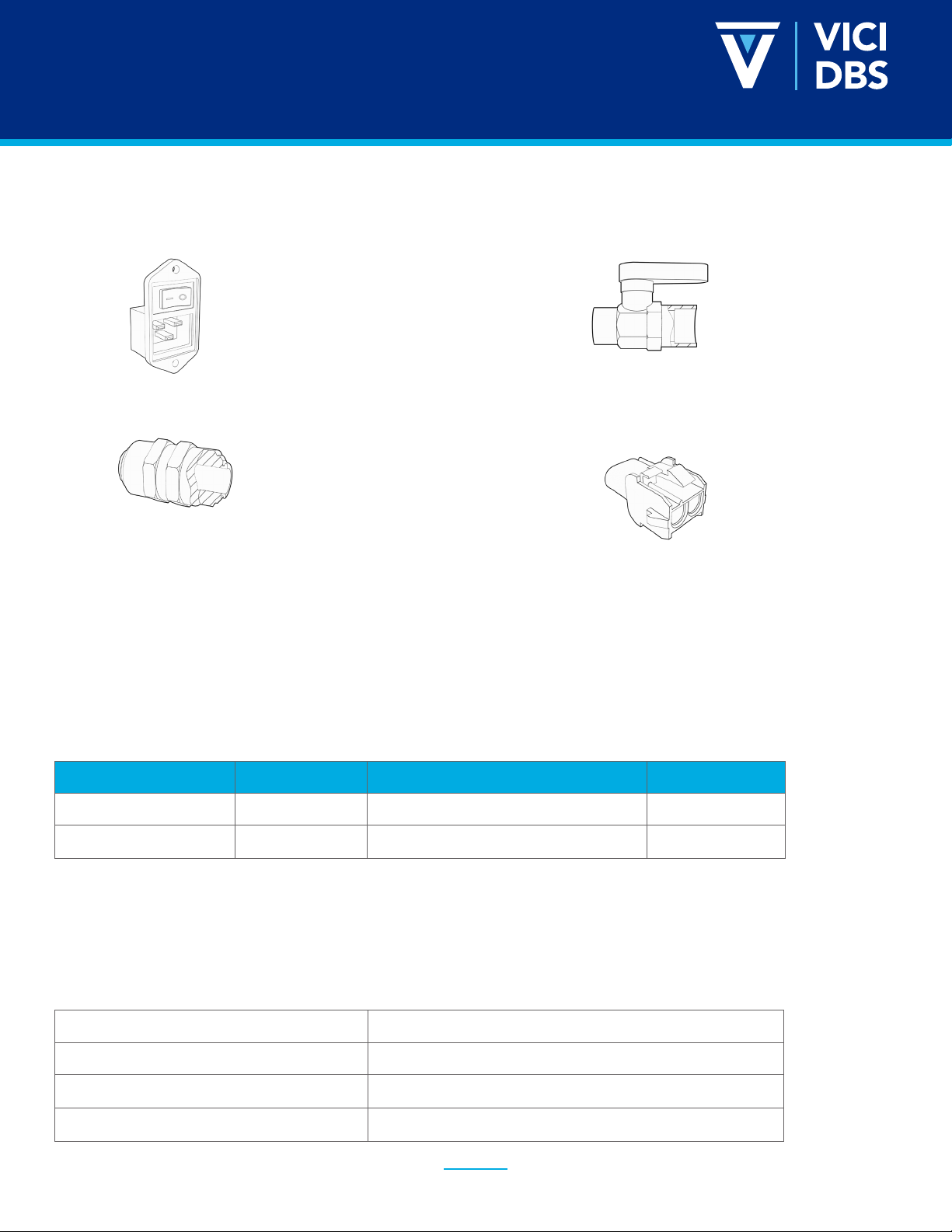

5.3 Connections
Power Supply: C-20 Outlet N2 with Valve: G1/4” female
Outlet Water Purge: Ø10mm tube Relay Alarm: 2 pos universal Mate-N-Lock
connector female
5.4 Power Supply Settings
The current power supply setting of the device is indicated on the ID Sticker on the back of the device. The
Mistral Evolution standard setting is 220-240V/50-60Hz.
If other voltages are requested, this should be done when ordering. In this case a transformer will be
installed to transform internally the requested voltage to 110-115 V/50-60Hz. The list of voltage and
frequencies settings possible are bellow. In any case the voltage of the power supplied must stay at
+/- 10% of the nominal value.
VOLTAGE SETTING FREQUENCY FUSE F3 (5X20 OR 6.3 x 32 mm) COUNTRY
110-115 VAC AC50-60 Hz 20 A Japan/USA
220-240 VAC AC50-60 Hz 10 A Korea/Europe
Please see service manual for the connection of the transformer. General earth connection is done via power
supply main cable.
5.5 Transport and Storage Conditions
Temperature Minimum -10ºC (14ºF), Maximum 45ºC (113ºF)
Humidity Inferior to 90% Rh, non-condensing
Shocks and vibrations during transport Shocks <1g; Vibrations <0.2g/5Hz
Instruments position Horizontal
8
MISTRAL EVOLUTION
USER MANUAL www.vicidbs.com
Version 1.03.0000
6.1 Fluidics
6.1.1. Mistral Evolution 10
WARNING: Do not tighten screws fully. It must be possible to remove the generator
from a permanent structure without the use of tools.
6. SCHEMATICS
System:
Schematic no:
Date:
Created:
Checked:
Released:
THIS DOCUMENT AND THE INFORMATION WHICH
IT CONTAINS SHALL NOT BE USED, EXPLOITED
OR SOLD, AND SHALL NOT BE REVEALED OR
DISCLOSED TO OTHERS WITHOUT THE EXPRESS
WRITTEN PERMISSION OF VICI. THIS DOCUMENT
SHALL REMAIN THE PROPERTY OF VICI AND
SHALL BE RETURNED UPON DEMAND.
R
Rev.:
Sheet:
By:
Description:
ECN no:
Mistral Evolution 10
air flow diagram 11.06.21 SBU
1
1/1
9
MISTRAL EVOLUTION
USER MANUAL www.vicidbs.com
Version 1.03.0000
6.1.2. Mistral Evolution 25, 35 and 40
WARNING: Do not tighten screws fully. It must be possible to remove the generator
from a permanent structure without the use of tools.
System:
Schematic no:
Date:
Created:
Checked:
Released:
THIS DOCUMENT AND THE INFORMATION WHICH
IT CONTAINS SHALL NOT BE USED, EXPLOITED
OR SOLD, AND SHALL NOT BE REVEALED OR
DISCLOSED TO OTHERS WITHOUT THE EXPRESS
WRITTEN PERMISSION OF VICI. THIS DOCUMENT
SHALL REMAIN THE PROPERTY OF VICI AND
SHALL BE RETURNED UPON DEMAND.
R
Rev.:
Sheet:
By:
Description:
ECN no:
Mistral Evolution 25 / 35 / 40
air flow diagram 11.06.21 SBU
1
1/1
