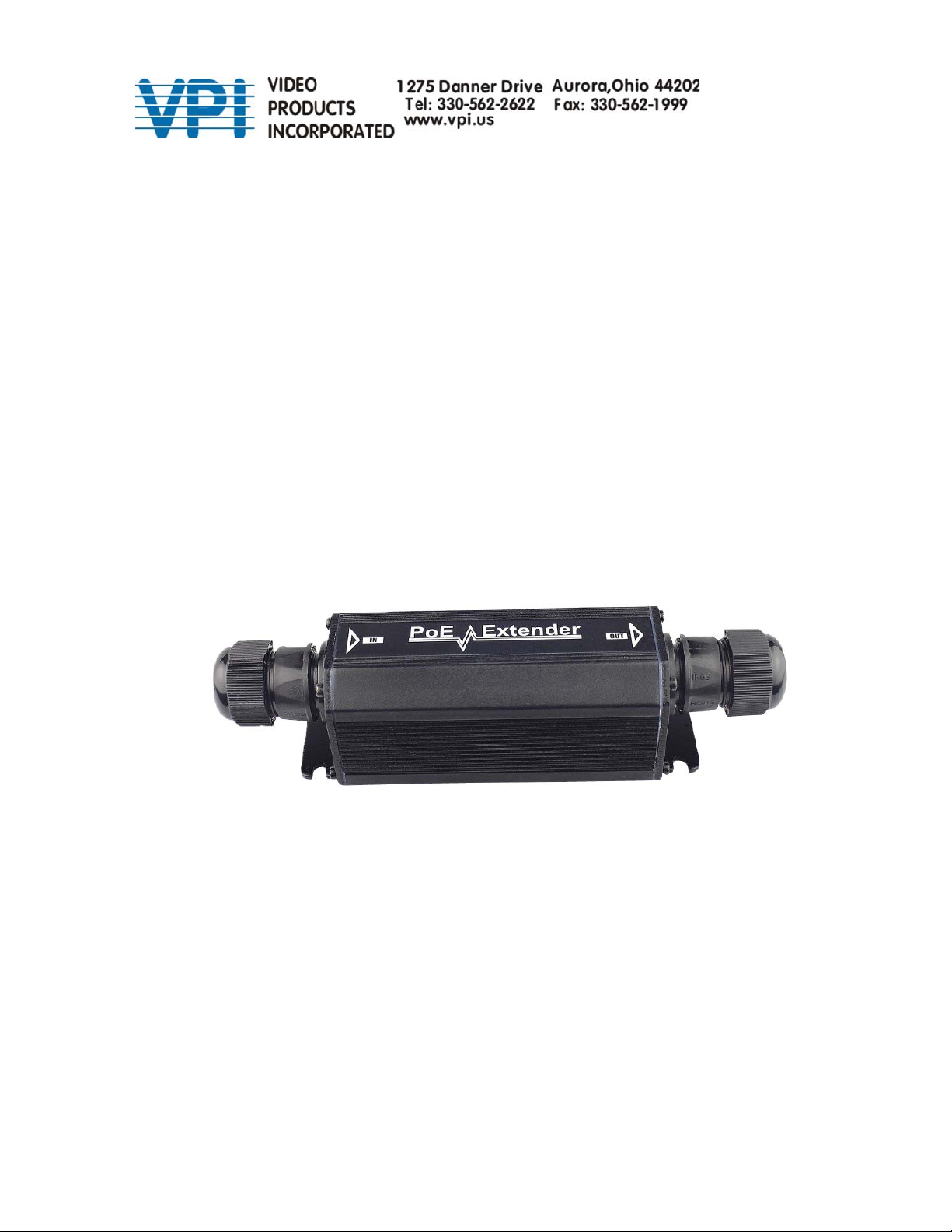

Video Products ST-POE-WTP Bedienungsanleitung
6732(:73
:DWHUSURRI3RZHU2YHU(WKHUQHW([WHQGHU
8VHU0DQXDO
0$15(9
Certification
FCC compliance Class A: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area is likely to
cause harmful interference in which case the user
will be required to correct the interference at his
own expense.
ACMA
compliance Notice! This is a Class A product. In a domestic
environment this product may cause radio
interference in which case the user may be
required to take adequate measures.
European Union
directives 2004/108/EC (EMC directive): Hereby, UTC Fire
& Security declares that this device is in
compliance with the essential requirements and
other relevant provisions of Directive 2004/108/EC
i
Contents
Package Contents 1
Product Features 1
Product Overview 2
Port Connections
In Port
Out Port
Hardware Installation
Before Installation
Power Source Equipment (PSE) Installation
Powered Device (PD) Installation

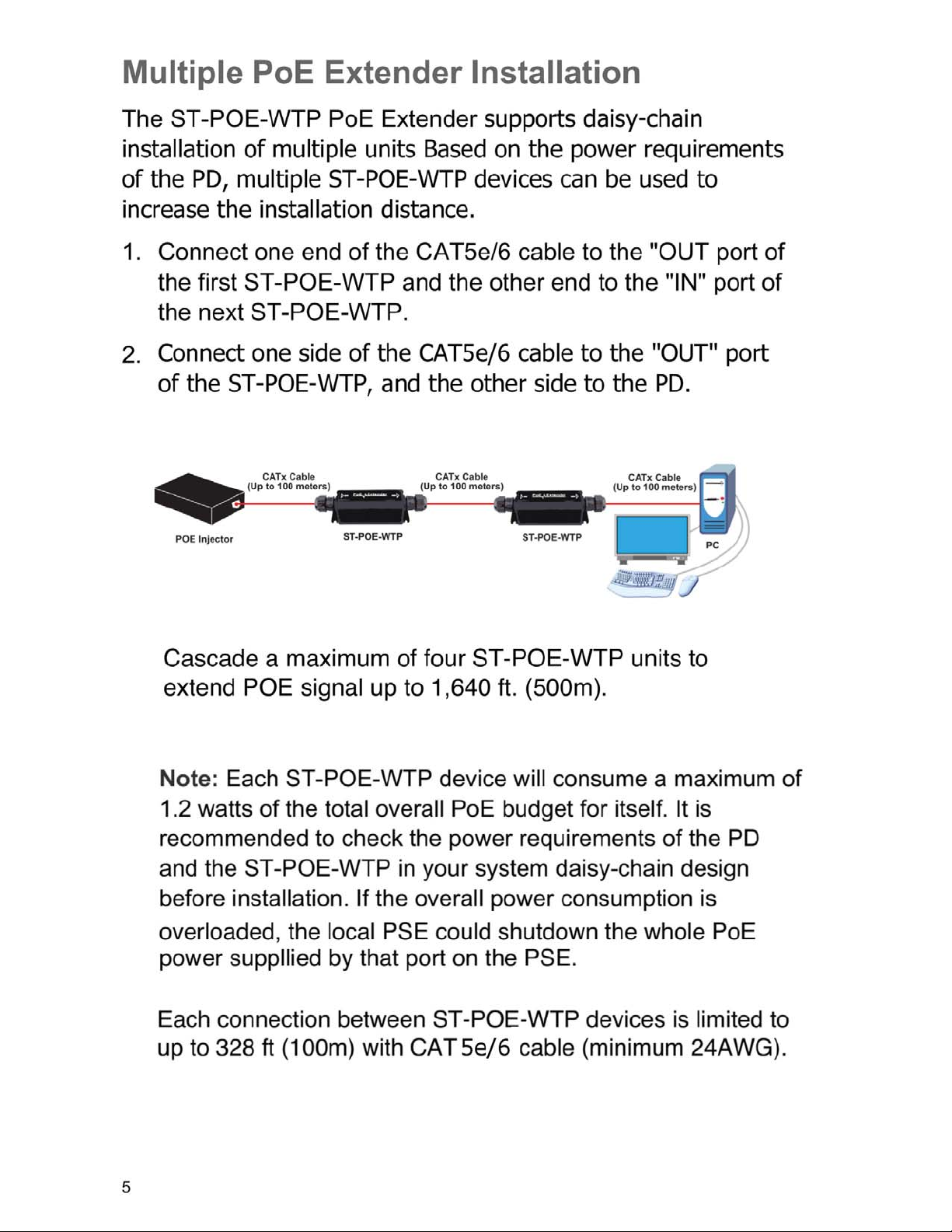

Multiple PoE Extender Installation

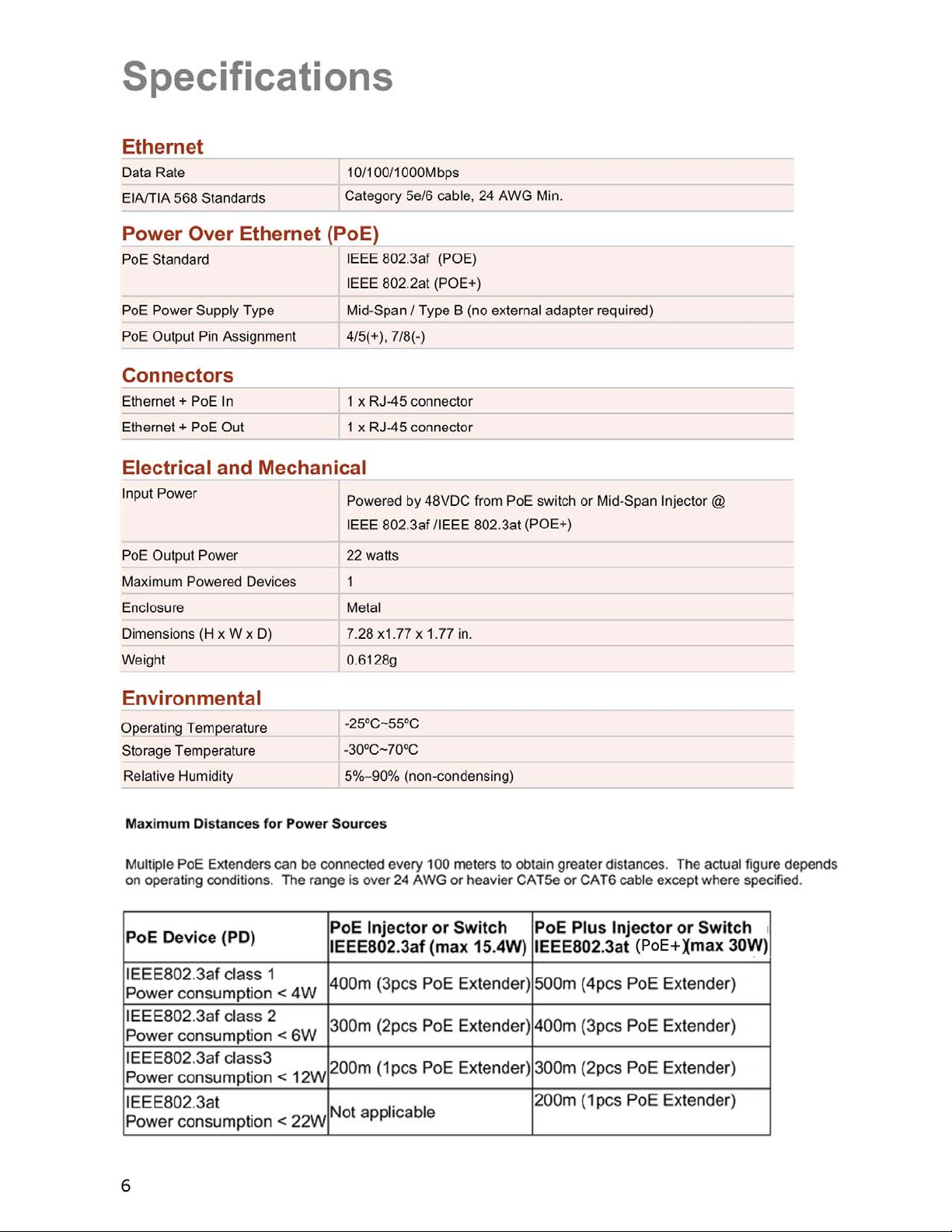

Specifications
1
Package Contents
Thank you for purchasing the S7 POE:73 :DWHUSURRI
*LJDELW3RZHURYHU Ethernet Extender.
Product Features
•Complies with IEEE 802.3af DW32(Power over
Ethernet
• Extends the range of PoE an additional 100 meters (328ft.)
• Forwards both Ethernet data and PoE power to a remote
device
•Auto-detection of POE IEEE 802.3at 32(equipment and
devices to prevent damage caused by incorrect installation.
•Multiple units can be daisy-chained for extended distance
(max. units)
• No external power required
• Compact size, Wall-mountable design
:DWHUSURRI,3GHVLJQ
&$7[FDEOHZLWKDPPPP2'LVUHFRPPHQGHG
IRUZDWHUSURRILQJ
Port Connections
In Port
Connect the PoE IN port from following 802.3af PSE type
devices through a CAT-5e/6 UTP673 cable:
• PoE injector
• PoE Injector Hub
• PoE Ethernet Switch
• Another 67POE:73
Out Port
Connect the PoE OUT port to following 802.3af PD type
devices through a CAT-5e/6 UTP673 cable:
• PoE IP Camera
• PoE VoIP Phone
• PoE Wireless AP
• PoE Splitter
• Another 67POE:73
1RWH7RSDVVWKHFDEOHWKURXJKWKHVHDOVTXHH]H
WKHVHDOWRH[SRVHWKHVSOLW7KHVHDOLVSUHVSOLW
WRDOORZSUHWHUPLQDWHGSDWFKFDEOHVWREHXVHG
Hardware Installation
The 67POE:73 operates at tKUHH different data rates –
10Mbps00MbpsDQG0ESV in the same device and
automatically adjusts based on the speed of incoming connection.
The following section describes the hardware features of the
67POE:73. Carefully read this section before connecting
any network device to this unit.
Before Installation
It is recommended to check the network environment
before the installation. The 67POE-:73 conveniently
extends the distances in an installation base by transferring
power to the remote PDs. (Powered Devices).
The 67POE-:73 is installed between the PSE (Power
Source Equipment) and the PD (Powered Device); it is
powered by PSE and forwards the Ethernet data and
remaining POE power to the PD. The 67POE-:73 doesn’t
require an external power supply and it can be installed easily
just plug and play; that means the operator does not need to
configure the 67POE-:73. The 67POE-:73 injects power
to the PDs without affecting the data transmission
performance. It offers a cost effective and quick solution to
extend power and data for an additional 328 ft. (100m).
Note: The 67POE-:73 can be installed with third-party
devices as long as the connected device complies with
the IEEE 802.3af RU,(((DW32(standardV.
Power Source Equipment (PSE) Installation
1. 5HPRYHWKHOLTXLGWLJKWUHVWUDLQWFDSDQGFonnect a standard
Cat5e/6 cable from Power SourceEquipment (PSE), such as
PoE Switch, PoE Injector hub ora single port PoE injector, to
the “IN” port of 67POE-:73.
2. The PSE delivers both Ethernet Data and PoE power over
the UTP cable to the 67POE-:73
Powered Device (PD) Installation
1. Connect one side of the CAT5e/6 cable to the "OUT" port
of the 67POE-:73, and the other side to the PD.
2. The "OUT" port injects power and transfers data to the PD.

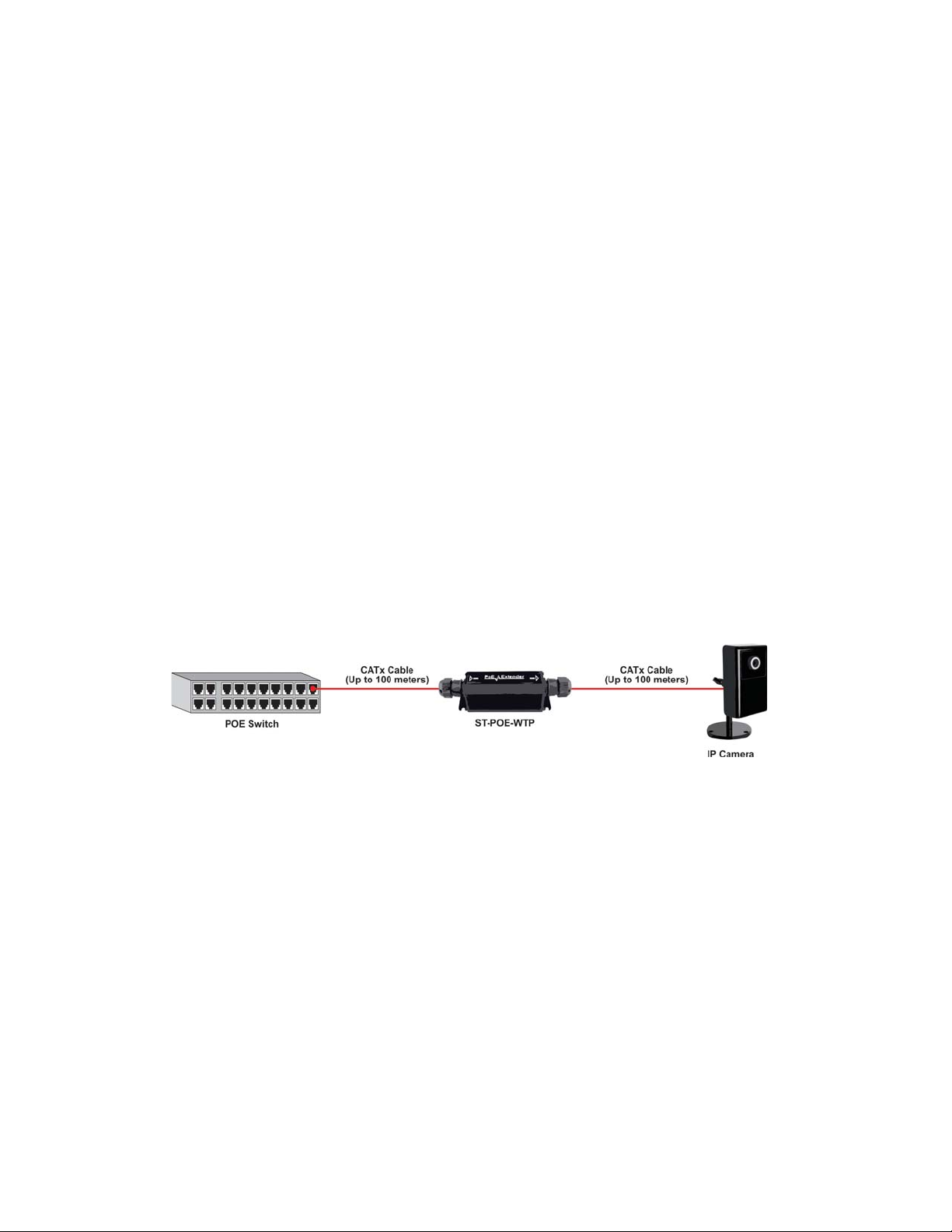

Figure 2: Extender connection diagram
Note: The 67POE-:73will not inject power to a PD that
doesn't comply to the IEEE 802.3af standard.
1RWH:KHQUHDSSO\LQJWKHFDSRIWKHOLTXLGWLJKW
UHVWUDLQWWRWKHUHWUDLQWERG\EHVXUHWRWLJKWHQ
VHFXUHO\WRVTXHH]HWKHVHDODJDLQVWWKHFDEOH
