Viega 8317 Bedienungsanleitung
Model Year built:
8317 from 02/2000
en_INT
Viega Mono bidet block
Instructions for Use
Viega Mono bidet block 2 from 12
Table of contents
1About these instructions for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
2Product information 6
2.1 Intended use 6
2.1.1 Areas of use 6
2.2 Product description 6
2.2.1 Overview 6
2.2.2 Compatible components 7
2.2.3 Sound protection 7
2.3 Required accessories 7
3Handling 8
3.1 Assembly information 8
3.1.1 Mounting conditions 8
3.1.2 Installation dimensions 8
3.1.3 Required tools and materials 9
3.2 Assembly 10
3.2.1 Mounting the Viega Mono 10
3.3 Disposal 12
Table of contents
Viega Mono bidet block 3 from 12
1 About these instructions for use
Trade mark rights exist for this document; for further information, go to
viega.com/legal
.
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
It is not permitted for individuals without the abovementioned training or
qualification to mount, install and, if required, maintain this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns against possible life-threatening injury.
WARNING!
This symbol warns against possible serious injury.
CAUTION!
This symbol warns against possible injury.
NOTICE!
This symbol warns against possible damage to property.
Notes give you additional helpful tips.
About these instructions for use
Viega Mono bidet block 4 from 12
1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e. g. EN) and/or in Germany
(e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The relevant national laws, stand-
ards, regulations, directives and other technical provisions take priority
over the German/European directives specified in this manual: The
information herein is not binding for other countries and regions; as said
above, they should be understood as a recommendation.
About these instructions for use
Viega Mono bidet block 5 from 12
2 Product information
2.1 Intended use
2.1.1 Areas of use
The Viega Mono bidet block is suitable for mounting of wall-mounted
bidets and for walling in or around. The model 8317 is equipped with
height-adjustable mounting brackets for cold and hot water connection
and a wastewater connection.
2.2 Product description
2.2.1 Overview
1
678910
2
3
4
5
12
11
Fig. 1: Components
1 Viega Mono bidet pre-wall block
2 Fixing rail for wall plates with two rubber panels for the sound-pro-
tective fixing of the wall plates
3 Drain elbow DN 40/DN 50, seal for drain elbow
4 Protective collar
5 Mounting rail
6 Fixing material: threaded rods
7 Fixing material: hexagonal nuts
8 Fixing material: dowels and screws
9 Fixing material: threaded rods
Product information
Viega Mono bidet block 6 from 12
10 Mounting angles for wall mounting
11 Protective plug
12 mounting set
2.2.2 Compatible components
The Viega Mono bidet block is compatible with common WC ceramic
types. Fixing material for the bidet block and the ceramic is comprised
in the scope of delivery.
The following compatible components can be used for extensions:
nViega Mono mounting set, model 8310.5
nViega Mono standing bracket, model 8310.45
2.2.3 Sound protection
The compact casing of the Viega Mono product series consist of
expanded polystyrene (EPS). This material offers effective sound pro-
tection and serves as render base.
The rubber panels on the fixing rail for wall plates allow a sound-protec-
tive fixing.
2.3 Required accessories
You require wall plates for the cold and hot water inlet to be able to
connect the bidet block onto the potable water installation.
Sound and site protection through EPS
Sound-protective fixing
Wall plates
Product information
Viega Mono bidet block 7 from 12
3 Handling
3.1 Assembly information
3.1.1 Mounting conditions
With the construction height, the marked height of the upper edge of
the finished floor (UEFFL) must be observed.
The Viega Mono bidet block may only be mounted on even wall sur-
faces (masonry or concrete).
3.1.2 Installation dimensions
180
80-350
OKFFB
230
340
400
490
130-190
60-270
X
145-265
Fig. 2: Dimensional drawing
Construction height
Suitable walls
Handling
Viega Mono bidet block 8 from 12
3.1.3 Required tools and materials
The following tools are required for mounting:
nDrill with 10 mm drill bit
nFork or ring spanner, size 13 and size 17
nRatchet with sockets, 13 and 17 mm
nscrewdriver
nSpirit level
Required tools
Handling
Viega Mono bidet block 9 from 12

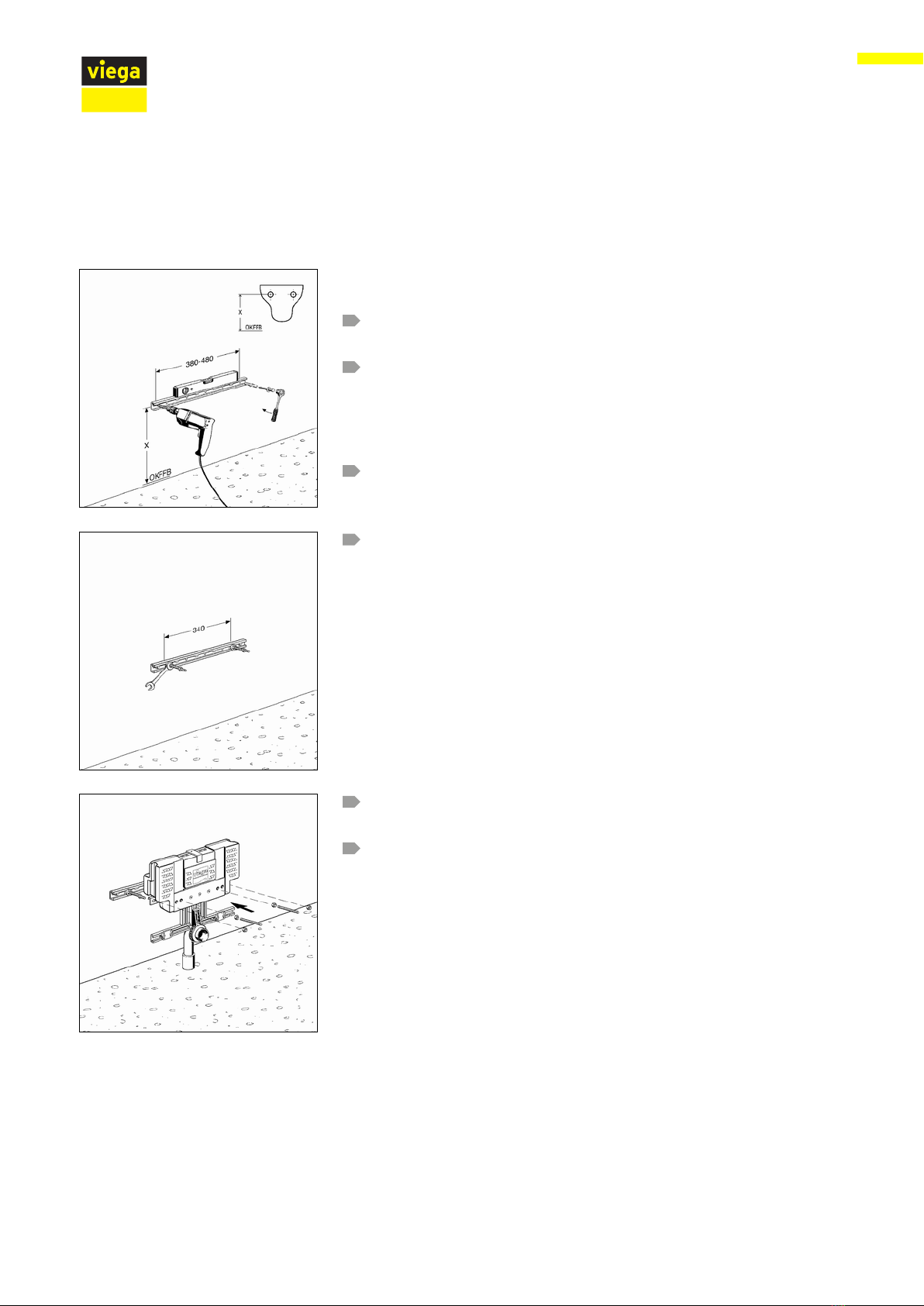

3.2 Assembly
3.2.1 Mounting the Viega Mono
INFO! Fixing height of the bidet ceramic The fixing height of the
bidet ceramic is the drill hole height for rail mounting.
Determine drill hole (height X from UEFFL) height for the mounting
rail.
Position the mounting rail with a spirit level and draw in drill holes.
Observe drill hole interval:
nThe minimum interval is 380 mm.
nThe maximum interval is 480 mm.
Drill holes and screw on mounting rail.
Tighten the threaded bolts from the bidet block at intervals of
340 mm from each other, measured from the middle of each
threaded bolt.
Position the bidet block and attach using the threaded nuts sup-
plied.
Screw threaded bolts for bidet ceramic into the block.
Mounting the rails
Handling
