Contents

Vitodens 100-W Combi from page 4

Vitodens 100-W System

Vitodens 100-W Compact

Vitodens 200-W Combi from page 10

Vitodens 200-W System

Storage combi units from page 14

Vitodens 222-F

Vitodens 242-F

Boiler accessories from page 18

Flues from page 20

Controls from page 28

Cylinders from page 32

Solar from page 38

Support services page 45

Training academy from page 46

Vitodens technical speciﬁcation from page 50

High efﬁciency boilers

2/3

Gas condensing

technology

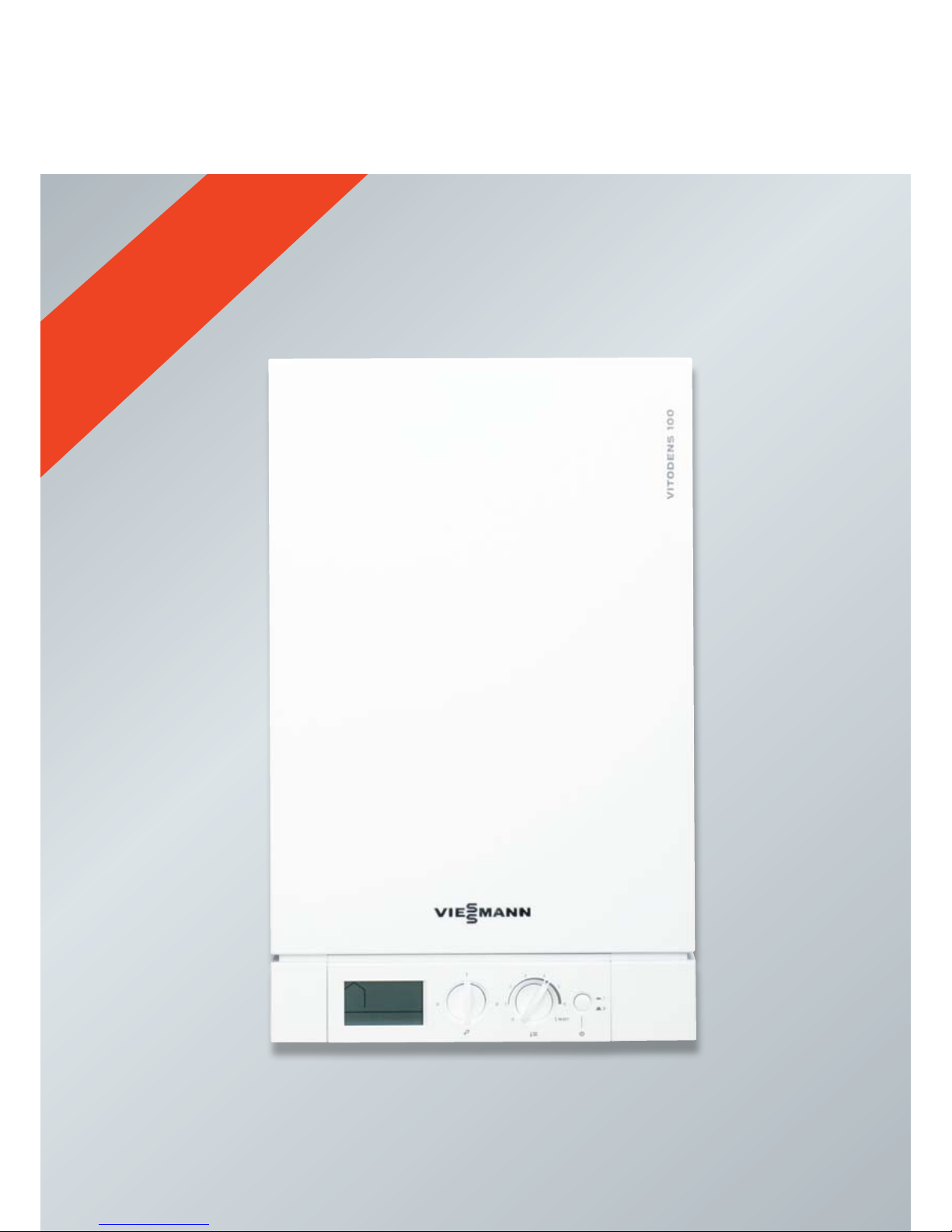

Vitodens 100-W Combi

Comprehensive

warranty as standard

VITODENS 100-W COMBI

The Vitodens 100-W high efﬁciency

gas condensing boiler, manufactured by

Viessmann in Germany, is loaded with

features for easy installation, high efﬁciency

and impressive fuel savings.

MatriX cylinder burner

Patented technology, manufactured

by Viessmann

Inox-Radial heat exchanger

Excellent corrosion resistance

Self-cleaning

Counteracts dirt and sludge deposits

10 year warranty against corrosion

Integral Grundfos AquaBloc hydraulic unit

For easy service and maintenance

Take advantage of these beneﬁts

Heating circuit pump and integral

expansion vessel

For natural gas and LPG (conversion kit

part no. 7828769)

Permissible boiler operating pressure 3 bar

SEDBUK (2005) seasonal efﬁciency 90%

Modulation ratio of 1:3, e.g. 9 kW to 26 kW

Room thermostatic and weather

compensated control unit options

DHW ﬂow rate of up to 14 l/min

Pre-heat facility for better hot

water comfort

Comprehensive ﬂue options

Easy installation

Safety valves and ﬁttings

Fully assembled and wired

Boiler ﬂue connection

Hydraulic accessories

Gas tap

Installation aids are available such as

pre-plumbing jig and rear-piping frames,

please see boiler accessories

DHW output range

Boilers within the range offer the following

outputs of 26 kW, 30 kW, 35 kW

Controls

User control interface with large LCD

Plug in controls for wireless operation

Optional weather compensation control

for additional gas savings of up to 12%

Warranty

5 year comprehensive warranty

as standard

10 year warranty on the Inox-Radial

heat exchanger

Wall mounted gas ﬁred condensing boiler, with modulating MatriX cylinder burner

and Inox-Radial heat exchanger, for open and balanced ﬂue operation with integral

expansion vessel.

Inox-Radial heat exchanger

4/5

Gas condensing

technology

Vitodens 100-W System

Comprehensive

warranty as standard

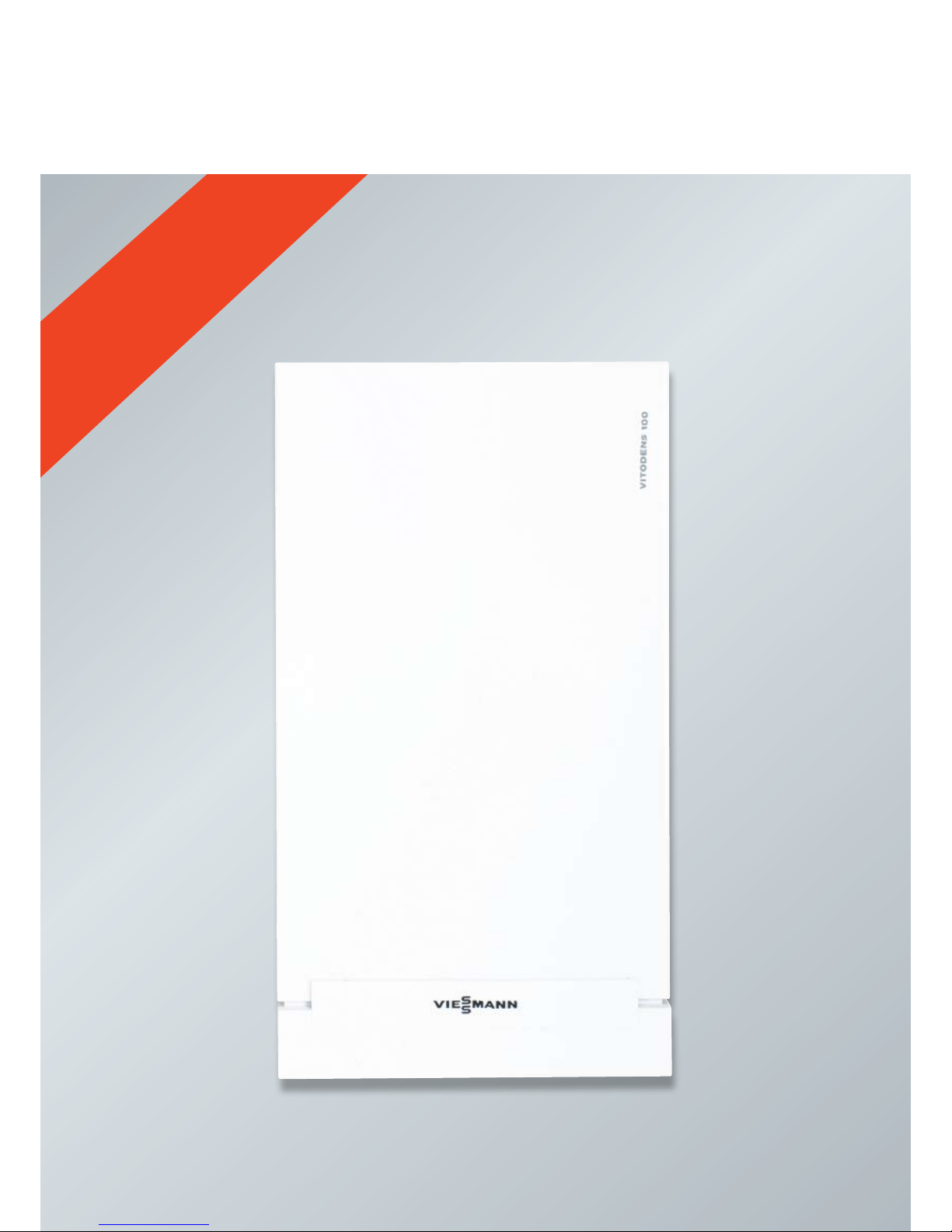

VITODENS 100-W SYSTEM

The Vitodens 100-W high efﬁciency gas

condensing boiler, manufactured by Viessmann

in Germany, is loaded with features for easy

installation, high efﬁciency and impressive

fuel savings.

MatriX cylinder burner

Patented technology, manufactured

by Viessmann

Inox-Radial heat exchanger

Excellent corrosion resistance

Self-cleaning

Counteracts dirt and sludge deposits

10 year warranty against corrosion

Integral Grundfos AquaBloc hydraulic unit

For easy service and maintenance

Take advantage of these beneﬁts

Heating circuit pump and three-way diverter

valve (4-pipe connection)

For natural gas and LPG (conversion kit part

no. 7828769)

Permissible boiler operating pressure 3 bar

SEDBUK (2005) seasonal efﬁciency 90.3%

Modulation ratio of 1:3, e.g. 9 kW to 26 kW

Room thermostatic and weather

compensated control unit options

Compatible with solar thermal panels

Easy installation

Safety valves and ﬁttings

Fully assembled and wired

Boiler ﬂue connection

Hydraulic accessories

Gas tap

Installation aids are available such as

pre-plumbing jig and rear-piping frames,

please see boiler accessories

Installation with a Vitocell 200 or 300

cylinder meets G3 Building Regulations

without the need for an energy cut-off

valve and cylinder overheat thermostat;

these are now built into the boiler. Instead

a DHW temperature sensor (sensor part

no. 7179114) ﬁtted to the cylinder takes

over the hot water control

Optional sub-mounted mixer kit ideal for

UFH installations (only in conjunction with

Vitotronic 200)

CH output range

Boilers within the range offer the following

outputs of 26 kW, 30 kW, 35 kW

Controls

User control interface with large LCD

Plug in controls for wireless operation

Optional weather compensation control for

additional gas savings of up to 12%

Warranty

5 year comprehensive warranty

as standard

10 year warranty on the Inox-Radial

heat exchanger

Wall mounted gas ﬁred condensing system boiler, with modulating MatriX cylinder

burner and Inox-Radial heat exchanger, for open and balanced ﬂue operation with

integral expansion vessel.

MatriX cylinder burner

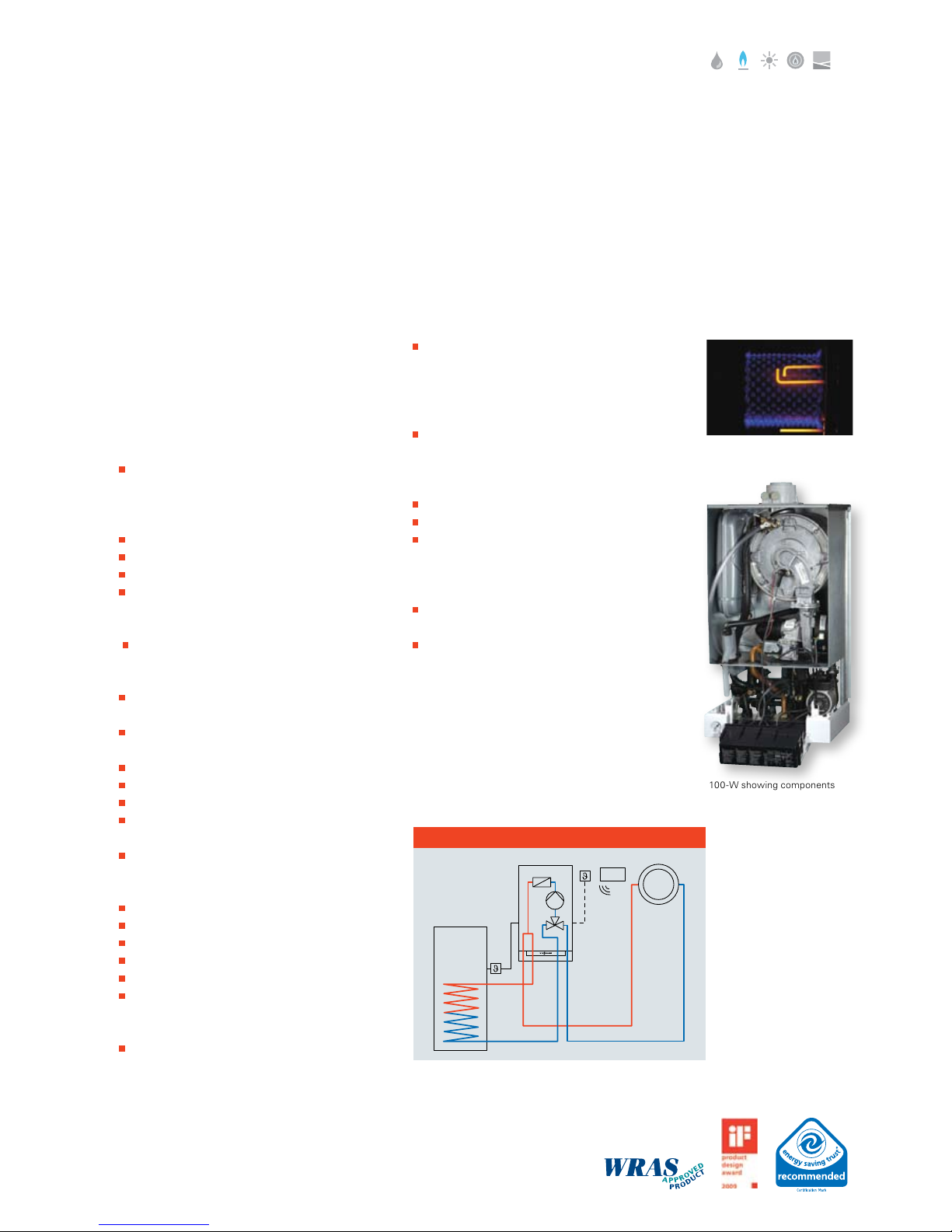

100-W showing components

DHW

sensor

Vitotrol 100

Radiator

4-pipe hydraulic system schematic

6/7

Gas condensing

technology

Vitodens 100-W Compact

Comprehensive

warranty as standard

VITODENS 100-W COMPACT

With a depth of only 285 mm the Vitodens

100-W Compact boiler is perfectly suited for

integration into standard kitchen cupboards.

It can also be used in a vast number of other

applications where there is only limited

space available.

MatriX cylinder burner

Patented technology, manufactured

by Viessmann

Inox-Radial heat exchanger

Excellent corrosion resistance

Self-cleaning

Counteracts dirt and sludge deposits

10 year warranty against corrosion

Take advantage of these beneﬁts

For natural gas and LPG (conversion kit

part no. 7828769)

Permissible boiler operating pressure 3 bar

SEDBUK (2005) seasonal efﬁciency 90.8%

Modulation ratio of 1:3

Room thermostatic and weather

compensated control unit options

Easy installation

Depth of only 285 mm for installation

into standard kitchen wall units

No pump over run required

CH output range

Boilers within the range offer the following

outputs of 13 kW, 16 kW, 19 kW, 26 kW

Warranty

5 year comprehensive warranty

as standard

10 year warranty on the Inox-Radial

heat exchanger

Wall mounted gas ﬁred condensing boiler, with modulating MatriX cylinder burner

and Inox-Radial heat exchanger, for open and balanced ﬂue operation and open

vented heating systems.

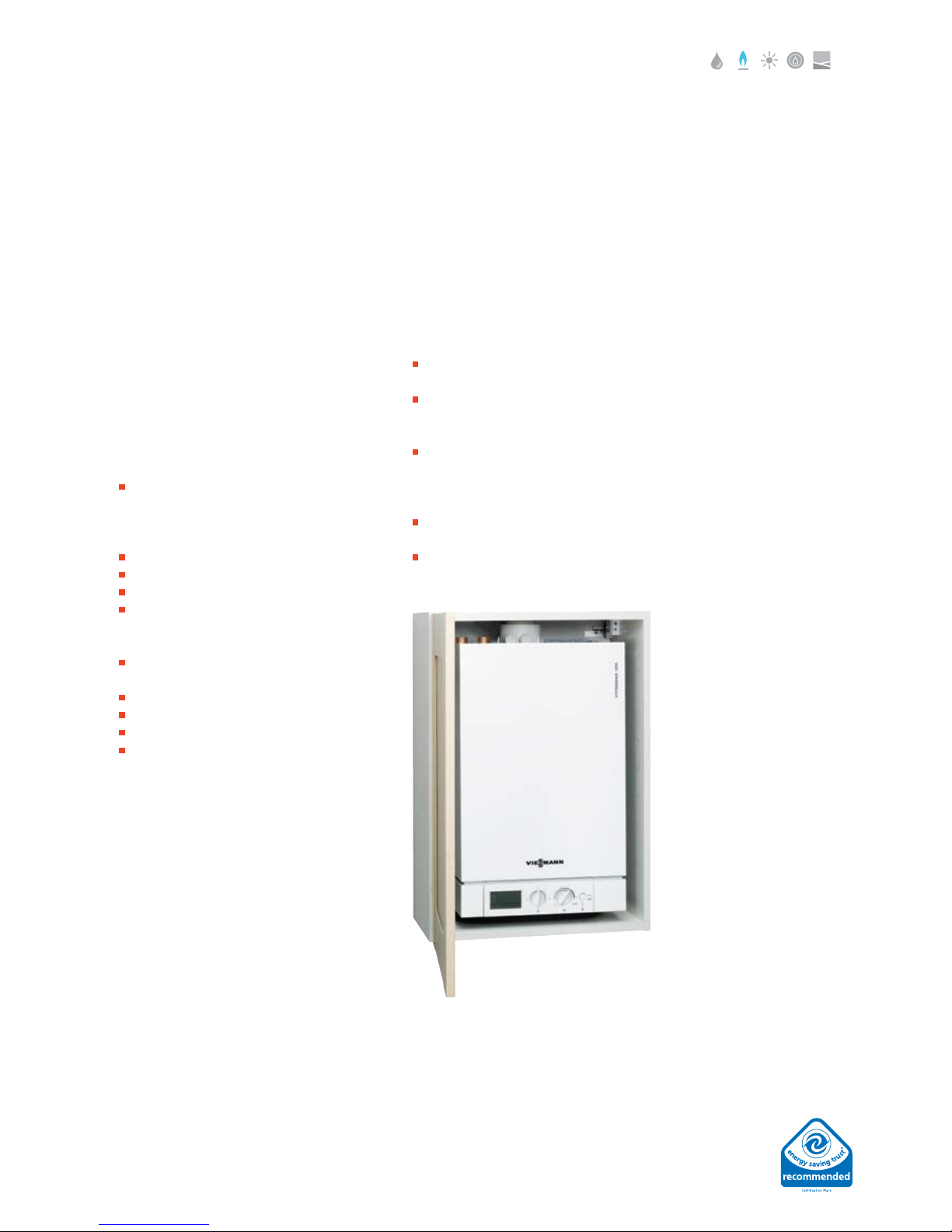

Compact dimensions suitable

for standard kitchen wall units

8/9

Gas condensing

technology

Vitodens 200-W Combi

3 year comprehensive

warranty as standard

5 years if ﬁtted by a Viessmann

trained installer

Andere Handbücher für Vitodens 100-W

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Viessmann Kessel Handbücher

Viessmann

Viessmann Vitocrossal 200 Series Betriebsanleitung

Viessmann

Viessmann Vitodens 222-F Betriebsanleitung

Viessmann

Viessmann Vitoligno 250-S Bedienungsanleitung

Viessmann

Viessmann KOB Pyrotec KPT Series Gebrauchsanweisung

Viessmann

Viessmann VITOLIGNO 300-S Bedienungsanleitung

Viessmann

Viessmann VITOPLEX 300 Betriebsanleitung

Viessmann

Viessmann VITOCELL 100-B Gebrauchsanweisung

Viessmann

Viessmann VITOPLEX 200 Bedienungsanleitung

Viessmann

Viessmann VITOCELL 100-V Kurzanleitung

Viessmann

Viessmann Vitorond 200 Series Bedienungsanleitung

Viessmann

Viessmann VITODENS 200 Betriebsanleitung

Viessmann

Viessmann VITORADIAL 300-T Betriebsanleitung

Viessmann

Viessmann Vitodens 200 WB2 11-44 Bedienungsanleitung

Viessmann

Viessmann Vitodens 100-W Kurzanleitung

Viessmann

Viessmann Vitoladens 300-C Betriebsanleitung

Viessmann

Viessmann Vitodens 200-W System Betriebsanleitung

Viessmann

Viessmann Vitocrossal 300 CA3B Montageanleitung

Viessmann

Viessmann Vitodens 100-W WB1B Series Installations- und Benutzerhandbuch

Viessmann

Viessmann VITOPLEX 200 Type SX2A Betriebsanleitung

Viessmann

Viessmann Vitodens 242-F Kurzanleitung

Viessmann

Viessmann Vitodens 200-W System Bedienungsanleitung

Viessmann

Viessmann WB1A007 Kurzanleitung

Viessmann

Viessmann VITOCROSSAL 300 Bedienungsanleitung

Viessmann

Viessmann Vitopend 100-W Betriebsanleitung

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung

Radiant

Radiant R2K 55 Handbuch
