Viessmann Vitodens 333-F Betriebsanleitung

VIESMANN

Service instructions

for contractors

Vitodens 333-F

Type WS3C

Compact gas fired condensing boiler

3.8 to 26 kW natural gas and LPG version

For applicability, see the last page

VITODENS 333-F

5692 682 GB 6/2008 Please keep safe.

Please follow these safety instructions closely to prevent accidents and

material losses.

Safety instructions explained

Danger

This symbol warns against the

risk of injury.

!Please note

This symbol warns against the

risk of material losses and

environmental pollution.

Note

Details identified by the word "Note"

contain additional information.

Target group

These instructions are exclusively

designed for qualified personnel.

&Work on gas equipment must only

be carried out by a qualified gas fit-

ter.

&Work on electrical equipment must

only be carried out by a qualified

electrician.

&The system must be commissioned

by the system installer or a qualified

person authorised by the installer.

Regulations

Observe the following when working

on this system

&all legal instructions regarding the

prevention of accidents,

&all legal instructions regarding

environmental protection,

&theCodeofPracticeofrelevant

trade associations,

&all current safety regulations as

defined by DIN, EN, DVGW, TRGI,

TRF, VDE and all locally applicable

standards.

If you smell gas

Danger

Escaping gas can lead to

explosions which may result in

serious injury.

&Never smoke. Prevent naked

flames and sparks. Never

switch lights or electrical

appliances ON or OFF.

&Close the gas shut-off valve.

&Open windows and doors.

&Remove all people from the

danger zone.

&Notify your gas or electricity

supplier from outside the

building.

&Shut off the electricity supply

to the building from a safe

place (outside the building).

If you smell flue gas

Danger

Flue gas can lead to life-threa-

tening poisoning.

&Shut down the heating sys-

tem.

&Ventilate the boiler room.

&Closealldoorsleadingtothe

living space.

Safety instructions

5692 682 GB

Workingonthesystem

&When using gas as fuel, also close

the main gas shut-off valve and

safeguard against unauthorised

reopening.

&Isolate the system from the power

supply and check that it is no longer

'live', e.g. by removing a separate

fuse or by means of a main isolator.

&Safeguard the system against

unauthorised reconnection.

!Please note

Electronic modules can be

damaged by electro-static dis-

charges.

Touch earthed objects, such as

heating or water pipes, to dis-

charge static loads.

Repair work

!Please note

Repairing components which

fulfil a safety function can com-

promise the safe operation of

your heating system.

Replace faulty components

only with original Viessmann

spare parts.

Ancillary components, spare and

wearing parts

!Please note

Spare and wearing parts which

have not been tested together

with the heating system can

compromise its function. Instal-

ling non-authorised compo-

nents and non-approved

modifications/conversion can

compromise safety and may

invalidate our warranty.

For replacements, use only ori-

ginal spare parts from

Viessmann or those which are

approved by Viessmann.

Safety instructions (cont.)

Safety instructions

5692 682 GB

Commissioning, inspection, maintenance

Steps - commissioning, inspection and maintenance................................... 6

Further details regarding the individual steps .............................................. 8

Coding

Code 1........................................................................................................ 46

Code 2........................................................................................................ 48

Resetting codes to their delivered condition ................................................ 66

Service scans

Service level overview ............................................................................... 67

Temperatures, boiler coding card and brief scans ........................................ 68

Checking outputs (relay test) ...................................................................... 71

Scanning operating conditions and sensors ................................................ 73

Troubleshooting

Fault display ............................................................................................... 75

Fault codes................................................................................................. 77

Repairs ...................................................................................................... 87

Function description

Constant temperature control unit ............................................................... 100

Weather-compensated control unit.............................................................. 102

Internal extensions for external connections................................................ 104

External extensions for external connections (accessories)......................... 106

Control functions ........................................................................................ 108

Remote control DIP switches ...................................................................... 114

Electronic combustion control unit............................................................... 115

Designs

Connection and wiring diagram –internal connections ................................ 117

Connection and wiring diagram –external connections ............................... 119

Parts lists .................................................................................................. 121

Commissioning/service reports............................................................... 129

Specification............................................................................................. 130

Certificates

Declaration of conformity ............................................................................ 131

Manufacturer's certificate according to the 1st BImSchV [Germany]............. 132

Index

5692 682 GB

Keyword index .......................................................................................... 133

Index (cont.)

Index

5692 682 GB

For further information regarding the individual steps, see the page indicated

Commissioning steps

Inspection steps

Maintenance steps Page

!!!



•1. Filling the heating system ................................................. 8

•2. Venting the boiler.................................................................. 10

•3. Venting the heating system............................................... 10

••• 4. Pivoting down the control unit for commissioning

and maintenance work........................................................ 11

•5. Filling the siphon with water............................................. 12

••• 6. Checking all connections on the heating water

side and DHW side for leaks

•7. Checking the power supply connection

•• 8. Setting the time and date (if required) –only for

weather-compensated control units.............................. 13

•9. Selecting the language (if required) –only for

weather-compensated control units.............................. 13

••10. Checking the gas type......................................................... 14

•11. Gas type conversion (only for operation with LPG).15

••• 12. Function sequence and possible faults ....................... 15

••• 13. Checking the static and supply pressure .................... 17

•14. Setting the maximum output ............................................ 18

•15. Checking the balanced flue system tightness

(annular gap check) ............................................................. 19

•• 16. Removing the burner and checking the burner

gasket (replace gasket every 2 years)........................... 21

•• 17. Checking the burner gauze assembly........................... 22

•• 18. Checking and adjusting the ignition and ionisation

electrodes ................................................................................ 23

•• 19. Cleaning the heat exchanger and fitting the burner 24

•• 20. Checking the condensate drain and cleaning the

siphon........................................................................................ 25

Steps - commissioning, inspection and maintenance

Commissioning, inspection, maintenance

5692 682 GB

Commissioning steps

Inspection steps

Maintenance steps Page

!!!



•• 21. Checking the neutralising system (if installed)

•22. Testing the anode earth current with an anode

tester.......................................................................................... 26

•23. Cleaning the primary cylinder.......................................... 26

•24. Checking and replacing the magnesium anode (if

required)................................................................................... 27

•25. Returning the primary cylinder into use ...................... 28

•• 26. Checking the diaphragm expansion vessel and

system pressure.................................................................... 29

••• 27. Checking the function of all safety valves

••• 28. Checking the tightness of electrical connections

••• 29. Checking all gas equipment for tightness at

operating pressure............................................................... 30

••• 30. Locking the control unit into place ................................ 30

••• 31. Checking the combustion quality................................... 31

••• 32. Checking the external LPG safety valve (if

installed)

•33. Matching the control unit to the heating system ...... 32

•34. Adjusting the heating curves (only for weather-

compensated control units).............................................. 38

•35. Connecting the control unit to the LON system

(only for weather-compensated control units) .......... 41

•36. Instructing the system user .............................................. 43

•37. Scanning and resetting the "Service" display ........... 43

••• 38. Fitting the front panels........................................................ 45

Steps - commissioning, inspection and . . . (cont.)

Commissioning, inspection, maintenance

5692 682 GB

Filling the heating system

!Please note

Unsuitable fill water increases the level of deposits and corrosion and

may lead to boiler damage.

&Thoroughly flush the entire heating system prior to filling it with water.

&Only use fill water of potable quality.

&Soften fill water with hardness exceeding 3.0 mmol/l, e.g. use a small

softening system for heating water (see Vitoset price list).

&An antifreeze additive suitable for heating systems can be mixed with

the fill water.

1. Check the pre-charge pressure of

the diaphragm expansion vessel.

2. Close the gas shut-off valve.

Further details regarding the individual steps

Commissioning, inspection, maintenance

5692 682 GB

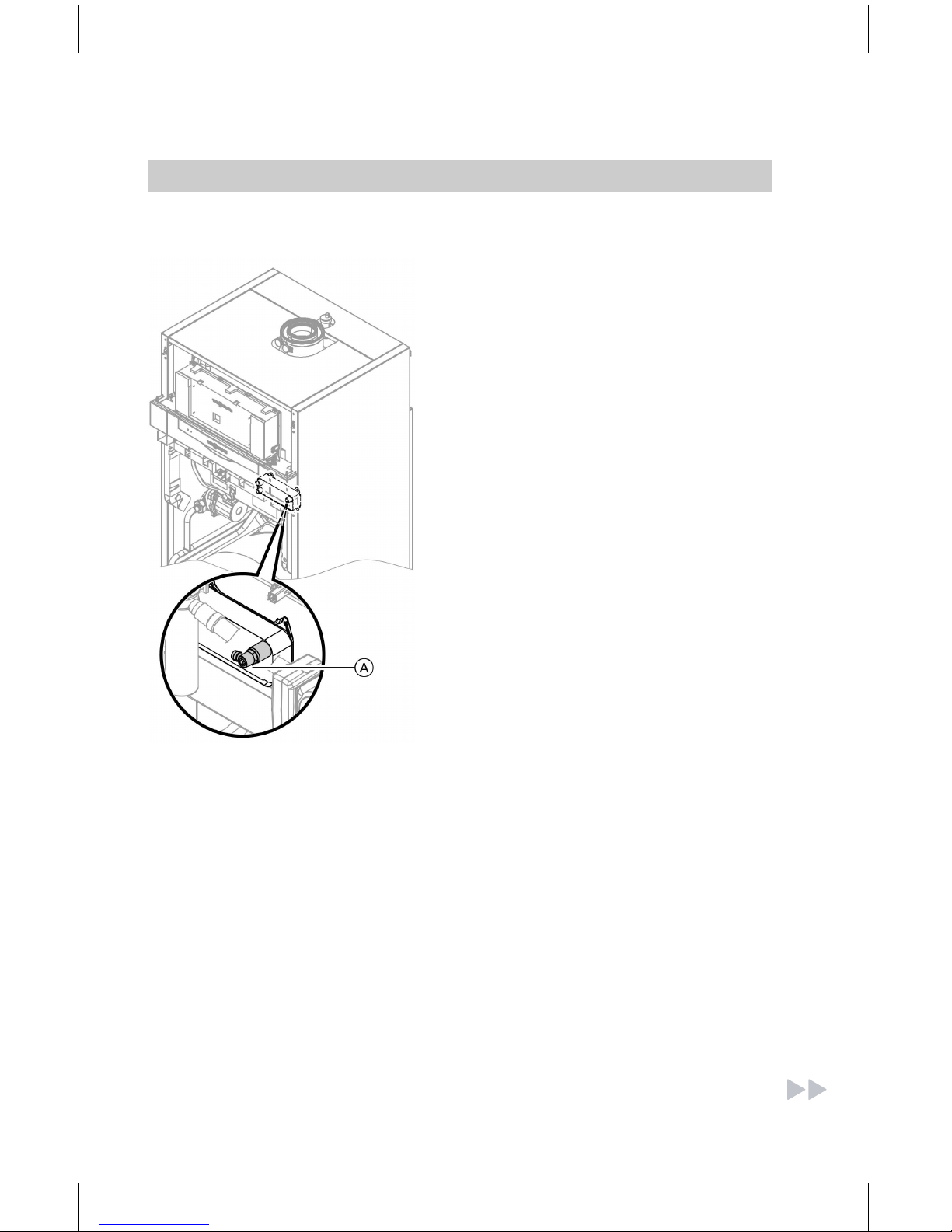

3. Fill the heating system via the boil-

er fill & drain valve Ain the heat-

ing return (at the connection set or

on site). (minimum system pres-

sure > 1.0 bar).

Note

If the control unit has not been

switched ON prior to filling the sys-

tem, then the servomotor of the

diverter valve will still be in its cen-

tral position, and the system will be

completely filled.

4. If the control unit had already been

switched ON before filling began:

Switch ON the control unit and acti-

vate the fill program via coding

address "2F:2".

Note

To call up coding level 1 and for

setting the coding address, see

page 46.

For function and details of the fill

program, see page 109.

Whilst the fill program is running,

the display shows "bF",

Vitotronic 100, or "Befüllung"

(filling), Vitotronic 200.

5. Close boiler fill & drain valveA.

6. Set code "2F:0".

Further details regarding the individual steps (cont.)

Commissioning, inspection, maintenance

5692 682 GB

Venting the boiler

1. Close the shut-off valves on the

heating water side.

2. Connect the drain hose on valve

Awithadrain.

3. Open valve Aand the fill valve in

the heating return and vent using

mains pressure (flush) until no

more air noise can be heard.

4. Close valve Aand the fill valve in

the heating return, and open the

shut-off valves on the heating

water side.

Venting the heating system

1. Close the gas shut-off valve and

switch ON the control unit.

2. Activate the venting program via

coding "2F:1".

Note

To call up coding level 1 and for

setting the coding address, see

page 46.

For function and sequence of the

venting program, see page 109.

Whilst the venting program is run-

ning, the display shows "EL"

(Vitotronic 100) or "Entlüftung"

(venting) (Vitotronic 200).

Further details regarding the individual steps (cont.)

Commissioning, inspection, maintenance

5692 682 GB

Inhaltsverzeichnis

Andere Viessmann Kessel Handbücher

Viessmann

Viessmann VITOGAS 050 Gebrauchsanweisung

Viessmann

Viessmann Vitodens 111-W Kurzanleitung

Viessmann

Viessmann Vitocrossal 300 CA3B Montageanleitung

Viessmann

Viessmann VITODENS 300-W Kurzanleitung

Viessmann

Viessmann Vitodens 300 Betriebsanleitung

Viessmann

Viessmann Vitodens 100-W Kurzanleitung

Viessmann

Viessmann Vitorond 200 Series Betriebsanleitung

Viessmann

Viessmann VITORADIAL 300-T Type VR3 Betriebsanleitung

Viessmann

Viessmann Vitocrossal Betriebsanleitung

Viessmann

Viessmann Vitodens 100-W Bedienungsanleitung

Viessmann

Viessmann Vitodens 222-F Kurzanleitung

Viessmann

Viessmann VIESMANN VITOLIGNO 300-H Kurzanleitung

Viessmann

Viessmann VITOPEND Bedienungsanleitung

Viessmann

Viessmann VITOMAX 200-LW Bedienungsanleitung

Viessmann

Viessmann VITODENS 200-W WB2B 80 Bedienungsanleitung

Viessmann

Viessmann Vitodens 222-F Gebrauchsanweisung

Viessmann

Viessmann Vitodens 200-W System Bedienungsanleitung

Viessmann

Viessmann VITOGAS 100 Gebrauchsanweisung

Viessmann

Viessmann VITOROND 100 VR1 40 Kurzanleitung

Viessmann

Viessmann VITODENS 200 WB2 Series Bedienungsanleitung

Viessmann

Viessmann VITOCROSSAL 300 Bedienungsanleitung

Viessmann

Viessmann VITOPLEX 200 Type SX2A Bedienungsanleitung

Viessmann

Viessmann Vitodens 100-W B1HA Gebrauchsanweisung

Viessmann

Viessmann Vitogas 200-F GS2 Betriebsanleitung

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung

Radiant

Radiant R2K 55 Handbuch
