Viessmann VITOSOLIC 200 Betriebsanleitung

Operating instructions

for the system user

VIESMANN

Control unit for solar thermal systems

VITOSOLIC 200

5608 437 GB 4/2014 Please keep safe.

Please follow these safety instructions closely to prevent accidents and mate-

rial losses.

Safety instructions explained

Danger

This symbol warns against the

risk of injury.

!Please note

This symbol warns against the

risk of material losses and envi-

ronmental pollution.

Note

Details identified by the word "Note" con-

tain additional information.

Target group

These operating instructions are inten-

ded for system users.

This appliance can also be operated by

children of 8 years and older, as well as

by individuals with reduced physical,

sensory or mental faculties or those lack-

ing in experience and knowledge, provi-

ded such individuals are being super-

vised or have been instructed in the safe

use of this appliance as well as in any

risks arising from it.

!Please note

Supervise children in the proxim-

ity of the appliance.

■ Never permit children to play

with the appliance.

■ Cleaning and maintenance

must not be carried out by

unsupervised children.

Appliance connection

■ The appliance may only be connected

and commissioned by authorised con-

tractors.

■ Observe the specified electrical con-

nection requirements.

■ Modifications to the existing installa-

tion may only be carried out by author-

ised contractors.

Danger

Incorrectly executed work on the

system can lead to life-threaten-

ing accidents.

Work on electrical equipment

must only be carried out by a

qualified electrician.

Work on the appliance

■ All settings and work on the appliance

must be carried out as specified in

these operating instructions.

Further work on the appliance may

only be carried out by authorised con-

tractors.

■ Never open the appliance.

■ Never change or remove fitted acces-

sories.

In case of fire

Danger

Fire presents a risk of burns and

explosion.

■ Switch the system OFF.

■ Use a tested fire extinguisher,

class ABC.

Safety instructions

For your safety

5608 437 GB

Auxiliary components, spare and

wearing parts

!Please note

Components that were not tested

with the system may cause sys-

tem damage, or may affect its

functions.

Have all installation or replace-

ment work carried out by qualified

contractors.

Safety instructions

For your safety (cont.)

5608 437 GB

Introductory information

Commissioning..................................................................................................... 5

Operation............................................................................................................ 6

Scanning options

Calling up actual values....................................................................................... 7

Calling up messages............................................................................................ 8

Scanning statement values.................................................................................. 9

Calling up the heat amount.................................................................................. 9

What to do if...

The solar thermal system does not start.............................................................. 11

There is no DHW available................................................................................... 11

The display is dark............................................................................................... 12

The display illumination flashes............................................................................ 12

Calling up faults.................................................................................................... 12

Upkeep

Inspection and maintenance................................................................................ 13

■ DHW cylinder (if installed)................................................................................. 13

■ Safety valve (DHW cylinder)............................................................................. 13

■ Potable water filter (if installed)......................................................................... 13

Damaged cables / lines........................................................................................ 14

Menu overview.................................................................................................... 15

Index

5608 437 GB

The commissioning and adjusting of the

control unit to local conditions and to

building characteristics, plus the instruc-

tion of the user in operating the system,

must be carried out by your heating con-

tractor.

Introductory information

Commissioning

5608 437 GB

Controls

30.04.2009

Tcol

Tcylb

10:59

47.7 °C

35.4 °C

AStandard display

The standard display is shown

automatically after approx. 4 min.

BOK key; to confirm your selection

or save the setting.

Takes you to the previous step in

the menu or cancels a setting that

has been started.

/ Cursor keys

To scroll through the menu.

/ Cursor keys

To adjust values.

To change between standard dis-

play and main menu.

The display only shows 4 lines of text.

The arrow on the left of the display high-

lights the available menu item.

Use / to scroll through the menu.

Operation

5608 437 GB

Press the following keys:

1. for the "Main menu".

2. OK the first 3 actual values will be

displayed.

3. / for the following actual values,

subject to system equipment

level.

4. until the "Main menu"

appears.

"Actual values:" Explanation

"Tcol" Collector temperature in °C

"Tcol2" Collector temperature in an additional collector array in °C

"Tcylb" Actual cylinder temperature in °C

"Tcyl2b" to

"Tcyl4b"

Actual cylinder temperature for additional consumers (e.g.

2nd DHW cylinder) in °C

"Tby" Bypass temperature in °C

"T-HE" Temperature in an external heat exchanger in °C

"Cyl. add." Additional function for DHW heating

"Time"

"Date"

"Relay" Condition of relays

"Sensors" Temperature at the respective sensor in °C

Note

If the sensor inputs are not connected, the breaking value (in-

dicating a lead break) is displayed.

"Intens." Radiation intensity in conjunction with a solar cell

Note

If the input is not connected, the breaking value (indicating a

lead break) is displayed.

A diagram in the standard display ena-

bles you to check the collector and actual

cylinder temperatures over the course of

the day. If your heating contractor has

enabled the heat meter, a diagram is

also displayed showing the heat amount

for the past 7 days.

Repeatedly press , this brings up the

following diagrams:

Scanning options

Calling up actual values

5608 437 GB

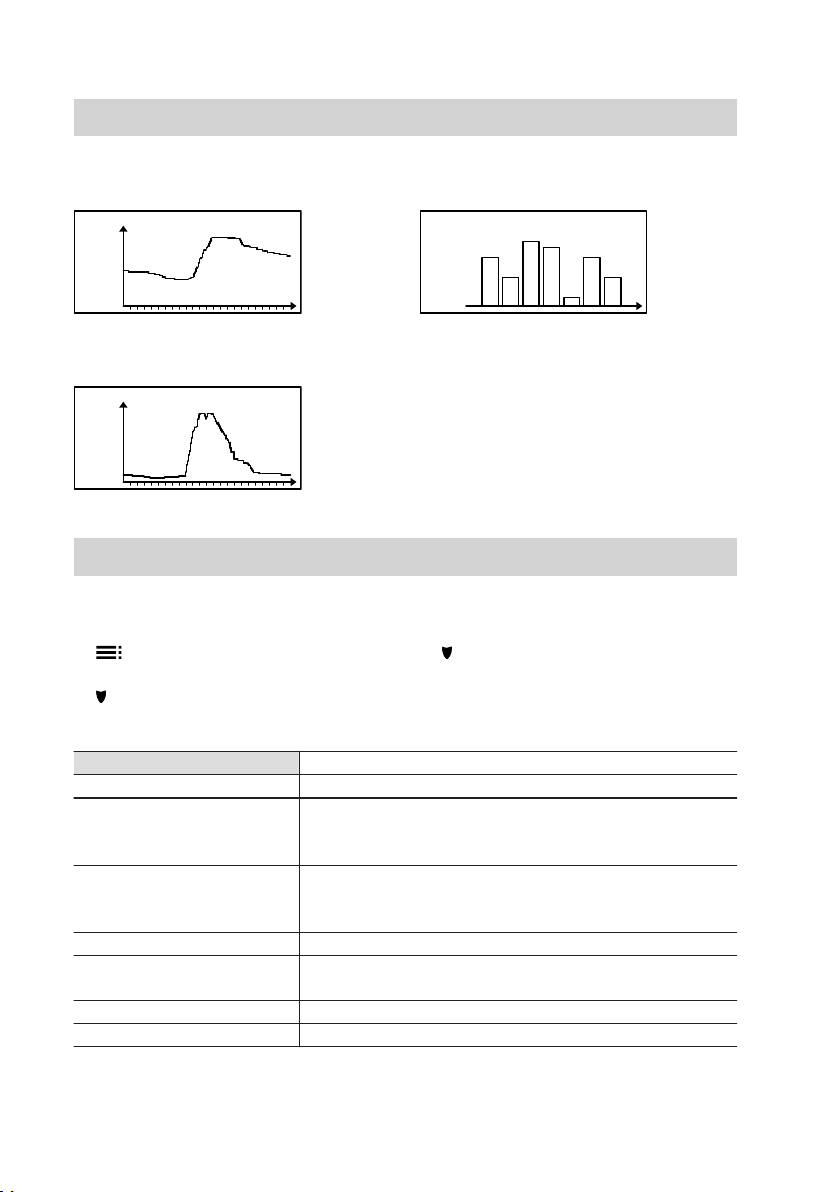

Actual cylinder temperature curve

Tcylb today

Collector temperature curve

Tcol today

Heat amount in kWh

HM 1

5 5

Note

The bar on the very right indicates the

value in kWh for the current day.

Calling up messages

Press the following keys:

1. for the "Main menu".

2. for "Messages".

3. OK to confirm.

4. to display further messages

(see table below).

"Messages:" Explanation

No fault There is no fault at the solar control unit.

"Loading cyl"

(only with several consum-

ers)

The display shows which consumer is being heated.

"Pause cyl"

(only with several consum-

ers)

Only if the "Cyclical heating" function has been ena-

bled by your heating contractor:

Pause in the heating of the displayed consumer.

"Cyl. set" The consumer displayed has reached its set value.

"Fault" A fault has occurred at the solar control unit (to check

the cause, see page 12).

"SW version" Software version (only for service engineers)

"HW version" Hardware version (only for service engineers)

Scanning options

Calling up actual values (cont.)

5608 437 GB

Press the following keys:

1. for the "Main menu".

2. for "Solar".

3. OK to confirm.

4. for "Statement".

5. OK to confirm.

6. / for the following statement val-

ues, subject to system equip-

ment level.

7. until the "Main menu"

appears.

"Statement" Explanation

"Colmax" Maximum collector temperature in °C

"Col2max" Maximum collector temperature in an additional collector ar-

ray in °C

"Cylmax" Maximum cylinder temperature in °C

"Cyl2max" to

"Cyl4max"

Maximum cylinder temperature for additional consumers

(e.g. 2nd DHW cylinder) in °C

"Relay 1" to "Relay

Hours run of the actuators connected at the relay (e.g. solar

circuit pump at R1)

"Days" Days in operation, solar control unit

To reset the values, except value for

days in operation:

Whilst the value is displayed, press the

following keys:

1. OK "Delete?""Yes" is displayed.

2. OK to confirm

Calling up the heat amount

Press the following keys:

1. for the "Main menu".

2. for "HM".

3. OK to confirm.

4. for "HM 1" or "HM 2".

5. OK to confirm.

6. / for the following values, subject

to system equipment level.

Scanning options

Scanning statement values

5608 437 GB

7. until the "Main menu"

appears.

"HM ..." Explanation

"Tflow" Flow temperature in °C

"Tretn" Return temperature in °C

"Heat" Heat amount in Wh

"Heat" Heat amount in kWh

"Heat" Heat amount in MWh

Note

Add the heat values together.

The values are not calibrated.

If there is a power failure, the displayed

value showing the heat amount may be

up to 6 hours old.

To reset the heat amount values:

Whilst the value is displayed, press the

following keys:

1. OK "Delete?""Yes" is displayed.

2. OK to confirm

Scanning options

Calling up the heat amount (cont.)

5608 437 GB
