Viessmann VITOSOL 200-F Bedienungsanleitung

Installation instructions

for contractors

VIESMANN

Vitosol 200-F

Type SVK

Flat-plate collector for sloping roofs; above roof installation

VITOSOL 200-F

5782 246 GB 6/2013 Dispose after installation.

Please follow these safety instructions closely to prevent accidents and mate-

rial losses.

Safety instructions explained

!Please note

This symbol warns against the

risk of material losses and envi-

ronmental pollution.

Note

Details identified by the word "Note" con-

tain additional information.

Target group

These instructions are exclusively inten-

ded for qualified contractors.

■ Work on electrical equipment must

only be carried out by qualified electri-

cians.

Regulations

Observe the following when working on

this system:

■ National installation regulations

■ Statutory regulations regarding the

prevention of accidents

■ Statutory regulations regarding envi-

ronmental protection

■ The Code of Practice of relevant trade

associations

■ All current safety regulations as

defined by DIN, EN, DVGW, VDE and

all locally applicable standards

aÖNORM, EN and ÖVE

cSEV, SUVA, SVTI, SWKI and

SVGW

Working on the system

■ Isolate the system from the power sup-

ply (e.g. by removing the separate fuse

or by means of a mains isolator) and

check that it is no longer 'live'.

■ Safeguard the system against recon-

nection.

Safety instructions

5782 246 GB

Intended use....................................................................................................... 4

Installation sequence

Installation with rafter hooks................................................................................. 5

■Components...................................................................................................... 5

■ Mounting the fixing system............................................................................... 5

Installation with roof hooks/mounting brackets..................................................... 11

■ Components...................................................................................................... 11

■ Mounting roof hooks......................................................................................... 12

■ Fitting mounting brackets.................................................................................. 16

■ Fitting mounting rails......................................................................................... 17

Installation with rafter anchors.............................................................................. 18

■ Components...................................................................................................... 18

■ Mounting the fixing system............................................................................... 18

Installing and connecting the collectors................................................................ 25

Fitting the collector temperature sensor............................................................... 27

Commissioning..................................................................................................... 28

Index

5782 246 GB

The appliance is only intended to be

installed and operated in sealed unven-

ted systems that comply with EN 12828 /

DIN 1988, or solar thermal systems that

comply with EN 12977, with due atten-

tion paid to the associated installation,

service and operating instructions. DHW

cylinders are only designed to store and

heat water of potable water quality. Heat-

ing water buffer cylinders are only

designed to hold fill water of potable

water quality. Only operate solar collec-

tors with the heat transfer medium

approved by the manufacturer.

Intended use presupposes that a fixed

installation in conjunction with permissi-

ble, system-specific components has

been carried out.

Commercial or industrial usage for a pur-

pose other than heating the building or

DHW shall be deemed inappropriate.

Any usage beyond this must be

approved by the manufacturer for the

individual case.

Incorrect usage or operation of the appli-

ance (e.g. the appliance being opened

by the system user) is prohibited and

results in an exclusion of liability.

Incorrect usage also occurs if the com-

ponents in the system are modified from

their intended use (e.g. through direct

DHW heating in the collector).

Adhere to statutory regulations, espe-

cially concerning the hygiene of potable

water.

Intended use

5782 246 GB

Components

2240

1 432

5 6 7

1Rafter hook

2Support bracket

3Screws

4Mounting rail

5Mounting plate

6Clamping bracket, external

7Clamping bracket, internal

Mounting the fixing system

A specific number of rafters need to be

used for fitting the rafter hooks. This

number depends on the rafter spacing.

Installation with rafter hooks

5782 246 GB

Rafter spacing

≤600 mm ≥700 mm, ≤1000 mm

1234

123

APosition of rafter hooks (4 pce)

Installation with rafter hooks (cont.)

5782 246 GB

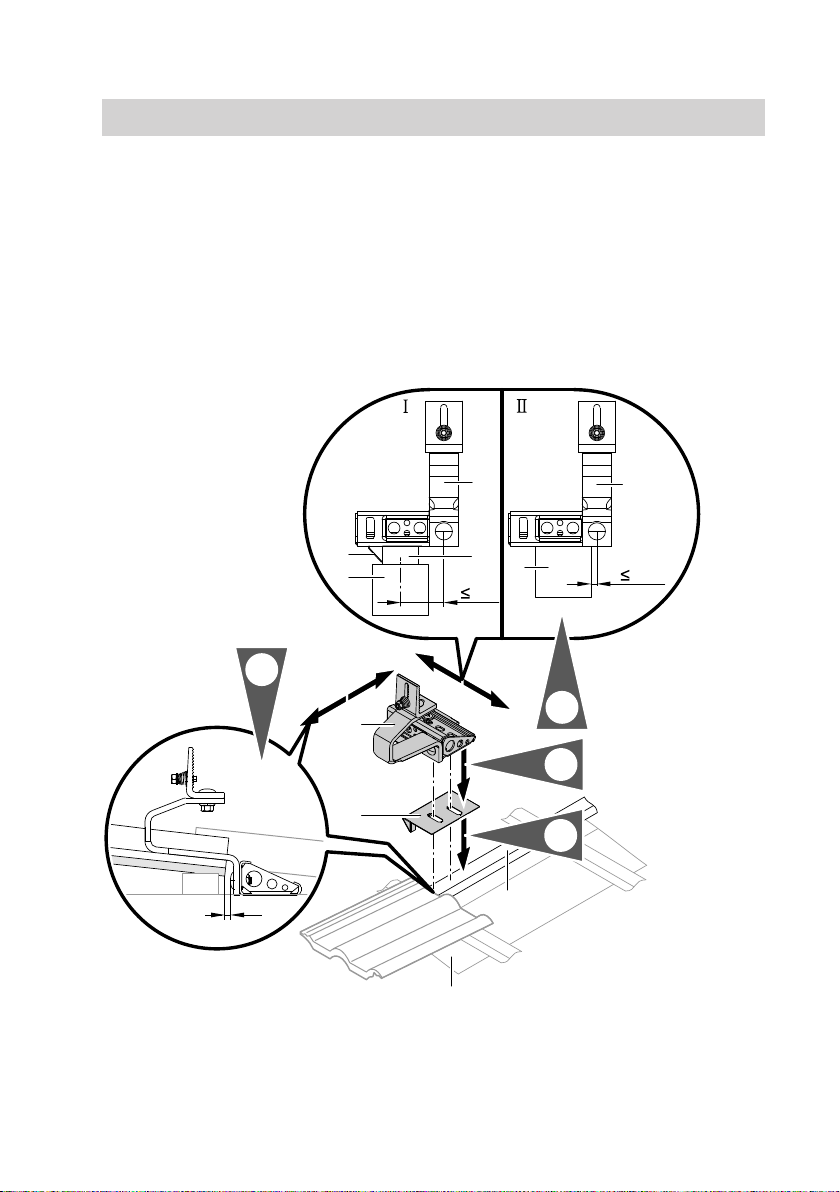

■Version I:

Fitting rafter hook 1 onto counter bat-

ten C with support bracket 2

■Version II:

Fitting rafter hook 1 directly onto raf-

ter B

■ Trim the roof tiles with an angle

grinder, for example by removing drip

tabs.

!Please note

Take care to avoid breaking

tiles.

The rafter hook must not be posi-

tioned on top of the roof tiles.

Observe the dimensions.

B75

Installation with rafter hooks (cont.)

5782 246 GB

Installation with rafter hooks (cont.)

5782 246 GB

Installation with rafter hooks (cont.)

5782 246 GB

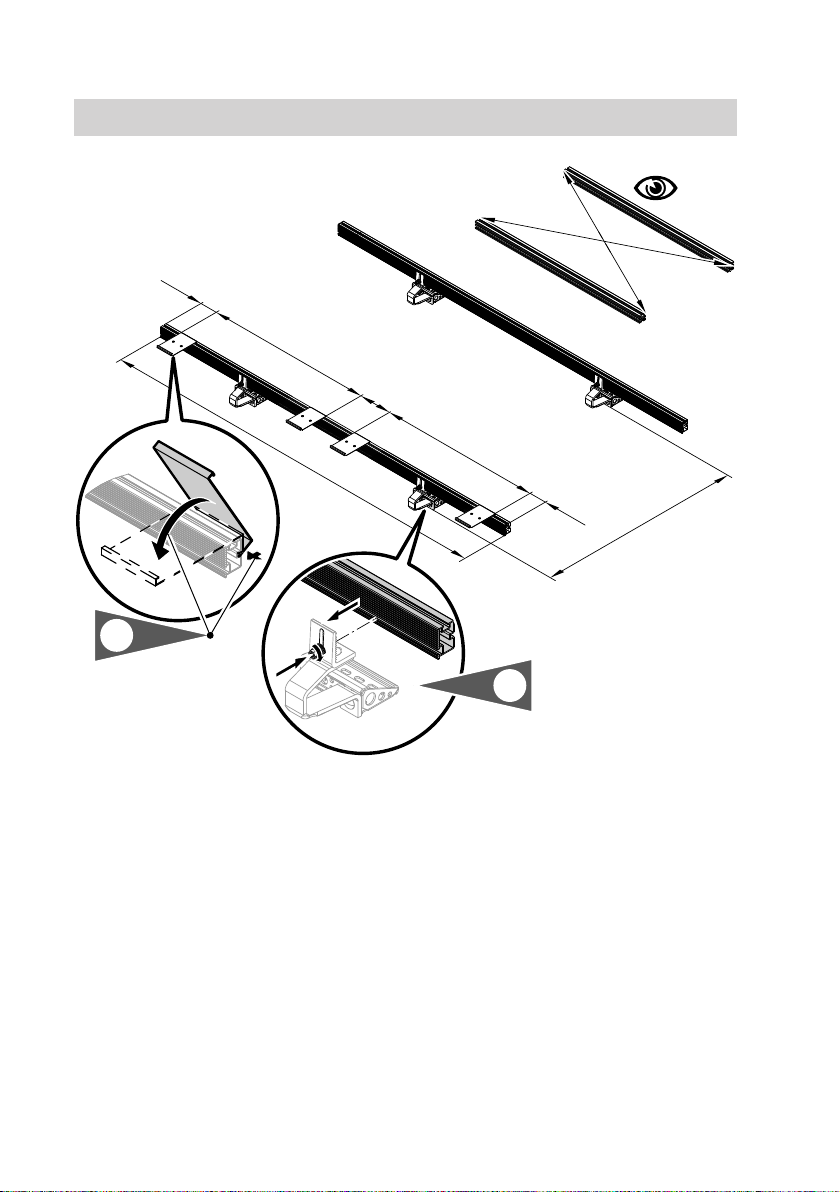

2240

90°

10.

106 106

923 182 923

11.

1600-1800

Maximum deviation from dimensions x and y 10 mm.

Continue with "Installing and connecting

the collectors" (see page 25).

Installation with rafter hooks (cont.)

5782 246 GB
