Viessmann Vitosol 200-T Bedienungsanleitung

Installation instructions

for contractors

VIESMANN

Vitosol 200-T

Type SP2

Vacuum tube collector based on the heat pipe principle

VITOSOL 200-T

5727 196 GB 6/2010 Dispose after installation.

Please follow these safety instructions closely to prevent accidents and mate-

rial losses.

Safety instructions explained

Danger

This symbol warns against the

risk of injury.

!Please note

This symbol warns against the

risk of material losses and envi-

ronmental pollution.

Note

Details identified by the word "Note" con-

tain additional information.

Target group

These instructions are exclusively

designed for qualified personnel.

■ Work on electrical equipment must

only be carried out by a qualified elec-

trician.

Regulations

Observe the following when working on

this system

■ All legal instructions regarding the pre-

vention of accidents,

■ All legal instructions regarding envi-

ronmental protection

■ The Code of Practice of relevant trade

associations,

■ All current safety regulations as

defined by DIN, EN, DVGW, VDE and

all locally applicable standards.

aÖNORM, EN and ÖVE

cSEV, SUVA, SVTI, SWKI and

SVGW

■ Gas Safety (Installation & Use) Reg-

ulations

– the appropriate Building Regulation

either the Building regulations, the

Building Regulation (Scotland),

Building Regulations (Northern Ire-

land),

– the Water Fittings Regulation or

Water Bylaws in Scotland,

– the current I.E.E. Wiring Regula-

tions.

Working on the system

■ Isolate the system from the power sup-

ply and check that it is no longer 'live',

e.g. by removing the separate fuse or

by means of a main isolator.

■ Safeguard the system against unau-

thorised reconnection.

Safety instructions

5727 196 GB

Installation sequence

Horizontal above roof installation......................................................................... 4

■Installation with rafter anchors.......................................................................... 4

■Installation with mounting brackets................................................................... 13

■ Installing the header casing.............................................................................. 16

Vertical above roof installation............................................................................. 17

■ Observe prior to installation.............................................................................. 17

■ Installation with rafter anchors.......................................................................... 20

■ Installation with mounting brackets................................................................... 27

■ Installing the header casing.............................................................................. 30

Making the hydraulic connections........................................................................ 30

■ Connecting the header casing.......................................................................... 30

■ Fitting the connection set.................................................................................. 31

■ Fitting the vacuum tubes................................................................................... 33

Fitting the collector temperature sensor............................................................... 35

Installation............................................................................................................ 36

Commissioning and adjustment........................................................................... 37

Index

5727 196 GB

Installation with rafter anchors

Components

1439/2148

M8x25 Ø8.4 M8

2025

Horizontal above roof installation

5727 196 GB

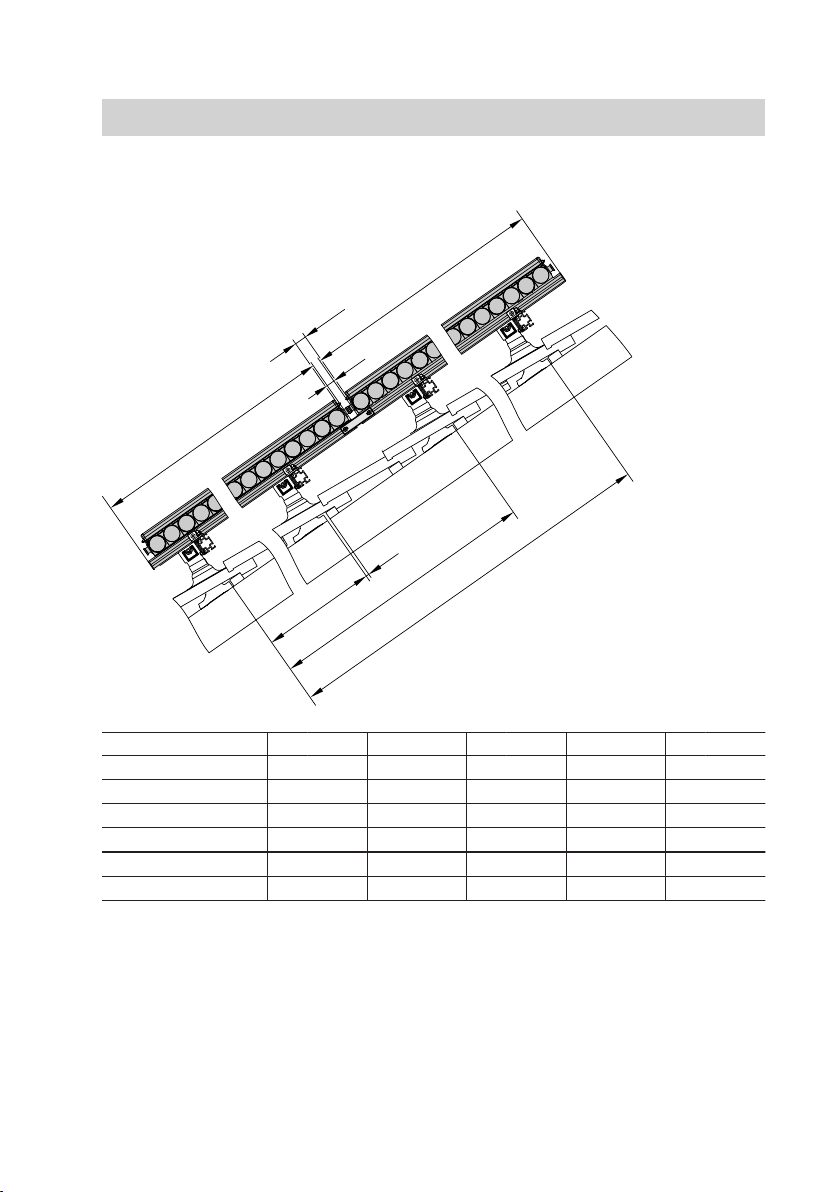

Overview

102

Combination a mm b mm c mm d mm e mm

2 m21439 — 850 — —

3 m22148 — 1260 — —

2 m2/2 m21439 1439 850 1520 2370

2 m2/3 m21439 2148 850 1670 2930

3 m2/2 m22148 1439 1260 2080 2930

3 m2/3 m22148 2148 1260 2230 3490

Horizontal above roof installation (cont.)

5727 196 GB

Installation

≈ 40

Horizontal above roof installation (cont.)

5727 196 GB

For the distance between the rafter anchors, see page 5.

Installation of the rafter anchors:

Of the 3 rafters that are required for the

overall width, leave the centre rafter

A free.

Horizontal above roof installation (cont.)

5727 196 GB

10. 11.

Horizontal above roof installation (cont.)

5727 196 GB

12.

13.

14.

15.

16.

Horizontal above roof installation (cont.)

5727 196 GB

90°

17.

Rafter distance d in mm Projection e in mm

600 400

700 400

800 300

Horizontal above roof installation (cont.)

5727 196 GB
