ViewZ 22-INCH TFT-LCD Bedienungsanleitung

22-INCH TFT-LCD

PUBLIC VIEW MONITOR

INSTRUCTION MANUAL

Please read this manual thoroughly before use, and keep it handy for future reference.

SAFETY INSTRUCTION ………………………………………………………….……

2 ~ 3

CAUTIONS ……………………………………………………………..........................

FCC RF INTERFERENCE STATEMENT …………………………….......................

CONNECTING WITH EXTERNAL EQUIPMENT ……………………………………

REMOTE FUNCTIONS …………………………………………………………………

CONTROLS AND FUNCTIONS ………………………………………………………..

8 ~ 23

MOUNTING GUIDE ……………………………………………………………………..

D-SUB CONNECTOR PIN ASSIGNMENTS …………………………………………

POWER MANAGEMENT ………………………………………………………………

SPECIFICATIONS ………………………………………………………………………

27 ~ 30

TROUBLE SHOOTING GUIDE ………………………………………………….........

INSTRUCTION MANUAL ………………………………………………………………………. 1

This Monitor was

Manufactured by ISO 9001

Certified Factory

Important Safety Instruction

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers,stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.

Apolarized plug has two blades with one wider than the other.

Agrounding type plug has two blades and a third grounding prong.

The wide blade or the third prong are provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement

of the bsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles and the point where they exit from the apparatus.

11. Only use attachment/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or

sold with the apparatus. When a cart is used, use caution when moving

the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus the apparatus has been exposed to

rain or moisture does not operate normally or has been dropped.

2 ………………………………………………………………………. INSTRUCTION MANUAL

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed no the apparatus.

14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.

“WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.”

“The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.”

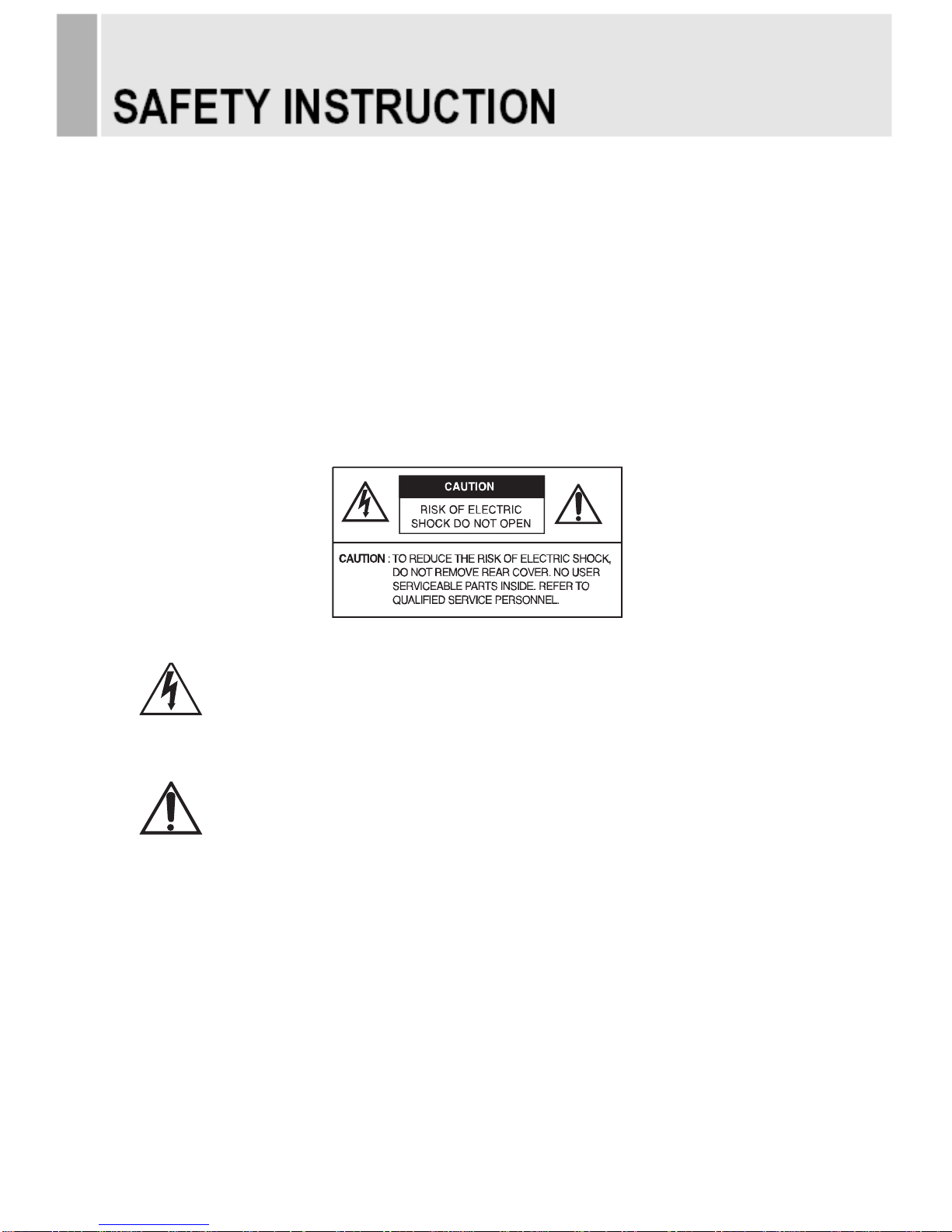

This symbol is intended to alert the user to the presence of uninsulated :

dangerous voltage with in the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating

and maintenance(servicing) instructions in the literature accompanying the

appliance.

INSTRUCTION MANUAL ………………………………………………………………………. 3

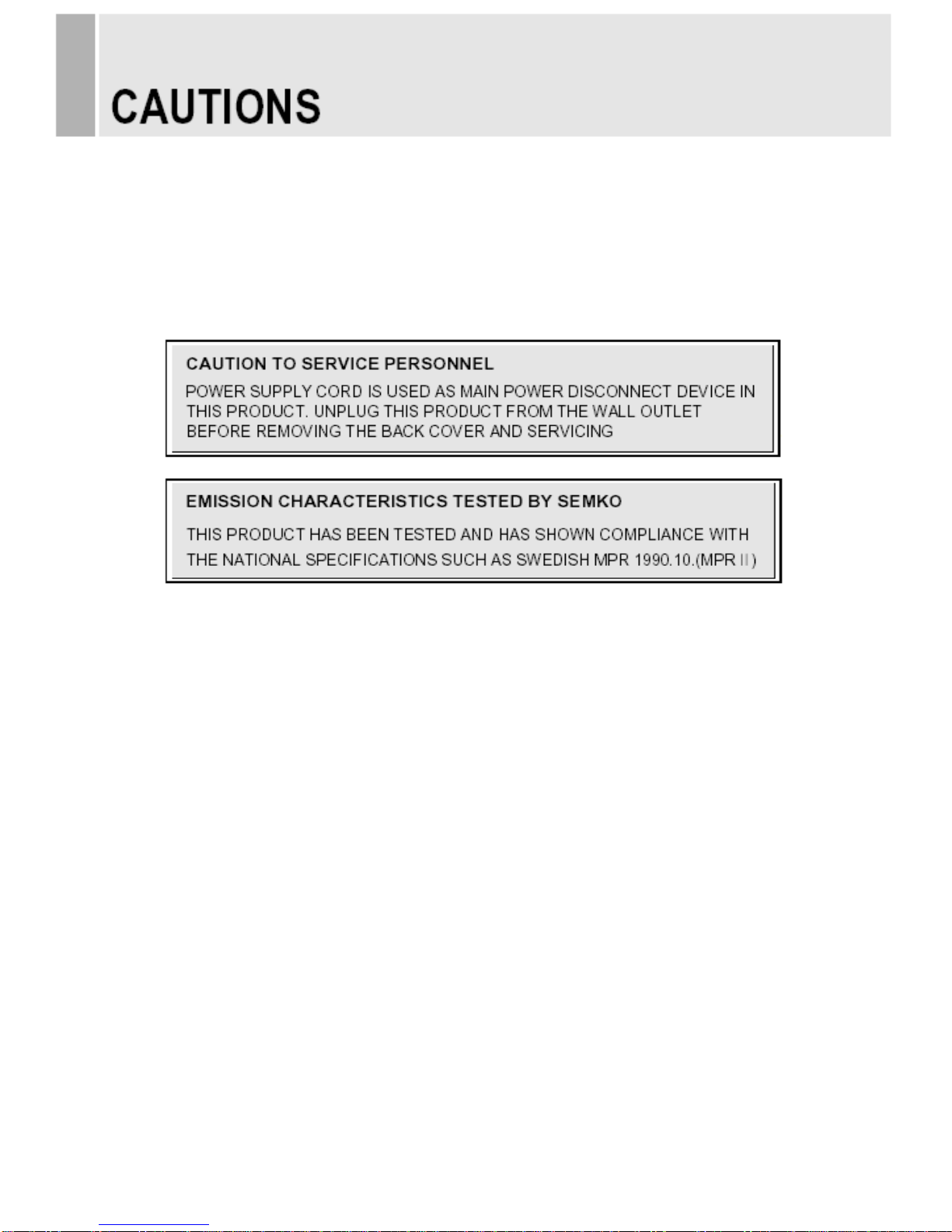

CAUTION

The power supply cord is used as the main disconnect device, ensure that the socket-outlet is

located/installed near the equipment and is easily accessible.

ATTENTIONN

Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être

située ou installée à proximité du matériel et être facile d`accès

▶NEVER REMOVE THE BACK COVER

Removal of the back cover should be carried out only by qualified personnel.

▶DO NOT USE IN HOSTILE ENVIRONMENTS

To prevent shock or fire hazard, do not expose the unit to rain or moisture.

This unit is designed to be used in the office or home. Do not subject the unit to vibrations,

dust of corrosive gases.

▶KEEP IN A WELL VENTILATED PLACE

Ventilation holes are provided on the cabinet to prevent the temperature from rising.

Do not cover the unit or place anything on the top of unit.

▶AVOID HEAT

Avoid placing the unit in direct sunshine or near a heating appliance.

▶TO ELIMINATE EYE FATIGUE

Do not use the unit against a bright back ground and where sunlight or other light sources will

shine directly on the monitor.

▶BE CAREFUL OF HEAVY OBJECT

Neither the monitor itself nor any other heavy object should rest on the power cord.

Damage to a power cord can cause fire or electrical shock.

4 ………………………………………………………………………. INSTRUCTION MANUAL

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio, TV technician for help.

- Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by

the grantee or manufacturer could void the users authority to operate such equipment.

▶DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital

apparatus set out in the radio interference regulation of Canadian Department of

communications.

INSTRUCTION MANUAL ………………………………………………………………………. 5

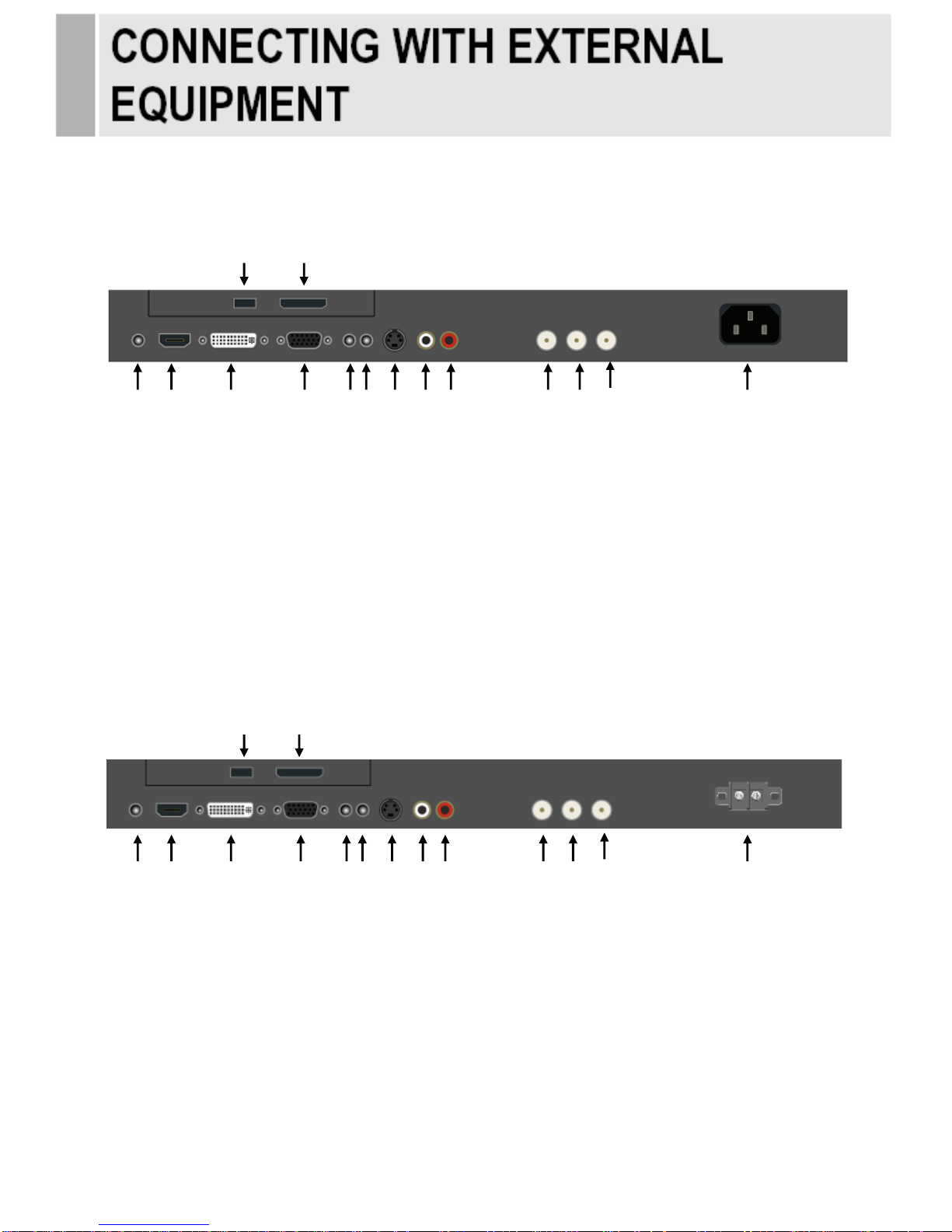

A. TOP PANEL CONTROL

A-1. AC IN Type

1. DC 12V IN

2. HDMI IN

3. DVI IN

5. PC STEREO IN

7. S-VIDEO (Y/C) IN

10. CAMERA OUT

11. AV2 (VIDEO2) IN

13. AC IN

15. SD CARD READER (Optional)

A-2. AC 24V IN Type

4. VGA (D-SUB) IN

6. AUDIO OUT (Speaker)

8 & 9. AUDIO IN(R+L) for AV1, AV2

and S-VIDEO

12. AV2 (VIDEO2) OUT

14. USB 2.0 (Optional)

1. DC 12V IN

2. HDMI IN

3. DVI IN

5. PC STEREO IN

7. S-VIDEO (Y/C) IN

10. CAMERA OUT

11. AV2 (VIDEO2) IN

13. AC 24V IN

15. SD CARD READER (Optional)

4. VGA (D-SUB) IN

6. AUDIO OUT (Speaker)

8 & 9. AUDIO IN(R+L) for AV1, AV2

and S-VIDEO

12. AV2 (VIDEO2) OUT

14. USB 2.0 (Optional)

6 …………………………………………….……………………………INSTRUCTION MANUAL

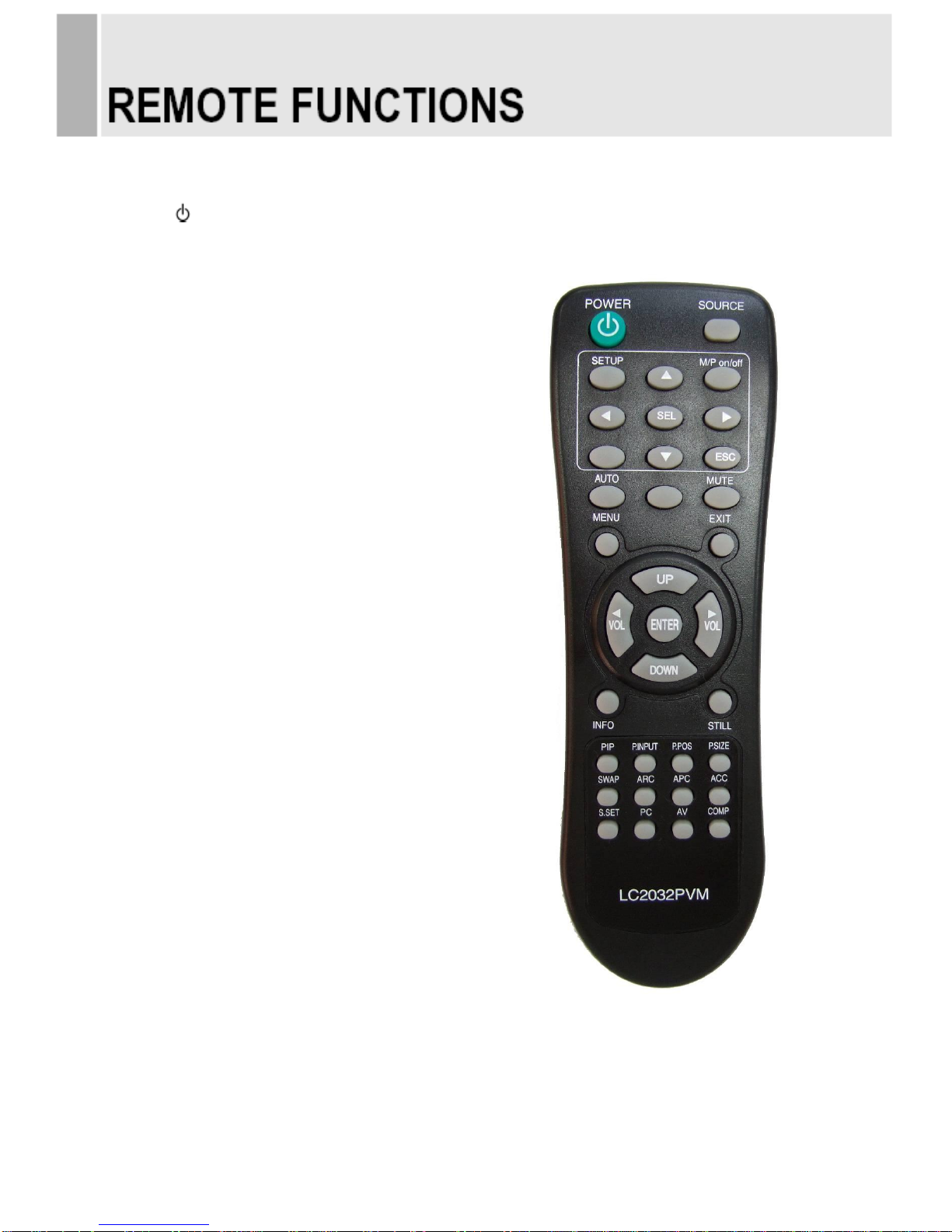

B. REMOTE CONTROLLER(Optional)

1. POWER( )

Turns the power ON or OFF. There will be a few

seconds delay before the display appears.

2. SOURCE

Selects pc or video( AV1/AV2/S-Video/DVI/PC) sources.

3. AUTO

Auto geometry adjustment in PC Source.

4. MUTE

Mute the sound.

5. MENU

Activates and exits the On Screen Display.

6. EXIT

Exits the On Screen Display.

7. VOL(◀▶)

Increases or decreases the level of audio volume.

8. UP/DOWN

Moves to OSD menu.

9. ENTER

Accepts your selection or displays the current mode.

10. INFO

Input mode information Display.

11. STILL

Pauses the picture.

12. PIP (Picture In Picture)

Activates PIP mode.

13. P.INPUT

Selects PC or video source.

14. P.POS

Moves the position of sub picture for PIP mode.

15. P.SIZE

Changes the size of sub and main picture for PIP mode.

16. SWAP

Alternates between main and sub picture.

17. ARC (Aspect Ratio Control)

Selects screen ratio.

18. APC (Auto Picture Control)

Selects picture mode.

19. ACC (Auto Color Control)

Selects Color mode.

20. S.SET

Selects Sound mode main input or sub input

21. PC

Selects PC mode(PC,DVI)

22. AV

Selects AV mode.(AV1,AV2,S-VIDEO)

23. COMP

Selects COMPONENT mode.

24. SETUP

It doesn’t have any functions.

25. M/P on/off

Turns the M/P(Media Player) on or off.

26. SEL

Accepts your selection in the menu of M/P(Media Player).

27. ESC

Escapes the menu of M/P(Media Player).

28. ◀▲ ▶▼

Moves the cursor in the menu of M/P(Media Player).

INSTRUCTION MANUAL ………………………………………………………………………. 7

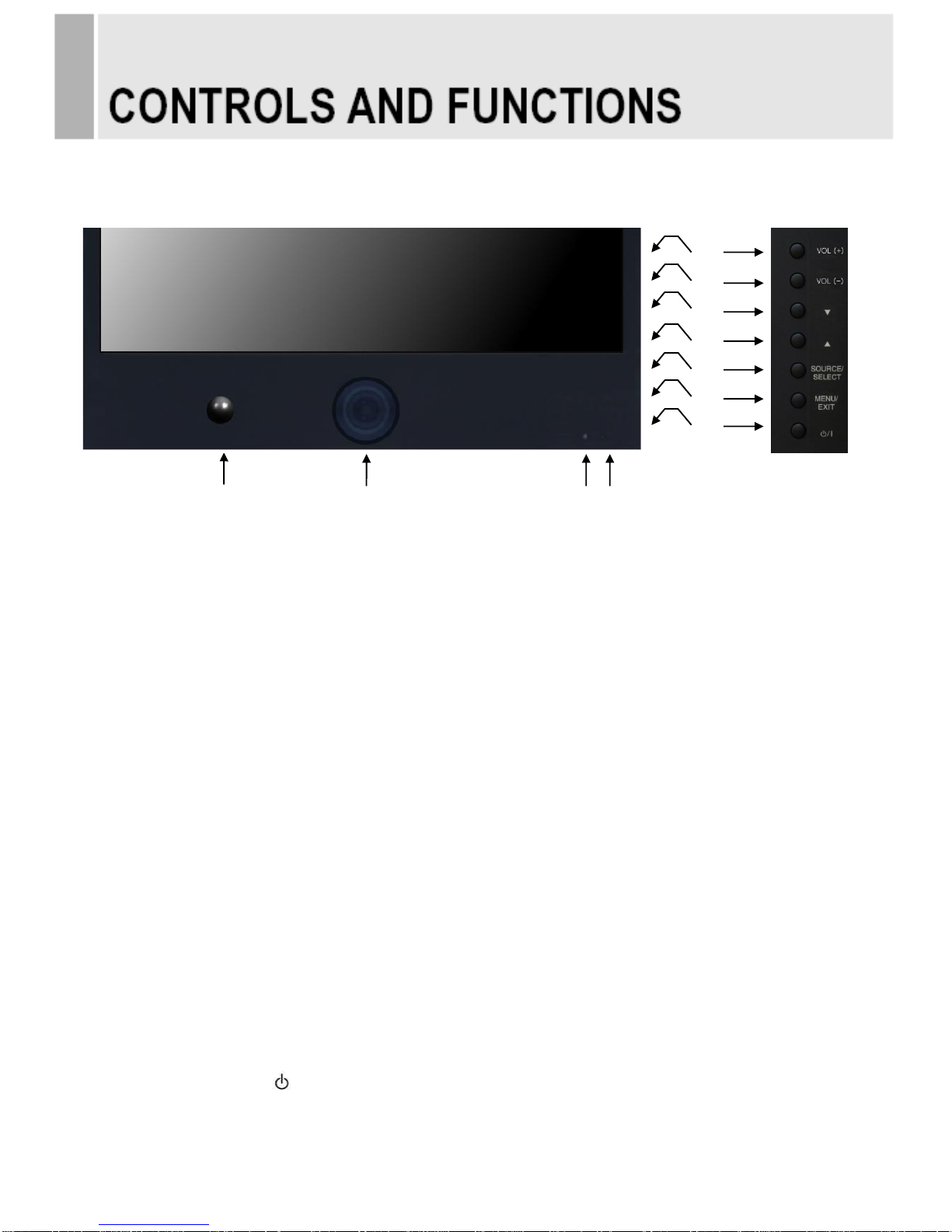

C. FRONT & BACK KEY CONTROL

1. PIR(Passive Infra-Red) Sensor

Built-in PIR(Passive Infra-Red) Sensor for the Motion Detection function.

2. BUILT-IN CAMERA

Image of this camera is shown by AV1.

3. IR Sensor

Remote controller sensor.

4. POWER LED

The power LED lights with green when the power is turned ON.

The power is turned off by pressing the power switch again and the power LED goes to off.

5 & 6. VOL(+) & VOL(-)

Adjust the volume and menu settings.

7 & 8. ▲& ▼

These buttons allow user to enter the sub-menu of the activated function.

The up(▲) button is HOLD function and stop the Motion Detection & Auto switching functions.

9. SOURCE/SELECT

Selects an input source.

Enters a submenu or accepts your selection in the OSD menu.

10. MENU/EXIT

Activates and exits the On Screen Display.

This button can also be used to move previous menu or status.

11. POWER ON/OFF( /I)

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

8 ………………………………………………………………………. INSTRUCTION MANUAL
