Viglen PMPLM001 Bedienungsanleitung

Quick Start Guide

Viglen Product Description: Intel D945PLM Motherboard

Viglen Order Code: PMPLM001

Viglen System: Genie (S775)

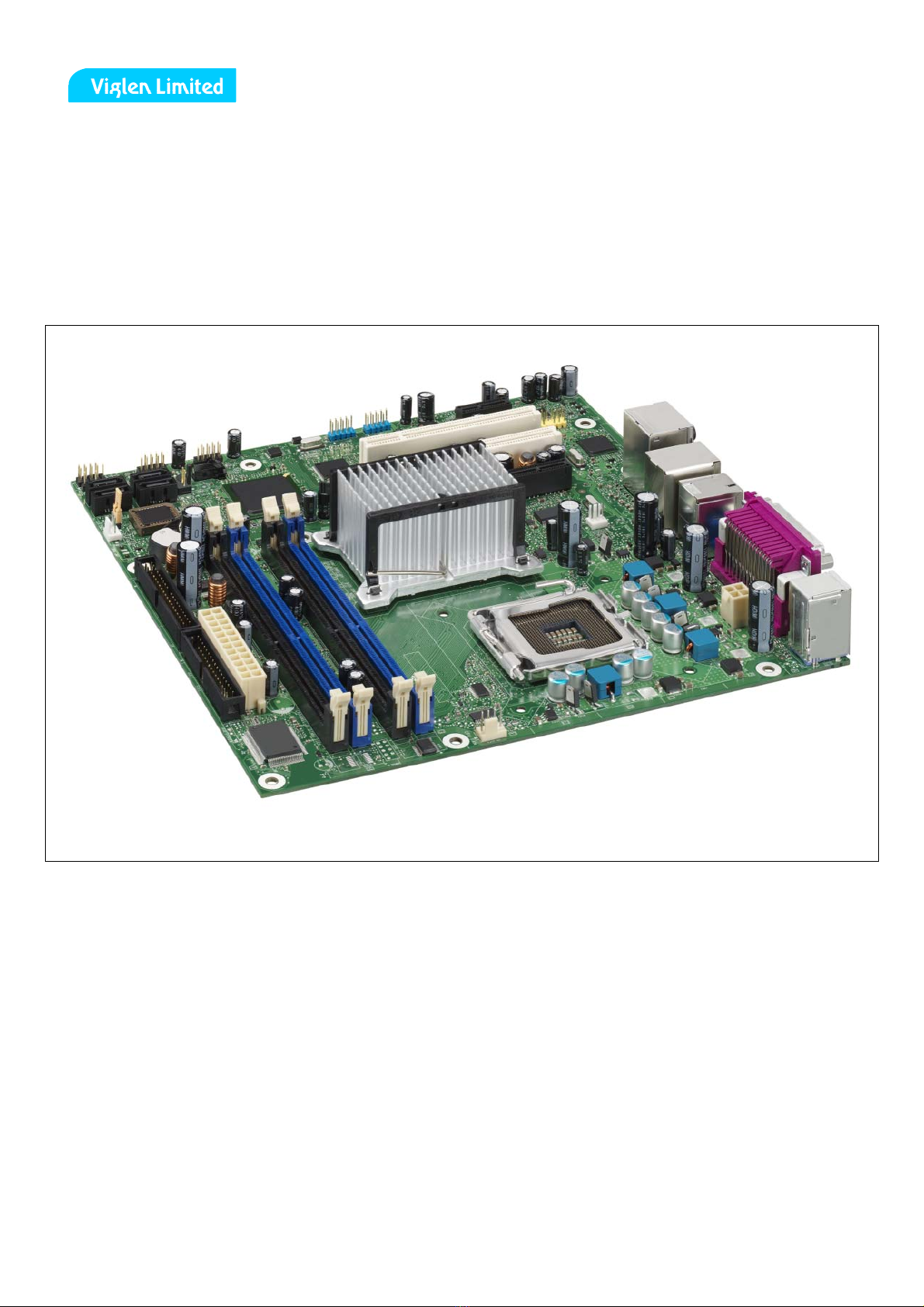

•Product photo

Page 1 of 16

Page 2 of 16

Product specification.

Table 1.

Motherboard Form Factor Micro ATX (9.60 inches by 9.60 inches [243.84 mm by 243.84

mm])

Motherboard chipset Intel® 945P Chipset

CPU connector type (s370,

slot1 etc) LGA775 socket

Number of CPUs supported 1

Supported CPU types Pentium D, Pentium 4 and Celeron

Supported CPU speeds CPU No. CPU speed FSB L2 cache

820-840 2.80 - 3.20 GHz 800 MHz 2 x 1 MB

620-670 2.80 - 3.80 GHz 800 MHz 2 MB

520-570 2.80 - 3.80 GHz 800 MHz 1 MB

325-345 2.53 - 3.06GHz 533 MHz 512KB / 1MB

Front side bus speed 1066MHz, 800MHz and 533MHz

Number of PCI slots 2

PCI slot speeds 33

Number of PCI-E slots 1 x PCI-E x16 and 1 x PCI-E x1

On board video fittedType None.

Ram size?

Upgradeable? Yes via PCI/PCI-Express

Onboard audio fitted? Type

6-channel (5.1) audio subsystem with three analogue audio

outputs using the Sigmatel 9220 audio codec

Front facing audio header

and type Yes

Audio Upgradeable? Yes via PCI/PCI-Express

Onboard network fitted?

Type Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the

Intel® 82573E/82573V/82574V Gigabit Ethernet Controller

Number of network

connections? 1

Upgradeable? Via PCI or PCI-E

Onboard SCSI fitted? Type No

Number of IDE channels 1

Number of SATA channels 4 Next generation SATA (SATA 300) 3Gb/s

Maximum number of disks 6 (2 x IDE 4 x SATA) this would require full height ATX case

4 x USB 2 1 x MIC

Note:- 2 x USB 2 front headers

Total of 8 USB ports possible 1 x audio out

1 x serial 1 x audio in

1 x parallel 1 x PS2 mouse

Rear I/O connectors

1 x RJ45 LAN 1 x PS2 keyboard

Memory type 240-pin DDR2 SDRAM DIMM sockets DDR2 400, 533 and 667

For RIMMs install CRIMM in

empty sockets N/A

Number of memory sockets Four 240-pin DDR2 SDRAM DIMM sockets

Maximum memory support Support for up to 4 GB of system memory

Supported memory speed DDR 2 400, 533 and 667

MTBF 108,165 hours.

Upgrading and ESD precautions

WARNING

Unplug the system before carrying out the procedures described in this document.

Failure to disconnect power before you open the system can result in personal injury or

equipment damage. Hazardous voltage, current, and energy levels are present in this

product. Power switch terminals can have hazardous Voltages present even when the

power switch is off.

The procedures assume familiarity with the general terminology associated with

personal computers and with the safety practices and regulatory compliance required

for using and modifying electronic equipment.

Do not operate the system with the cover removed. Always replace the cover before

turning on the system.

As the colours of the wires in the mains lead of this computer may not correspond with the coloured

markings identifying the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is

marked by the letter Eor by the safety Earth symbol Ωor coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter Nor

coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter Lor

coloured red.

CAUTION!

The Viglen D945PLM motherboard

and associated components are

sensitive electronic devices. A small

static shock from your body can

cause expensive damage to your

equipment.

Make sure you are earthed and free of static charge before you open the computer case. If you

are unsure about upgrading your computer, return it to Viglen so a qualified engineer can

perform the upgrade.

Page 3 of 16

Page 4 of 16

STEPS TO TAKE TO PREVENT STATIC DISCHARGE:

1. The best way to prevent static discharge is to buy an anti-static strap from your local

electrical shop. While you are wearing the strap and it is earthed, static charge will be

harmlessly bled to ground.

2. Do not remove the component from its anti-static protective packaging until you are about to

install it.

3. Hold boards by the edges - try not to touch components / interface strips etc.

Note:

We recommend that you return your computer to the service department for upgrading. Any

work carried out is fully guaranteed. Upgrades should only be carried out by persons who are

familiar with handling IC's, as incorrect installation will invalidate the guarantee.

•System Board Components

QPRSTU

VWX

Intel 82945G

GMCH

Intel

82801G I/O

Controller

Hub (ICH7)

EFGH

Intel 82945P

MCH

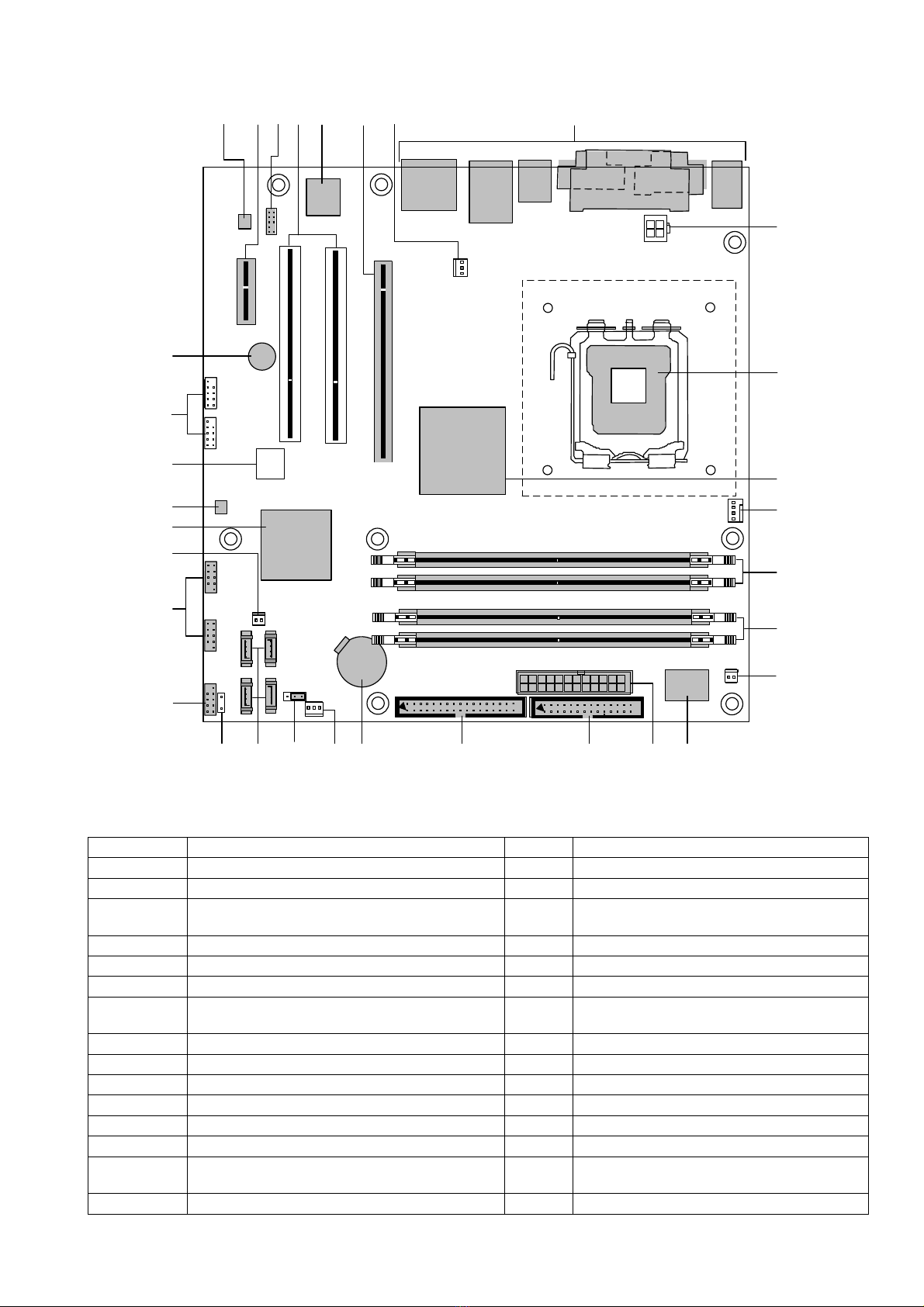

Figure 1 Motherboard Layout & Components

Table 2.

A Sigmatel 9220 audio codec Q Power connector (24 way ATX2.2)

B PCI Express x1 bus add-in card connectors R Diskette drive connector

C Front panel audio connector S Parallel ATE IDE connector

D PCI Conventional bus add-in card

connectors T Battery

E Ethernet PLC device U Front chassis fan connector

F PCI Express x16 bus add-in card connector V BIOS Setup configuration jumper block

G Rear chassis fan connector W Serial ATA connectors

H Back panel connectors X Auxiliary front panel power LED

connector

I +12V power connector (ATX12V) Y Front panel connector

J LGA775 processor socket Z Front panel USB connectors

K Intel 82945P MCH AA Chassis intrusion connector

L Processor fan connector BB Intel 82801G I/O Controller Hub (ICH7)

M DIMM Channel A sockets CC SPI Flash device “Firmware Hub (FWH)”

N DIMM Channel B sockets DD IEEE1394a controller not fitted optional

O SCSI LED connector (optional) EE IEEE1394a connectors not fitted

optional

P I/O controller FF Speaker

Page 5 of 16

•Back Panel Connectors

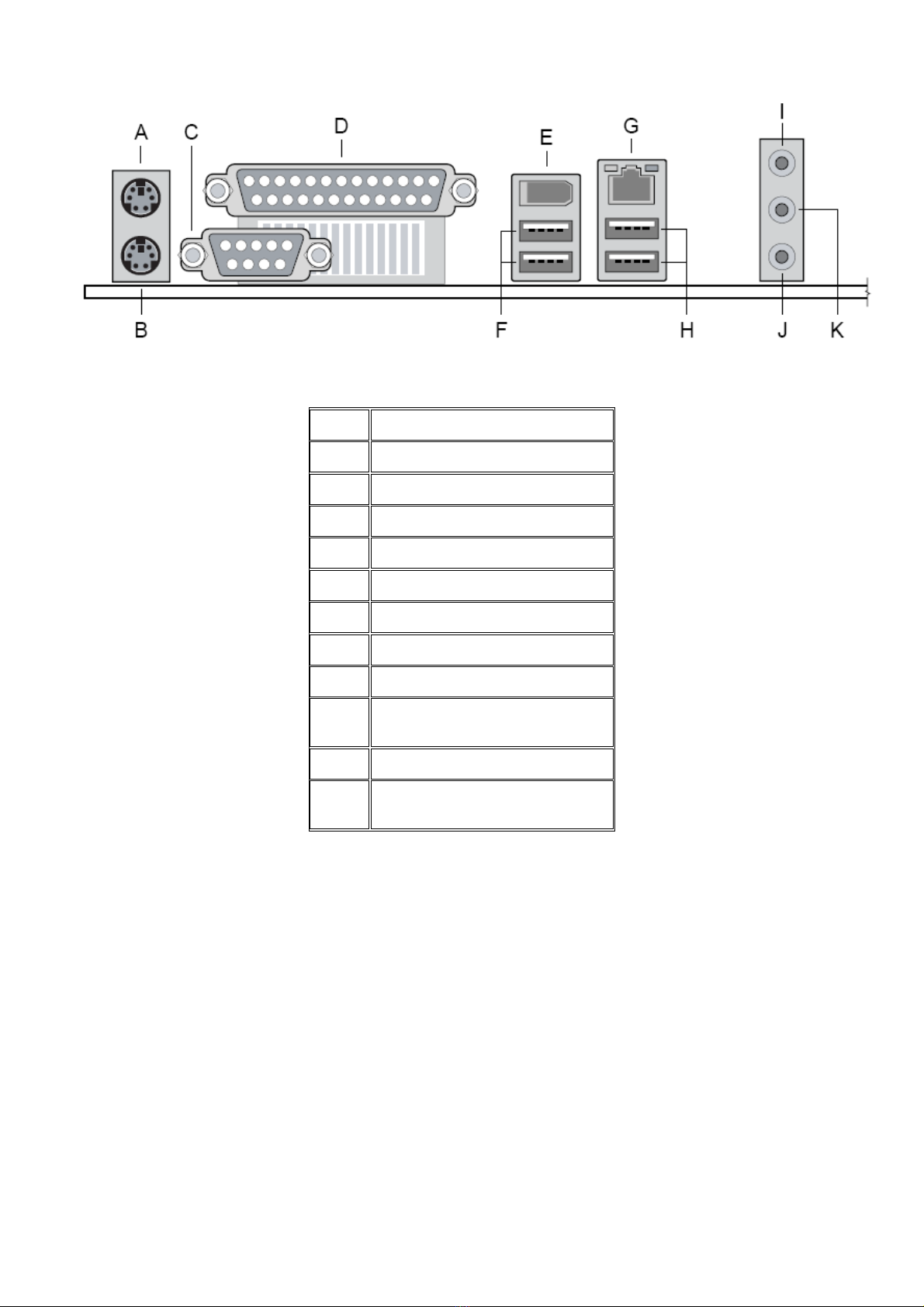

Figure 2. Back Panel Connectors.

Table 3.

Item Description

A PS/2* mouse port (Green)

B PS/2 keyboard port (Purple)

C Serial port A (Teal)

D Parallel port (Burgundy)

E IEE1394a (Optional not fitted)

F USB ports (two)

G LAN RJ45

H USB ports (two)

I Audio line out/Retasking Port D

(Lime Green)

J Mic in / Retasking Port B (Pink)

K Audio line in/Retasking Port C

(Light Blue)

Note: The back panel audio line out connector is designed to power headphones or amplified

speakers only. Poor audio quality occurs if passive (non-amplified) speakers are connected to

this output.

Page 6 of 16

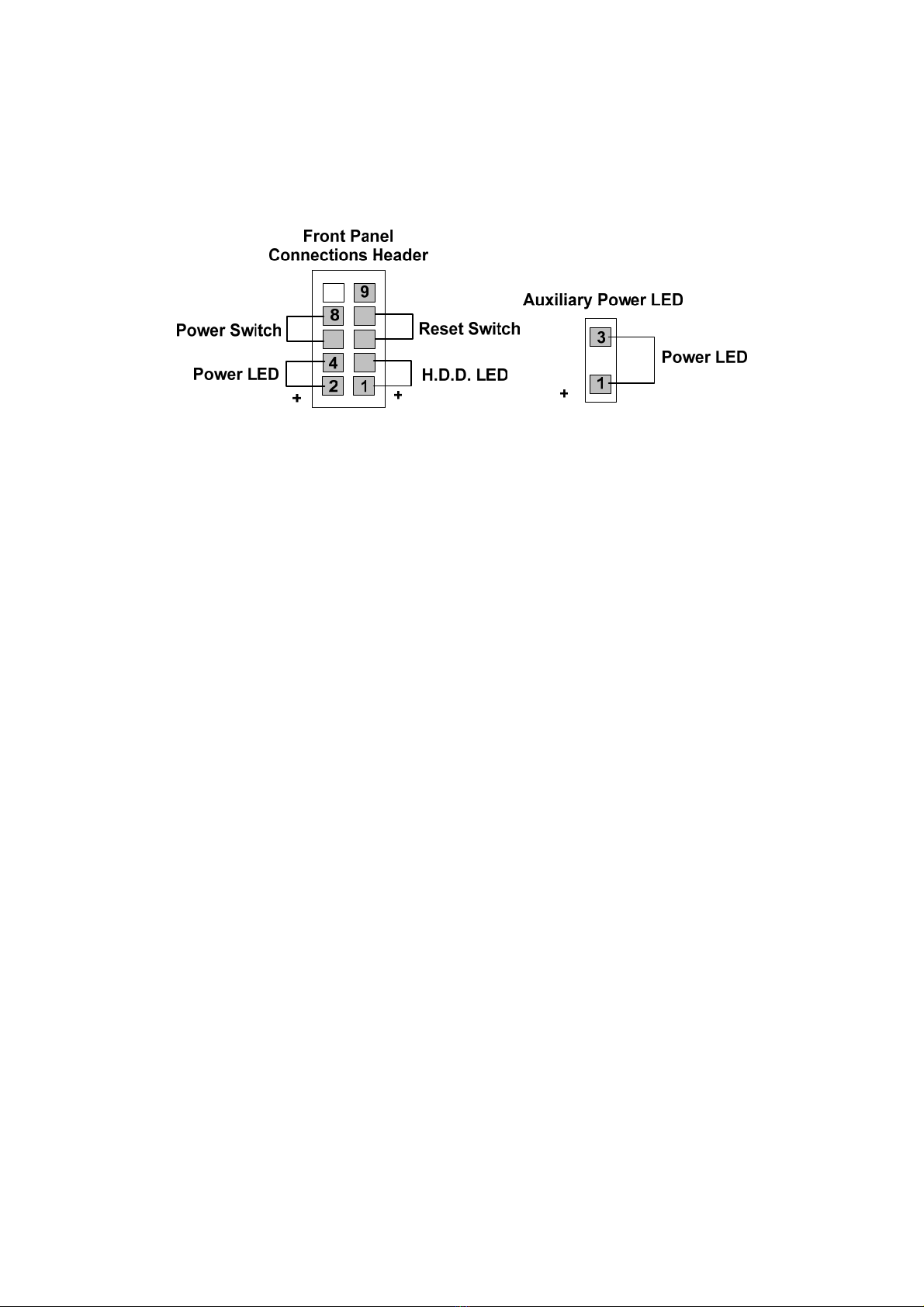

•Front panel connections

The following are all connectors situated along the front edge of the motherboard. They are

often connected to buttons and LED’s situated on the front panel.

Figure 3. Front panel connectors

A-Hard Disk L.E.D. Connector

This goes to the Hard Disk L.E.D. on the front panel, which lights up when the IDE Hard Disk is

in use.

B - Reset switch connector

When these pins are shorted, it will cause the computer to perform a cold reboot.

C - Power L.E.D.

This attaches to the power L.E.D on the front panel, to display if the computer is active or not.

D- Power On/Off

When these pins are shorted it turns the computer on and off.

Page 7 of 16

•Motherboard Connectors

There are connectors on the motherboard for FAN, IDE, Power supply, CD audio, Floppy, IDE,

& Front Panel Connectors. The location and/or details of these connections are shown below.

Intel 82945G

GMCH

Intel

82801G I/O

Controller

Hub (ICH7)

Front pannel

connectors

FAN

Front

Chassis

Front Panel

Audio

PSU

ATX

12V

CPU

FAN

SCSI

LED

ATX 2.2

Power Connector

Floppy

Drive

Connector

331

PCI IDE Connector 391

40202

SATA connectors

SATA

0SATA

SATA

2SATA

FRONT USB

HEADER

FRONT

IEE1394a

HEADER

CHASSIS

INTRUSION

Intel 82945P

MCH

FAN

Rear

Chassis

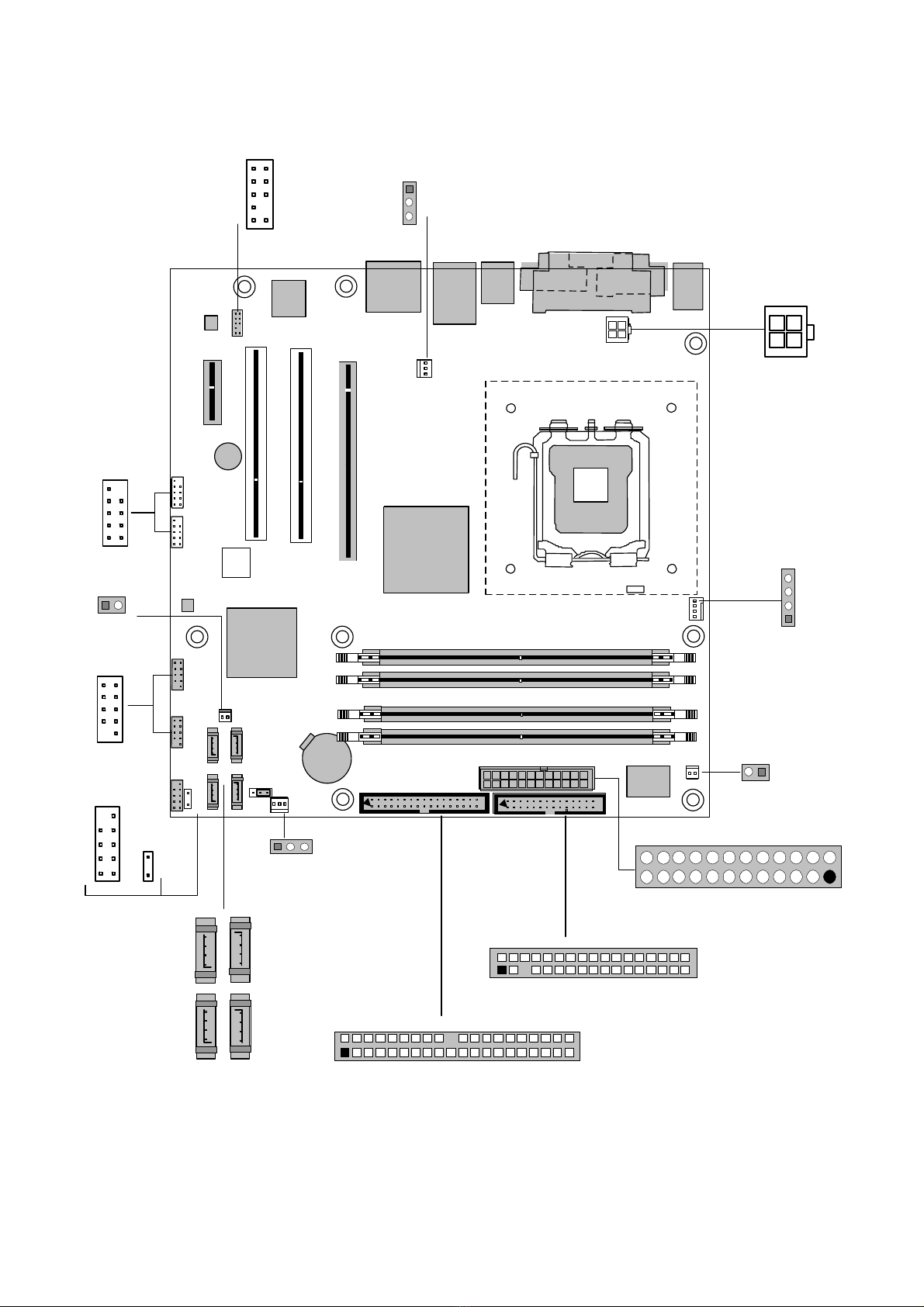

Figure 4. Motherboard Connectors

Page 8 of 16

•Jumper settings

CAUTION Do not move any jumpers with the power on. Always turn off the power and unplug

the power cord from the computer before changing a jumper setting. Otherwise, the board could

be damaged.

Intel 82945P

MCH

Intel

82801G I/O

Controller

Hub (ICH7)

J7J3

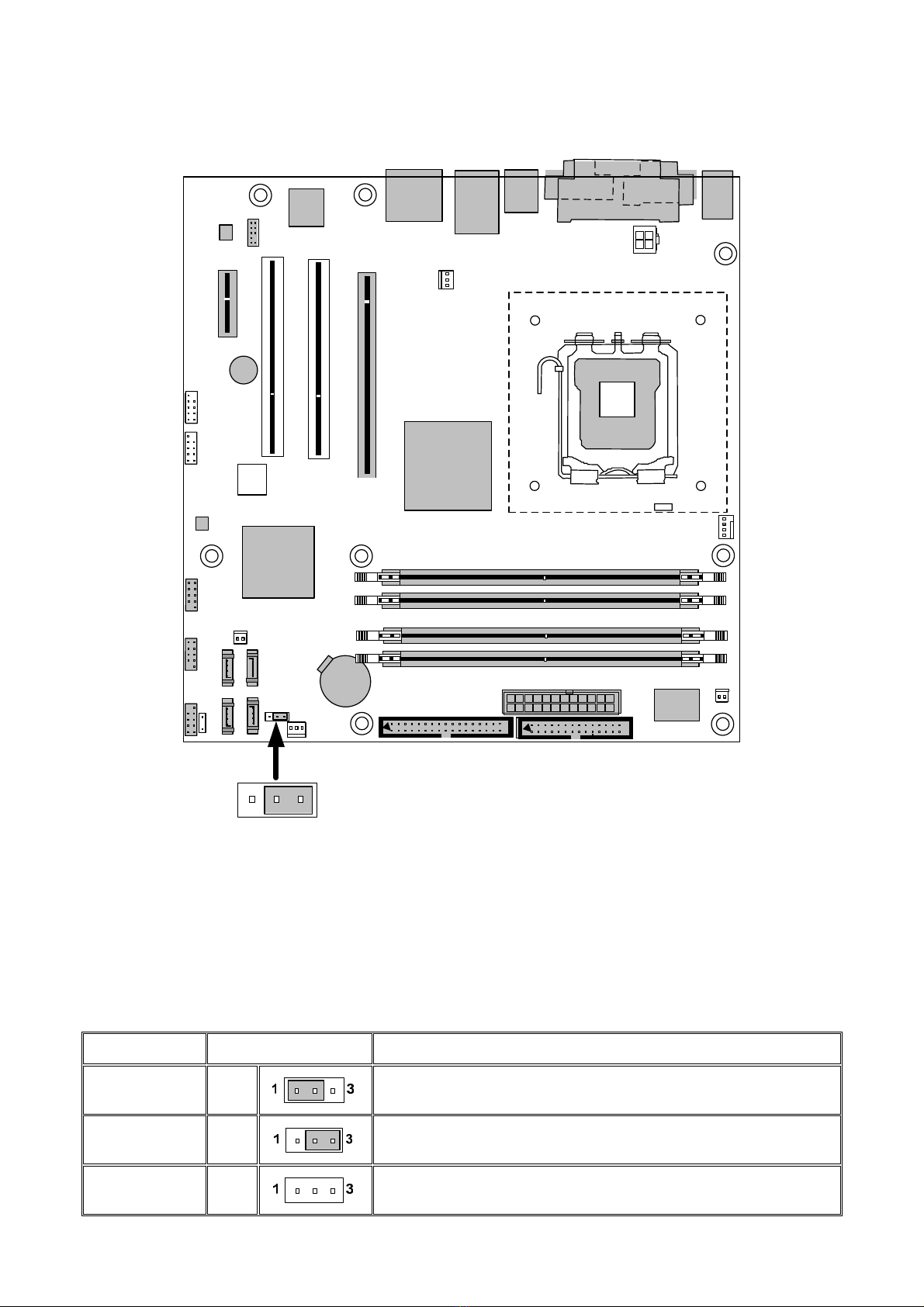

Figure 5. Motherboard jumper.

BIOS Setup Configuration Jumper (J7J3) Settings

The 3-pin jumper block determines the BIOS Setup program's mode. The table below describes the

jumper settings for the three modes: normal, configure, and recovery. When the jumper is set to

configure mode and the computer is powered-up, the BIOS compares the processor version and the

microcode version in the BIOS and reports if the two match.

Table 4.

Page 9 of 16

Function/Mode Jumper Setting Configuration

Normal 1-2 The BIOS uses current configuration information and passwords

for booting.

Configure 2-3 After the POST runs, Setup runs automatically. The maintenance

menu is displayed.

Recovery None The BIOS attempts to recover the BIOS configuration. A recovery

diskette is required.

Page 10 of 16

System Memory

The boards have four DIMM sockets and support the following memory features:

• 1.8 V DDR2 SDRAM DIMMs with gold-plated contacts

• Unbuffered, single-sided or double-sided DIMMs with the following restriction:

Double-sided DIMMS with x16 organization are not supported.

• 4 GB maximum total system memory total amount of addressable memory.

• Minimum total system memory: 128 MB

• Non-ECC DIMMs

• Serial Presence Detect

• DDR2 667, DDR2 533 MHz and DDR2 400 MHz SDRAM DIMMs

NOTES

• Remove the PCI Express x16 video card before installing or upgrading memory to avoid

interference with the memory retention mechanism.

• To be fully compliant with all applicable DDR SDRAM memory specifications, the board

should be populated with DIMMs that support the Serial Presence Detect (SPD) data

structure. This allows the BIOS to read the SPD data and program the chipset to accurately

configure memory settings for optimum performance. If non-SPD memory is installed, the

BIOS will attempt to correctly configure the memory settings, but performance and reliability

may be impacted or the DIMMs may not function under the determined frequency.

The following table lists the supported DIMM configurations.

Table 6.

DIMM

Capacity Configuration SDRAM

Density

SDRAM

Organization Front-

side/Back-side

Number of

SDRAM Devices

128 MB SS 256 Mbit 16 M x 16/empty 4

256 MB SS 256 Mbit 32 M x 8/empty 8

256 MB SS 512 Mbit 32 M x 16/empty 4

512 MB DS 256 Mbit 32 M x 8/32 M x 8 16

512 MB SS 512 Mbit 64 M x 8/empty 8

512 MB SS 1 Gbit 64 M x 16/empty 4

1024 MB DS 512 Mbit 64 M x 8/64 M x 8 16

1024 MB SS 1 Gbit 128 M x 8/empty 8

2048 MB DS 1 Gbit 128 M x 8/128 M x 8 16

Note: In the second column, "DS" refers to double-sided memory modules (containing two rows of DDR

SDRAM) and "SS" refers to single-sided memory modules (containing one row of DDR SDRAM).

NOTE: It is possible to install four 2048 MB (2 GB) modules for a total of 8 GB of system memory,

however, only 4 GB of address space is available.

Inhaltsverzeichnis

Andere Viglen Hauptplatine Handbücher

Viglen

Viglen Vig625M Bedienungsanleitung

Viglen

Viglen Vig565s Bedienungsanleitung

Viglen

Viglen PMPGF001 Bedienungsanleitung

Viglen

Viglen Vig451J Bedienungsanleitung

Viglen

Viglen N440BX Bedienungsanleitung

Viglen

Viglen Vig646M-V2/W8 Bedienungsanleitung

Viglen

Viglen Vig535b Bedienungsanleitung

Viglen

Viglen Vig644M Bedienungsanleitung

Viglen

Viglen D925XCV Bedienungsanleitung

Viglen

Viglen Vig870G Bedienungsanleitung

Viglen

Viglen Vig860S Bedienungsanleitung

Viglen

Viglen D965GF Bedienungsanleitung

Viglen

Viglen VIG555M Bedienungsanleitung

Viglen

Viglen Vig430p Bedienungsanleitung

Viglen

Viglen Vig642M Bedienungsanleitung

Viglen

Viglen Vig410p Bedienungsanleitung

Viglen

Viglen Vig566s Bedienungsanleitung

Viglen

Viglen L440GX+ Bedienungsanleitung

Viglen

Viglen Intel D955XBK Bedienungsanleitung

Viglen

Viglen Intel D925XECV2 Bedienungsanleitung

Viglen

Viglen Vig440J Bedienungsanleitung

Viglen

Viglen Vig395p Bedienungsanleitung

Viglen

Viglen Vig560s Bedienungsanleitung

Viglen

Viglen Vig670W Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
