Viking Pure Mini Pure VPM Bedienungsanleitung

1 | P a g e

Viking Pure, LLC

501 Pullman Rd., Edgewater, Fl. 32132, USA

User Manual

Rev1.16.14

“Sailing Toward a Greener and Safer Tomorrow”

Viking Pure:Mini Pure™

A Revolutionary system used to produce a

limited supply of both a cleaner & a sanitizer

from just salt, water, and electricity. It is

not only a greener solution to cleaning…

it is 100% NON-TOXIC.

Model Number:

PN: VPM (115VAC/230VAC)

2 | P a g e

Viking Pure, LLC

501 Pullman Rd., Edgewater, Fl. 32132, USA

Contents

Warnings.....................................3

Diagrams

UnitDiagram.............................4

InsideUnitDiagram....................... 5

CellDiagram............................. 6

Installation&SetUpofYourUnit

Pre-installationWaterTest.................7

Diagram.................. . .. . . .. . . . .. . . . 8

ConnectingandOperatingtheVPM......9-10

UserInformation

AddingSalt................ . . .. . . .. . . . . .. 11

Warranty.................................12

UserReferenceGuide.....................13

3 | P a g e

Viking Pure, LLC

501 Pullman Rd., Edgewater, Fl. 32132, USA

Warnings

The following warnings include general safety information for this equipment with detailed descriptions.

WARNING

ELECTRIC SHOCK HAZARD

Improper grounding, setup, or usage of the system can cause electric shock and death.

•

Turn off and disconnect power cord before servicing equipment.

•

Use only grounded electrical outlets.

•

Use only 3-wire extension cords.

LIMITED PRODUCTION NOTICE

Unit is intended to be used for smaller applications only. Unit is limited to use in the following ways:

•

Unit shall not run, continuously, for more than 1 hour (6 runs) or unit may become damaged and/or

cause injury.

•

Unit shall not run for more than 3 hours (18 runs) per 24 hour period or unit may become damaged

And/or cause injury.

*Please See Warranty (Page 12) For Full Warranty Information*

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

•

Misuse of equipment will damage unit, void warranty (if new), or cause serious injury, even death.

•

Check equipment daily. Repair or replace worn or damaged parts immediately.

•

Do not alter or modify equipment.

•

For use only by trained staff.

•

Use equipment only for its intended purpose. Call your Viking Pure 1000 distributor for information.

•

Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

•

Do not use hoses to pull equipment.

•

Only use Viking accessories for this unit. Any other accessories may damage unit & void warranty

Only Use Viking Pure® Salt

Use of any other types of salt will damage unit’s membranes, chemically change the solutions, and

may even cause physical harm.

WARNING

If you have any questions or

comments regarding the warning

information above please contact us

at:

[email protected]

1-(386)-428-9800 USA

4 | P a g e

Viking Pure, LLC

501 Pullman Rd., Edgewater, Fl. 32132, USA

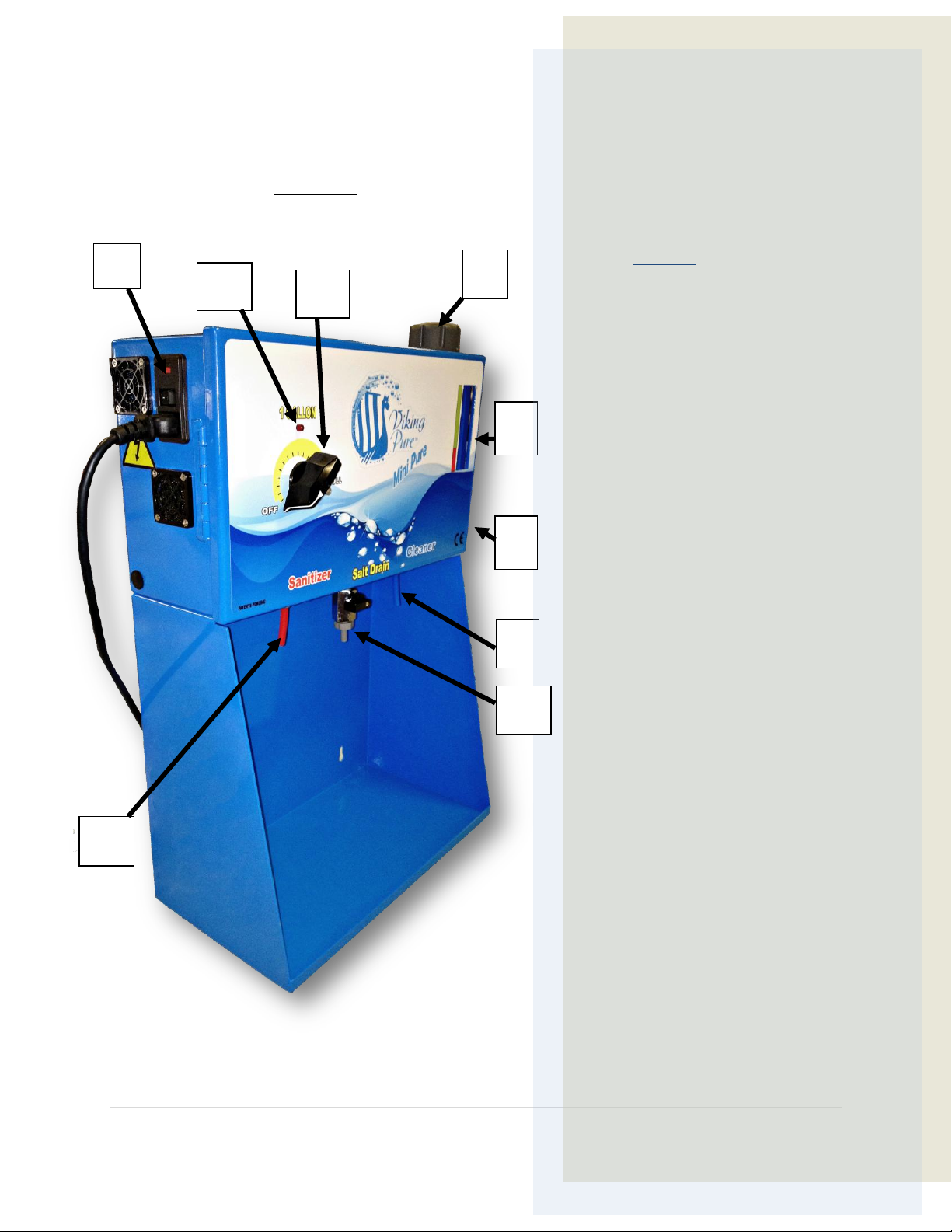

Unit Diagram

VPM

Viking Pure: Mini Pure

Key

1. Power Entry Module/Power

Switch- This is where you plug in

your power cord and turn the unit

ON/OFF.

2. Salt Tube Cap/Salt Input

3. Activation Dial- Used to start

production.

4. Salt Tube Level Window- Used

to determine when you need to add

another salt cartridge.

5. Filtered Water Inlet –(On lower

right side of unit)

6. Salt Tube Drain- To be used

when refilling salt (See page 9 for

more details)

7. Sodium Hydroxide Outlet- This

is where the Sodium Hydroxide

(NaOH) solution exits the cell into

a container. (See Item# 11)

8. Hypochlorous Acid Outlet- This

is where the Hypochlorous Acid

(HClO) solution exits the cell into

a container. (See Item# 11)

9. LED Power Indicator- This will

light up the moment you turn the

Power Switch ON indicating you

have power

10. Door Latch- Comes with a tamper

proof screw (Not Shown: On Right

Side)

5 | P a g e

Viking Pure, LLC

501 Pullman Rd., Edgewater, Fl. 32132, USA

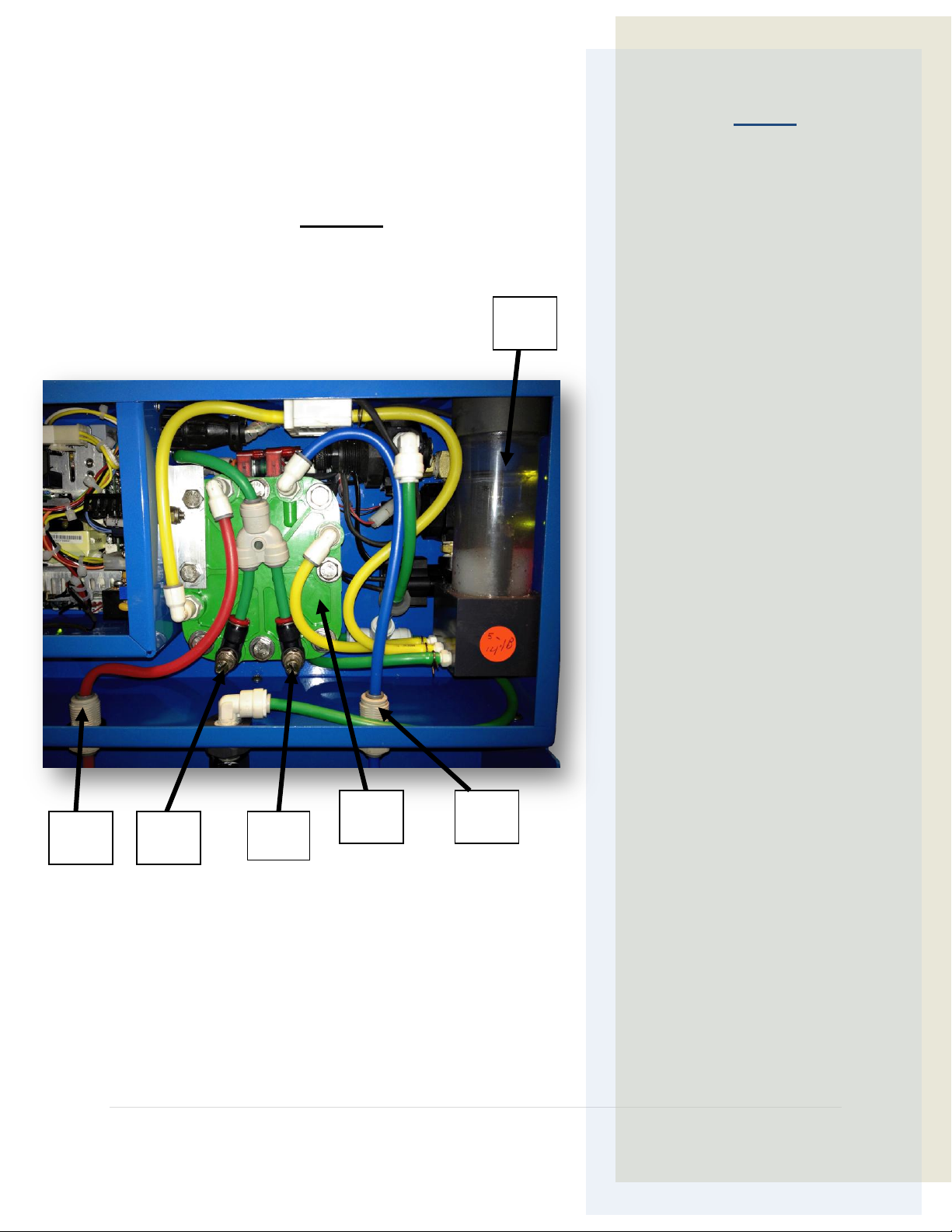

Inside Unit Diagram

VPM

Viking Pure: Mini Pure

Key

11. Salt Tube- This is where

you will fill your salt tube.

12. Electrolyzer Cell- This is

where both HOCl and

NaOH solutions are

produced.

13. Hypochlorous Acid Flow

Control- This should be

adjusted only under the

direction of a Viking Pure

representative

14. Sodium Hydroxide Flow

Control- This should be

adjusted only under the

direction of a Viking Pure

representative

15. Hypochlorous Acid

Outlet- This is where the

Hypochlorous Acid solution

exits the cell into a

container.

16. Sodium Hydroxide

Outlet- This is where the

Sodium Hydroxide solution

exits the cell into a

container.

6 | P a g e

Viking Pure, LLC

501 Pullman Rd., Edgewater, Fl. 32132, USA

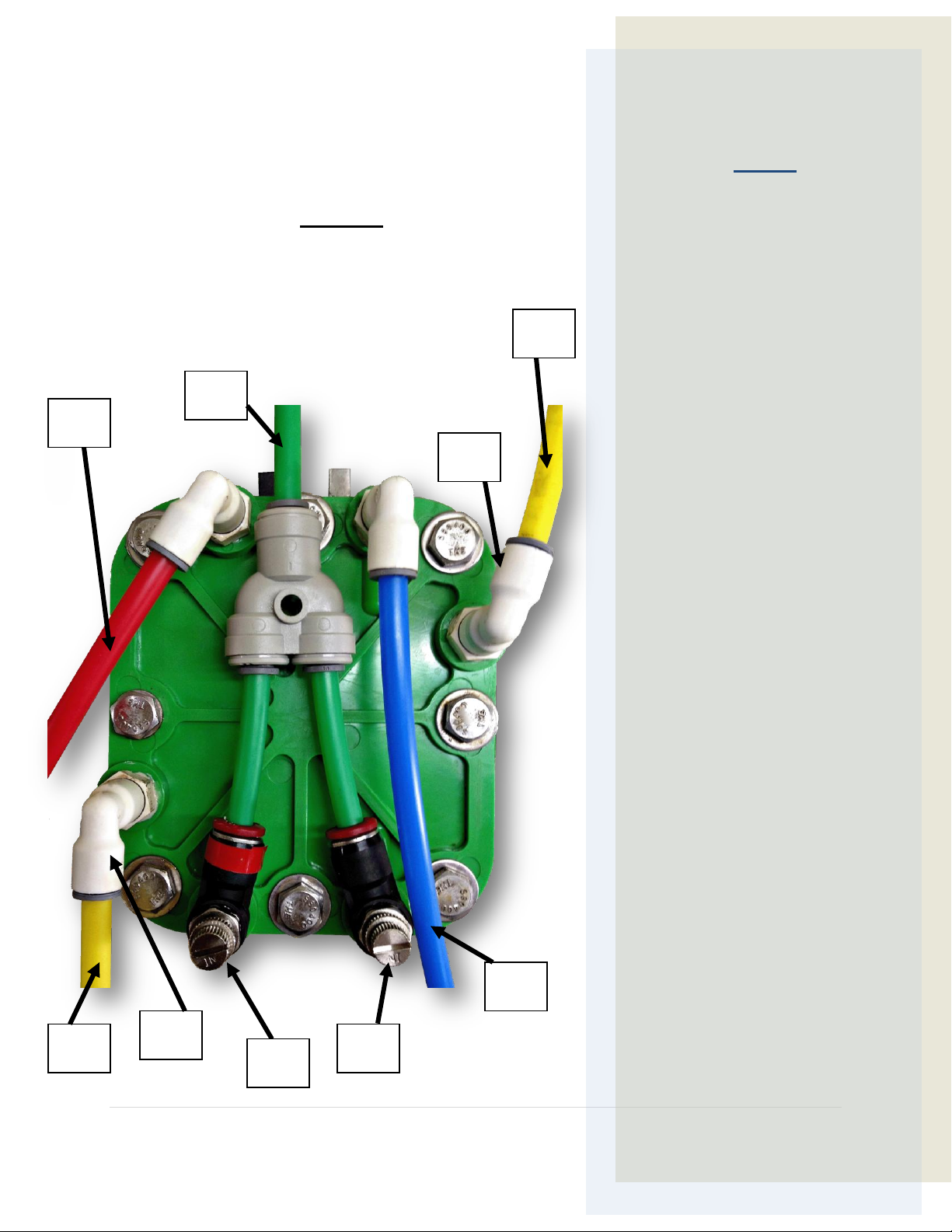

Cell Diagram

VPM

Viking Pure: Mini Pure

Key

17. Mounting Bracket- Not

Shown: On Left.

18. Hypochlorous Acid Flow

Control- This should be

adjusted only under the

direction of a Viking Pure

representative

19. Red Tubes- Denotes all

tubing used to transport

HOCl.

20. Sodium Hydroxide Flow

Control- This should be

adjusted only under the

direction of a Viking Pure

representative

21. Blue Tubes- Denotes all

tubing used to transport

Sodium Hydroxide.

22. Salt Brine Inlet- This is

where the salt brine from

the salt tube enters the cell.

23. Salt Brine Outlet- This is

where the salt brine, that

was not used, is recycled

back to the salt tube.

24. Filtered Water Inlet(s)-

This is where the filtered

water will enter the

Electrolyzer Cell.

25. Yellow Tubes- Denotes all

tubing used to transport salt

brine from the salt tube to

the Electrolyzer Cell.

7 | P a g e

Viking Pure, LLC

501 Pullman Rd., Edgewater, Fl. 32132, USA

Setting Up Your Control

Pre-Installation Hard Water Test

1. Before installing your system you should do a quick Hard Water Test.

2. This test can be done by bringing a sample of your water (fresh out of the tap) to a local

water testing facility or you may purchase a water testing kit from Viking Pure.

3. The different levels you will be testing for are as follows:

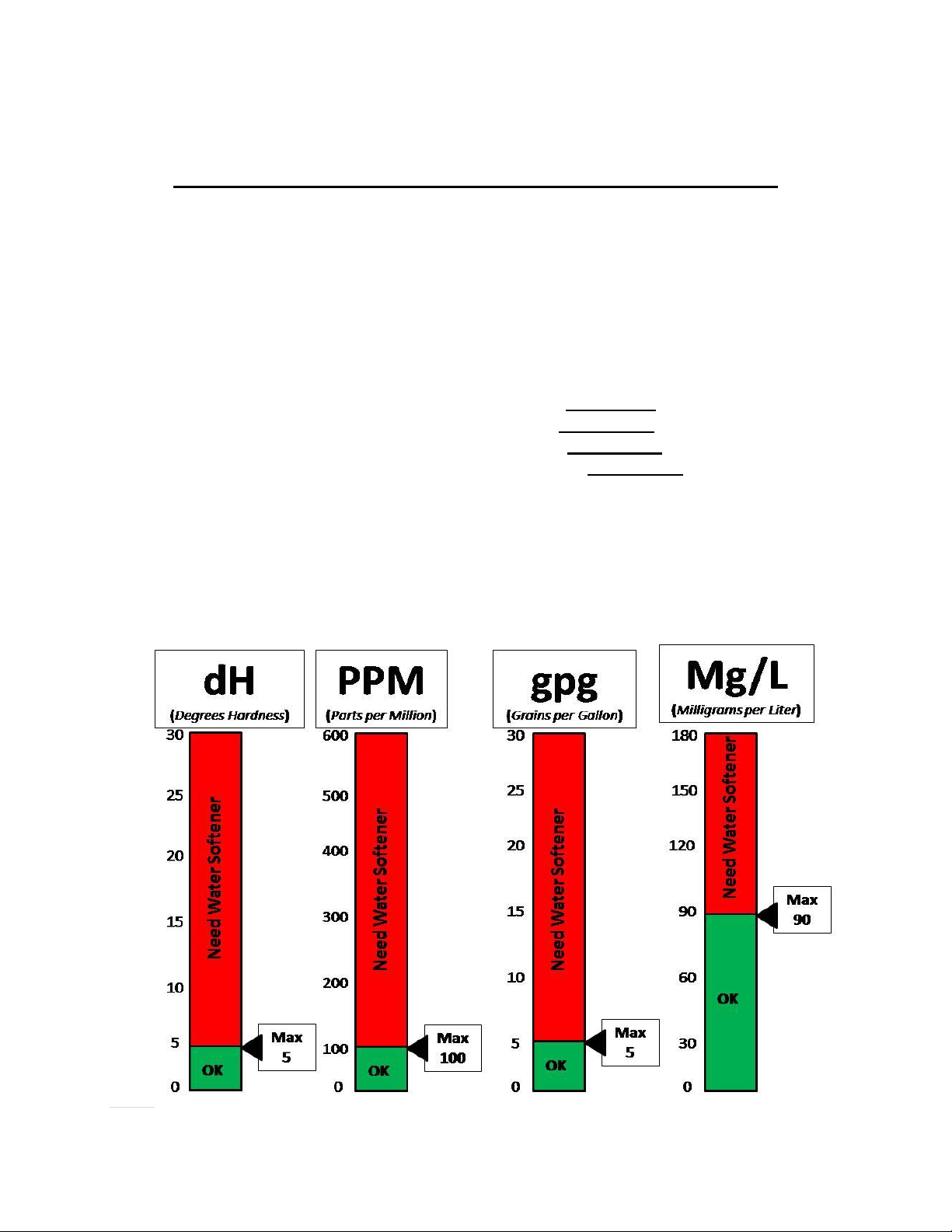

a. Degrees Hardness: This test should result in NO MORE than 5 dH.

b. Parts per Million: This test should result in NO MORE than 100 PPM.

c. Grains per Gallon: This test should result in NO MORE than 5 gpg.

d. Milligrams per Liter: This test should result in NO MORE than 90 Mg/L

4. The test must be performed to determine if a water softener is needed to run the system

properly.

5. If a water softener is needed, shown by failed testing, one must be installed or warranty

will be void (See page 10 for all warranty information). This is due to the fact that hard

water will damage the membranes in the cell and drastically affect the lifespan of the

unit.

8 | P a g e

Viking Pure, LLC

501 Pullman Rd., Edgewater, Fl. 32132, USA

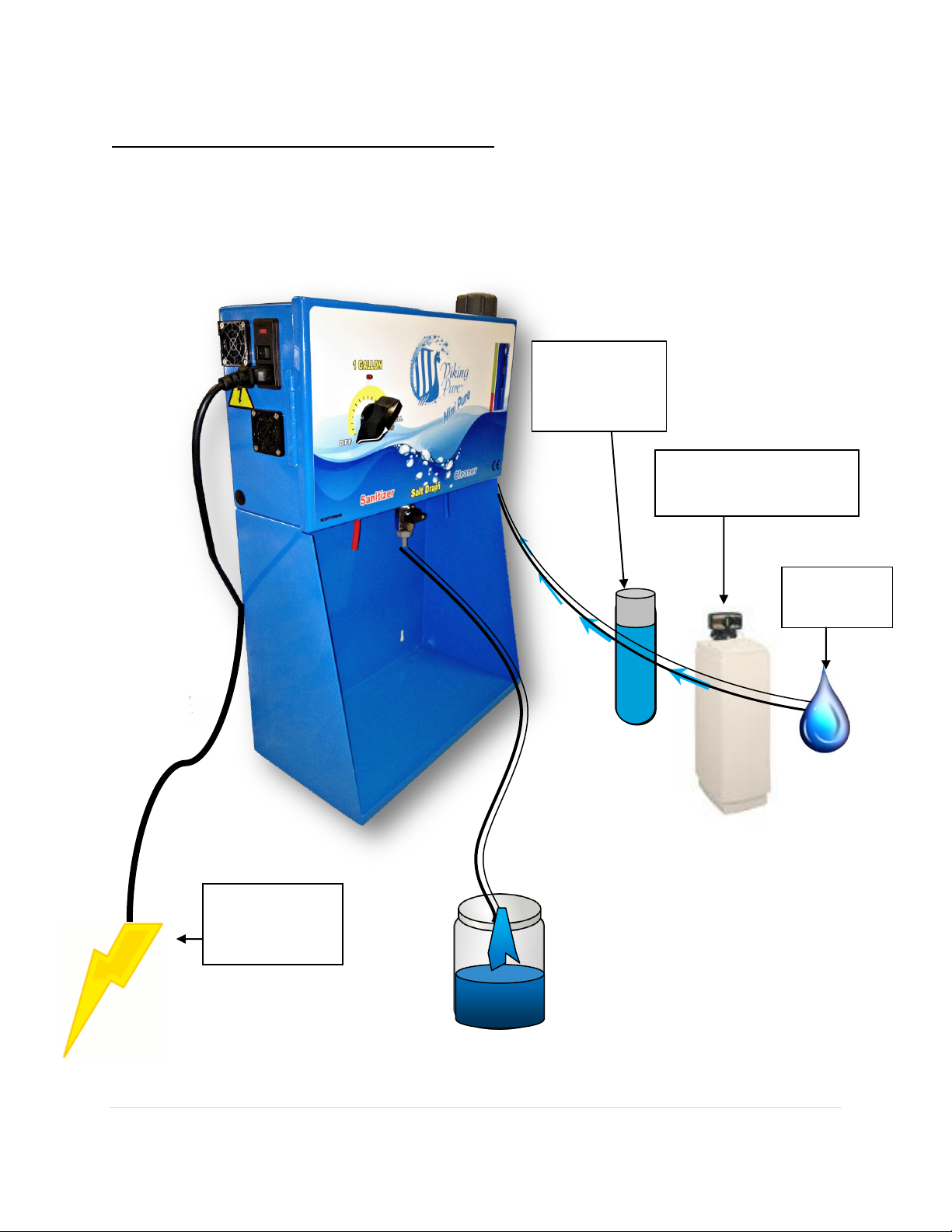

Setting up your Control: Diagram

Water

Source

*Water Softener

(Sold Separately)

Power Inlet

(115VAC/230

VAC)

*Viking Pure Water Softeners can

be ordered separately:

VPWS-115 (115VAC)

VPWS-230 (230VAC)

Water

Filter

(Included)

9 | P a g e

Viking Pure, LLC

501 Pullman Rd., Edgewater, Fl. 32132, USA

Connecting and Operating your

Viking Pure: Mini Pure

1. After removing the unit from the shipping container, inspect the unit for any marks

and/or damage that may have resulted from mishandling during freight. If the unit is

damaged report it to UPS or the shipping company involved.

2. Install unit in the best area, as determined by Pre-Install Site Evaluation Sheet (filled out

and sent to Viking Pure, Distributor or Sales Representative before purchase of unit).

Power connection is a standard wall outlet with ground, 3 prongs. FOR 115VAC AND

230VAC UNITS, USE PROPER OUTLET.

3. Remove plug from Filtered Water Inlet fitting by pushing inner ring back and pulling out

plug (Item #5 on pg. 4 of manual)

4. Water connection can be made with the fitting supplied or any other means that has a

shutoff valve. The connection should accommodate the ¼” plastic supply line supplied.

5. Mount the water filter using the bracket supplied. The filter comes with a fitting installed

on the Outlet end. Water supply should be connected to the inlet on filter.

6. Route the tubing from the water filter to the Mini Pure in such a way as to protect the

tubing from damage and cut to size. Then install the tube into the Mini Pure lower right

side as indicated, FILTERED WATER INLET (Item #5 on Pg. 4 of Manual).

7. Turn water on and check for any leaks at the water supply or on the water filter, if leaks

occur: turn off water supply and check connection of all fittings to tubes and ensure they

are pressed in firmly as shipment may have loosened some connections.

8. Add salt to the unit (see pg. 11 for Adding Salt to Unit)

9. Plug unit into a standard house hold type receptacle that is grounded to code (Item #9 on

Pg. 4 of Manual). FOR 115VAC AND 230VAC UNITS, USE PROPER OUTLET.

10. At the top of the control turn the power on (Item #1 on Pg. 4 of Manual).

11. Remove tube caps from both output tubing (Items #7 and #8 on pg. 4 of manual)

10 | P a g e

Viking Pure, LLC

501 Pullman Rd., Edgewater, Fl. 32132, USA

12. Insert the 1 Gallon Containers (Provided) under their respective tubes, Red for

Hypochlorous Acid and Blue for Sodium Hydroxide, into the lower section

13. Turn dial on control (Item #3 on Pg. 4 of Manual) to full and run approximately ½ gal of

each to allow the air to purge out of all the lines then dispose of these solutions.

14. Replace the containers and turn the dial (Item #3 on Pg. 4 of Manual) to full, watching

the first cycle to insure the proper fill of the bottles. The bottles should fill to the base of

the handle.

15. If the fill is too high or too low please call Viking Pure, your distributor or your sales

representative and they will assist you on adjusting the fill volume.

16. Turn the dial to the full setting and watch the next fill cycle to insure proper settings

When required amount of product is obtained, turn the power off and it will be ready for the next

cycle when required just turn the power on and start Sailing with us Toward a Greener and Safer

Tomorrow.
