Installation
GUIDE
Range / Rangetop
Rear Island Trim / Backguard / High Shelf Accessories
Range Curb Base Fronts
2
Rear Trim Accessories
MODELS BACKGUARD HIGH SHELF CURB BASE
VGIC5301
VGCC530
C/VDSC530
C/VESC530
C/VISC530
VGRT530
C/VER530
C/VIR530
P30BG8SS B304H24SS P30CBF4SS
N/A
VGCC536
C/VDSC536
VGRT536
P36BG8SS B36HS24SS P36CBF4SS
N/A
VGCC548
C/VDSC548
VGRT548
P48BG8SS B48HS24SS P48CBF4SS
N/A
VGCC560
C/VDSC560
P60BG8SS B60HS24SS P60CBF4SS
VGR530
C/VDR530
VRT530
BG8530SS HS24530SS P30CBF4SS
VGR536
C/VDR536
VRT536
BG8536SS HS24536SS P36CBF4SS
VGR548
C/VDR548
VRT546
BG8548SS HS24548SS P48CBF4SS
VGR560
C/VDR560
BG8560SS HS24560SS P60CBF4SS
C/RVER3301 RD30BG6SS N/A P30CBR4SS
RVGR3301
RVDR3301
RD301BG6SS N/A P30CBR4SS
3
Rear Trim Accessories
All rear trim devices are installed in the same basic way.
ATTACHING REAR TRIM (Illustration I)
Grasp the trim on each end and carefully place in the channels (B) located at each rear corner of the product. Align the screw holes
(A) at each end of the trim device with the holes (A) in each rear channel of the product. Secure with the 4 enclosed screws.
A
BB
B
A
B
A
X
RANGETOP
REAR VIEW
RANGE
REAR VIEW
ATTACHING SHELF ON HIGH -SHELF (Illustration 2)
HIGH SHELF
Place the top rolled edge (X) over the front lip of the high-shelf back trim and secure with the 4 enclosed screws, two at each end.
CAUTION: Do not place heavy pans and pots on the High Shelf or light ammables liquids.
WARNING
To reduce the risk of re or injury to persons,
check to make sure all packaging has been
removed from the outside and inside parts
of the rear trim device before installing.
MAKE SURE ALL CORRUGATED MATERIAL IS
REMOVED FROM INSIDE THE HIGH SHELF.
4
Rear Trim Accessories
ATTACHING BACKGUARD (Illustration 3)
Backguards come equipped with Nylon Spacers (See Figure 1), which are needed to space the range o a combustible wall a
prescribed safe distance.
Figure 1
Figure 2
Note: If the back wall is Non-Combustible,
these spacers can be removed. (See Figure 2)
These spacers can also be removed if used with any of the models*
listed below:
• C/VGCC530
• C/VDSC530
• C/VDSC536
• C/VGRT530
• C/VGRT536
*If you have one of these models, the spacers are not
required, even if with a combustible wall.
C/VGCC560 ranges require that two 1”stando spacers be attached to the back of the range when using a range with a backguard
against a combustible surface. (See Figure 3)
Figure 3
Once you determine whether or not your product needs the provided spacers, the backguard is ready to be attached. Simply slide
the backguard down onto the rear of the unit behind the spacers and attach using the (4) screws provided.
5
ATTACHING ISLAND TRIM (Illustration 4)
A
IMPORTANT: USE OF ISLAND TRIM WITH AND WITHOUT 6” (15.2 CM) CLEARANCE.
Normal installation for island trim on either a range or rangetop is in an island/peninsula or where there is a minimum clearance of
6”(15.2 cm) to any type of wall at the rear of the unit. Ranges and rangetops with an island trim installation can be installed at zero
clearance to the rear wall as long as the wall is non-combustible. The responsibility for ensuring that the rear wall is non-combus-
tible and heat resistant lies with the individual owner and/or end user. Only in those cases where the island trim is installed with
6” (15.2 cm) of minimum clearance to a rear wall, or when a truly non-combustible material is used, will the warranty apply. In no
case will Viking Range, LLC accept responsibility for any claims which may result from heat damage against a rear wall, including
cosmetic damage. It is the total responsibility of the owner/end user to ensure that the material utilized in such applications is not
only non-combustible, but is also truly heat-resistant.
Rear Trim Accessories
6
CURB BASES
STANDARD CURB BASE FRONT
1. The standard curb base front (A) is completely assembled.
2. Remove the assembly from the carton and simply clip onto the front range legs.
3. The assembly is adjustable about 2” (5.1 cm) front to back so that alignment with the cabinet toe front is possible. Loosen
brackets on each side, but allow snug t. Clip assembly onto range legs; determine front to back setting; remove, tighten bolts,
and reattach.
A
ALTERNATE CURB BASE VIEW
FOR CUSTOM RANGES
Important Note: The range must be installed as specied in the range installation guide for proper airow when using
the standard curb base.
7
B
C

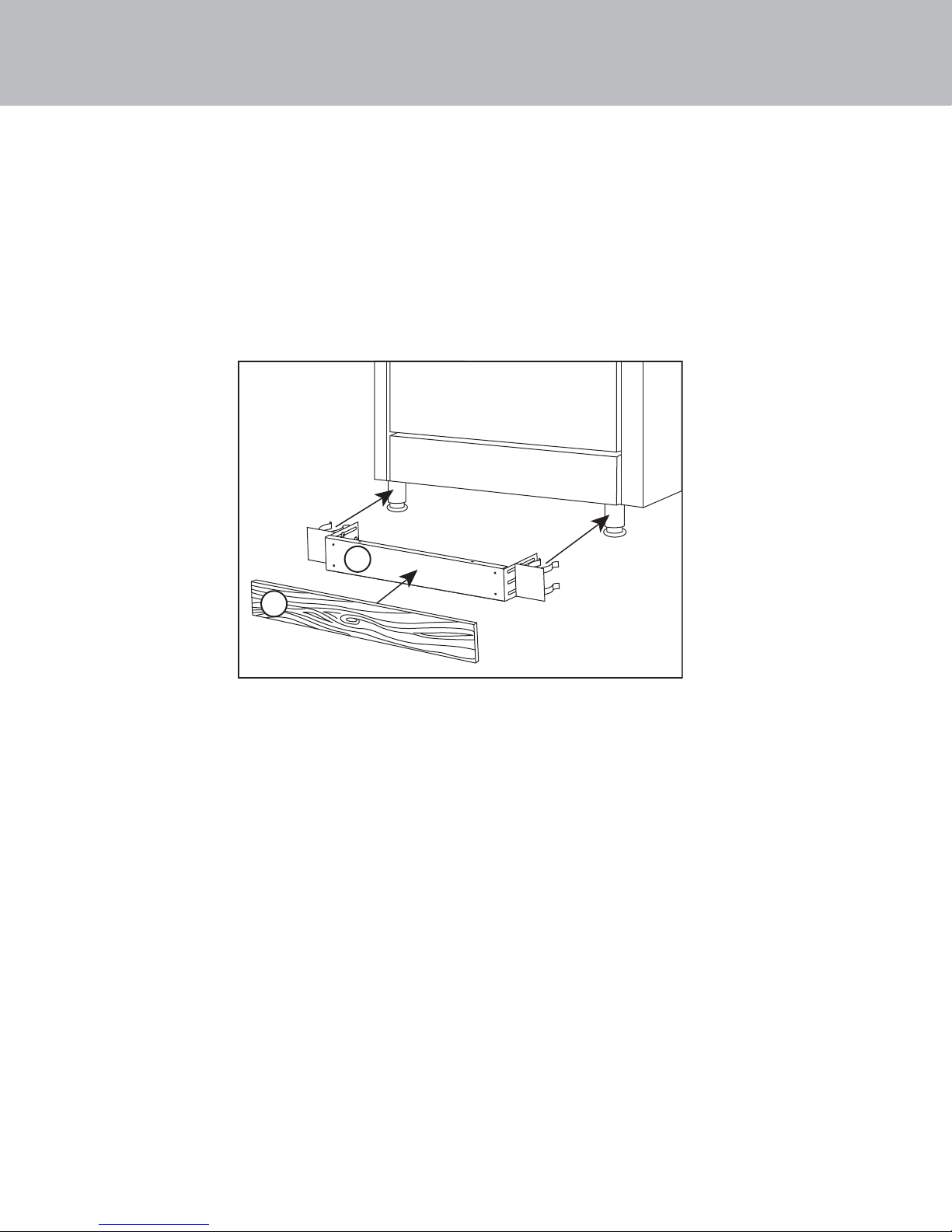

CUSTOM CURB BASE FRONT
1. Remove the standard curb base front assembly from the carton.
2. Remove the front (A) from the mounting assembly (B).
3. Attach locally supplied front (C) to the mounting assembly (B) ad simply clip onto the front range legs.
Important Note: The locally supplied front must not be any taller than 3-1/8” (7.9 cm) tall. Fronts taller than 3-1/8” (7.9 cm) could
obstruct the airow.
4. The assembly is adjustable about 2” (5.1 cm) front to back so that alignment with the cabinet toe front is possible. Loosen brack-
ets on each side, but allow snug t. Clip assembly onto range legs; determine front to back setting; remove, tighten bolts, and
reattach.
CURB BASES
Important Note: The range must be installed as specied in the range installation guide for proper airow when using
the standard curb base.
Viking Range, LLC
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For additional product information, call 1-888-845-4641 or visit our website at vikingrange.com
F1448R (100118)
