Viking C-1000B Kurzanleitung zur Einrichtung

5 Easy Ways

1-8-08

DOD # 886

to integrate Viking video entry

phones with your home TV or PC

www.vikingelectronics.com • Info..715.386.8861

help@vikingelectronics.com • FaxBack...715.386.4345

Answer the door

from any phone!

View the video on anyTV!

Composite

Video Input

*Holland Electronics

Model HMM-10H

Modulator

*HollandElectronics

Model GHS-2

Combiner/Splitter

Input Signal from

CATV Distribution

Viking Model C-200

Door Entry Controller

DOD # 169

Telephone Line

House Phones

Digital Cable TV (with cable set top box) /

Video Door Entry Application

Audio

High Pass

Filter

Television

Cable Set Top Box

CATV / Antenna

Input

CATV

Input

Output

(to TV)

*Holland Electronics

Model HPF-230

230 mHz High Pass Filter

(2) 90 degree connectors

(not included)

1-8-08

* For more information on Holland Electronics products,

visit: www.hollandelectronics.com

RF Output

GHS-2

Viking Model E-50

Video Entry Phone

DOD # 191

This video application

also applies to these

Viking video entry phones:

Model DOD#

E-35 178

K-1705-3 159

(requires C-2000A controller)

W-3005 181

(requires C-1000B controller)

Viking Model E-50

Video Entry Phone

DOD # 191

This video application

also applies to these

Viking video entry phones:

Model DOD#

E-35 178

K-1705-3 159

(requires C-2000A controller)

W-3005 181

(requires C-1000B controller)

Viking Model C-200

Door Entry Controller

DOD # 169

Telephone Line

House Phones

Analog Cable TV (no cable box) / Video Door Entry Application

Composite

Video Input

Holland Electronics

Model HMM-10H

Modulator*

Audio

* For more information on Holland Electronics products, visit: www.hollandelectronics.com

Television

CATV

Input

1-8-08

Holland Electronics

Model GHS-2

Combiner/Splitter*

Input Signal from

CATV Distribution

RF Output

Viking Model E-50

Video Entry Phone

DOD # 191

This video application

also applies to these

Viking video entry phones:

Model DOD#

E-35 178

K-1705-3 159

(requires C-2000A controller)

W-3005 181

(requires C-1000B controller)

Viking Model C-200

Door Entry Controller

DOD # 169

Telephone Line

House Phones

Satellite TV / Video Door Entry Application

Composite

Video Input

Audio

Satellite Receiver

Television

Antenna / RF Input

1-8-08

Holland Electronics

Model HMM-10H

Modulator*

* For more information on Holland Electronics products, visit: www.hollandelectronics.com

RF Output

Viking Model E-50

Video Entry Phone

DOD # 191

This video application

also applies to these

Viking video entry phones:

Model DOD#

E-35 178

K-1705-3 159

(requires C-2000A controller)

W-3005 181

(requires C-1000B controller)

Viking Model C-200

Door Entry Controller

DOD # 169

Telephone Line

House Phones

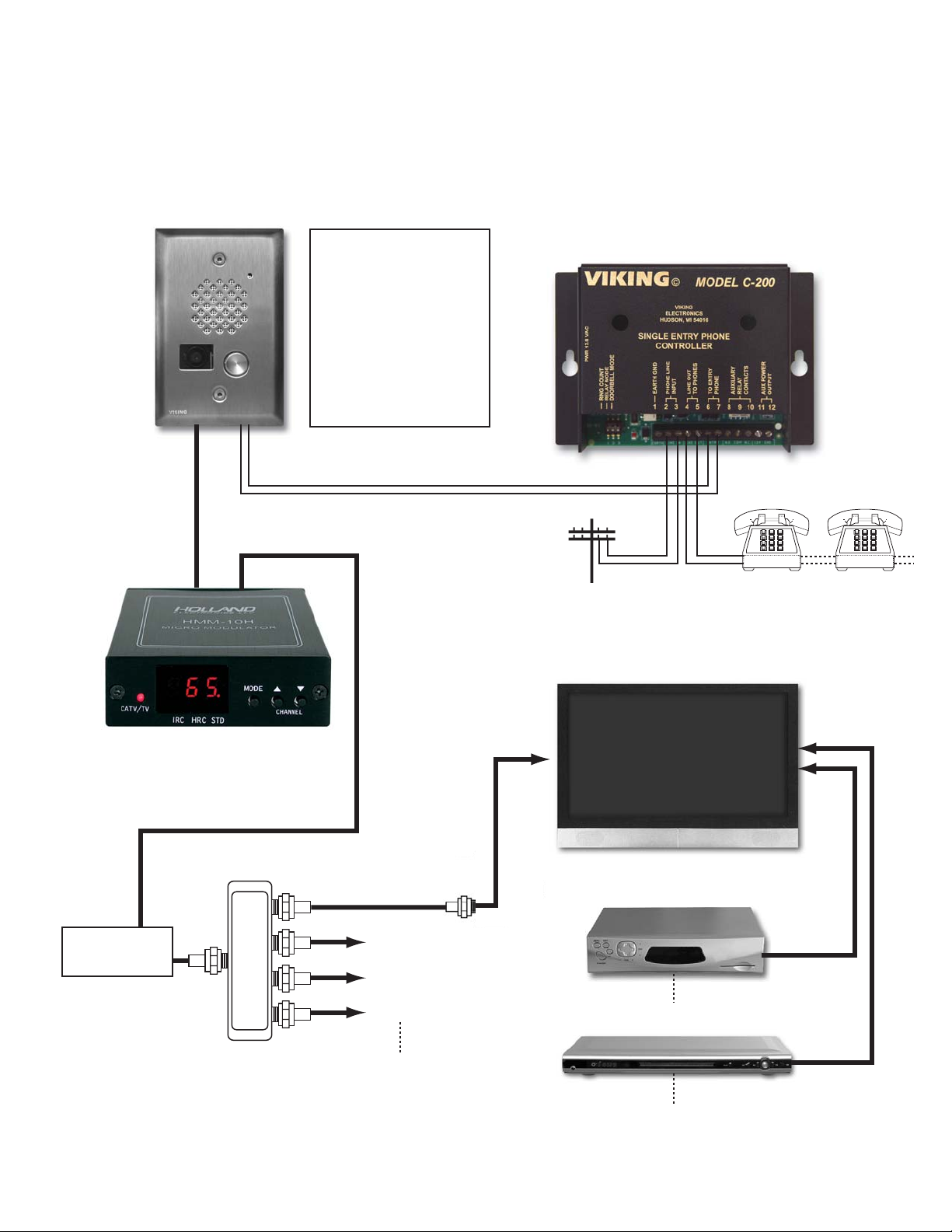

Using PIP (Picture In Picture) on Your TV to See

Who is at the Door throughout the Home

Composite

Video

Audio

Satellite Receiver

Television

Set PIP source input to "Ant", tune

PIP "Ant" input to modulated channel.

Living Room

1-8-08

Family Room

Dining Room

Bedroom DVD Player

Etc.

CATV / Ant

RF Input

Splitter

CATV / Ant

RF Input

Holland Electronics

Model HMM-10H

Modulator*

* For more information on Holland Electronics products, visit: www.hollandelectronics.com

** May be required when splitting to more than 4 locations.

** Optional RF

Amplifier

*Holland Electronics

Model HDA-30

RF Amplifier

*Holland Electronics

Model GHS-4

Splitter

Viking Model C-2000A

Door Entry Controller

DOD # 156

Monitor Who is at Your Door/Gate on Your

Receptionist's Computer Monitor

* For more information on Axis Communications products, visit: www.axis.com

1-8-08

PoE Switch

Facilitate the installation by

powering the video server via a

Power over Ethernet-enabled

switch. Optionally secure the

system with a Uninterruptible

Power Supply (UPS).

Monitor the

K-1705-3

camera remotely

over the WAN or

Internet network.

Receptionist PC

with video management

software (included with

Axis 247S). Monitor,

record and play back

video.

INTERNET

Network

(PoE)

Composite

Video Out

RG59 or

RG6 Cable

Video In

(BNC Connector)

*Axis

Communications

Model 247S

Video Server

Doorstrike/

Magnetic Lock

Viking Model K-1705-3

Video Entry Phone with Keypad

(shown in optional VE-6x7)

DOD # 159

Camera

Power

Unused Line/

Trunk Input on

Phone System

(PABX/KSU)

How it Works:

The receptionist can simply answer the call from the

entrance, check their computer monitor to verify

identity then enter a touch tone command on the phone

to activate the doorstrike or gate.

Step 1. Connect the power, required entry phones and doorstrike

outputs (if required).

Step 2. Connect the unused phone system (PABX/KSU line/trunk

port to terminals 4 & 5, “LINE OUT TO PHONES" on the

C-2000A.

Step 3. Access programming. Enter *5, two beeps should be heard.

Step 4. Enter additional desired programming, then hang-up the

phone and place DIP switch 2 back to the OFF position.

C-2000A Programming Steps Required when Connecting

to a Phone System's Unused Line Input:

This video application also applies

to these Viking video phones:

Model DOD#

E-35 178

E-50 191
