Viking W-1000 Gebrauchsanweisung

W-1000

W-2000A

Handsfree Doorboxes

August 1, 2001

Power: 120V AC/13.8V AC 1.25A UL listed adapter provided

Dimensions: W-1000 - Overall - 127 x 127 x 57 mm (5.0 x 5.0

x 2.25”), Plastic Electrical Box - 102 x 102 x 57mm (4 x 4 x

2.25”), W-2000A - 140 x 115 x 38mm (5.5” x 4.5” x 1.5”).

Shipping Weight: W-1000 - 1.36 kg (3 lbs), W-2000A - .75 kg

(1.5 lbs)

Connections: (4) position screw terminal strip

Ringer Output: 3.0 REN, 20Hz

Ring Cadence: 1 second ON, 3.5 seconds OFF

Maximum Loop Length: 1.9 Km (6300 ft) - 24 AWG twisted pair

Maximum Power Run: 45.7 m (150 ft) - 24 AWG twisted pair

Answer Your Door or Gate From Any Phone

in Your Home or Office

Now you can answer your door or gate from the safety of

your telephone!

The W-1000 (flush mount) and W-2000A (surface mount)

doorboxes are designed to be installed on the unused tele-

phone line input of nearly any phone system. One or two

doorboxes can also share an

existing residential phone line

when used in combination with a

C-1000A doorbox controller.

TECHNICAL

s• Commercial, industrial and residential door

security

• Door or gate communication

• Use with the C-1000A controller for single line

residential systems or when the operation of

door strikes or gate openers is necessary

• W-1000: Vandal resistant, black powder

painted, aluminum faceplate with heavy duty

call button and mounting gaskets

• W-2000A: Ash colored, impact resistant, UV

stable, plastic chassis

• 24 volt talk battery

• 20 Hz ring generator (3.0 REN)

• Handsfree VOX operation

• Adjustable maximum number of rings (1 to

approximately 7)

• Microphone volume adjustment

• Compact 45° terminal strip for easy wiring

• Optional surface mount box (VE-5x5) avail-

able for the W-1000

When the Push To Call button is pressed, the doorbox gen-

erates a standard ring cadence for an adjustable number of

rings. To converse with the visitor, the inside party simply

answers the call from the phone of their choice.

W-1000

W-2000A

Q170200

100½ 0.5W

Call

VIKING©

A. Adjusting the Maximum Number of Rings

The W-1000/2000A can be adjusted to output a ring signal from 1 to approximately 7 rings. Turn the “RING ADJ” poten-

tiometer clockwise to increase the maximum number of rings as shown above.

Note: Test the unit after each potentiometer adjustment to determine if the desired number of rings was achieved.

Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or

subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate

such changes.

Fax Back Doc 170

ZF301390 Rev D

Printed in the U.S.A.

Caution: When warm air comes in contact with cold surfaces, such as out-

side walls and conduits, it causes condensation. To prevent condensation and

moisture from accumulating inside the W-1000 always bring conduit into the

bottom of the unit. Otherwise drill a 1/4” diameter hole in the bottom of the

gray plastic box for drainage.

Note: The W-1000 will NOT mount to a standard double gang box.

Note: When using the large foam gasket (flush mounting), peel off the paper

liner and adhere gasket to the back of the faceplate, centering over the four

corner mounting holes.

Call

B. Adjusting the Microphone Volume

In certain noisy locations (background traffic, machinery or wind), the microphone volume may need to be decreased.

A symptom of this is one-way talk path, in which the distant party cannot be heard over the speaker. A “MIC VOL”

adjustment is provided on the W-1000/2000A for increasing or decreasing the microphone sensitivity.

Notes: If the microphone volume is set too high or too low, one-way talk path may occur. For extremely noisy envi-

ronments, use the W-3000 (Fax Back Document 180).

RING ADJ

MICVOL

VIKING© MODEL C-1000A

VIKING

ELECTRONICS

HUDSON,WI 54016

DOOR ENTRY/PAGING

CONTROLLER

POWER 13.8V AC

LINE IN PHONES STATUS

AUX. CONTACT

OUTPUT

DOOR

STRIKE 1

DOOR

BOX 1

DOOR BOX

POWER

DOOR

BOX 2

DOOR

STRIKE 2

34567891011

-or-

C.O. Line C-1000A

120V AC

13.8V AC

Standard PVC

electrical box

(Carlon part #

E989NNJ - included)

Large foam or small

rubber gasket

(included)

Important: Do NOT install a W-1000 or a W-2000A on a telephone line without a C-1000A (Fax Back Document 155).

RING ADJ

MIC VOL

Single Line

non-KSU phone

Unused PABX/KSU

trunk input

Mount back panel to a wall, a sin-

gle gang box or a 4”x4” junction

box with the arrow pointing up.

3.63”

Typical

3.40”

1.55”

3.30”

2.35”

3.40”

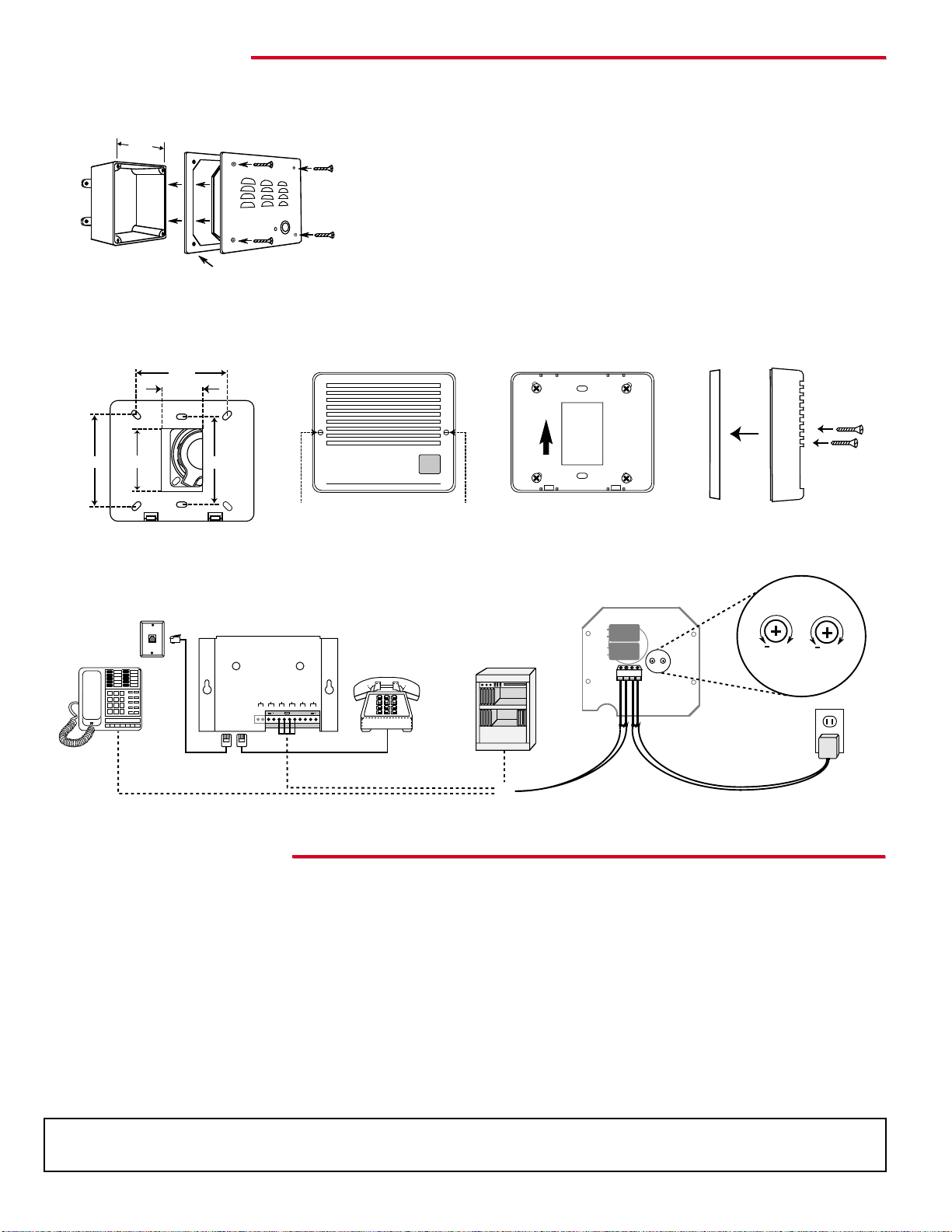

A. Mounting the W-1000

B. Mounting the W-2000A

C. Wiring the W-1000 or the W-2000A

Side view of the W-2000A

W-1000 and W-2000A Terminals

shown from back

Attach the cover to the base

with the two included screws

as shown.

Front view of the W-2000A Back panel of the W-2000A

To open the speaker box,

remove the two screws from the

cover.

Multi-Line

Phone

Note: Retrieve Fax Back Document 155 for residential installation information on the C-1000A.
