Viking DrawerMicro Designer DMOD240SS Bedienungsanleitung

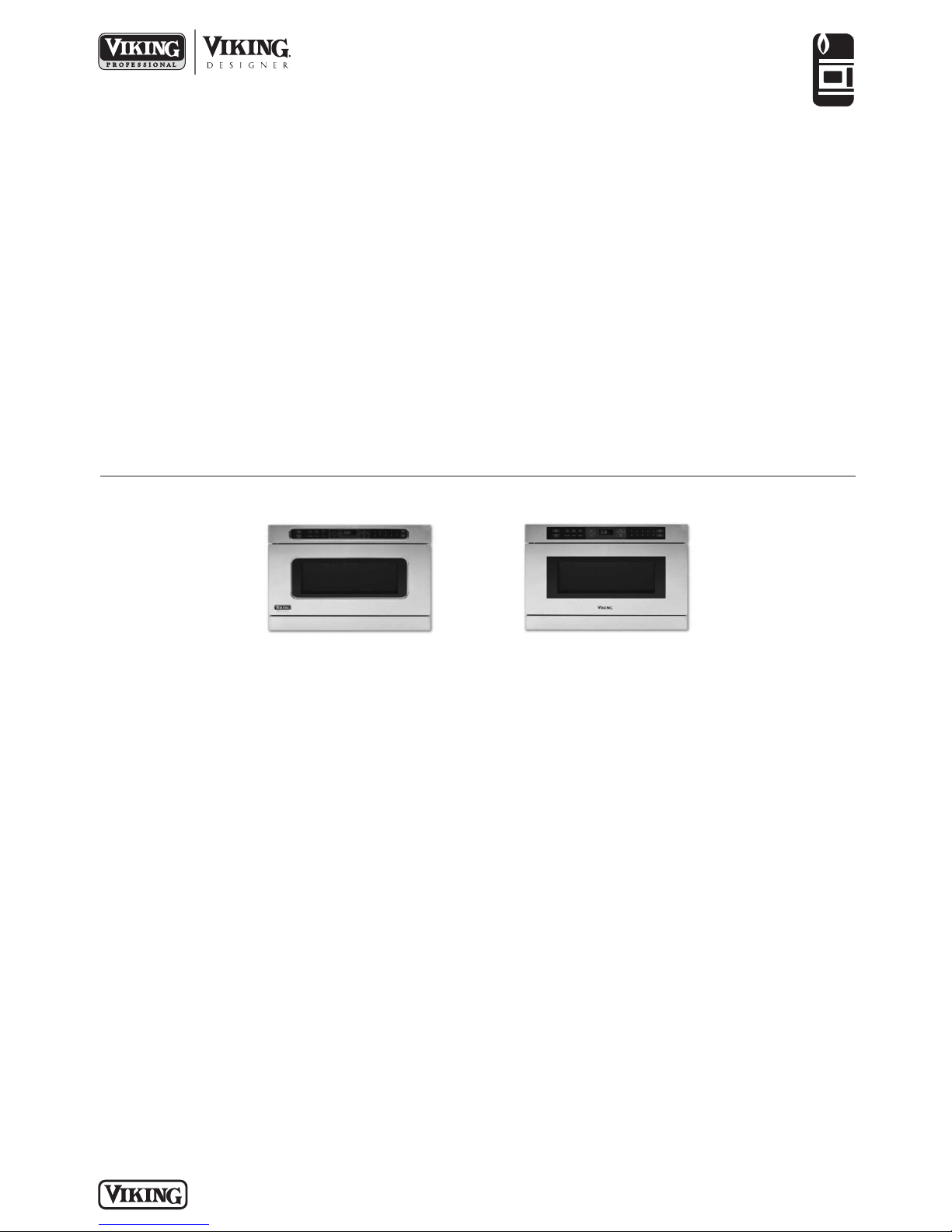

FINISH DETAILS FOR ALL MODELS

• Stainless Steel (SS)

VMOD240

Professional

DMOD240

Designer

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 5/01/08

All models include

• Capacity—1.0 cu. ft.

o 17-11/32"W. x 5-7/8"H. x 17-1/8"D.

• Commercial type-styling and design

• Digital LCD display

• 11 Sensor settings

• Sensor popcorn/sensor reheat

• Automatic defrost

• Add-a-minute allows you to add a

minute to cooking time by simply

touching a button

• Warm/hold feature allows you to keep

food warm for up to 30 minutes

• Child lock safety feature locks the

control panel to prevent unwanted

operation

• Timer function

• Place undercounter below cooktop,

rangetop, or as stand-alone unit

Standard Features & Accessories

Model Options

COOKING

Undercounter DrawerMicro™ Oven

23-7/8”

(60.6 cm)

15-5/8”

(39.7 cm)

14-19/32”

(37.1 cm)

4-11/16”

(11.9 cm)

21-19/32”

(54.8 cm)

1-23/32”

(4.4 cm)

23-3/8”

(59.4 cm)

25-1/8”

(63.8 cm)

1-3/4”

(4.4 cm)

23-7/8”

(60.6 cm)

15-5/8”

(39.7 cm)

14-19/32”

(37.1 cm)

4-11/16”

(11.9 cm)

21-19/32”

(54.8 cm)

1-23/32”

(4.4 cm)

23-3/8”

(59.4 cm)

25-1/8”

(63.8 cm)

1-3/4”

(4.4 cm)

VMOD240

Professional

DMOD240

Designer

COOKING

Undercounter DrawerMicro™ Oven

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 5/01/08

VMOD240 DMOD240

Overall width 23-7/8” (60.6 cm)

Overall height (from bottom) 15-5/8” (39.7 cm)

Overall depth (from rear) 25-1/8 (63.8 cm)

Interior

Width 17-11/32” (44.1 cm)

Height 5-7/8” (14.9 cm)

Depth 17-1/8” (43.5 cm)

Approx. ship weight 103 lb. (46.7 kg)

Dimensions & Specifications

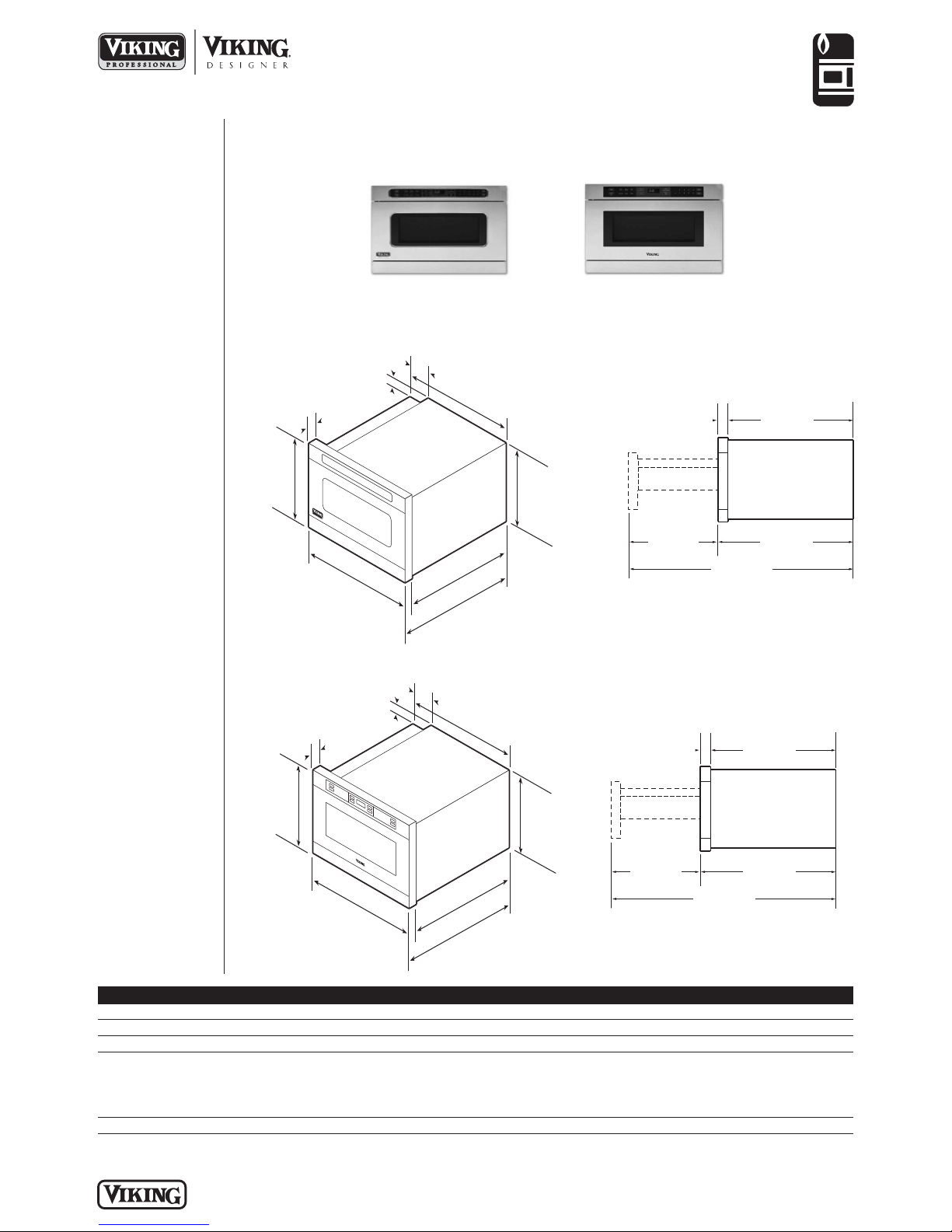

PRODUCT DIMENSIONS & DRAWER EXTENSION

PROFESSIONAL

DESIGNER

40-1/8”

(101.9 cm)

25-1/8”

(63.8 cm)

23-3/8”

(59.4 cm)

1-3/4”

(4.4 cm)

15”

(38.1 cm)

40-1/8”

(101.9 cm)

25-1/8”

(63.8 cm)

23-3/8”

(59.4 cm)

1-3/4”

(4.4 cm)

15”

(38.1 cm)

VMOD240

Professional

DMOD240

Designer

COOKING

Undercounter DrawerMicro™ Oven

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 5/01/08

All models

Cutout width 22-1/8” (56.2 cm)

Cutout height 14-13/16” (35.1 cm)

Cutout depth 23-1/2” (59.7 cm) min.

GAS

• Not applicable

ELECTRICAL

• 120 VAC/60 Hz

• Three-pronged

grounding plug

• Maximum amp

usage—

o VMOD—

14.5 (31.7 kW)

o DMOD—

14.5 (31.7 kW)

PLUMBING

• Not applicable

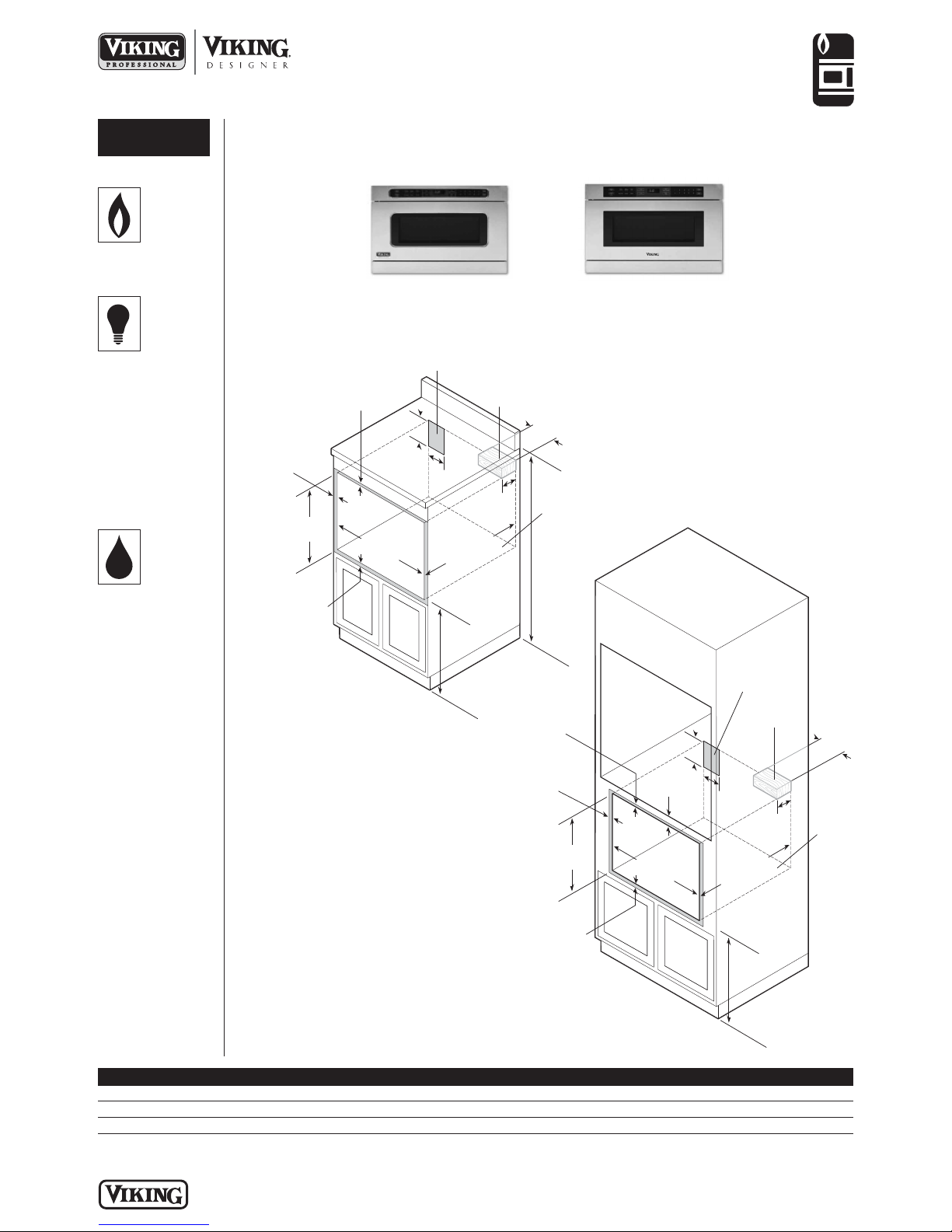

Installation Requirements

ACCESS REQUIREMENTS

UTILITY

REQUIREMENTS

36”

(91.4 cm)

14-13/16”

(37.6 cm)

22-1/8”

(56.2 cm)

4”

(10.2 cm)

4”

(10.2 cm)

4”

(10.2 cm)

Allow 3/4” (1.9 cm)

overlap (each side)

Allow 3/4” (1.9 cm)

overlap (each side)

Allow 3/4” (1.9 cm)

overlap (each side)

Allow 3/16” (0.5 cm)

overlap

Allow 7/16” (1.1 cm)

overlap

Allow 7/16” (1.1 cm)

overlap

Allow 7/16” (1.1 cm)

overlap

Anti-tip

block

Anti-tip

block

Floor must

support 100 lbs

(45.4 kg)

Floor must

support 100 lbs

(45.4 kg)

5”

(12.7 cm)

23-1/2”

(59.7 cm) min.

19”

(48.3 cm)

19”

(48.3cm)

19”

(48.3 cm)

6”

(15.5 cm)

6”

(15.5 cm)

6”

(15.5 cm)

3-1/2”

(8.9 cm)

3-1/2”

(8.9 cm)

3-1/2”

(8.9 cm)

Outlet

location

Outlet

location

14-13/16”

(37.6 cm)

22-1/8”

(56.2 cm)

4”

(10.2 cm)

4”

(10.2 cm)

4”

(10.2 cm)

Allow 3/4” (1.9 cm)

overlap (each side)

Allow 3/4” (1.9 cm)

overlap (each side)

Allow 3/4” (1.9 cm)

overlap (each side)

Allow 7/16” (1.1 cm)

overlap

Allow 7/16” (1.1 cm)

overlap

Allow 7/16” (1.1 cm)

overlap

Anti-tip

block

Anti-tip

block

Floor must

support 100 lbs

(45.4 kg)

Floor must

support 100 lbs

(45.4 kg)

5”

(12.7 cm)

2”

(5.1 cm) min.

23-1/2”

(59.7 cm) min.

19”

(48.3 cm)

19”

(48.3 cm)

19”

(48.3 cm)

6”

(15.5 cm)

6”

(15.5 cm)

6”

(15.5 cm)

3-1/2”

(8.9 cm)

3-1/2”

(8.9cm)

3-1/2”

(8.9 cm)

Outlet

location

Outlet

location

Allow 3/16” (0.5 cm)

overlap

Allow 3/16” (0.5 cm)

overlap

Allow 3/16” (0.5 cm)

overlap

Undercounter

Stack Configuration

COOKING

Undercounter DrawerMicro™ Oven

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 5/01/08

Compliance Information

WARRANTY INFORMATION*

• One-year full covers complete unit

• Five-year limited – magnetron tube

• Ninety-day limited – cosmetic parts such as glass, painted items, and decorative items

* For complete warranty see

Use & Care Guide

. Warranty valid on Viking products shipped within the United States and Canada.
